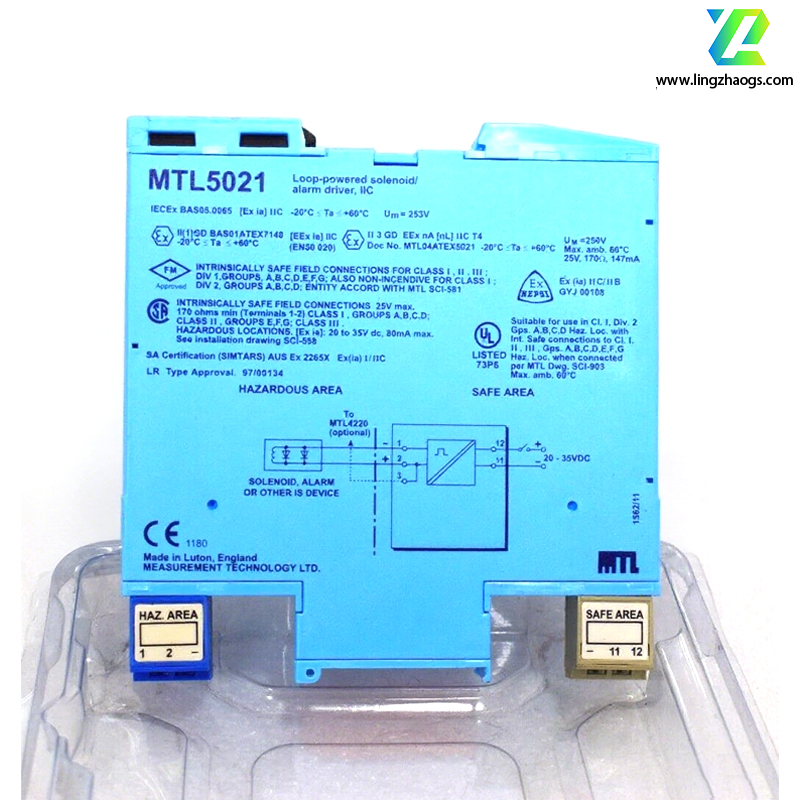

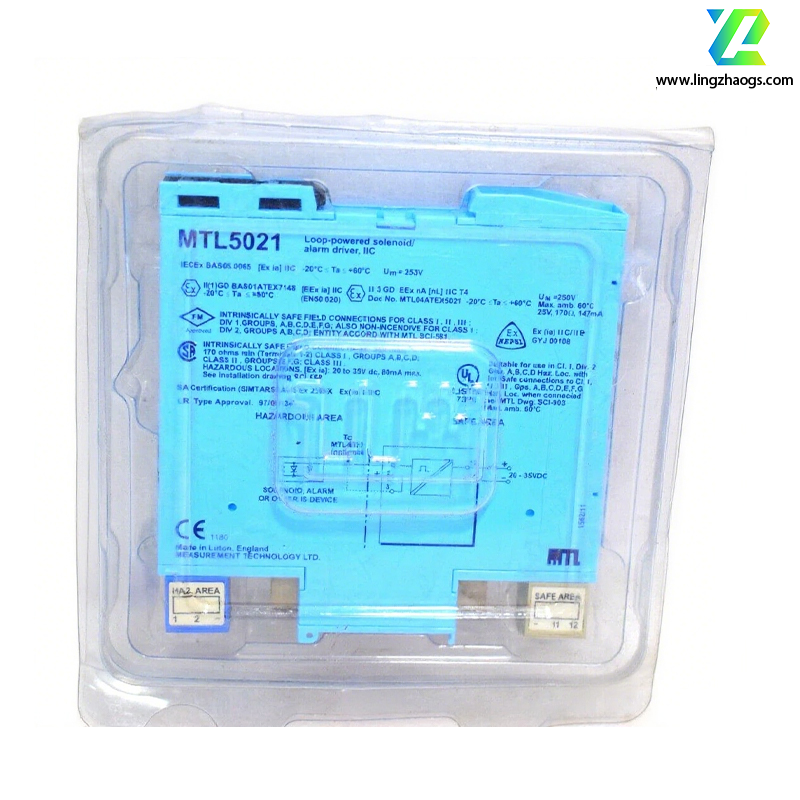

The MTL5021 is an isolating safety barrier. Below is its detailed introduction:
It features an intrinsically safe explosion-proof structure (i a), designed for installation in non-hazardous locations, and can be used in IIC group explosive gas environments.
- Intrinsically Safe Loop Parameters:
- Maximum voltage: 25V
- Maximum current: 147mA
- Maximum power: 0.92W
- Allowable capacitance: 0.17μF
- Allowable inductance: 1.32mH
- Allowable Voltage for Non-Intrinsically Safe Loop: AC 250V 50/60Hz or DC 250V
It adopts a single-channel design, with switching signals as output.
It uses a clamp-type mounting method and can be installed on a DIN rail. Simple plug-in terminal blocks are used for wiring in the safe area and hazardous area.
