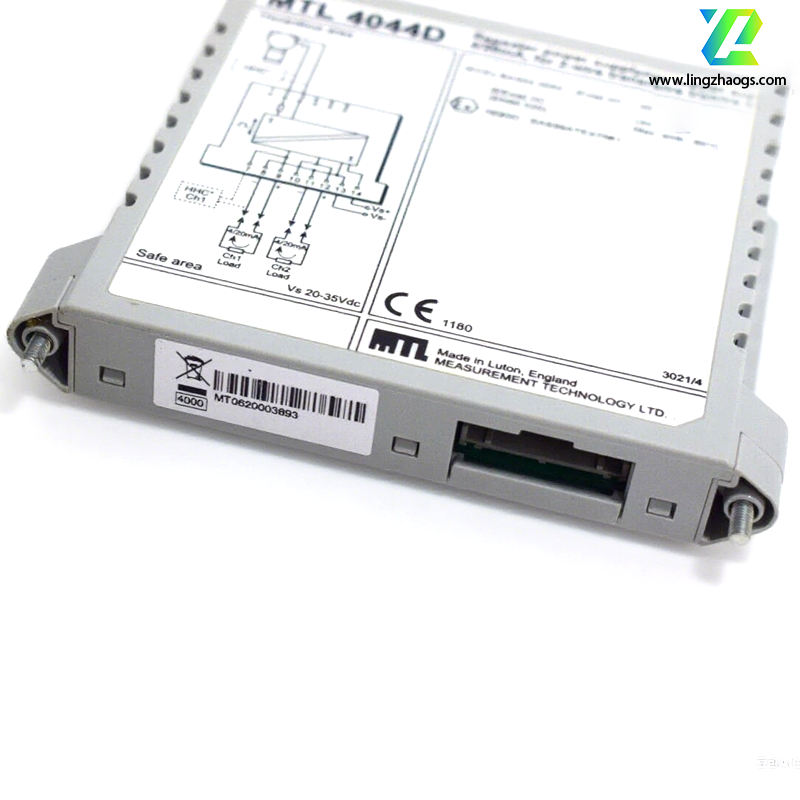

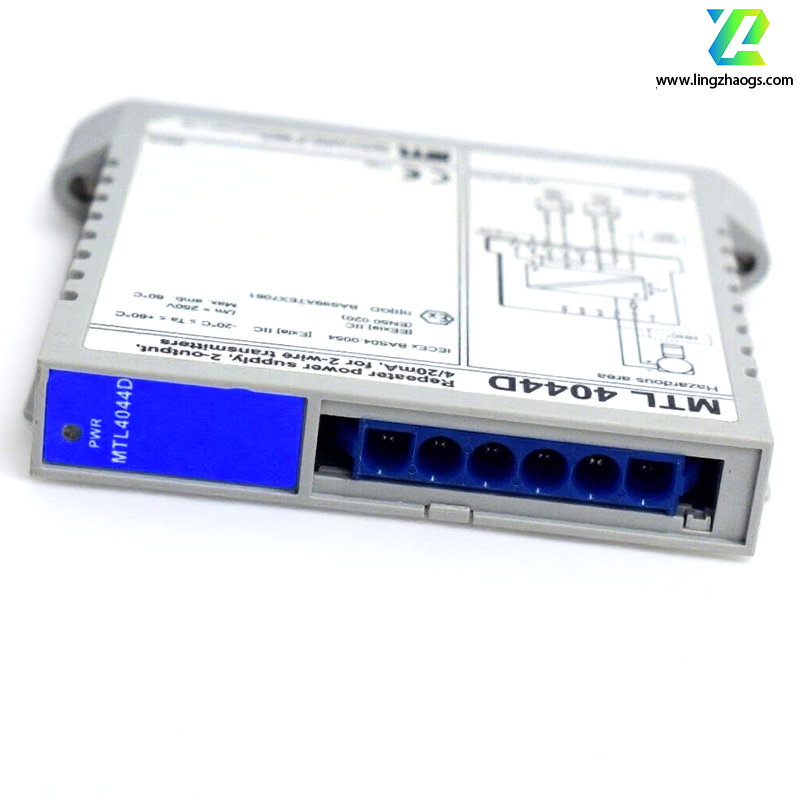

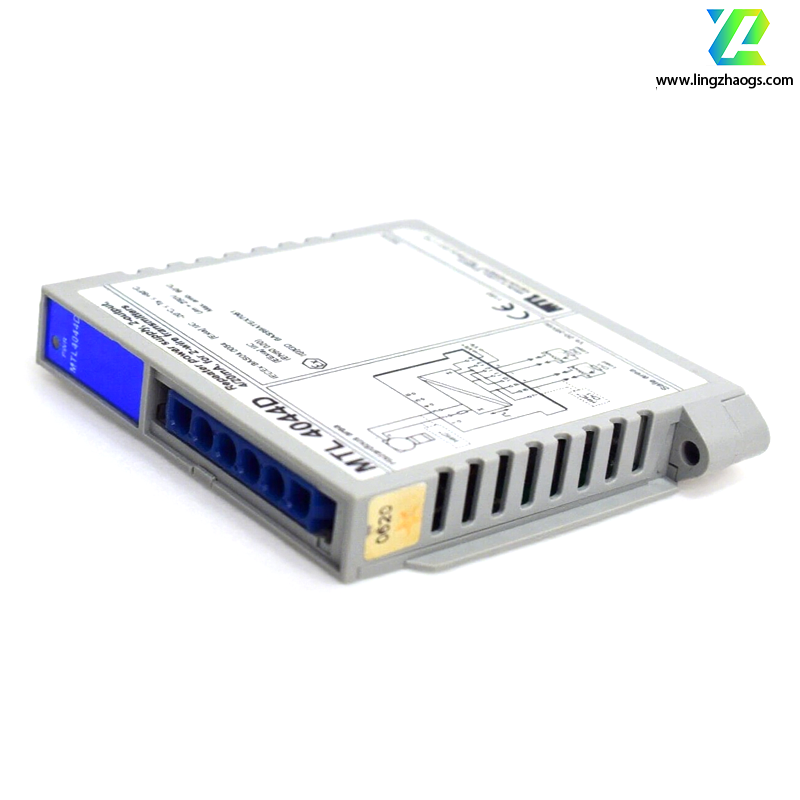

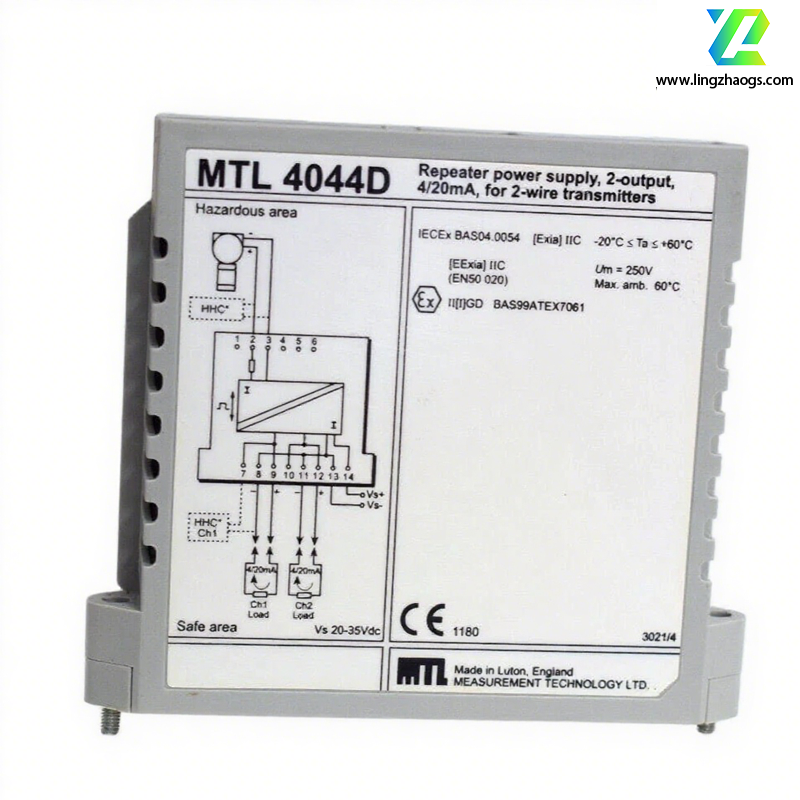

The MTL4044D is a 1-input 2-output isolated safety barrier that supports HART communication. Its specific characteristics are as follows:
- Input signal: 4-20mA
- Applicable to: 2-wire smart transmitters
- Output signal: 4-20mA
- Capability: Can drive two loads simultaneously
Conversion accuracy better than 20μA, enabling precise signal transmission
Isolation voltage between the safe area and hazardous area: 250V AC, ensuring the electrical safety of the system
Operating voltage: 20-35V DC, with a wide power supply range
Power consumption: 1.2W, featuring low energy consumption
