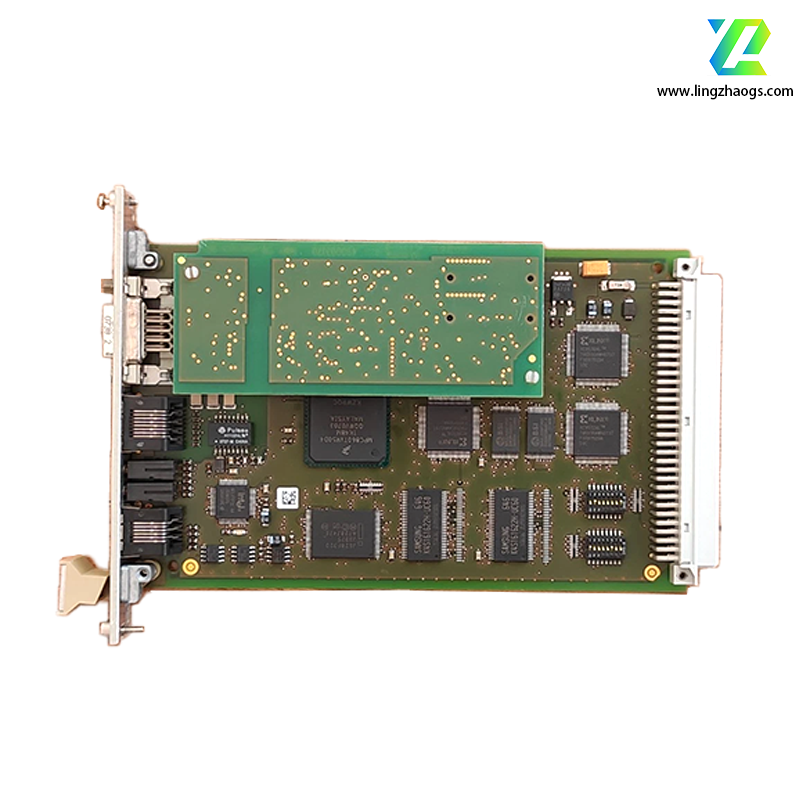

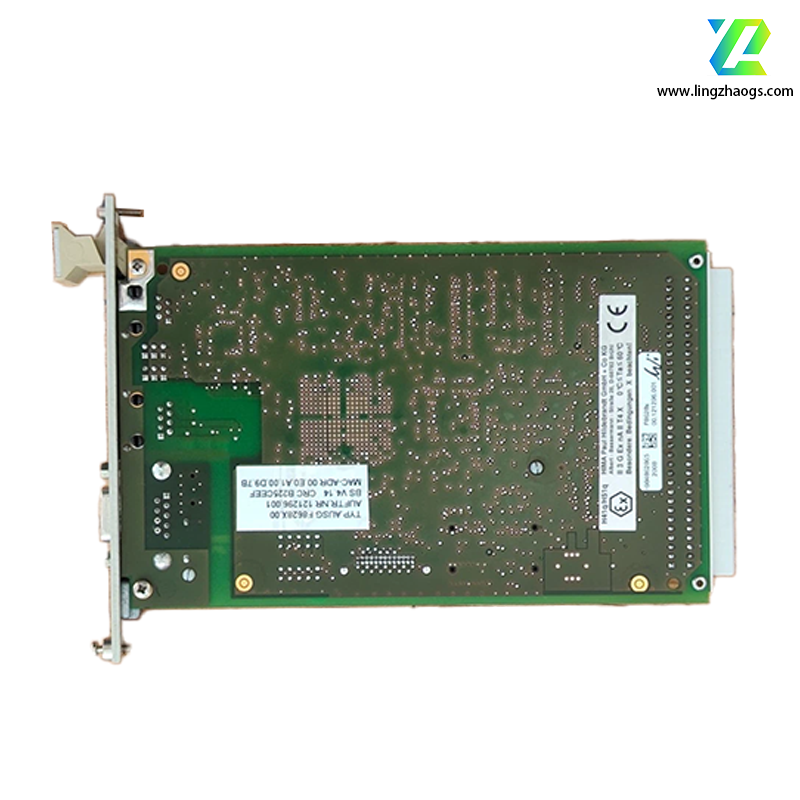

The HIMA F8628X is a communication module designed for safety instrument systems (SIS). Here is the detailed information:
- Manufacturer: HIMA.
- Type: Communication module.
- Country of Origin: Germany.
- Weight: 0.1 kg.
- Dimensions: 3 HU × 4 WU (approximately 44.45 mm × 5.08 mm).
- Safe Communication: It adopts the SafeEthernet proprietary protocol, providing one-way or two-way redundant channels to ensure the integrity and confidentiality of data during transmission.
- Functional Safety Integration: The module runs a dedicated operating system internally, and the fault-tolerant design ensures that the failure of any unit does not affect the overall safety function.
- Easy Integration: It conforms to the HIMA standard 3 HU × 4 WU specification and can be directly inserted into the HIMA Planar-System chassis.
- Multi-protocol Compatibility: It supports commonly used industrial protocols such as Modbus TCP, IEC 61850, and OPC UA, facilitating docking with upper-level systems or DCS.

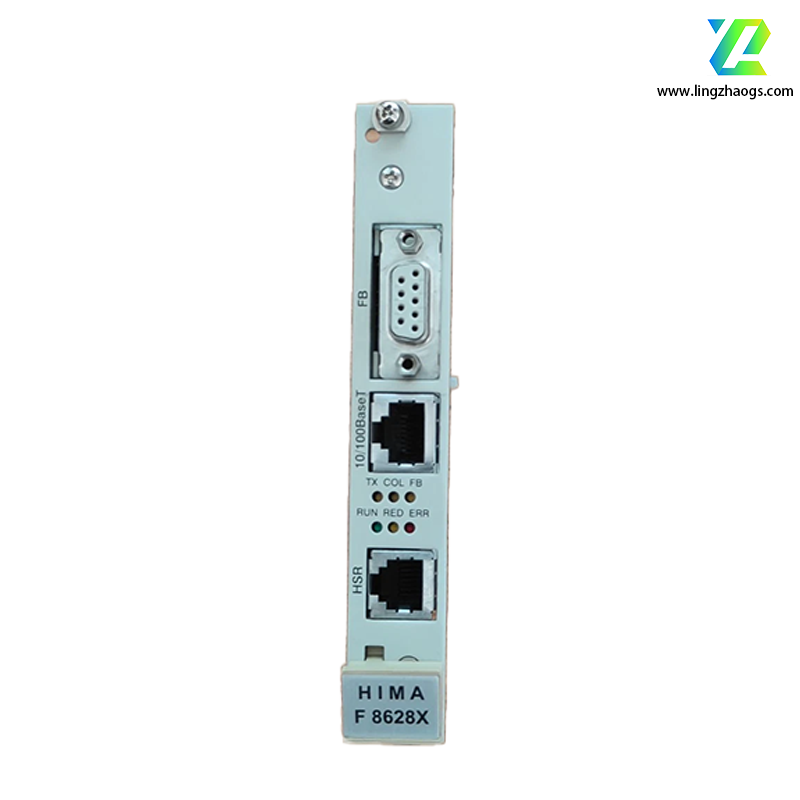

- Communication Interface: 10/100 Mbps Ethernet (RJ45).
- Supported Protocols: Modbus TCP, IEC 61850, OPC UA, SafeEthernet (proprietary).
- Power Supply: 24 V DC, input voltage 110 V–380 V, power 5 W–130 W.
- Operating Temperature: -25 °C to +55 °C.
- Redundancy Mode: Single-unit or dual-unit redundancy, realizing that a single-point failure does not affect the system operation.
- Certification: It complies with the IEC 61511 functional safety level SIL 2/3 and has passed the Wbdtech Achilles safety certification.
