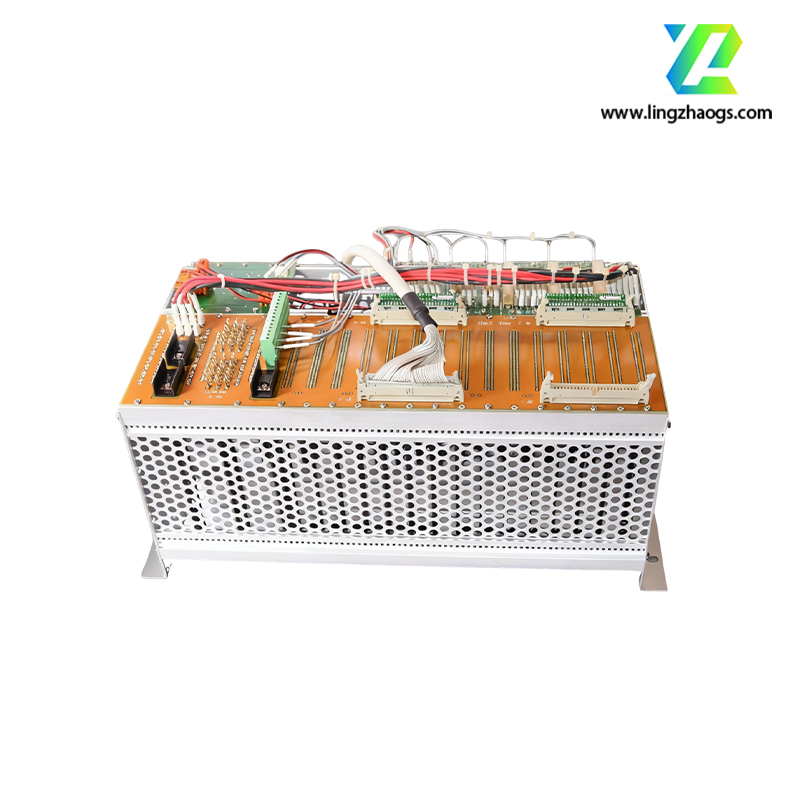

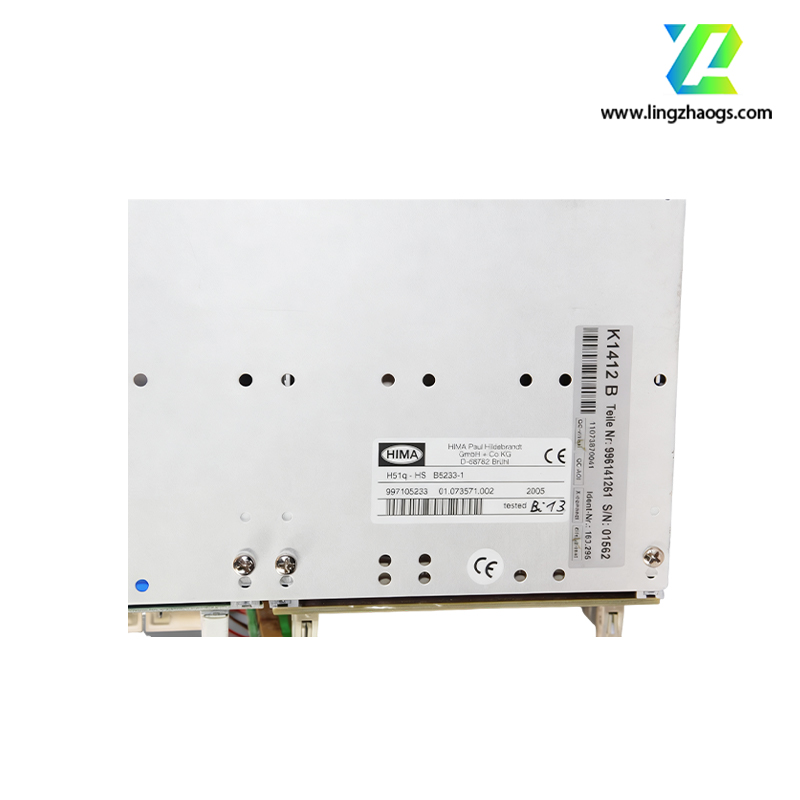

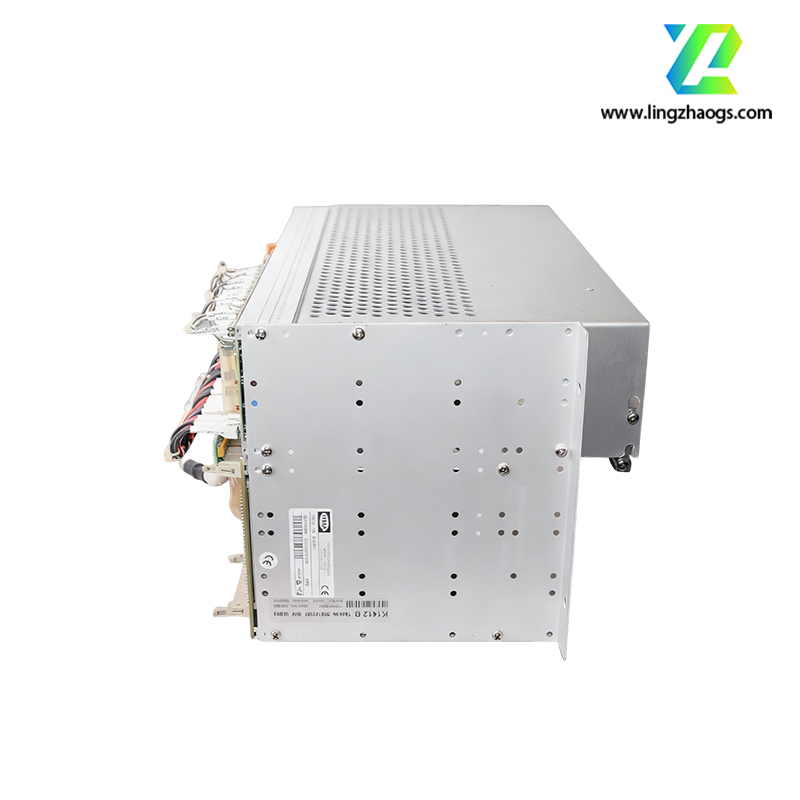

The HIMA H51Q-HS is a safety controller module used in industrial safety-critical applications. Here is its detailed information in English:
- Product Model: HIMA H51Q-HS
- Product Category: Safety Controller Module
- Manufacturer: HIMA Paul Hildebrandt GmbH & Co. KG
- Application Scope: Oil and gas, chemical, power generation, and other process industries, suitable for safety interlock control, emergency shutdown (ESD) systems, fire and gas detection systems, etc.
- Redundancy Design
- Adopts a quadruple modular redundant (QMR) CPU structure. The central control unit has four microprocessors, with every two microprocessors integrated into a CU module, and the central control unit is composed of two identical CU modules.
- Processing Performance
- Processor: 1 GHz ARM Cortex-A9 (estimated based on similar models)
- Memory: 1 GB DDR3 (estimated based on similar models)
- I/O Expansion
- Supports a wide range of HIMA I/O modules, including digital inputs, digital outputs, analog inputs, and analog outputs.
- The system can be configured with a single-channel bus.
- Communication Ports
- Supports Ethernet, RS485 communication interfaces. Ethernet ports may support 10/100 Mbps speeds and protocols like SafetyNET p, Modbus TCP.
- Operating Conditions
- Operating Temperature: -20°C to +60°C.
- Humidity: 5% - 95% (non-condensing).
- Vibration resistance: 0.5 g RMS, 10 Hz to 500 Hz (estimated based on similar models).
- Power Supply
- Input Voltage: 24 V DC.
- Power Consumption: Approximately 100 W (typical) (estimated based on similar models).
- Mechanical Specifications

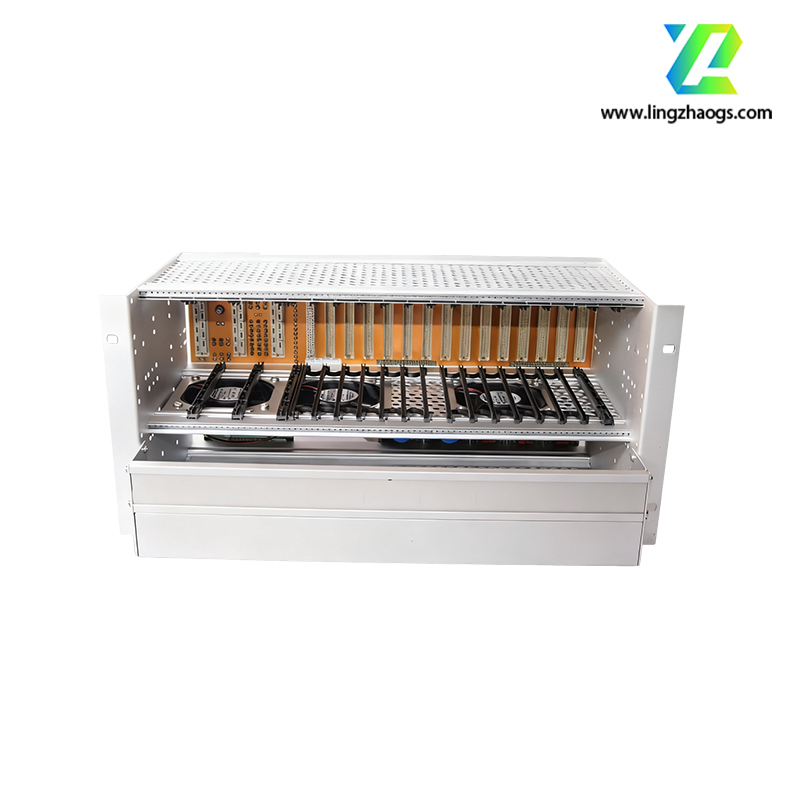

- Usually installed in a 19-inch rack, with a height of 5 units (HU).
- Protection & Certifications
- TÜV certified, compliant with SIL 3 according to IEC 61508.
- Also complies with CE, ATEX, and other relevant industrial standards (estimated based on similar models).
- High Safety Performance
- The QMR redundant design eliminates single - points of failure, ensuring continuous operation even when a module malfunctions.
- Safety diagnostic coverage (SFF) can reach up to 99%, providing reliable fault detection.
- Modular Design
- All modules in the system are hot - swappable, allowing for replacement without shutting down the system, which is convenient for maintenance and expansion.
- Fast Response
- Can achieve fast - speed safety logic execution, with a typical response time of less than 10 milliseconds, meeting the real - time response requirements of safety - critical systems.
- Easy to Configure and Program
- Compatible with HIMA's safety - related programming software, which enables intuitive programming, configuration, and safety validation.
