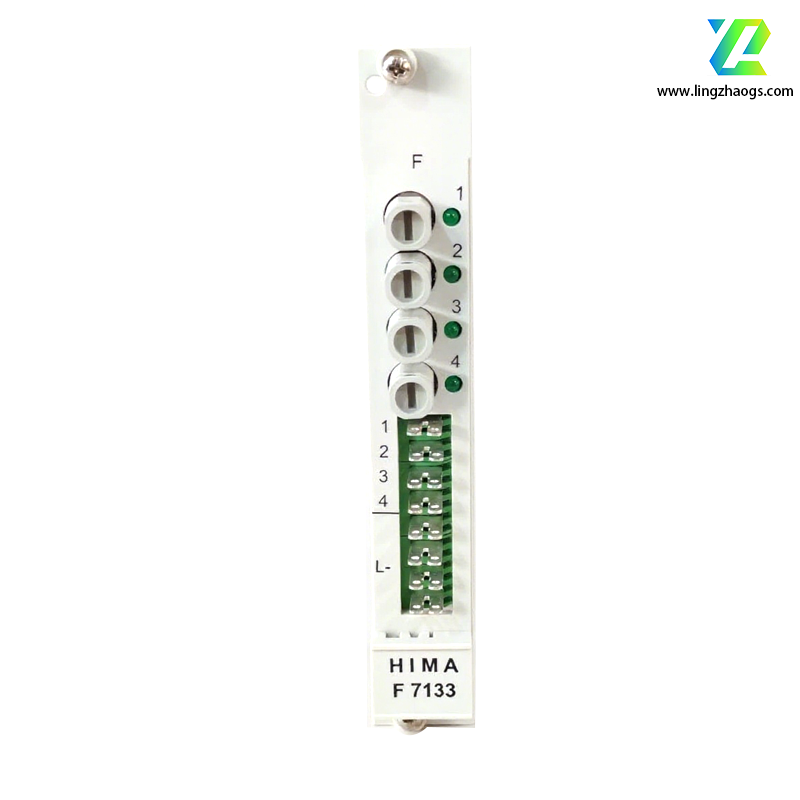

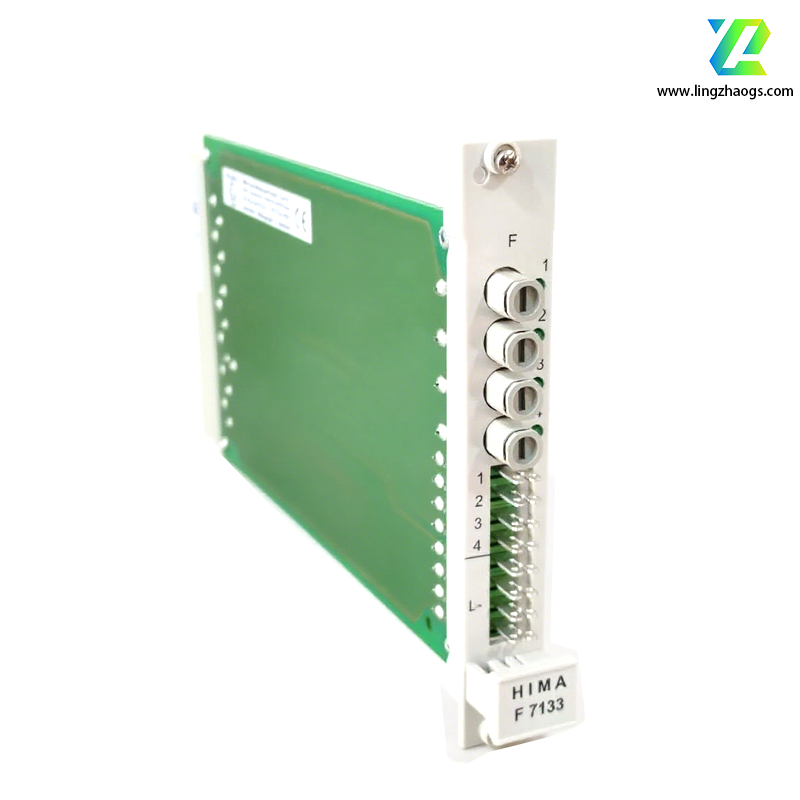

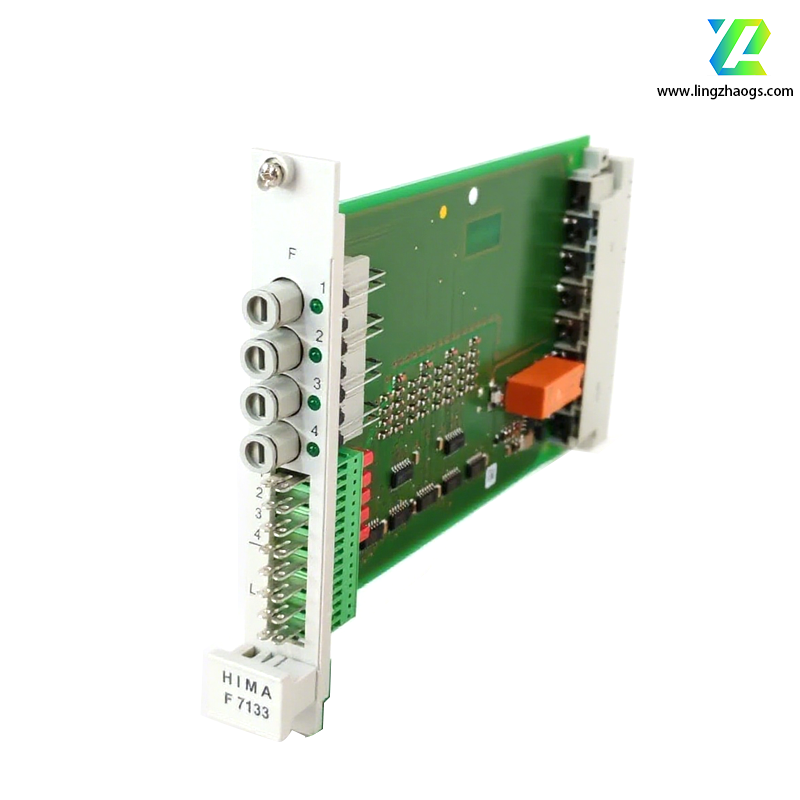

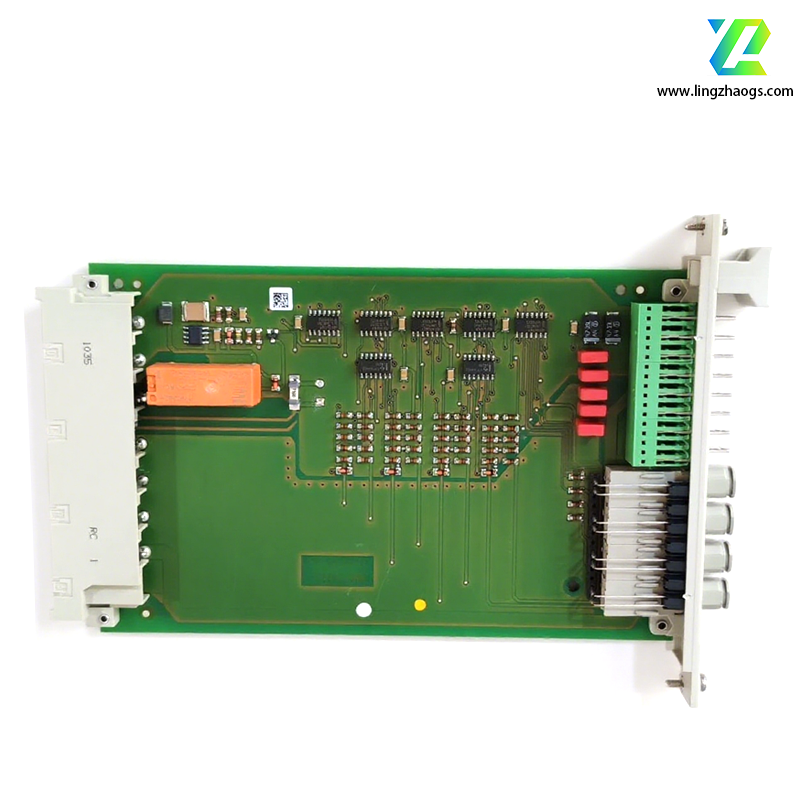

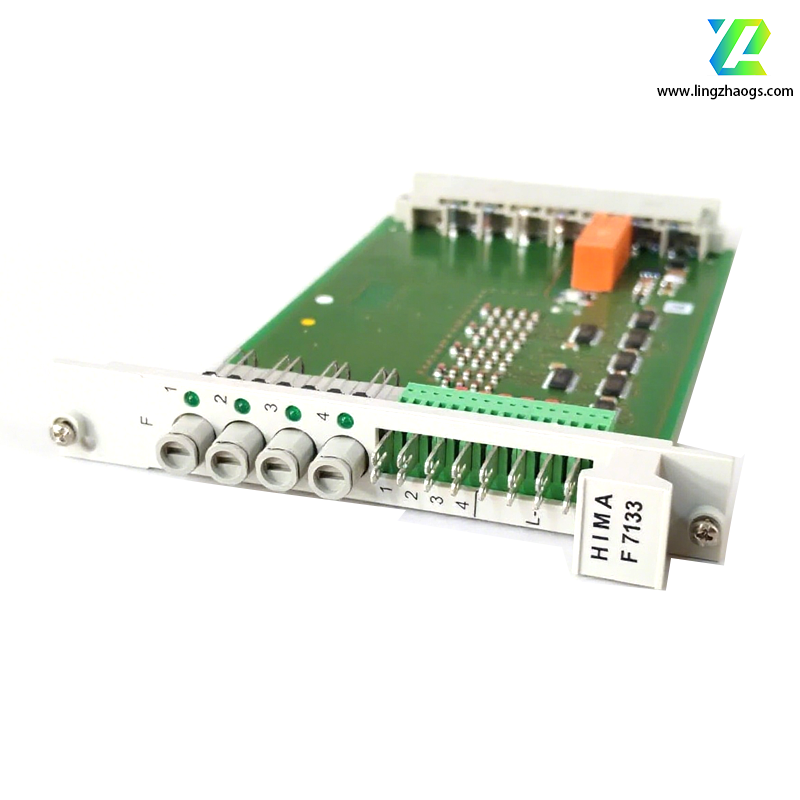

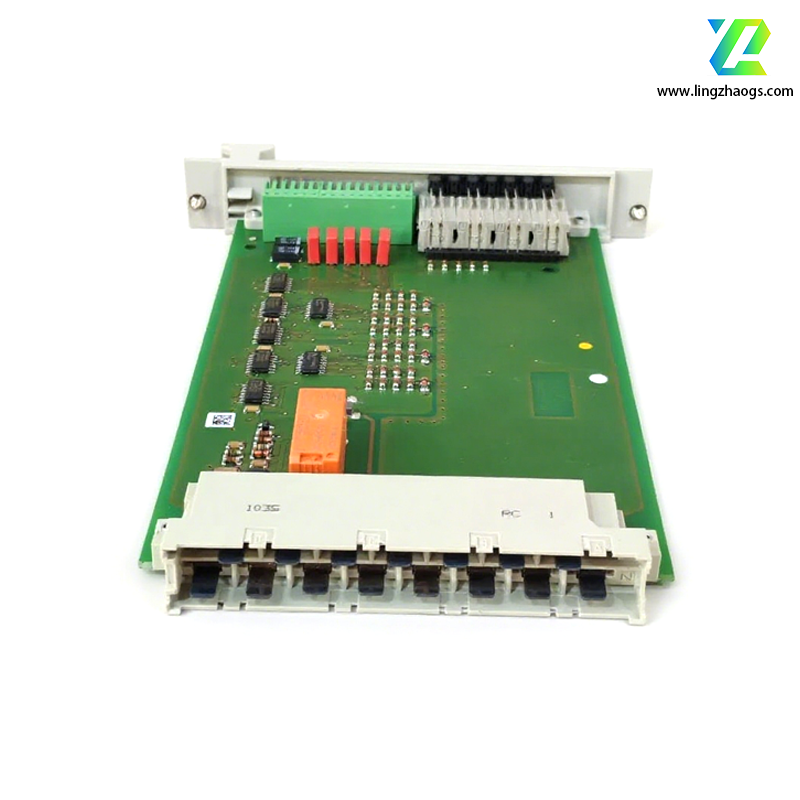

The HIMA F7133 is a 4-fold power distribution module designed for industrial automation systems. Here is the detailed information:
- Manufacturer: HIMA.
- Product No.: F7133.
- Product Type: Power distribution module.
- Country of Origin: Germany.
- Weight: 0.25 kg.
- Four - channel Power Distribution: It has four independent power distribution channels, each of which can be independently controlled, suitable for various power distribution needs.
- Fuse Monitoring: The module is equipped with four miniature fuses to protect the circuit from abnormal conditions such as overcurrent. Each fuse is associated with an LED indicator light for real - time monitoring of its status. The fuses are monitored through an evaluation logic, and the state of each circuit is reported to users through relevant LED indicator lights.
- L - type Distribution Function: The F7133 supports L - type distribution, which has specific electrical characteristics and application scenarios, and can meet the distribution needs of specific industrial environments.
- Fuse Rating: Max. 4 A slow blow.
- Switching Time: Approximately 100 ms (relay).
- Relay Contact Loadability: 30 V / 4 A (continuous load).
- Residual Voltage: In case of fuse tripped, 0 V; in case of missing supply, max. 3 V.
- Residual Current: In case of fuse tripped, 0 mA; in case of missing supply, < 1 mA.
- Space Requirement: 4 TE.
- Operating Data: 24 V DC, 60 mA.
- Relay Operation: If all fuses are in order, the relay contact D22/Z24 is closed. In case of an unequipped or faulty fuse, the relay will be de - energized.
The F7133 is widely used in various industrial automation and safety control systems, including electricity, petroleum, mine lifting, ports, heating, gas, water supply, sewage treatment, metallurgy, papermaking, textile, chemical, and water conservancy.
