General Information

• Brand: HIMA

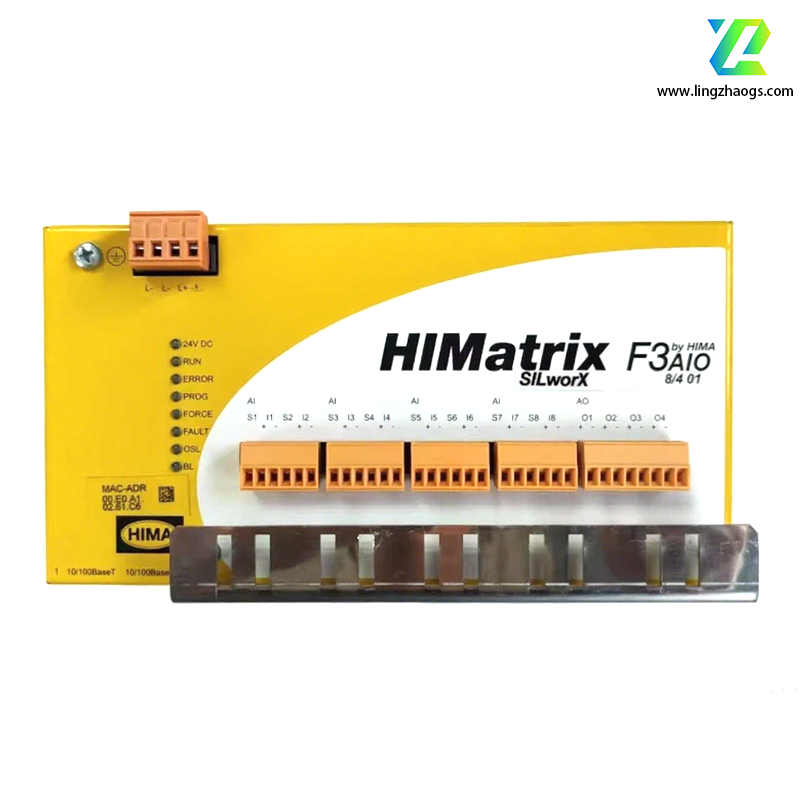

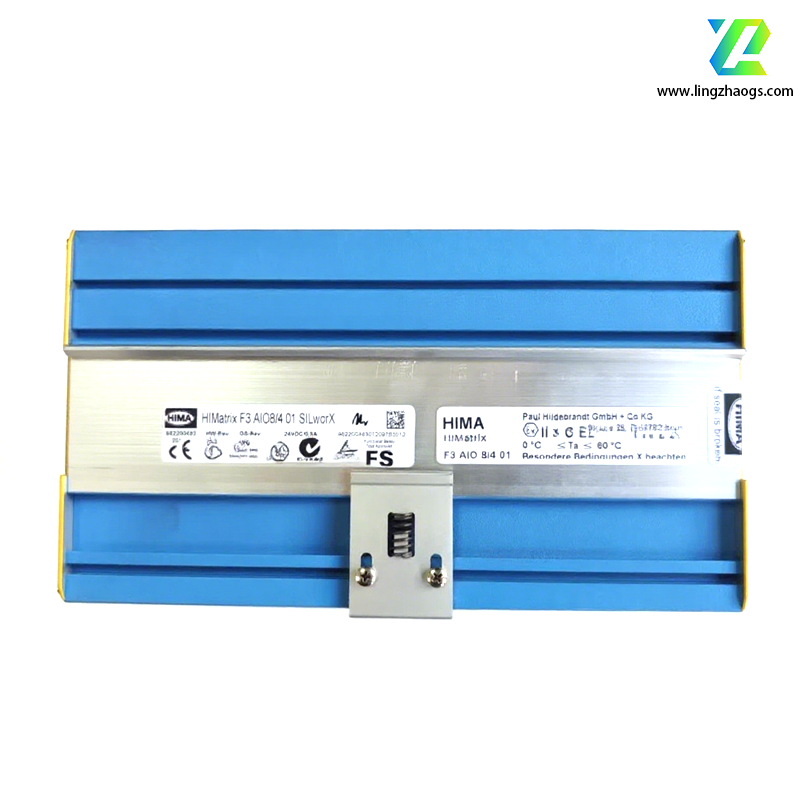

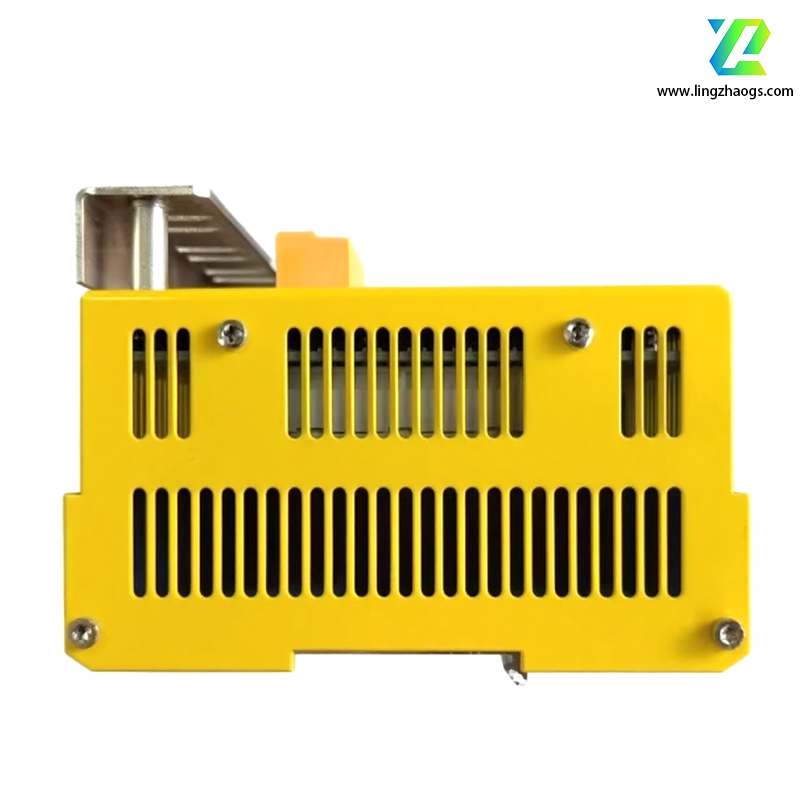

• Model: F3 AIO 8/4 01
• Type: Safety-related HIMatrix controller
• SKU: Various (e.g., 8445344 in one source)
• Safety Level: SIL 2 / PL D

Technical Specifications

• Power Supply
  • Operating Voltage: 5 V DC = 120 mA, 24 V DC = 200 mA
• I/O Channels
  • Analog Inputs: 8 channels
  • Analog Outputs: 4 channels
• Communication
  • Interface: RS - 485 Modbus TCP
• Memory
  • RAM: 2 KB
  • EEPROM: 8 KB
• Power Consumption
  • Low power consumption, 1.5 W
• Operating Temperature Range
  • -20°C to +60°C
• Dimensions
  • 96 mm x 96 mm x 100 mm
• Weight
  • 0.15 kg

Features

• Precise Control
  • It can accurately collect field data and issue control commands, and is suitable for controlling and monitoring a variety of industrial processes, such as temperature, pressure, flow, etc.
• Safety Certification
  • Certified to IEC 61508 SIL3, ensuring high - reliability and safety in critical applications.
• Diagnostic Function
  • It has channel - level fault diagnosis function, which can continuously monitor each channel and the module itself, and is conducive to proactive maintenance and prevention of unexpected failures.
• Signal Isolation
  • Supports galvanic isolation between channels, effectively preventing signal interference and protecting the system from electrical disturbances.
• Compact Design
  • The compact size and lightweight structure make it easy to install and maintain, which can be easily integrated into various existing systems without affecting the safety standard operation.
