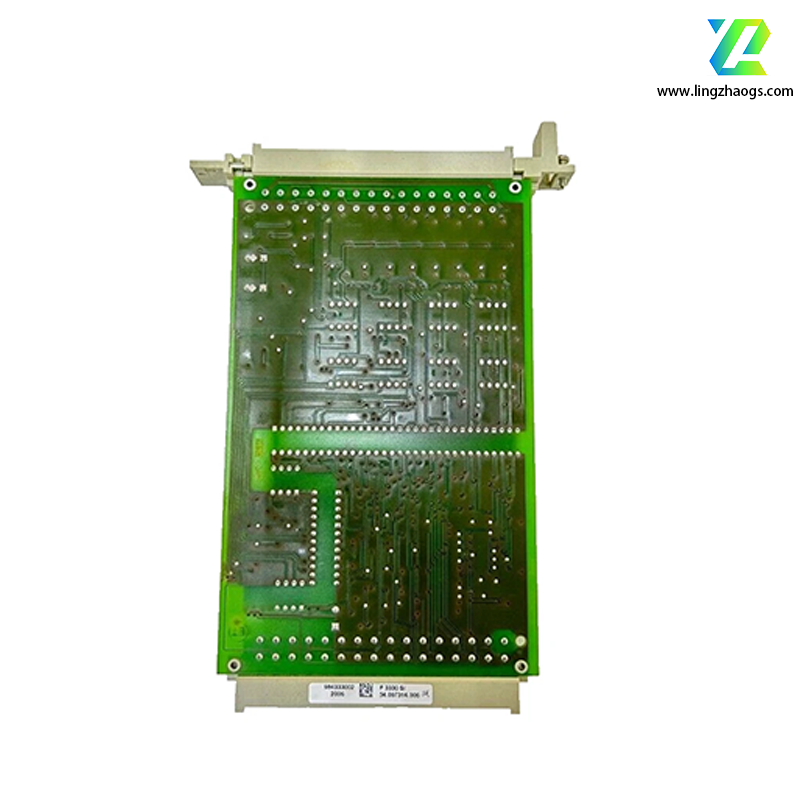

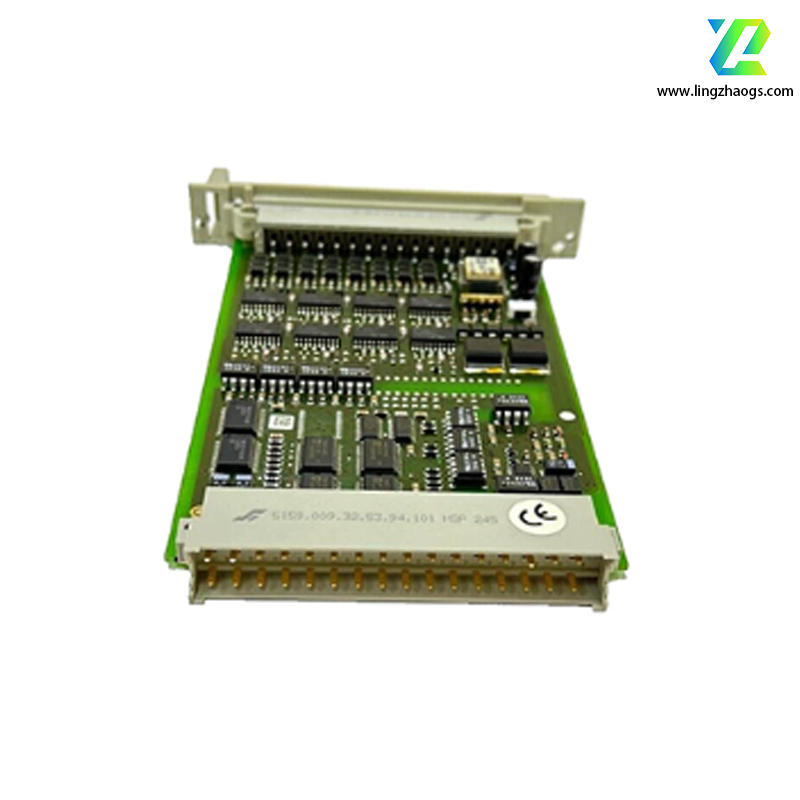

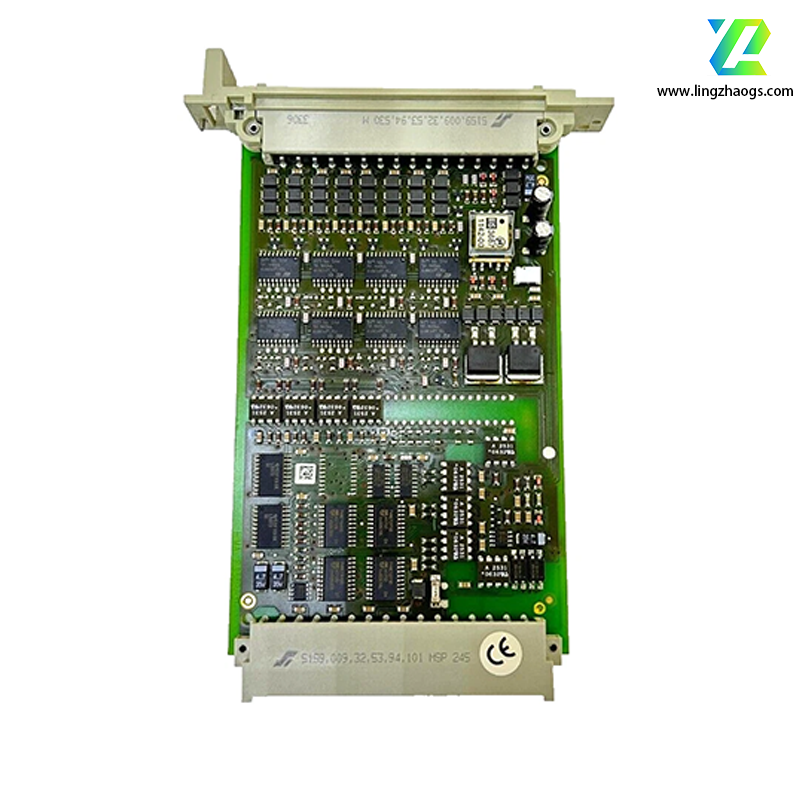

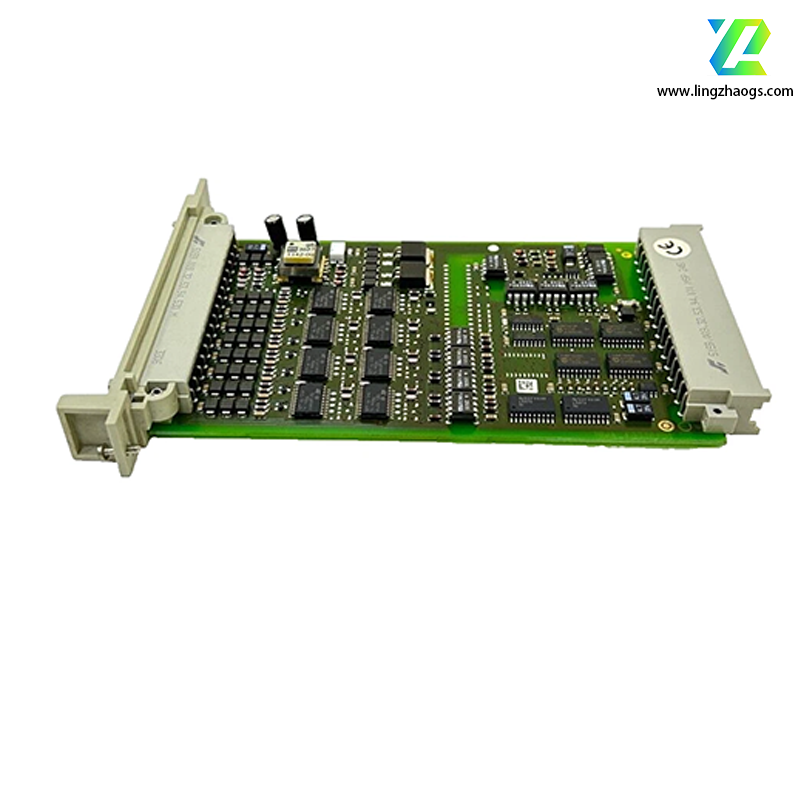

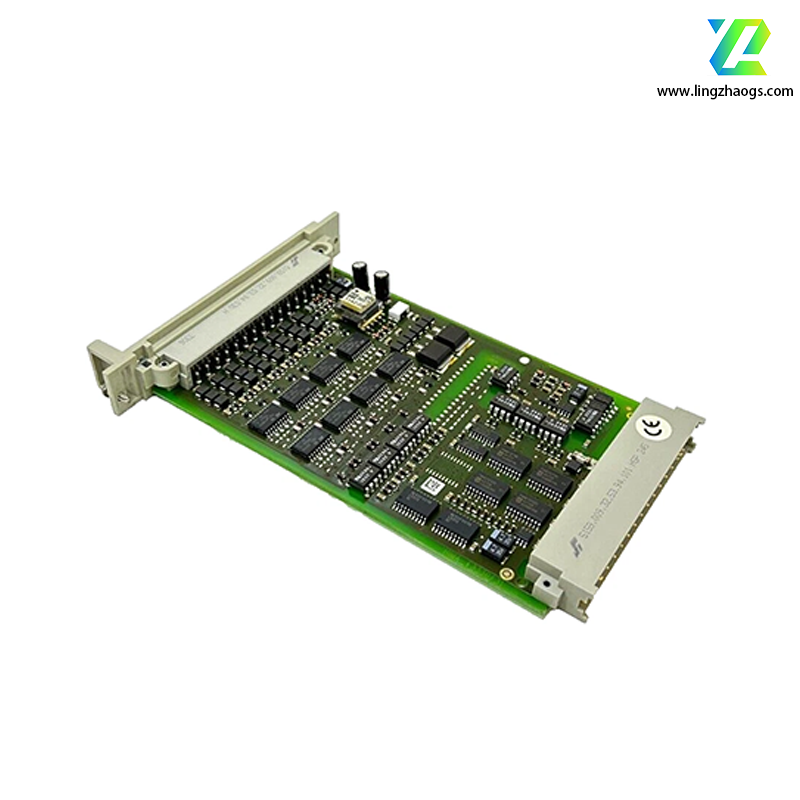

he HIMA F3330 is an 8 - channel output module applied in safety - related scenarios. Here is the detailed information:
- Manufacturer: HIMA.
- Part Number: F3330.
- Product Type: Output module.
- Country of Origin: Germany.
- The module has a compact design with dimensions of approximately 160mm×120mm×60mm and a weight of about 1.5kg.
- Multi - channel Output: It provides 8 independent output channels, which can be flexibly configured to drive various actuators.
- High Safety: Complies with the IEC 61508 functional safety standard, suitable for SIL3 - level applications.
- Redundant Design and Self - diagnosis: Adopts redundant design and has a self - diagnosis function to ensure high system reliability.
- Support for HART Protocol: Supports the HART protocol, which is convenient for parameter configuration and diagnosis.
- Output Voltage: 24V DC.
- Output Current: Each channel can handle up to 500mA (12W) resistive load or inductive load, and the lamp connection can reach up to 4W.
- Internal Voltage Drop: Max. 2V at 500mA load.
- Admissible Line Resistance (in + out): Max. 11 ohm.
- Under - voltage Tripping: At ≤16V.
- Operating Point for Short - circuit Current: 0.75 to 1.5A.
- Output Leakage Current: Max. 350µA.
- Output Voltage if Output is Reset: Max. 1.5V.
- Duration of the Test Signal: Max. 200µs.
- Operating Temperature Range: - 20°C to + 60°C.
Supports communication protocols such as PROFIBUS DP, Ethernet, and RS485, which is convenient for integration with various industrial systems.
Complies with safety standards such as SIL3 (IEC 61508), PL e (EN ISO 13849 - 1), and has certifications such as CE, UL, CSA, ATEX, IECEx, FM, and EAC.
Widely used in the safety - instrument systems of the petrochemical, power, metallurgy and other industries, such as safety interlocking systems, emergency shutdown systems, etc.
It adopts a modular design and supports DIN - rail mounting, which is convenient for installation and wiring. It can be configured and debugged through software tools, and provides functions such as fault detection and self - diagnosis, which is convenient for maintenance.
