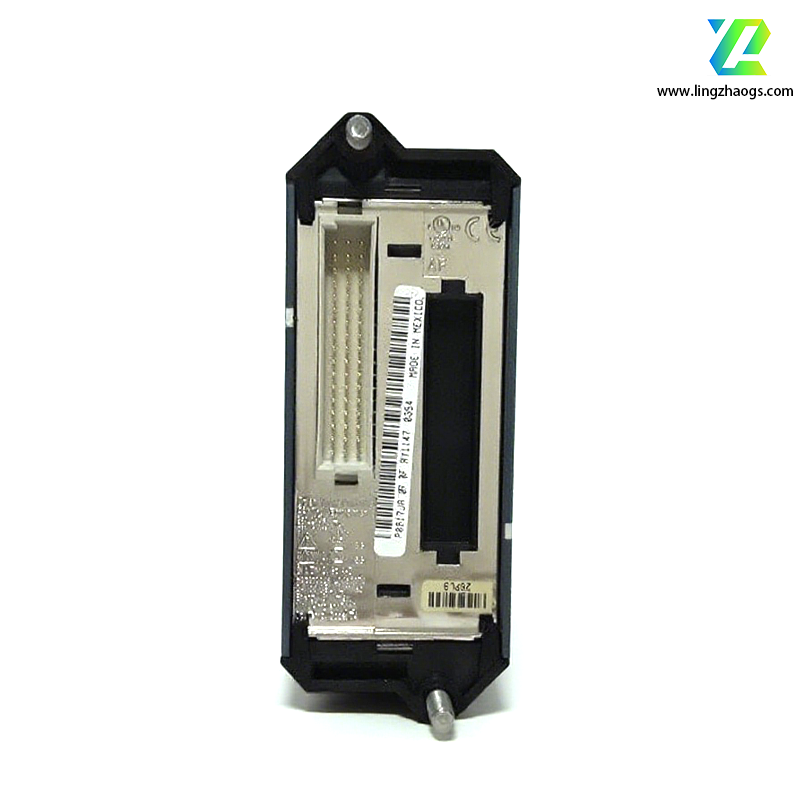

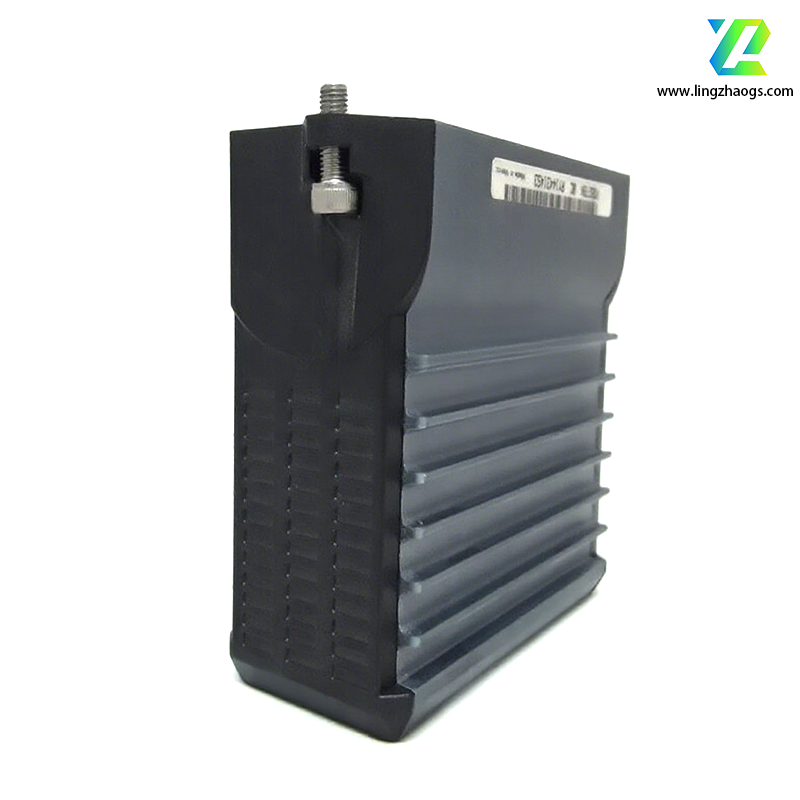

The Foxboro P0914SQ is a fieldbus module designed for industrial automation systems, specifically integrated into the Foxboro I/A Series Distributed Control System (DCS). Below is its detailed information in English:
The Foxboro P0914SQ is a specialized interface module that facilitates communication and data exchange between field devices and the Foxboro I/A Series DCS. It is engineered to handle industrial signals efficiently, ensuring reliable transmission of process data in harsh industrial environments. This module plays a critical role in connecting sensors, actuators, and other field instruments to the central control system, enabling real-time monitoring and control of industrial processes.
- Function: Acts as a signal conditioning and communication interface for field devices, supporting analog or discrete signal processing (specifics may vary based on configuration).
- Input/Output Compatibility: Typically supports standard industrial signals such as 4–20 mA analog signals or discrete (on/off) signals, adapting to common field instrument outputs.
- Communication Protocol: Integrates with the Foxboro I/A Series fieldbus protocol, ensuring seamless data transfer with the DCS controller (e.g., FCP or FCM modules).
- Isolation: Galvanic isolation between channels and from the system bus (typically 1500 V), preventing interference and enhancing signal integrity.
- Power Supply: Operates on 24 V DC (redundant power option available for high-reliability setups).
- Operating Temperature Range: -40 °C to +70 °C, suitable for extreme industrial conditions (e.g., chemical plants, refineries).
- Relative Humidity: 5%–95% (non-condensing), resistant to moisture in industrial settings.
- Dimensions: Compact design, approximately 100 mm × 50 mm × 100 mm (varies slightly by specific configuration), fitting standard I/A Series racks.
- Weight: Around 0.2–0.3 kg, lightweight for easy installation.
- Signal Conditioning: Provides precise signal amplification, filtering, and conversion, ensuring accurate data acquisition from field devices even in noisy environments.
- High Reliability: Rugged construction with industrial-grade components, designed to withstand vibration, electromagnetic interference (EMI), and temperature fluctuations.
- Seamless DCS Integration: Optimized for the Foxboro I/A Series, enabling plug-and-play compatibility with system controllers and software, reducing setup time.
- Diagnostic Capabilities: Equipped with LED indicators for module status, channel activity, and fault detection, facilitating quick troubleshooting and maintenance.
- Redundancy Support: Can be configured in redundant setups (when paired with compatible system components) to minimize downtime in critical applications.
- Process Industries: Widely used in chemical, petrochemical, and pharmaceutical plants to connect flow meters, pressure transmitters, and temperature sensors to the DCS, enabling real-time process control.
- Power Generation: Integrates with instruments monitoring boiler pressure, turbine temperature, and electrical parameters in power plants, supporting safe and efficient operation.
- Water & Wastewater Treatment: Connects to level sensors, pH meters, and pump controllers, facilitating automated monitoring and control of treatment processes.
- Manufacturing: Used in production lines to interface with proximity sensors, limit switches, and actuators, supporting automated manufacturing workflows.
The Foxboro P0914SQ is valued for its reliability and compatibility with the I/A Series, making it a trusted component in industrial control systems where accurate data transmission and system stability are paramount.
