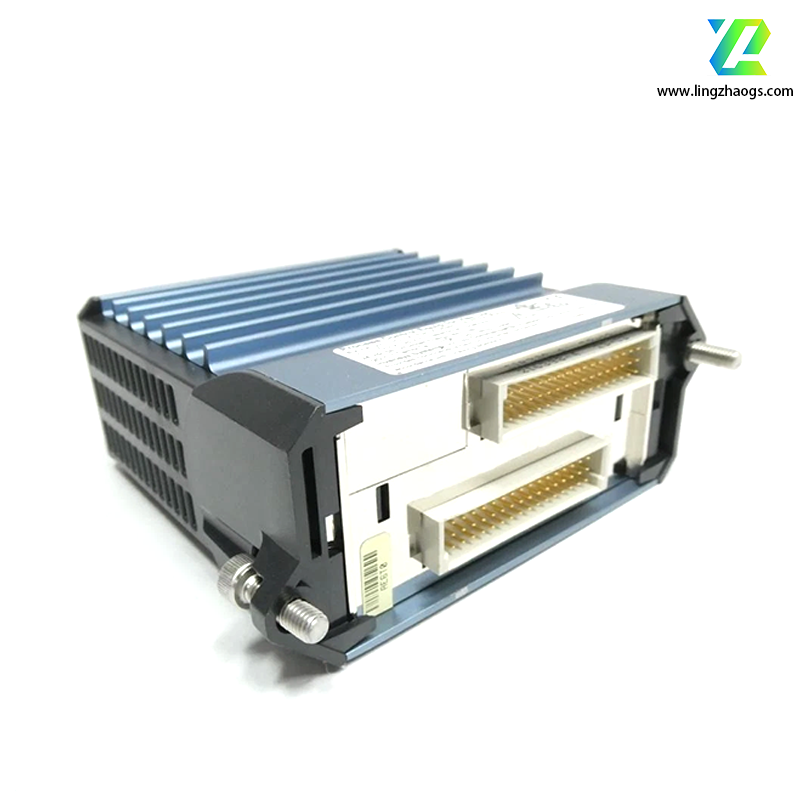

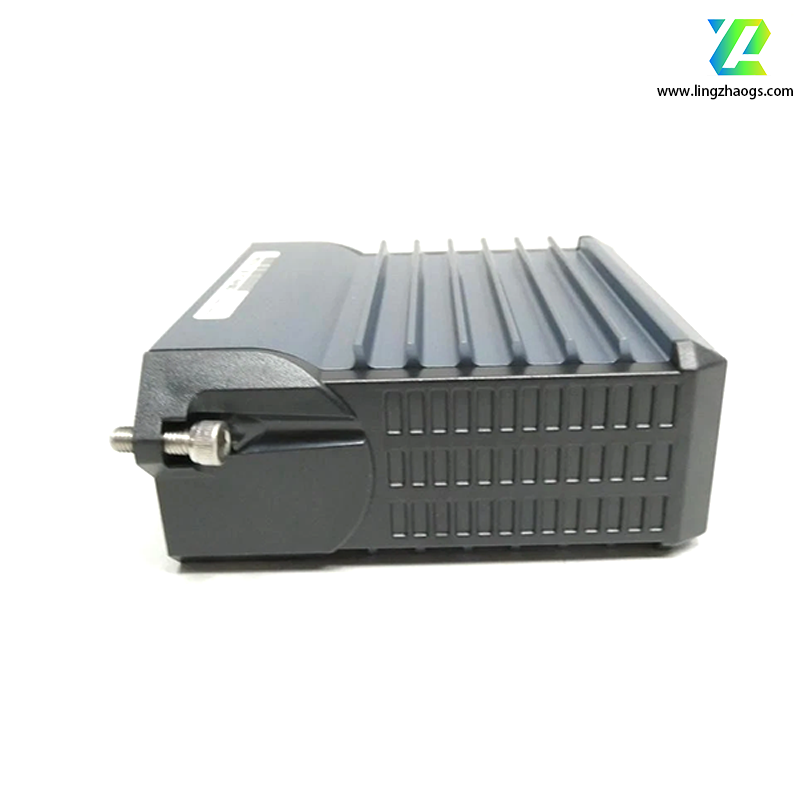

The Foxboro FBM214b P0927AH is a HART communication input module applied in industrial automation systems. Here is the detailed information in English:
The Foxboro FBM214b P0927AH is a specialized input module designed for the Foxboro I/A series distributed control system (DCS). It plays a vital role in industrial process automation by enabling communication between field devices and the control system.
- Input Type: Supports standard 4 - 20 mA analog sensor signals and digital HART frequency shift keying (FSK) signals superimposed on 4 - 20 mA analog input signals.
- Number of Channels: 8 individually isolated analog input channels.
- Accuracy: ±0.05% of full scale.
- Resolution: 12 bits.
- Update Rate: 100 ms.
- Galvanic Isolation: 1500 V.
- Power Supply: Usually 24 V DC.
- Operating Temperature Range: - 40 °C to + 85 °C.
- Enclosure Rating: Nema 4, IP66, which means it has good protection against dust and water.
- HART Compatibility: It supports any combination of standard 4 - 20 mA devices and HART devices, enabling flexible connection with various field devices.
- Bi - directional Communication: Each input channel is equipped with a dedicated FSK modem, allowing for bi - directional digital communication with HART field devices. This feature enables functions such as device configuration, data retrieval, and advanced diagnostics.
- Galvanic Isolation: Provides per - channel galvanic isolation from other channels, ground, and module logic. This isolation can effectively prevent interference between channels, ensuring system integrity and the accuracy of measurement results.
- High - precision Measurement: Utilizes sigma - delta data conversion technology to achieve high - precision measurements, meeting the requirements of industrial processes for accurate data acquisition.
- Rugged Design: Built to withstand harsh industrial environments, with a durable enclosure and robust electrical components, ensuring reliable performance in various harsh conditions.

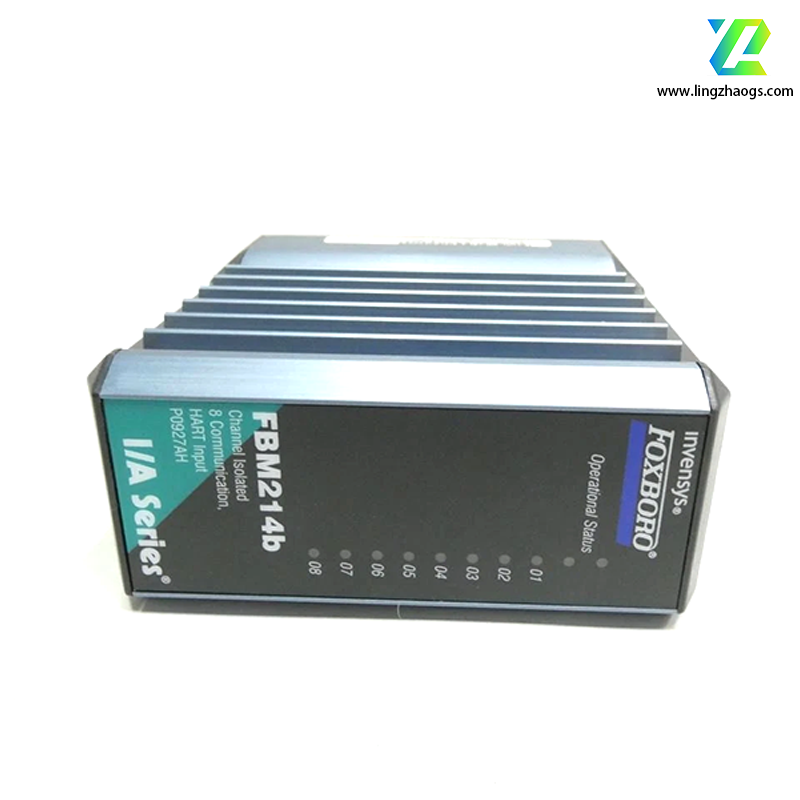

- Visual Indicators: Equipped with LEDs to indicate operational status and communication activity. This makes it easy for operators to monitor the working condition of the module and carry out troubleshooting.
- Power Generation: Used for monitoring and controlling various parameters in power plants, such as temperature, pressure, and flow, to ensure the stable operation of the power generation system.
- Oil and Gas Production: In the oil and gas industry, it can be used to collect data from field devices such as wellheads, pipelines, and storage tanks, and transmit the data to the control system for processing and analysis, so as to realize the efficient management of the oil and gas production process.
- Chemical Processing: Applied in chemical plants to monitor and control chemical reactions, material flow, and other processes, helping to improve product quality and production efficiency while ensuring production safety.
- HVAC Systems: Can be used in heating, ventilation, and air - conditioning systems to monitor and control environmental parameters such as temperature, humidity, and air volume, creating a comfortable indoor environment and achieving energy - saving operation.
- Food and Beverage Processing: In the food and beverage industry, it is used to monitor the temperature, pressure, and other parameters in the production process to ensure product quality and food safety.
- Pharmaceutical Manufacturing: Crucial for the precise control of various process parameters in pharmaceutical production, such as temperature, humidity, and pressure in reactors and drying equipment, to ensure the stability and quality of pharmaceutical products.
