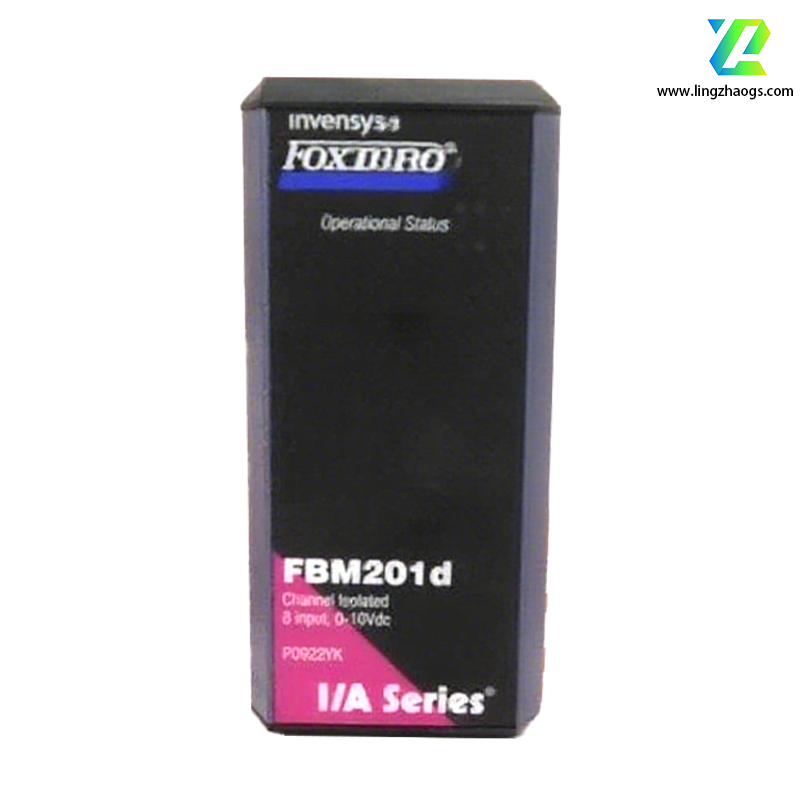

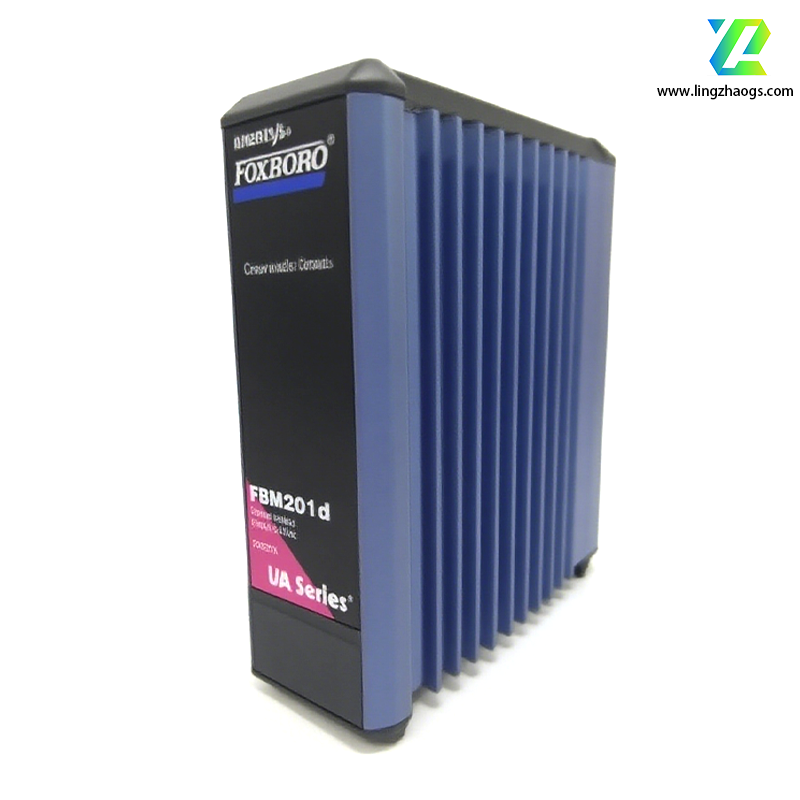

The Foxboro FBM201d is a high-performance analog input module belonging to Foxboro’s I/A Series Distributed Control System (DCS), designed for precise acquisition and processing of analog signals from industrial field devices. It is widely used in process industries such as oil & gas, chemicals, and power generation to monitor critical variables like temperature, pressure, and flow. Below is its detailed technical overview, consolidated from Foxboro’s official documentation and industrial application data:
- Brand: Foxboro (a brand under Emerson Automation Solutions)
- Model: FBM201d
- Product Type: 8-channel Analog Input Module (for Foxboro I/A Series DCS)
- System Compatibility: Fully integrated with Foxboro I/A Series DCS (compatible with I/A Series controllers, workstations, and software versions 7.0 and later).
- Core Function: Converts analog signals (4–20 mA, voltage) from field sensors/transmitters into digital data for the DCS, enabling real-time process monitoring and control. It features high accuracy and advanced diagnostics for reliable operation in harsh industrial environments.
- Channel Count: 8 isolated differential channels (independent isolation to prevent cross-interference).
- Supported Signal Types:
- Current: 4–20 mA DC (two-wire/four-wire transmitters), 0–20 mA DC.
- Voltage: ±5 V DC, ±10 V DC, 0–5 V DC, 0–10 V DC (configurable per channel).
- Input Impedance: ≥10 MΩ (voltage signals); ≤250 Ω (current signals) – minimizes signal attenuation.
- Accuracy: ±0.05% of full scale (FS) at 25°C (77°F) – ensures precise measurement for critical processes.
- Resolution: 16-bit ADC (analog-to-digital converter) – captures fine signal variations.
- Response Time: <200 ms (90% of step change) – suitable for dynamic process monitoring.
- Isolation: 2.5 kVrms between channels, between channels and backplane, and between channels and power supply (per IEC 61010-1) – protects against ground loops and voltage surges.
- Common-Mode Rejection Ratio (CMRR): ≥90 dB at 50/60 Hz – suppresses electrical noise from industrial power lines.
- Backplane Power: 5 V DC (supplied by Foxboro I/O rack), typical current draw: 0.3 A.
- Field Power: 24 V DC (optional, for loop-powered transmitters), maximum 40 mA total for all channels.
- Dimensions: 101.6 mm (W) × 165.1 mm (H) × 38.1 mm (D) [4.0” × 6.5” × 1.5”] – fits Foxboro standard I/O racks.
- Mounting: 19-inch rack-mounted (installs into Foxboro I/A Series I/O chassis).
- Operating Temperature: -40°C to +70°C (-40°F to 158°F) – suitable for extreme industrial environments (e.g., outdoor cabinets, high-temperature plants).
- Storage Temperature: -40°C to +85°C (-40°F to 185°F).
- Humidity: 5%–95% RH (non-condensing) – resistant to moisture in offshore or chemical facilities.
- Vibration Resistance: 5 g (10–500 Hz) per IEC 60068-2-6 (sinusoidal); 10 g (100–2000 Hz) per IEC 60068-2-27 (random).
- Shock Resistance: 25 g (11 ms half-sine wave) per IEC 60068-2-27.
- Protection Class: IP20 (front panel) – designed for enclosed control cabinets.
- Certifications:
- CE (EN 61326-1 for EMC, EN 61010-1 for safety) – no interference with I/A Series system components.
- UL 508 (industrial control equipment) – compliant for North American markets.
- CSA C22.2 No. 14 – meets Canadian electrical safety standards.
- High Precision Measurement: 16-bit ADC and low-drift components ensure long-term accuracy, critical for processes requiring tight control (e.g., chemical reactor temperature).
- Flexible Channel Configuration: Each channel can be independently set to current or voltage signals via software (no hardware jumpers), reducing the need for multiple dedicated modules.
- Advanced Diagnostics:
- Built-in Self-Test (BIST): Automatically checks ADC, power, and isolation circuits on startup; reports faults to the DCS for remote monitoring.
- Signal Fault Detection: Identifies open circuits, short circuits, and out-of-range signals; triggers alarms for proactive maintenance.
- Status LEDs: Dedicated LEDs for power (green), communication (yellow), and channel faults (red) – enable quick visual troubleshooting.
- Rugged Design: Industrial-grade components and wide temperature range ensure reliability in harsh environments, including vibration and humidity.
- Hot-Swappable: Supports hot swapping in Foxboro I/O racks – allows module replacement without shutting down the DCS, minimizing downtime for 24/7 operations.
- Oil & Gas: Monitors pipeline pressure (4–20 mA transmitters) and wellhead temperature (via voltage signals from RTD converters).
- Chemicals & Petrochemicals: Measures reactor pressure, flow rates, and raw material levels in batch processing lines.
- Power Generation: Tracks steam turbine inlet temperature and boiler feedwater pressure for efficient power plant operation.
- Pharmaceuticals: Ensures precise monitoring of bioreactor pH and dissolved oxygen levels, complying with GMP standards.
- Technical Manual: Foxboro FBM201d Analog Input Module Installation & Configuration Guide (Document No. B0193CC) – available via Emerson’s Foxboro support portal, including wiring diagrams and software setup steps.
- Software Tools: Configured using Foxboro I/A Series Workbench software – enables signal type selection, scaling, and alarm setup.
- Spare Parts: Replacement terminal blocks and fuses are available through authorized Foxboro distributors.
- Base Model: FBM201d (8-channel analog input, 4–20 mA/voltage, standard version).
- Optional Accessories:
- Terminal Block Kit (FBM201d-TB): For field wiring termination (compatible with 12–24 AWG wires).
- EMC Shielding Kit (FBM201d-EMC): For high-noise environments (e.g., near large motors).
- Lead Time: Typically 3–5 weeks for standard orders; 1–2 weeks for emergency spares (via Emerson/Foxboro authorized distributors).
Note: Verify compatibility with your Foxboro I/A Series DCS version using the official I/A Series Compatibility Matrix. For hazardous area applications, consult Foxboro technical support for intrinsically safe variants.
