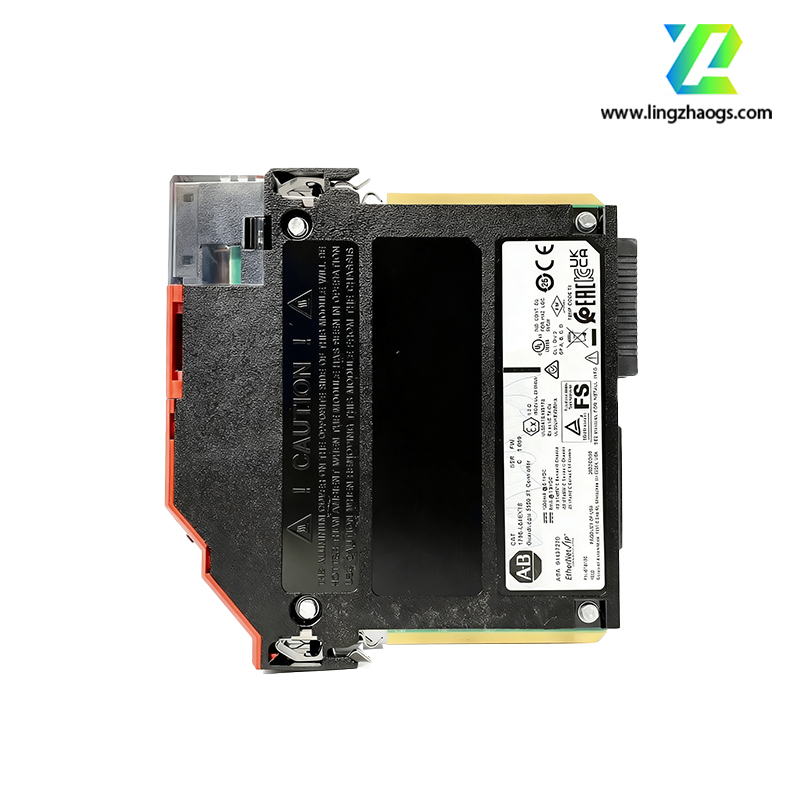

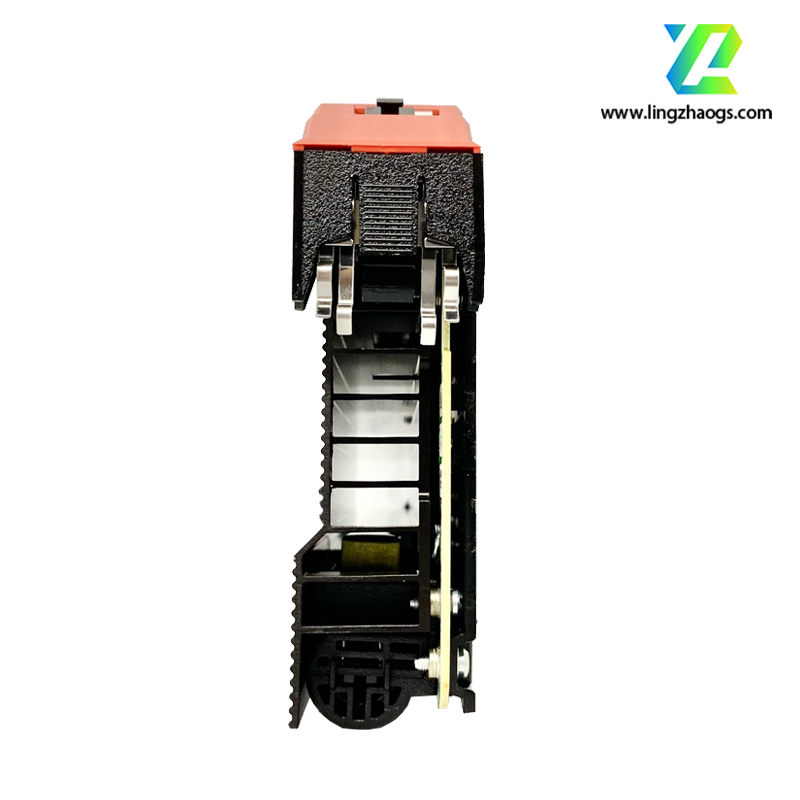

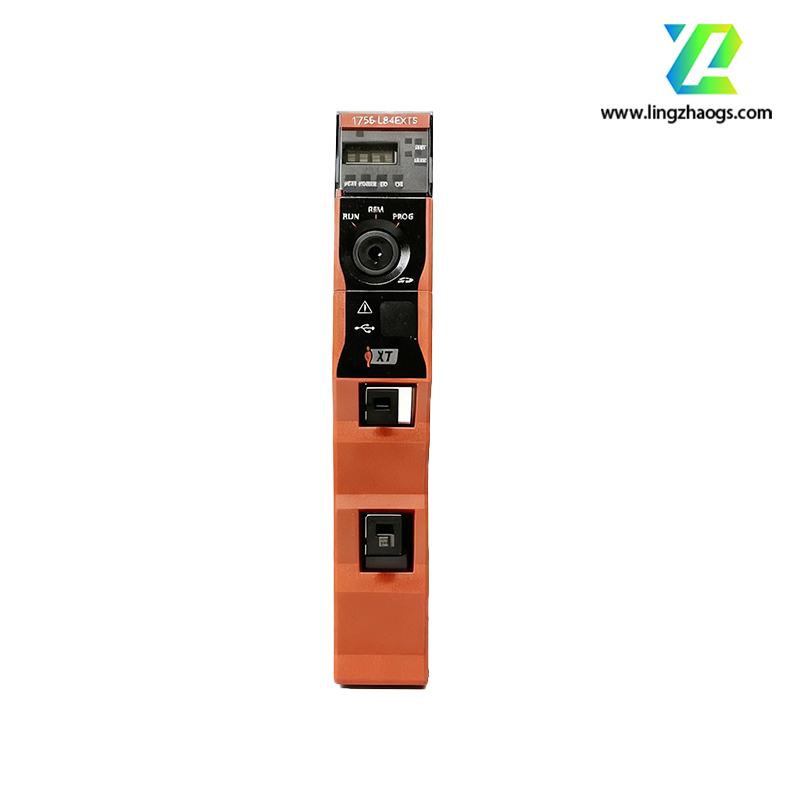

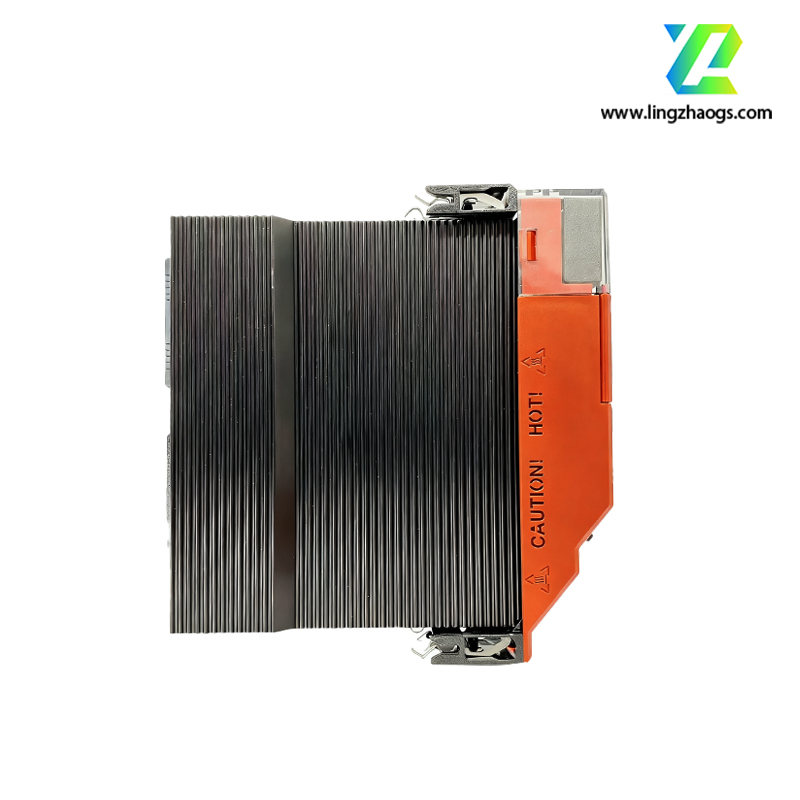

Product Details: Allen-Bradley 1756-L84ES
1. Product Overview
The Allen-Bradley 1756-L84ES is a premium redundant Programmable Automation Controller (PAC) under the ControlLogix family, engineered for mission-critical industrial control systems where downtime is unacceptable. It integrates dual-core processing power, native redundancy support, and multi-protocol communication, enabling seamless failover and continuous operation in high-stakes applications such as power generation, oil refining, and large-scale manufacturing. As a cornerstone of the Logix control platform, it unifies discrete, process, motion, and safety control in a single chassis, while its redundant design eliminates single points of failure—ensuring maximum system availability and operational reliability.
2. Key Technical Specifications
3. Core Features
- 1:1 Hot Standby Redundancy: The controller supports seamless 1:1 redundancy with auto-failover (triggered by hardware faults, communication loss, or power failure). Paired with the 1756-RM2 redundancy module, it synchronizes program logic, I/O data, and status between primary and secondary controllers in real time—ensuring zero data loss and <10 ms failover time for uninterrupted operation.
- High-Performance Processing: The 64-bit dual-core processor delivers fast, deterministic control, handling concurrent discrete, process, and motion tasks without performance bottlenecks. It excels in complex applications like multi-axis synchronized motion (e.g., automotive welding lines) or batch process control (e.g., pharmaceutical manufacturing).
- Robust Connectivity: Four Ethernet ports separate control, redundancy, and monitoring traffic, preventing network congestion. Native support for industrial protocols (EtherNet/IP, PROFINET, Modbus TCP) enables direct integration with Allen-Bradley drives (PowerFlex), HMIs (PanelView), and third-party equipment—eliminating the need for external gateways.
- Enhanced Cybersecurity: Compliant with IEC 62443-4-2, it includes role-based access control (RBAC), secure boot (prevents unauthorized firmware), encrypted communication (TLS 1.3 for Ethernet, SSH for remote access), and audit logging—protecting against cyber threats in critical infrastructure.
- Scalable & Flexible I/O: Works with the full range of 1756 I/O modules (digital, analog, specialty, safety) and remote I/O adapters. Users can expand the system by adding I/O modules to the chassis or connecting remote I/O networks, adapting to growing operational needs from small machines to plant-wide control.
- Advanced Diagnostics: Integrated with Studio 5000 Logix Designer, it provides real-time monitoring of controller health, redundancy status, I/O point errors, and communication latency. Historical fault logging and predictive maintenance alerts (e.g., for failing fans or power supplies) reduce unplanned downtime.
4. Application Scenarios
- Power Generation & Distribution: Controls fossil fuel, nuclear, or renewable (solar/wind) power plants, managing turbine speed, grid synchronization, and load distribution. Redundancy ensures continuous power supply, avoiding costly blackouts.
- Oil & Gas: Automates upstream (drilling rigs), midstream (pipeline pumping stations), and downstream (refining units) operations. Withstands harsh environments (temperature extremes, vibration) and complies with API 551/ISO 13849 for safety-critical processes.
- Pharmaceutical & Food Processing: Regulates batch mixing, sterilization, and packaging processes, ensuring compliance with FDA 21 CFR Part 11 (electronic records). Redundancy prevents production losses and maintains product quality.
- Automotive Manufacturing: Synchronizes robotic assembly lines, paint shops, and material handling systems. Deterministic control ensures precise part alignment, while redundancy minimizes downtime in high-volume production.
- Water & Wastewater Treatment: Manages filtration, chemical dosing, and pump systems in municipal treatment plants. Redundancy guarantees continuous operation, preventing environmental hazards from untreated water release.
5. Installation & Configuration Notes
- Redundancy Setup: Install two 1756-L84ES controllers (primary + secondary) in a 1756 chassis with a 1756-RM2 redundancy module and dual 1756 power supplies (e.g., 1756-PA75R). Connect redundant Ethernet cables between controllers for data synchronization.
- Software Requirements: Program and configure using Studio 5000 Logix Designer V35 or later (compatible with Windows 10/11 Pro). Use the “Redundancy Configuration Tool” to set up failover parameters (e.g., trigger conditions, priority settings).
- Chassis Considerations: Ensure the chassis has enough slots for controllers, redundancy module, I/O modules, and power supplies. Maintain 50 mm clearance around the chassis for heat dissipation; avoid installation near corrosive gases or electromagnetic interference (EMI) sources.
- Testing Redundancy: After setup, perform a manual failover test via Studio 5000 to verify data synchronization and zero downtime. Monitor redundancy status LEDs (on 1756-RM2) to confirm primary/secondary roles.
6. Quality & Warranty
- Certifications: Complies with IEC 61131-2 (environmental testing), UL 508 (industrial control), CSA C22.2 No. 14 (Canada), ATEX (hazardous areas), and CE marking (EU).
- Warranty Period: 36 months from delivery (covers manufacturing defects; excludes damage from improper installation, misuse, or 超出 specified environmental limits).
7. Ordering Information
- Standard Package Includes: 1×1756-L84ES controller, 1×quick-start guide (English), 1×documentation CD (redundancy setup guide, safety manual).
- Required Redundancy Components: 1756-RM2 redundancy module, 2×1756-PA75R redundant power supplies, 1756 ControlLogix 10-slot chassis (1756-A10), Studio 5000 Logix Designer license (9324-RLD500ENE).
- Optional Accessories: 1756-EN4TR Ethernet module (for additional ports), 1756-Security Key (enhanced access control), 1756-CNBR backplane extender (for distributed chassis).
