Product Details: Allen-Bradley 1756-L82E
1. Product Overview

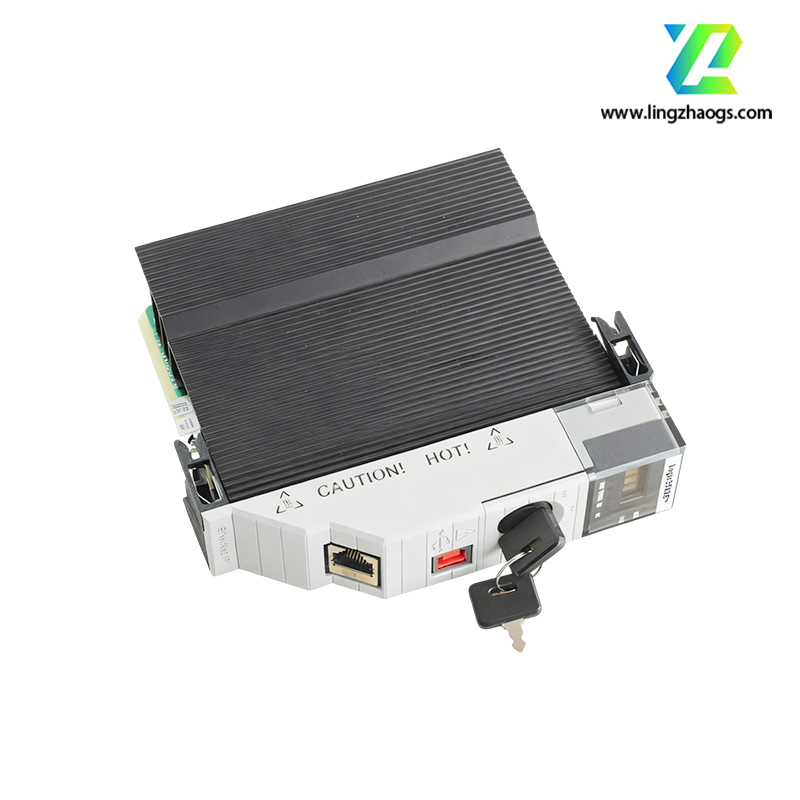

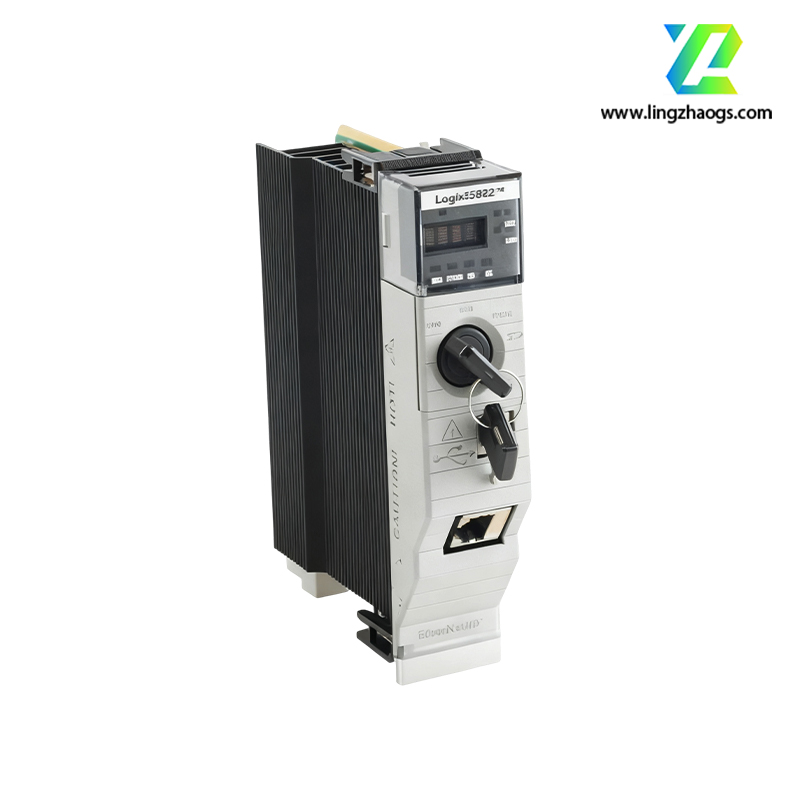

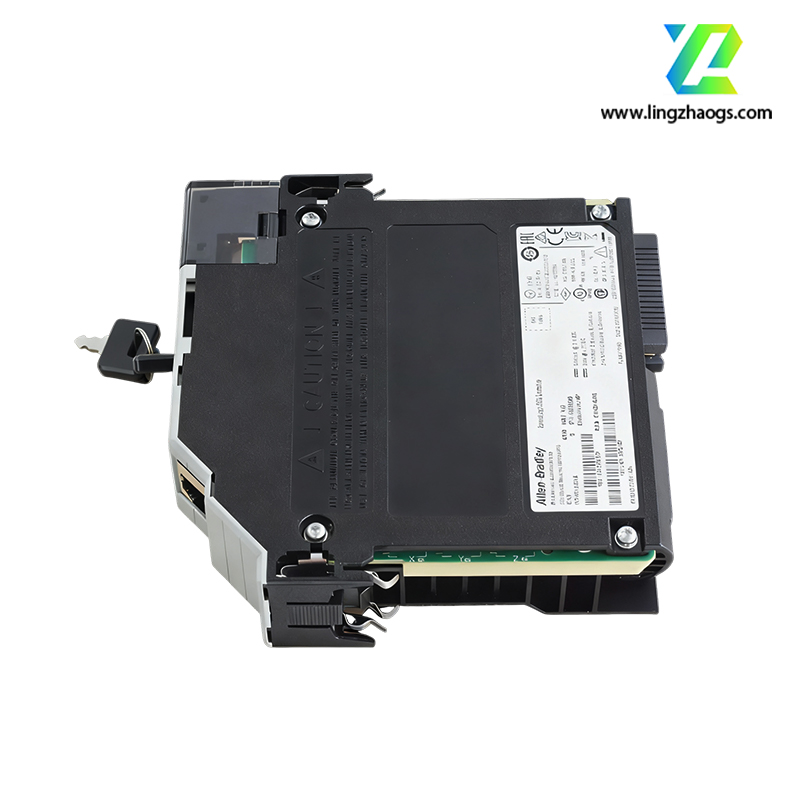

The Allen-Bradley 1756-L82E is a high-performance Programmable Automation Controller (PAC) belonging to the ControlLogix family—designed for large-scale, complex industrial control systems. It integrates advanced processing capabilities, multi-protocol communication, and seamless compatibility with Allen-Bradley’s I/O modules, drives, and HMI solutions, making it ideal for controlling and monitoring critical processes in manufacturing, energy, and infrastructure sectors. As a key component of the Logix control platform, it supports centralized control of discrete, process, motion, and safety applications in a single chassis, reducing system complexity and improving operational efficiency.
2. Key Technical Specifications
3. Core Features
- High-Performance Processing: The 64-bit quad-core processor delivers fast logic execution and data processing, enabling simultaneous control of discrete, process, and motion tasks without performance degradation—critical for time-sensitive applications like automotive assembly lines or power grid monitoring.
- Multi-Protocol Connectivity: Native support for EtherNet/IP (for Allen-Bradley devices), PROFINET (for third-party European equipment), and Modbus TCP (for global industrial devices) eliminates the need for external gateways, simplifying integration with heterogeneous systems.
- Scalable I/O Integration: Works with the full range of 1756 I/O modules (digital, analog, specialty, safety) and remote I/O adapters (1794 Flex, 1734 Point I/O), allowing users to expand the system as operational needs grow—from small machines to large plant-wide networks.
- Deterministic Control: The Logix OS ensures deterministic execution of control logic (jitter < 10 µs), guaranteeing consistent performance for processes that require precise timing, such as batch processing or synchronized motion control of multiple axes.
- Built-In Cybersecurity: Equipped with security features including role-based access control (RBAC), secure boot, and encrypted communication (TLS 1.3 for Ethernet, SSH for remote management), protecting the controller from unauthorized access and cyber threats per IEC 62443 standards.
- Advanced Diagnostics: Integrated diagnostic tools (via Studio 5000 Logix Designer software) provide real-time monitoring of module status, I/O point health, and communication errors. Historical fault logging and trend analysis enable predictive maintenance, reducing unplanned downtime.
4. Application Scenarios
- Manufacturing Automation: Controls complex production lines (e.g., automotive body assembly, electronics manufacturing) by synchronizing robots, conveyors, and process equipment—ensuring high throughput and product quality.
- Energy & Utilities: Manages power generation systems (solar, wind, fossil fuel plants) and distribution networks, monitoring critical parameters (voltage, current, temperature) and enabling rapid response to grid fluctuations.
- Oil & Gas: Controls upstream (drilling rigs), midstream (pipeline pumping stations), and downstream (refining processes) operations, with built-in redundancy and safety features to comply with industry regulations (API 551, ISO 13849).
- Water & Wastewater: Automates treatment plants (filtration, disinfection, sludge processing) by regulating flow rates, chemical dosing, and pump operation—optimizing energy use and ensuring compliance with environmental standards.
- Heavy Machinery: Powers control systems for mining equipment (excavators, conveyor belts), construction machinery, and marine vessels, with rugged design to withstand harsh operating conditions (vibration, temperature extremes).
5. Installation & Configuration Notes
- Chassis Installation: Mount the 1756-L82E in a compatible 1756 ControlLogix chassis, ensuring proper alignment with the chassis backplane. Use the provided mounting screws to secure the module; avoid over-tightening to prevent damage to the backplane connector.
- Power Requirements: The controller draws power from the 1756 chassis power supply (1756-PA75, 1756-PA72, etc.). Ensure the power supply rating (75 W, 120 W) matches the total power demand of the controller and connected I/O modules.
- Software Configuration: Program and configure the controller using Studio 5000 Logix Designer V33 or later (compatible with Windows 10/11). Use the Ethernet port to connect the controller to the programming PC; initialize the controller with a new project or load a pre-configured program via USB.
- Redundancy Setup (Optional): For mission-critical applications, pair the 1756-L82E with a second 1756-L82E (redundant controller) and 1756-RM2 redundancy module in the same chassis. Configure auto-failover via Studio 5000 to ensure uninterrupted operation if the primary controller fails.
6. Quality & Warranty
- Quality Certifications: Complies with international standards including IEC 61131-2 (environmental testing), UL 508 (industrial control equipment), CSA C22.2 No. 14 (Canadian safety), and CE marking (for EU market).
- Warranty Period: 24 months from the date of delivery (covers manufacturing defects; excludes damage caused by improper installation, misuse, or environmental damage beyond specified limits).
7. Ordering Information
- Standard Package Includes: 1×1756-L82E controller module, 1×quick-start guide (English), 1×product documentation CD (Studio 5000 compatibility guide, safety manual).
- Required Accessories: 1756 ControlLogix chassis (e.g., 1756-A10), 1756 chassis power supply (e.g., 1756-PA75), Studio 5000 Logix Designer software license (e.g., 9324-RLD300ENE).
- Optional Accessories: 1756-RM2 redundancy module (for redundant systems), 1756-EN2T Ethernet bridge (for remote I/O), 1756-Security Key (for enhanced access control).
