Basic Information

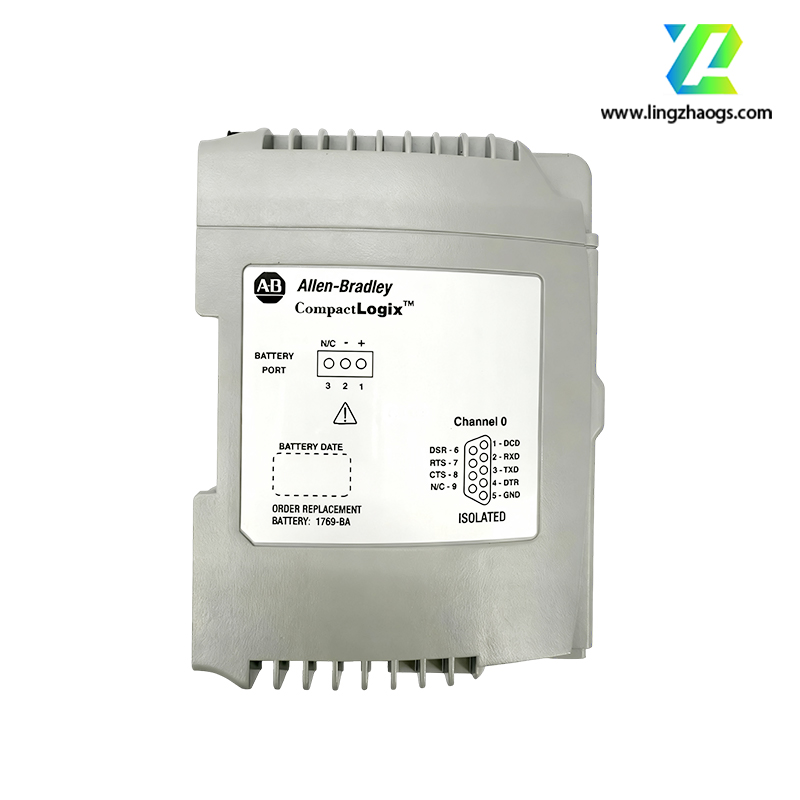

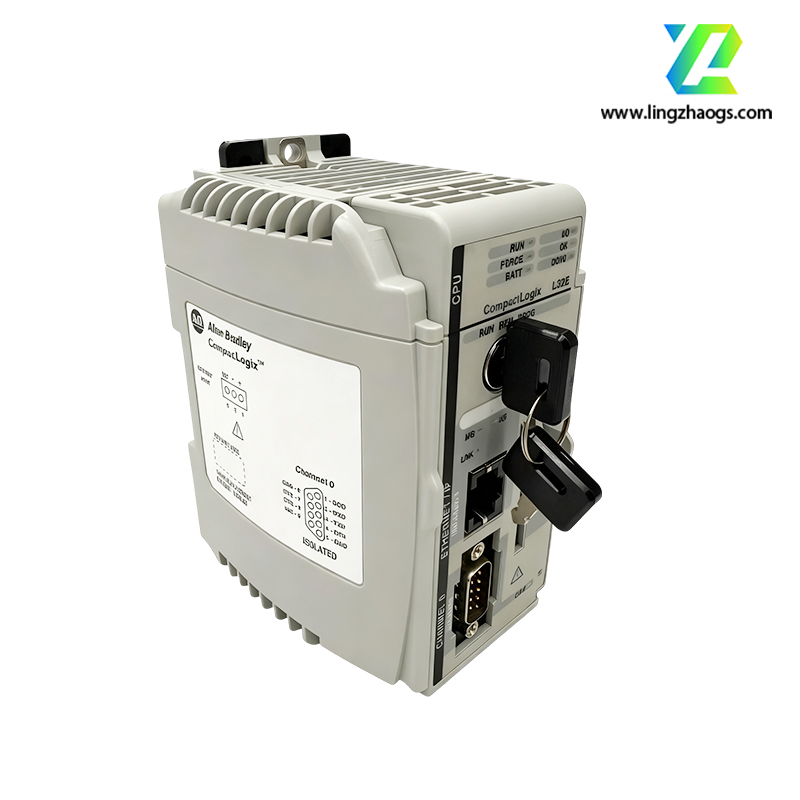

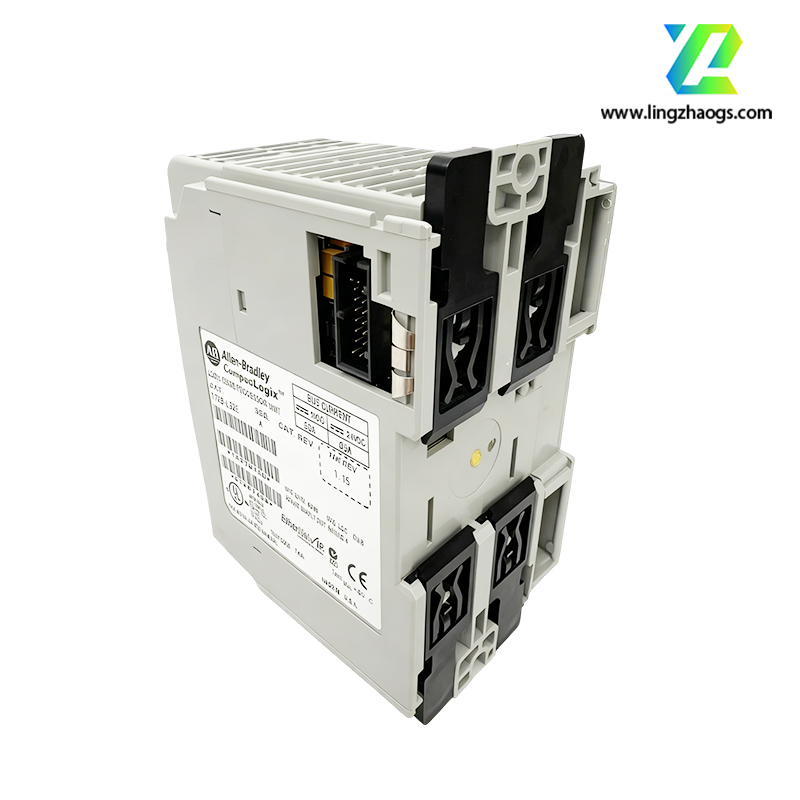

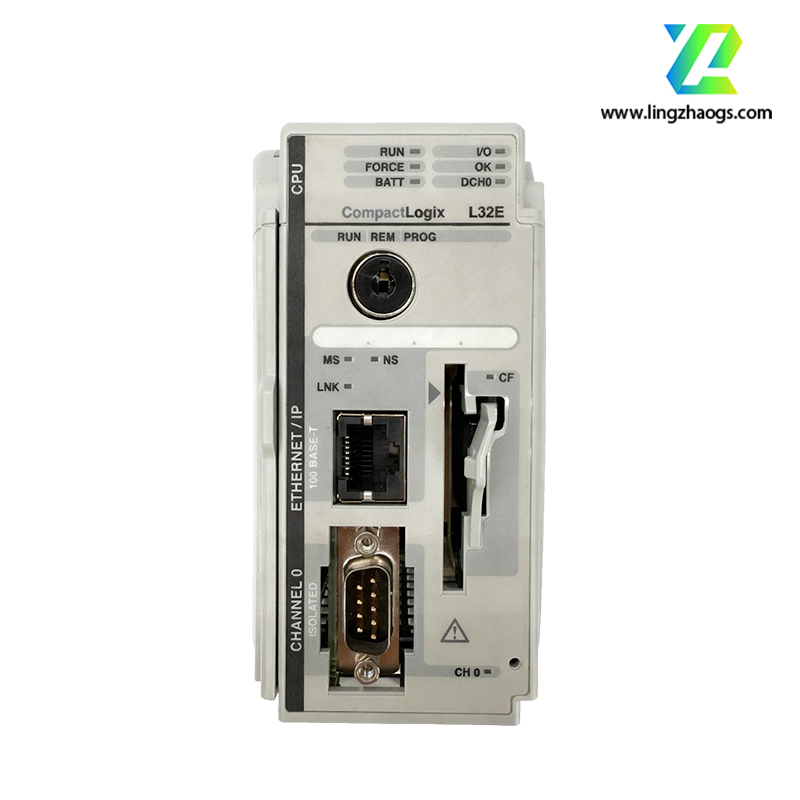

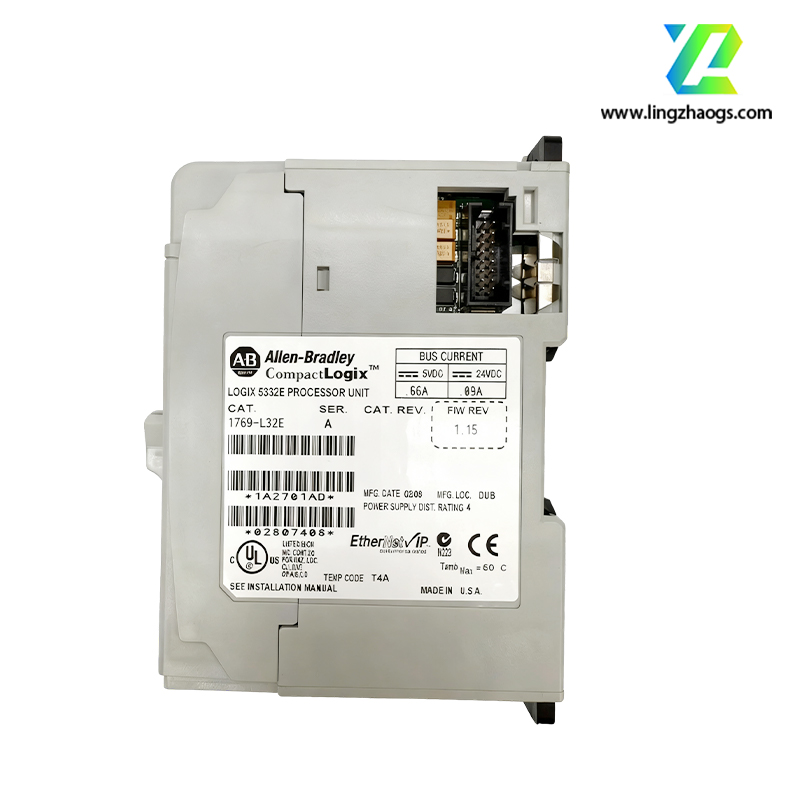

• Product Model: Allen Bradley 1769-L32E
• Product Category: Programmable Logic Controller (CompactLogix 5370 Series PLC)
• Manufacturer: Rockwell Automation (Allen-Bradley)
• Application Scope: Industrial automation systems, discrete manufacturing, packaging machinery, material handling, and small to medium-sized process control applications

Technical Specifications

1. Processor Performance: 1.0 GHz single-core processor; 3 MB user memory (expandable up to 8 MB)
2. I/O Capacity: Supports up to 32 local 1769 I/O modules; 8 built-in digital inputs (24V DC) and 8 built-in digital outputs (24V DC, 0.5A per channel)
3. Communication Ports: 2 Ethernet/IP ports (10/100 Mbps, supports CIP protocol); 1 USB port (for programming and configuration)
4. Operating Conditions: Temperature range 0°C to +60°C; Humidity 5%–95% (non-condensing); Vibration resistance ≤ 5g (10–500 Hz)
5. Power Supply: 24V DC ±10%; Typical current consumption 0.8A (no load)
6. Certifications: Compliance with IEC 61131-2, CE, UL, cUL standards; Class I, Division 2 hazardous location certification

Core Functions & Features

• Reliable single-core processing, ensuring efficient execution of control logic for discrete and small-scale process applications
• Supports CIP (Common Industrial Protocol), enabling seamless integration with Ethernet/IP devices and Rockwell automation products
• Modular design, allowing flexible expansion of I/O and communication modules to adapt to changing application requirements
• Compatible with Rockwell Studio 5000 software for intuitive programming, configuration, and real-time diagnostics
• Built-in digital I/O for direct connection to sensors and actuators, reducing the need for additional modules
• Robust industrial design with strong anti-interference performance, adapting to harsh factory floor environments
