Basic Information

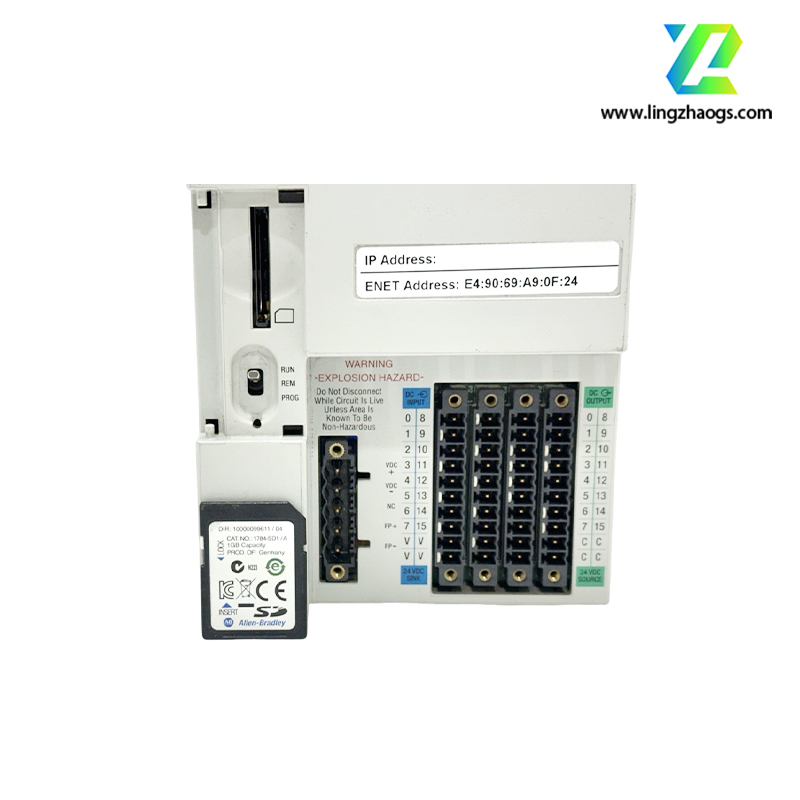

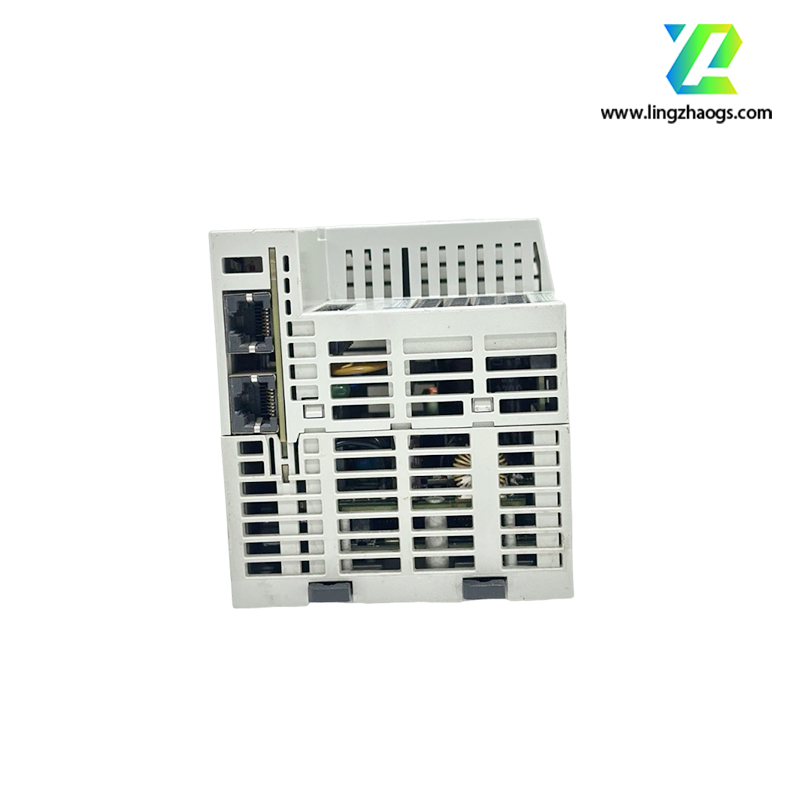

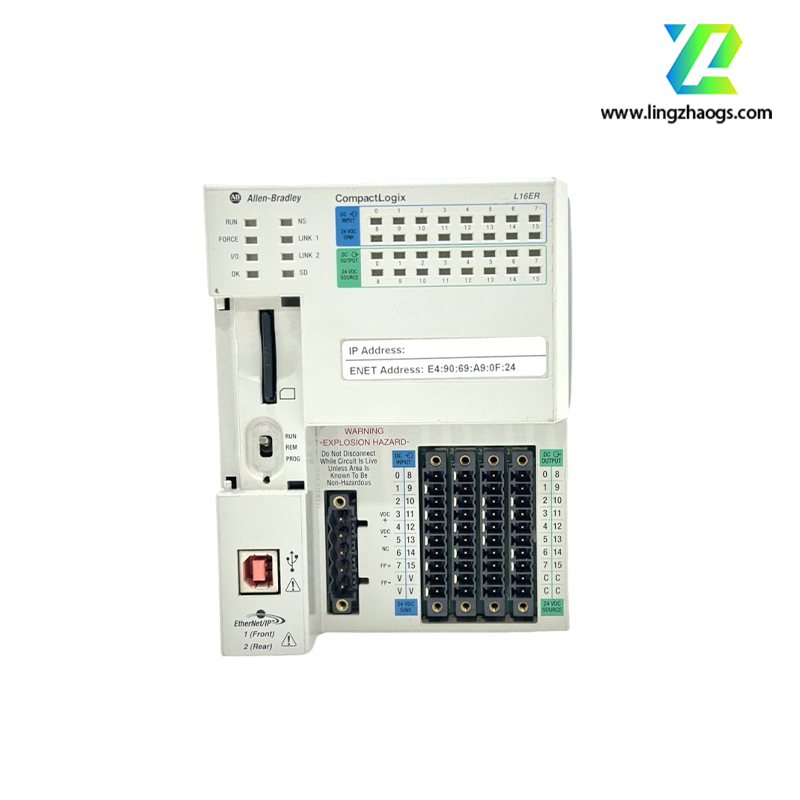

• Product Model: AB 1769-L16ER-BB1B
• Product Category: Programmable Logic Controller (CompactLogix 5370 Series PLC)
• Manufacturer: Rockwell Automation (Allen-Bradley)
• Application Scope: Industrial automation systems, discrete control, process control, and hybrid control applications (e.g., manufacturing lines, packaging machinery, material handling systems)

Technical Specifications

1. Processor Performance: 1.0 GHz dual-core processor; 3 MB user memory (expandable up to 16 MB)
2. I/O Capacity: Supports up to 32 local 1769 I/O modules; 8 built-in digital inputs (24V DC) and 8 built-in digital outputs (24V DC, 0.5A per channel)
3. Communication Ports: 2 Ethernet/IP ports (10/100/1000 Mbps, supports DLR, CIP Motion, CIP Sync); 1 USB port (for programming and configuration)
4. Operating Conditions: Temperature range 0°C to +60°C; Humidity 5%–95% (non-condensing); Vibration resistance ≤ 5g (10–500 Hz)
5. Power Supply: 24V DC ±10%; Typical current consumption 1.2A (no load)
6. Certifications: Compliance with IEC 61131-2, CE, UL, cUL standards; Class I, Division 2 hazardous location certification

Core Functions & Features

• High-performance dual-core processing, enabling fast execution of control logic and real-time data processing
• Supports CIP Motion (for motion control applications) and CIP Sync (for time-synchronized control), integrating discrete and motion control
• Built-in Ethernet/IP ports with DLR (Device Level Ring) support, enhancing network reliability and fault tolerance
• Compatible with Rockwell Automation Studio 5000 software for programming, configuration, and diagnostics
• Modular design, allowing flexible expansion of I/O modules and communication modules to meet diverse application needs
• Built-in security features (role-based access control, secure communication) to protect industrial control systems from unauthorized access
