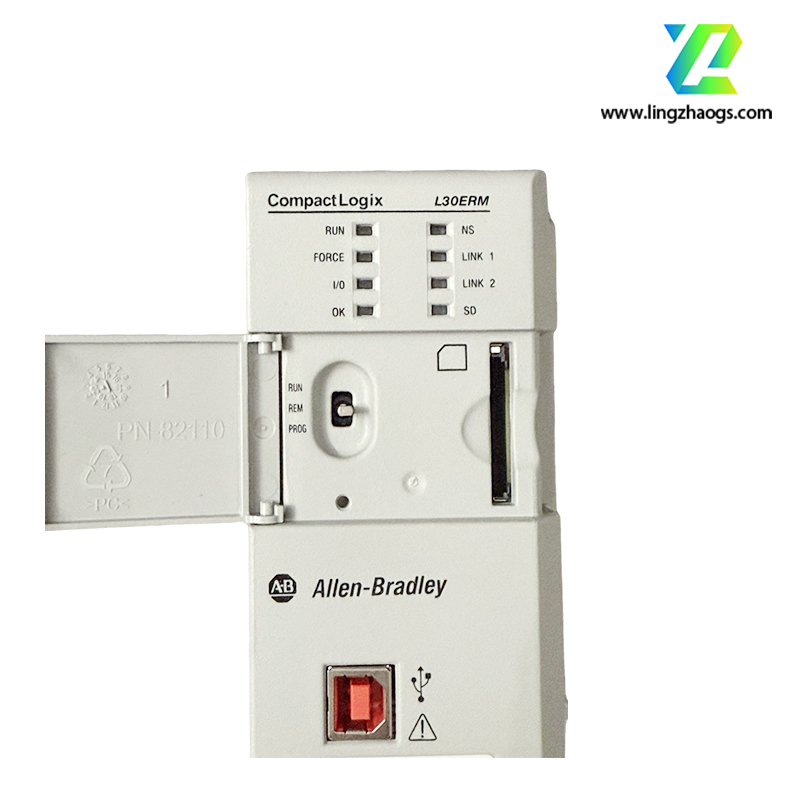

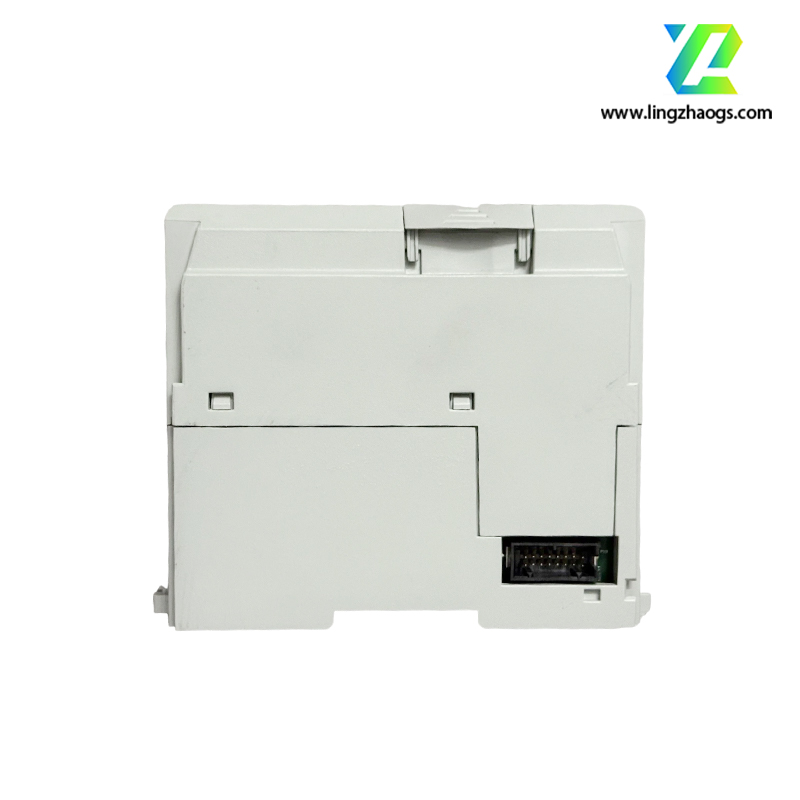

General Information

• Manufacturer: Allen - Bradley / Rockwell Automation
• Part Number: 1769 - L30ERM
• Product Line: CompactLogix
• Product Type: Programmable Automation Controller with Motion Control
• Lifecycle Status: Active

Memory

• User Memory: 1 MB
• Optional Memory: Can use an optional 1784 - SD1 industrial secure digital (SD) memory card, with a default capacity of 1 GB and an option for 2 GB

Communication

• Ethernet Ports: 2 EtherNet/IP ports with an integrated Ethernet switch, supporting Device Level Ring (DLR) network topologies
• USB Port: 1 USB port for programming, firmware updates, and downloading
• Network Connectivity: Can connect up to 16 Ethernet I/O IP nodes

Motion Control

• Axis Support: 4 - axis CIP Motion position loop axes for integrated motion
• Motion Functions: Supports kinematics functions, including capabilities such as 4 servo drives (Position Loop CIP), 16 Vhz Feedback only, Torque, Velocity (max CIP motion drives), and can process 2 axes per millisecond
• Virtual Axes: Supports up to 100 virtual axes

Processing Capability

• Tasks: Can run up to 32 controller tasks simultaneously
• Programs per Task: Each task can support up to 100 programs

Expansion

• Local Expansion Modules: Supports up to 8 local expansion modules
• Max Local Expansion I/O Points: Up to 256 local expansion I/O points
• Communication Module Expansion: Can add a DeviceNet communication module with 1769 - SDN or a third - party module

Electrical Characteristics

• Current Draw: 500 mA at 5 Volts DC and 225 mA at 24 Volts DC
• Power Dissipation: Maximum 4.5 W

Physical Characteristics

• Width: 2.17 inches (approx. 5.51 cm)
• Mounting: Can be mounted on a panel or a DIN rail

Environmental Specifications

• Operating Temperature: 0° to +60°C (+32° to +140°F)
• Storage Temperature: -40° to +85°C (-40° to +185°F)
• Humidity: 5% to 95% non - condensing
• Vibration (Operating): 10 to 500 Hz, 5G, 0.030 in. peak - to - peak
• Shock (Operating): 30G, 11 ms, panel mounted; 20G, 11 ms, DIN rail mounted

Certifications

• Certified with China CCC, ATEX, etc. (Please review the product label to check for the specific certifications of your product)
