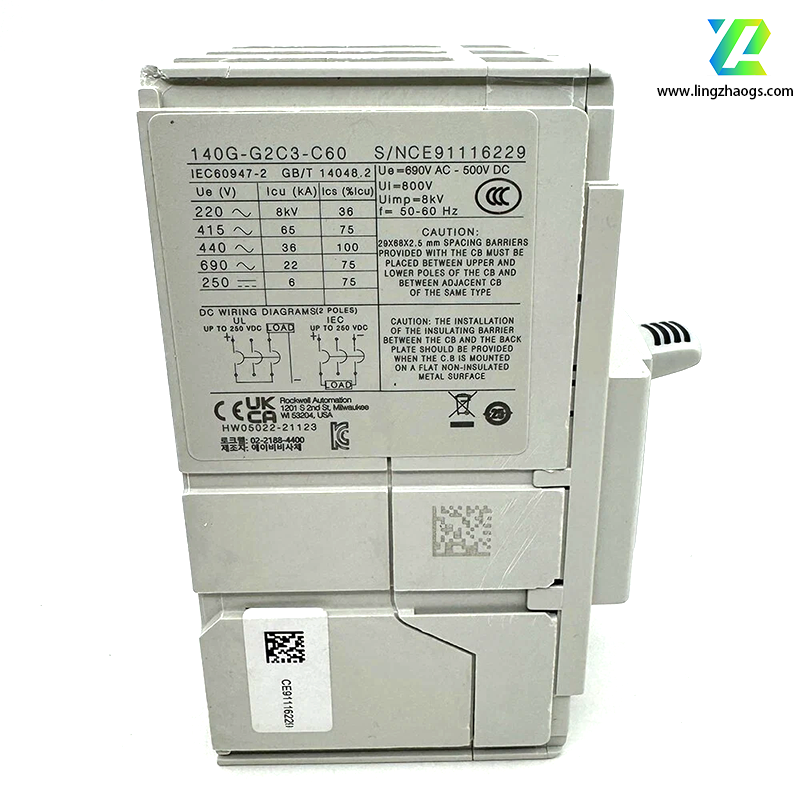

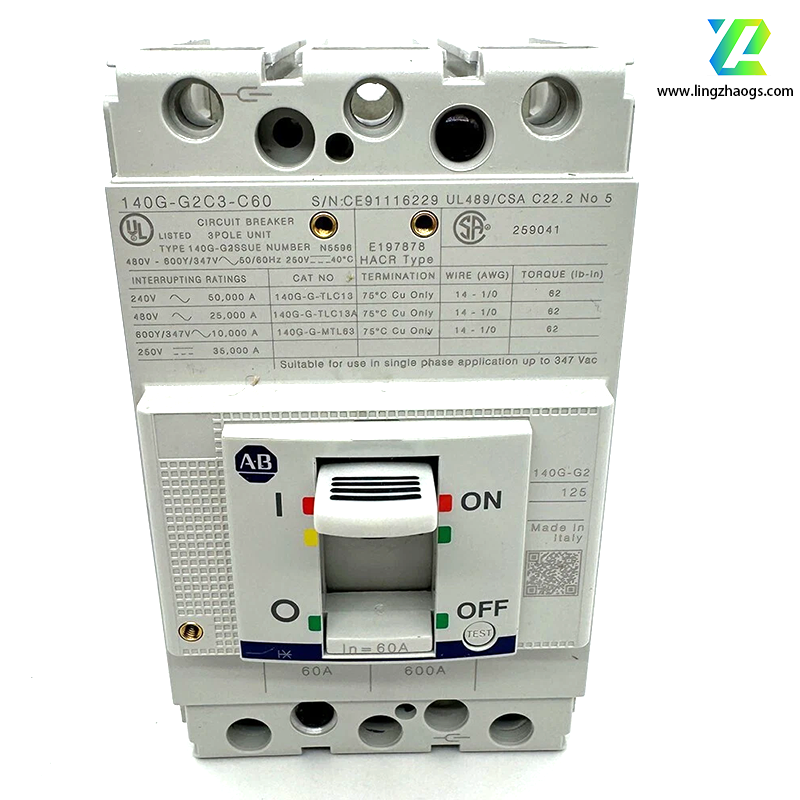

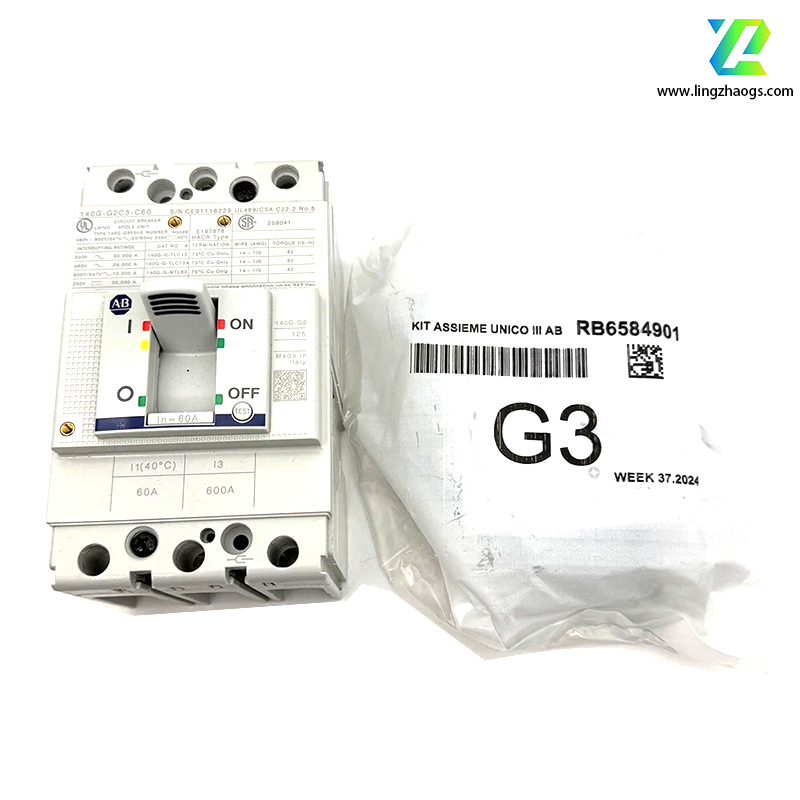

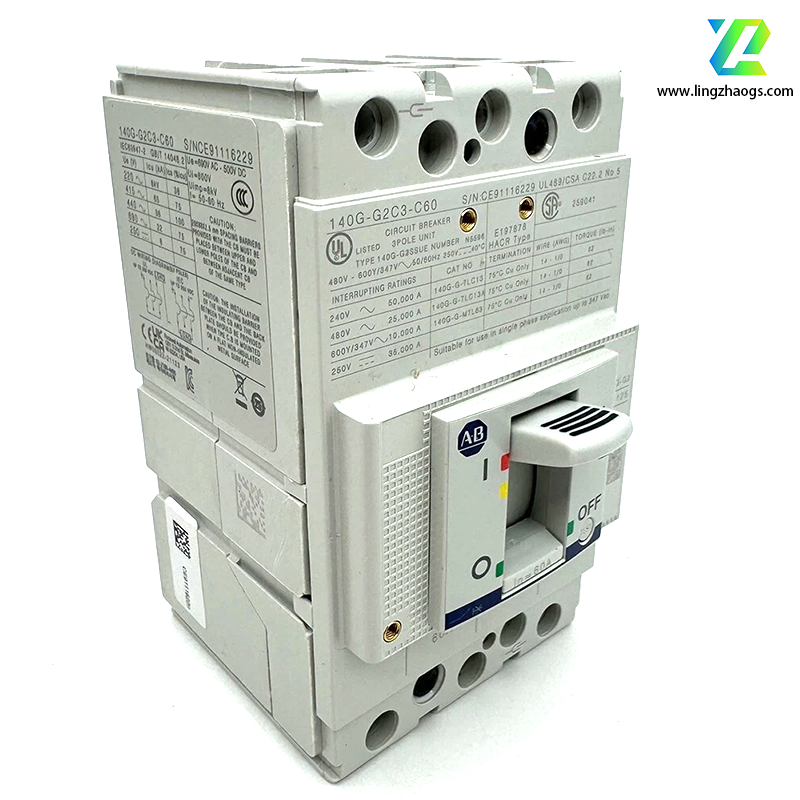

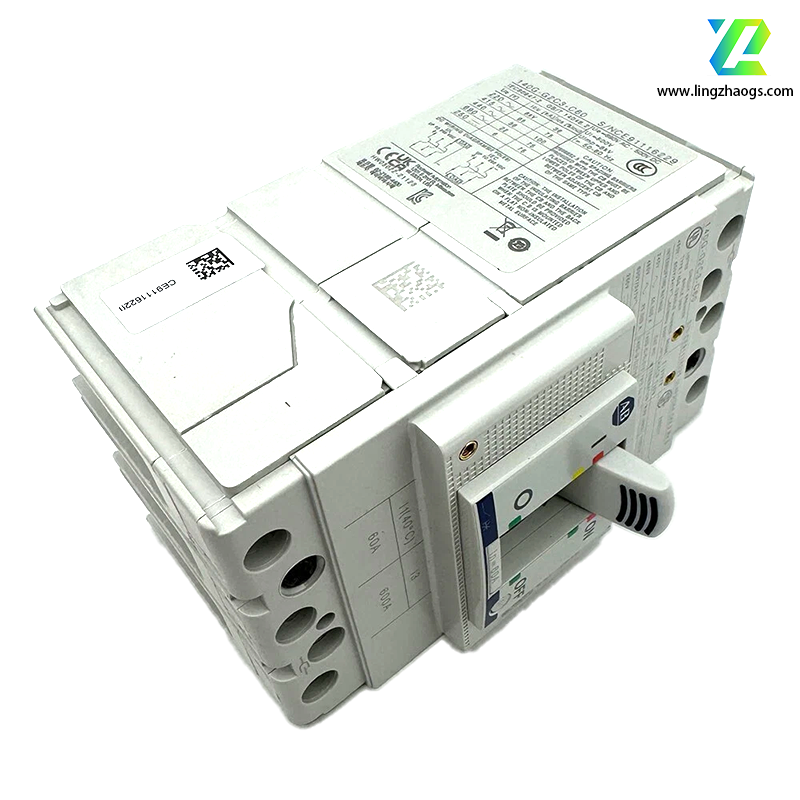

Details of AB 140GG2C3C60

• Basic Information:
  • Catalog Number: 140G-G2C3C60
  • Product Type: Molded Case Circuit Breaker
  • Frame Size: 125A G-Frame
  • Pole Configuration: 3 poles
  • Lifecycle Status: Active
• Electrical Specifications:
  • Rated Continuous Current (Iu): 60A
  • Rated Insulation Voltage (Ui): 800V
  • Rated Impulse Withstand Voltage (Uimp): 8kV
  • Control Element Type: Toggle type
  • Thermal-Magnetic Trip Type: Fixed thermal trip / Fixed magnetic trip
  • Thermal Trip Current (Ir): 60A
  • Magnetic Trip Current (Im): 600A
  • Short-Circuit Breaking Capacity: 25kA at 480V
• Mechanical Specifications:
  • Mounting Method: Optional 35mm DIN rail mounting
  • Main Circuit Connection: Screw connection
  • Protection Degree: IP40
  • Mechanical Lifespan: 25,000 operations per hour
  • Weight: Approximately 2.65 lbs (1.2 kg)
• Environmental Specifications:
  • Operating Temperature: 0°C to 40°C (32°F to 104°F), non-condensing
  • Storage Temperature: -40°C to 80°C (-40°F to 176°F)
• Certifications:

  UL, CSA, CCC, CE certified, compliant with standards such as IEC 60947-2.
