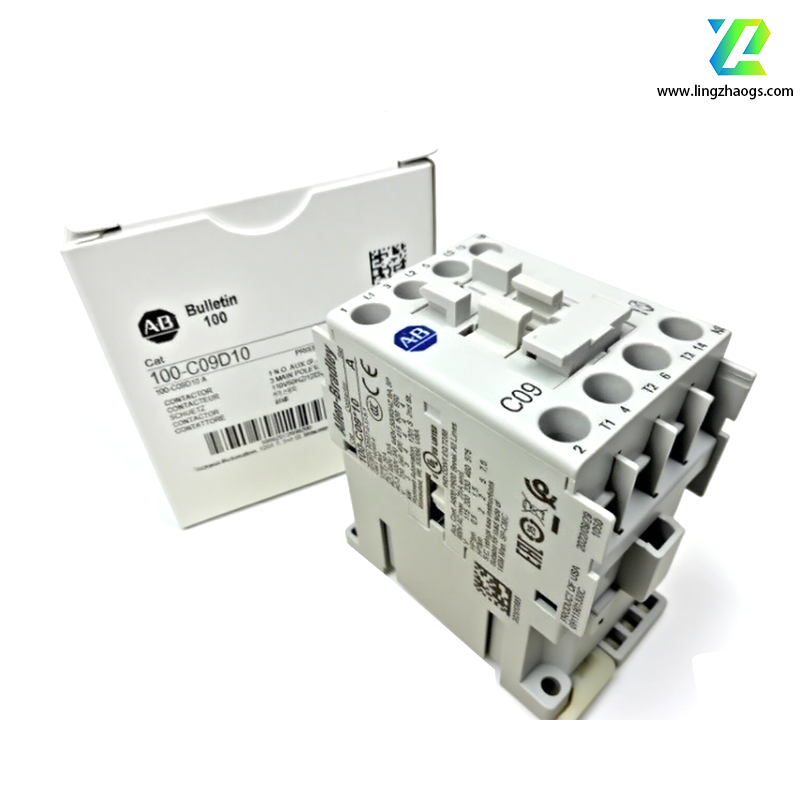

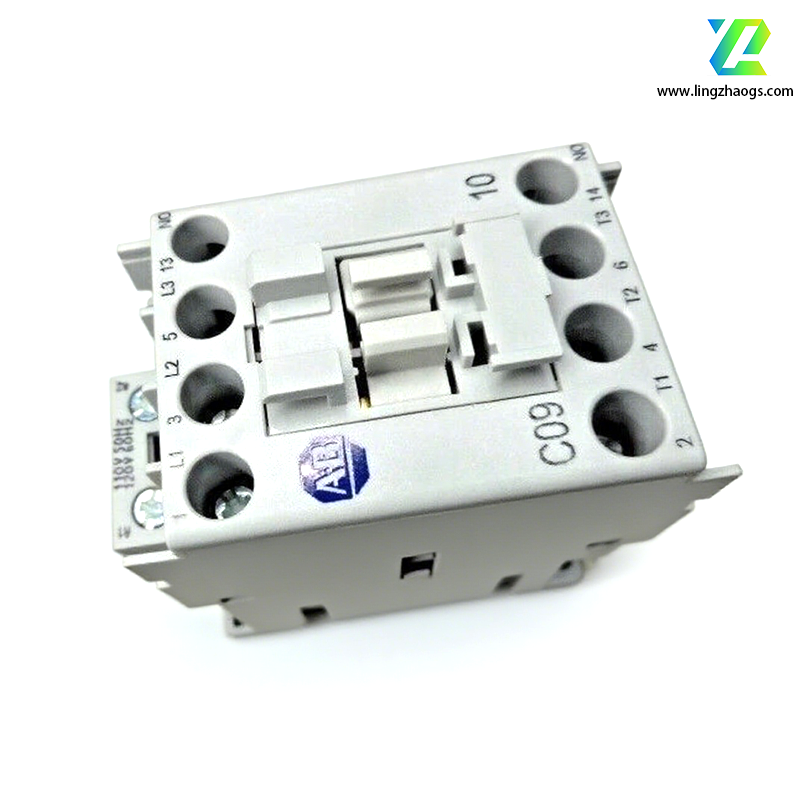

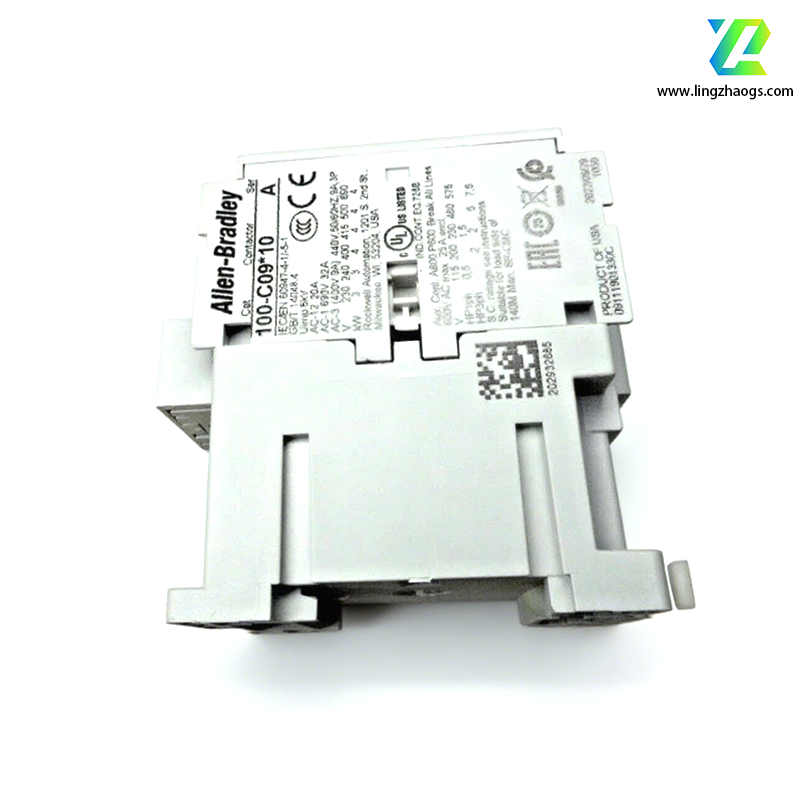

AB 100C09D200 is an IEC 9A contactor manufactured by Allen-Bradley (Rockwell Automation). Below are its detailed specifications:
Basic Information:
- Catalog Number: 100-C09D200
- Lifecycle Status: Active
Electrical Specifications:
- Coil Voltage: 110V 50Hz / 120V 60Hz
- Rated Operating Current (AC-3): 9A
- Contact Configuration: 2 Normally Open (NO) and 2 Normally Closed (NC) main contact configuration
- Pole Number: 4 poles
- Power Rating: 3kW at 230V; 4kW at 400V/415V, 500V, and 690V
Connection Method: Screw-type terminal connection is adopted, with a conductor size of 16-10AWG.
Mounting Method: Can be mounted on a 35mm DIN rail.
Temperature Range: Operating temperature ranges from -25℃ to 60℃; storage temperature ranges from -55℃ to 80℃.
Certifications: Equipped with certifications including China CCC, SUVA LVD Type Approval, CE, Eurasian Economic Union (EAEU) certification, UL certification, and American Bureau of Shipping (ABS) certification.
