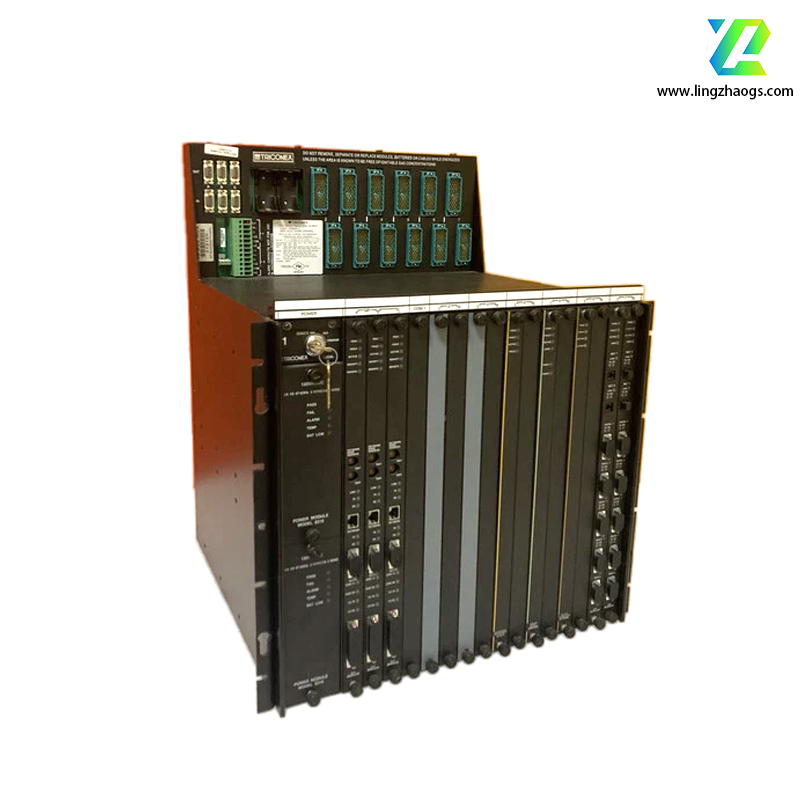

The TRICONEX 8120E is a high-integrity redundant control system built on Triple Modular Redundancy (TMR) architecture. Designed for critical industrial processes, it delivers unparalleled reliability, fault tolerance, and safety, ensuring uninterrupted operation even in the event of component failures. This system is engineered to meet the stringent demands of safety-critical applications where downtime or process failures could lead to significant risks.
- Power Requirements:
- Input: 24V DC or 100-240V AC
- Output: 5V DC (for internal components)
- Operating Environment:
- Temperature: -40°C to 70°C (operating); -50°C to 85°C (storage)
- Humidity: 5% to 95% (non-condensing)
- Processing Capability:
- Processor: 32-bit PowerPC 603e, 400MHz
- Memory: 256MB RAM; 2GB storage
- Communication Interfaces:
- Supported protocols: Modbus, Ethernet/IP, RS232, RS485
- Redundant communication ports for seamless data transmission
- Safety & Compliance:
- IEC 61508 SIL 3 certification
- TÜV safety approval
- Compliant with global industrial standards for hazardous environments
- TMR Architecture: Three identical subsystems operate in parallel, with real-time result comparison to eliminate single points of failure. Ensures system stability even if one or two modules malfunction.
- Hot-Swappable Components: All critical modules (power supplies, communication cards, I/O modules) support hot swapping, enabling maintenance without system shutdown.
- High Availability: Redundant power supplies and communication paths minimize downtime risks, ensuring 24/7 operation in demanding industrial settings.
- Scalable Design: Compatible with a wide range of Triconex I/O modules (digital, analog, safety) for flexible configuration based on application needs.
- Advanced Diagnostics: Built-in self-monitoring tools provide real-time fault alerts and detailed logs, simplifying troubleshooting and reducing maintenance time.
Ideal for safety-critical and high-reliability industries:
- Oil & Gas: Upstream exploration, refineries, pipeline monitoring, and offshore platforms.
- Chemical Processing: Reactor control, batch processing, and hazardous material handling.
- Power Generation: Fossil fuel, nuclear, and renewable energy plant safety systems.
- Pharmaceuticals: GMP-compliant process control for drug manufacturing.
- Heavy Industry: Metallurgy, pulp & paper, and automotive production lines requiring continuous operation.
- Compatible with Triconex TriStation 1131 software for programming, configuration, and monitoring.
- Supports seamless integration with existing DCS and SCADA systems via standard communication protocols.
- Backed by global technical support for installation guidance, troubleshooting, and system optimization.
The TRICONEX 8120E combines robust redundancy, safety certification, and adaptability, making it a trusted choice for protecting critical industrial processes worldwide.
