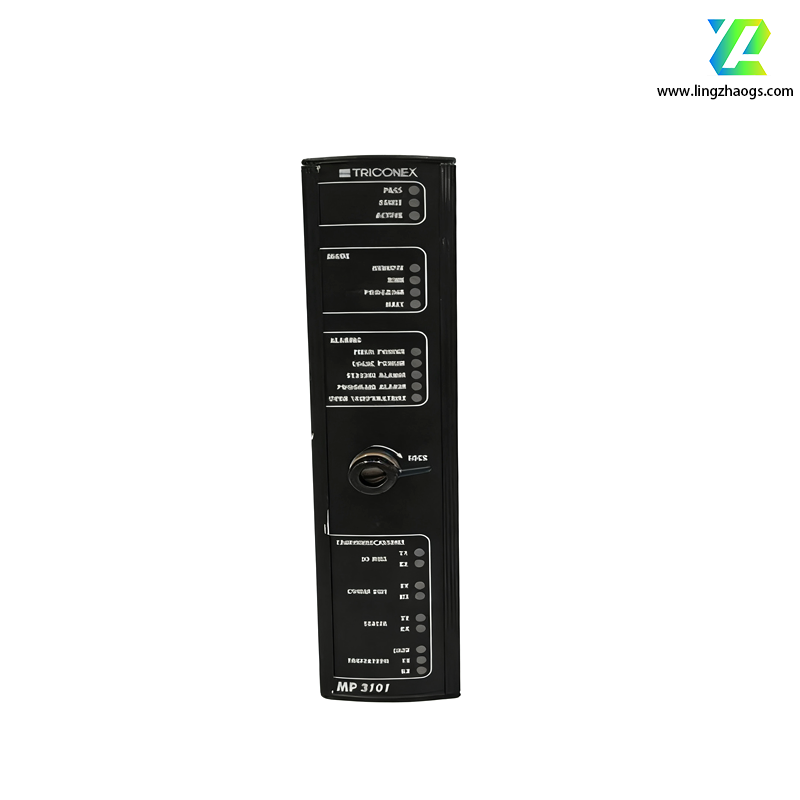

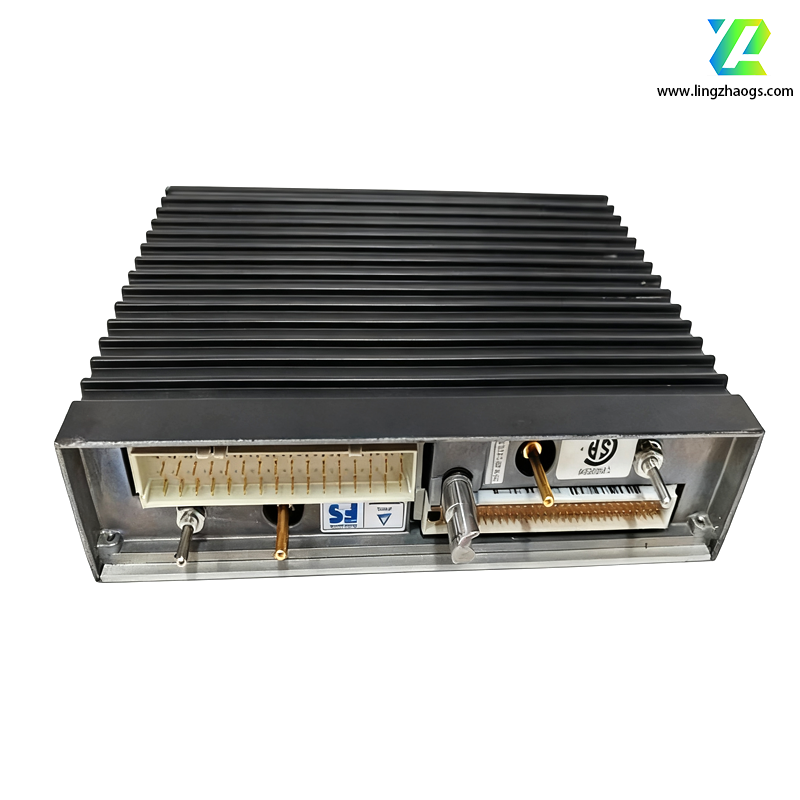

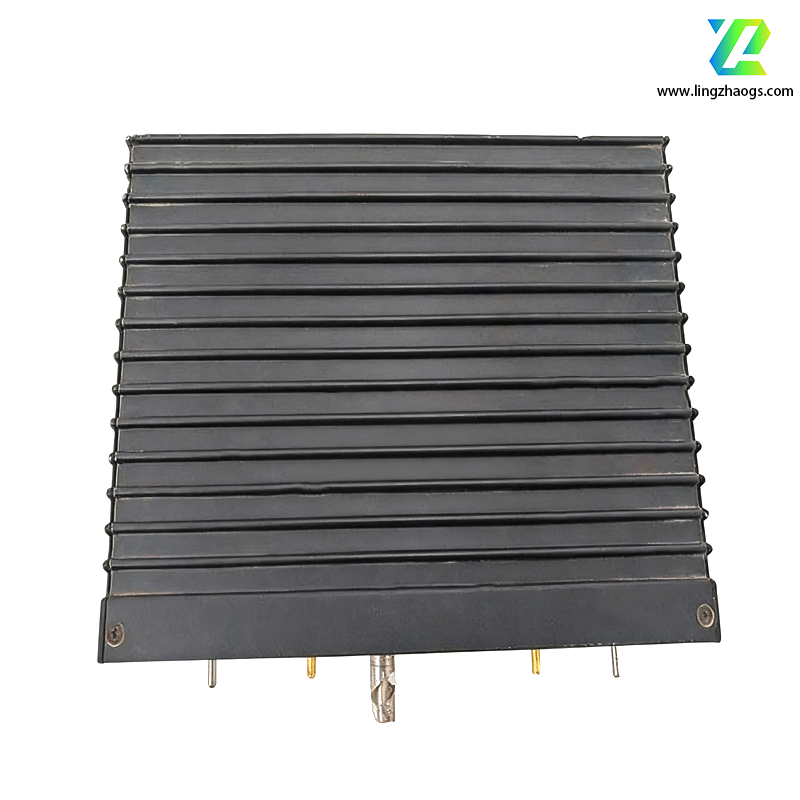

The TRICONEX MP3101 is a high-performance communication module from Triconex (a Schneider Electric brand), specifically designed for Tricon Triple Modular Redundancy (TMR) control systems. It serves as a core hub for high-speed data exchange between controllers, external devices, and monitoring systems. Supporting multiple industrial standard protocols, this module seamlessly integrates into complex industrial automation networks, making it ideal for critical industries such as oil & gas, chemicals, and power generation where reliable data transmission is paramount.
- Supported Protocols: Modbus TCP/IP, EtherNet/IP, Modbus RTU (via gateway conversion)
- Network Interfaces: 2 x 10/100Mbps auto-sensing Ethernet ports (redundant configuration)
- Data Transfer Rate: Up to 100Mbps (full-duplex mode)
- Communication Distance: Maximum 100 meters via twisted-pair cable (compliant with IEEE 802.3 standards)
- Connection Type: RJ45 interfaces with Auto-MDIX (automatic cross-over) support
- Operating Voltage: Powered via system backplane (5V DC)
- Power Consumption: Typical 5W, maximum 7W
- Isolation Performance: Electrical isolation ≥250V AC between Ethernet interfaces and system backplane
- Operating Temperature: -40°C to +70°C (wide-temperature design for extreme industrial environments)
- Storage Temperature: -50°C to +85°C
- Relative Humidity: 5% to 95% (non-condensing)
- Vibration Resistance: 10–500Hz, 1g acceleration (operating condition)
- Shock Resistance: 30g peak acceleration (11ms duration)
- Safety Integrity Level: Complies with IEC 61508 SIL 3 requirements
- Certifications: ATEX explosion-proof certification, IECEx certification, CE marking
- Electromagnetic Compatibility (EMC): Conforms to EN 61000 series standards with strong anti-interference capability
Redundant Communication Design: Equipped with dual Ethernet ports supporting redundant network architectures. Automatically switches to the backup link if the primary communication path fails, ensuring uninterrupted data transmission with a switching time <100ms.
Multi-Protocol Compatibility: Supports multiple mainstream industrial communication protocols, enabling seamless integration with DCS, SCADA systems, HMI, and intelligent devices from different manufacturers, reducing system integration complexity.
High-Speed Data Processing: Features a dedicated communication processor capable of parallel processing of multiple data requests, supporting up to 1,000 message transactions per second to meet large-scale data exchange requirements.
Online Diagnostics & Monitoring: Built-in real-time diagnostic functions monitor network connection status, data transmission error rates, and port conditions. Diagnostic data is uploaded to the monitoring system via the controller, facilitating network troubleshooting.
Hot-Swappable Support: The module supports online hot swapping, allowing replacement without system shutdown, minimizing maintenance-related production disruptions and improving system availability.
Data Security: Incorporates data frame verification and timeout retransmission mechanisms to ensure transmission accuracy. Configurable Access Control Lists (ACL) restrict unauthorized device access, enhancing network security.
- Oil and Gas Industry: Connects wellhead control units with central monitoring systems for real-time data transmission and remote control
- Chemical Industry: Facilitates data exchange between reactor control systems and Manufacturing Information Systems (MIS) to support production process optimization
- Power Industry: Enables communication between generator set safety systems and grid dispatching systems, ensuring stable grid operation
- Nuclear Power Industry: Used for isolated communication between safety-grade control systems and non-safety-grade monitoring systems, meeting nuclear safety regulations
- Other Critical Fields: Compliance data upload for pharmaceutical production lines, communication in rail transit signaling systems, and remote monitoring of large metallurgical equipment
- Designed for use with Triconex Tricon series controllers (e.g., HCU3700, 8000 series)
- Configurable via TriStation 1131 software, with customizable parameters such as data transmission cycles and timeout periods
- Compatible with industrial Ethernet ring networks, star topologies, and supports network redundancy protocols (e.g., MRP)
- Works in conjunction with Triconex I/O modules to enable bidirectional transmission of field data and remote control commands
- During selection, confirm required communication protocols and network topology to ensure compatibility with existing systems
- Installation must be performed by professional technicians using industrial-grade shielded twisted-pair cables with proper grounding to minimize electromagnetic interference
- Network planning should account for bandwidth requirements to avoid excessive load on individual links affecting communication performance
- Regularly check module status and network health via system diagnostic tools to address anomalies promptly
With its high reliability, multi-protocol support, and flexible integration capabilities, the TRICONEX MP3101 is an ideal choice for communication between Tricon control systems and external networks, providing stable and secure information exchange for critical industrial processes.
