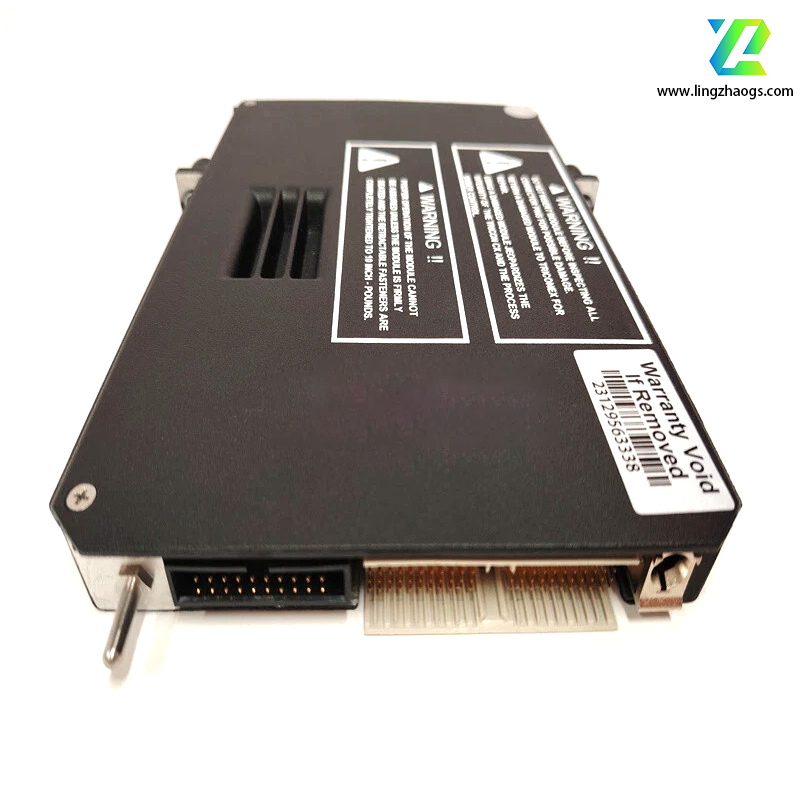

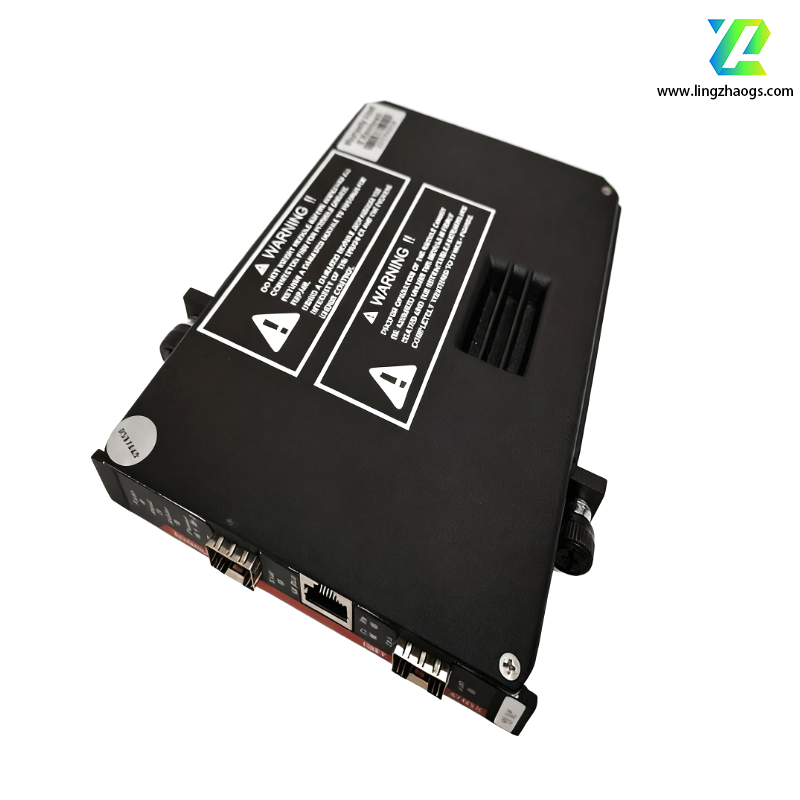

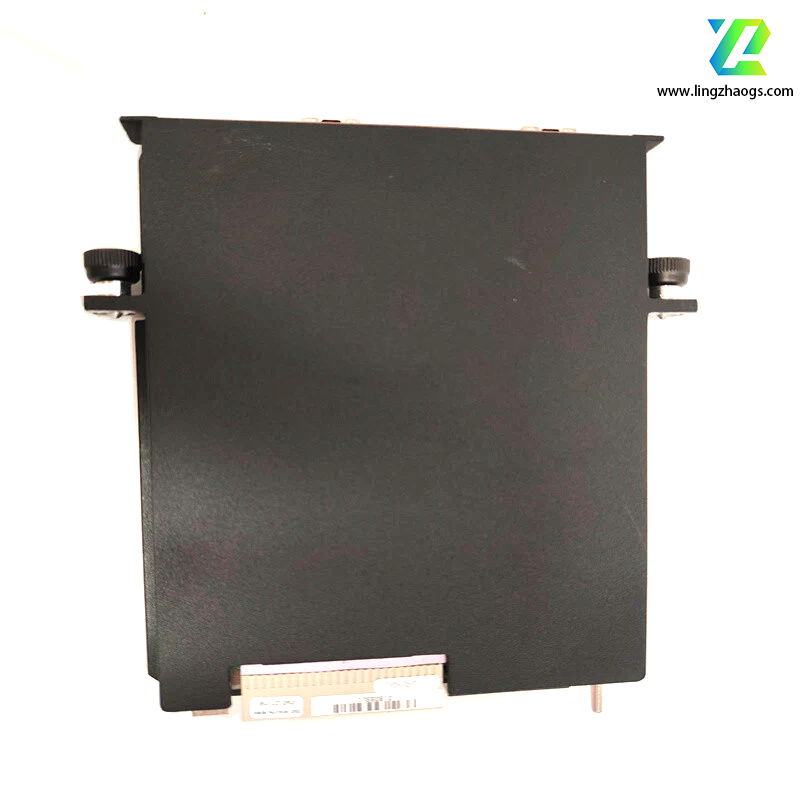

The Triconex IMFF4703X is a high-performance industrial automation module built on Triple Modular Redundancy (TMR) architecture. As a critical component of Triconex safety instrumented systems (SIS), it is engineered to deliver uninterrupted operation and fault tolerance in high-risk industrial environments, ensuring process safety and reliability.
- Input Voltage: 20-42.5V DC
- Output Voltage: 45-42V DC/AC
- Power Consumption: 20W
- Operating Current: 0.5A typical @ 24V DC
- Dimensions: 230mm × 160mm × 30mm (L×W×H)
- Weight: Approximately 1.1kg
- Mounting: DIN rail-compatible for standard industrial cabinet installation
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -20°C to +70°C
- Humidity Resistance: 5%-95% (non-condensing)
- Vibration/Shock Rating: 10-500Hz, 1g acceleration (operating); 30g peak (11ms duration)
- Safety Integrity Level: SIL 3 (compliant with IEC 61508)
- Certifications: ATEX (explosive environments), IEC 61158 (fieldbus), EN 50154 (railway), and CE marking
- TMR Architecture: Triple redundant design ensures system functionality even with two concurrent module failures, eliminating single points of failure.
- Hot-Swappable: Supports on-line replacement without system shutdown, minimizing maintenance downtime.
- Real-Time Diagnostics: Built-in self-monitoring with detailed fault logging for rapid troubleshooting.
- Multi-Protocol Compatibility: Integrates with Modbus, Ethernet/IP, and Profibus, enabling seamless communication with existing control systems.
- High-Speed Processing: Delivers real-time response for time-critical control applications.
Widely used in industries requiring high reliability:
- Oil & gas: Safety interlocks, pipeline monitoring
- Chemical processing: Reactor control, pressure/temperature regulation
- Power generation: Turbine protection, boiler safety systems
- Nuclear facilities: Critical safety control loops
- Railway: Signaling and infrastructure control
- Heavy manufacturing: High-integrity automation lines
- Compatible with Triconex Tricon systems and TriStation 1131 software for configuration.
- Requires certified power supplies matching input voltage specifications.
- Installation by qualified personnel is recommended to ensure TMR functionality.
