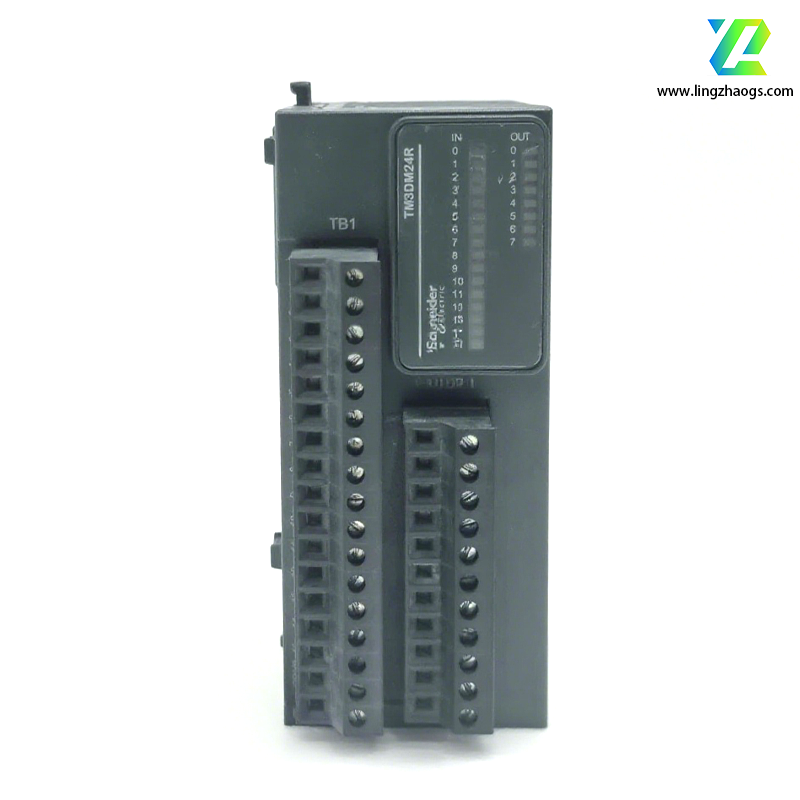

TM3DM24R is an important digital input/output (I/O) mixed module in the Modicon TM3 series under Schneider Electric. Specifically designed to meet the diverse needs of the industrial automation field, it plays a key role in building efficient and stable industrial control systems.
As a member of the Modicon TM3 series, the TM3DM24R module, with its own characteristics, is suitable for a wide range of application scenarios, from basic automation equipment to complex industrial production lines. It can work in collaboration with various logic controllers such as Modicon M221, M241, M251, and M262, providing reliable signal acquisition and control output support for industrial control systems of different scales and complexities.
It is manufactured by Schneider Electric, a world-renowned industrial electrical enterprise. Schneider Electric has profound technical accumulation and an outstanding brand reputation in the field of industrial automation. Its strict quality control system runs through every link of the TM3DM24R module, from R&D, production to sales, ensuring the product has excellent stability and reliability.
- Number of Channels: Equipped with 16 digital input channels, which can simultaneously collect signals from multiple devices such as sensors and buttons. These input channels comply with Type 1 of the IEC 61131-2 standard, suitable for connecting common digital signals in industrial environments.
- Input Type: Supports sinking/sourcing (positive/negative) input logic, compatible with output signals of various types of sensors. Whether it is a sensor with NPN-type (sinking) output or PNP-type (sourcing) output, it can be easily connected to the input channels of the TM3DM24R module, greatly improving the versatility of the module in practical applications.
- Input Voltage: The rated input voltage is 24V DC, and the input voltage range is 19.2-28.8V DC. Within this voltage range, the module can stably identify the state changes of input signals. When the input voltage is higher than 15V DC, the module determines the input signal as the "1" (high-level) state; when the input voltage is lower than 5V DC, it is determined as the "0" (low-level) state. The input impedance is 3.4kΩ, and the rated input current is 7mA.
- Number of Channels: Provided with 8 digital output channels, using normally open (NO) relay contacts as the output type. The relay output type has high load capacity and electrical isolation performance, suitable for controlling various devices that require large driving currents, such as contactors and solenoid valves.
- Output Voltage and Current: The rated output voltage can support 24V DC or 240V AC, with maximum output voltages of 30V DC and 264V AC respectively. The rated output current of each output channel is 2A, which can meet the driving needs of most industrial actuators. However, in practical applications, the maximum output current of each common terminal (2 common terminals correspond to 8 output channels) is 7A. Attention should be paid to the distribution of load current during use to avoid overloading of a single common terminal.
- Output Load Capacity: The mechanical life of the relay output is up to 20,000,000 operations, featuring good durability. Even in application scenarios with frequent switching, it can ensure long-term stable operation. The minimum switching load is 10mA at 5V DC, which means the module can also reliably control some low-voltage and low-current loads.
- Electrical Isolation: There is an isolation voltage of 500V AC between the input and internal logic, and the isolation voltage between the input group and the output group is as high as 1500V AC. This excellent electrical isolation performance effectively prevents external electrical interference from affecting the internal circuit of the module, and at the same time avoids electrical crosstalk between input and output, ensuring the module can operate stably and reliably in complex industrial electromagnetic environments.
- Overcurrent Protection: Although there is no dedicated hardware overcurrent protection circuit, through the reasonable design of the rated current of the output relay and the current limit of each common terminal, the module damage caused by output overload or short circuit can be prevented to a certain extent. In practical use, it is recommended to appropriately add overcurrent protection components such as fuses in the output circuit to further improve the reliability of the system.
Each input and output channel is equipped with a green LED indicator for real-time display of the channel status. When an input channel receives a signal (in the high-level state), the corresponding LED indicator lights up; when an output channel is activated (the relay contact is closed), the corresponding LED indicator also lights up. This intuitive status indication method allows engineers to quickly judge the working status of each channel of the module during on-site debugging and maintenance, and promptly detect and solve potential problems.
The response time of the input channel is divided into two cases. When the rising or falling edge speed of the input signal is slow (SV (1) < 2.0, where SV is the product version number printed on the product label), the on/off response time is 4ms; when the input signal changes at a fast speed (SV (1) ≥ 2.0), the on-response time can be as fast as 100μs (the specific time depends on the configured filter value), and the off-response time is 4ms. The maximum on/off response time of the output channel is 10ms. Such response speed can meet the requirements of fast signal processing and control in most industrial automation scenarios. For example, in an automated production line, it can quickly respond to the product position information detected by the sensor and timely control the action of the actuator to ensure the efficient operation of the production process.
Although the TM3DM24R module itself does not have a built-in dedicated communication interface for data transmission, it can indirectly support a variety of industrial communication protocols (such as Modbus TCP, CANopen, EtherNet/IP, etc.) through the connected Modicon M221, M241, and other PLC master devices (some protocols may require the expansion of corresponding communication modules). This compatibility enables it to be easily integrated into industrial automation systems of different architectures and perform data interaction and collaborative work with other devices. For example, through the Modbus TCP protocol, the collected input signal data can be uploaded to an industrial computer for centralized monitoring and analysis, while receiving control commands from the upper computer to control the status of the output channels.
It has good compatibility with other modules in the Modicon TM3 series (such as analog input/output modules, high-speed counting modules, etc.). When building an industrial control system, users can flexibly match different types of TM3 modules according to actual needs to form a powerful and scalable I/O system. For example, in an automated production project, the TM3DM24R digital mixed module can be used to collect the switch signal of equipment and control the action of the actuator, while matching the analog input module to collect analog signals such as temperature and pressure, realizing comprehensive monitoring and control of the production process.
The overall dimensions are 90mm (height) × 42.9mm (width) × 84.6mm (depth) (slight differences may exist in different data due to measurement methods), and the weight is approximately 140g (0.14kg). The compact and lightweight design makes it easy to install and arrange in industrial control cabinets or equipment with limited space, without occupying too much valuable space resources, providing convenience for the compact design of industrial systems.
- Installation Method: Supports DIN rail installation, which can be quickly and conveniently installed on a standard DIN rail. This installation method is firm and reliable, facilitating the disassembly and replacement of the module, and is suitable for the frequent equipment maintenance needs of industrial sites.
- Electrical Connection: Removable screw terminals are used for electrical connection. For the input part, 17 removable screw terminals of 1.5mm² are provided, with a spacing of 3.81mm; for the output part, 11 removable screw terminals of 1.5mm² are provided, also with a spacing of 3.81mm. This wiring method is easy to operate and has a firm connection, ensuring the stability and reliability of the electrical connection. When connecting cables, it is recommended to use unshielded cables with a maximum length of 30m to ensure the stability of signal transmission. For relay output (2A) wiring, wires with a cross-sectional area of at least 0.5mm² (AWG 20) and a temperature rating of at least 80℃ (176°F) should be used; for relay output common terminals (7A) or relay output wiring with a current greater than 2A, wires with a cross-sectional area of at least 1.0mm² (AWG 16) and a temperature rating of at least 80℃ (176°F) are required.
It is widely used in automated production lines in industries such as auto parts manufacturing and electronic equipment manufacturing. The 16 input channels are used to collect information such as equipment operation status and workpiece position detected by sensors, such as material in-place sensors and equipment fault alarm signals; the 8 output channels are used to control actuators to complete various actions, such as controlling the start and stop of motors and the expansion and contraction of cylinders to realize material handling and the start and stop of processing equipment. For example, in an auto parts processing production line, according to the workpiece position information fed back by the sensor, the TM3DM24R module can control the fixture action of the machine tool to accurately grasp and fix the workpiece, ensuring the accuracy and efficiency of the processing process.
It plays an important role in process control fields such as chemical engineering, food and beverage, and pharmaceuticals. The input channels can be connected to temperature sensors, pressure sensors, liquid level sensors, etc., to collect various parameters in the production process in real time; the output channels are used to control the operation of equipment such as control valves, pumps, and mixers. Taking the control of a reaction kettle in chemical production as an example, the temperature, pressure, and other signals inside the reaction kettle are obtained through the input channels. When the temperature or pressure exceeds the set range, the TM3DM24R module controls the opening of the control valve of the cooling water pipeline through the output channel to adjust the cooling water volume, or controls the rotation speed of the mixer, ensuring that the chemical reaction is carried out under optimal conditions, guaranteeing the safe and stable production process and improving product quality.
In logistics warehouses and sorting centers, it is used to collect signals from cargo detection sensors, position sensors, etc., and control the actions of sorting motors, conveyors, sorting cylinders, and other equipment through 8 output channels. For example, when goods reach the sorting area through the conveyor line, the sensor installed on the conveyor line transmits the cargo information to the TM3DM24R module. The module controls the corresponding sorting equipment to accurately sort the goods to the designated slideway or cargo location according to the preset sorting logic, improving the efficiency and accuracy of logistics sorting.
In smart buildings, it can be used to control equipment such as lighting systems, heating, ventilation, and air conditioning (HVAC) systems, and access control systems. The input channels collect signals from various sensors, such as light sensors, temperature sensors, and human infrared sensors; the output channels control relays to realize functions such as switching lighting lamps, starting and stopping air conditioning units, and controlling electric door locks. For example, according to the indoor light intensity and personnel activity, the TM3DM24R module automatically controls the switching and brightness adjustment of lighting fixtures, realizing energy-saving and comfortable indoor environment control.
