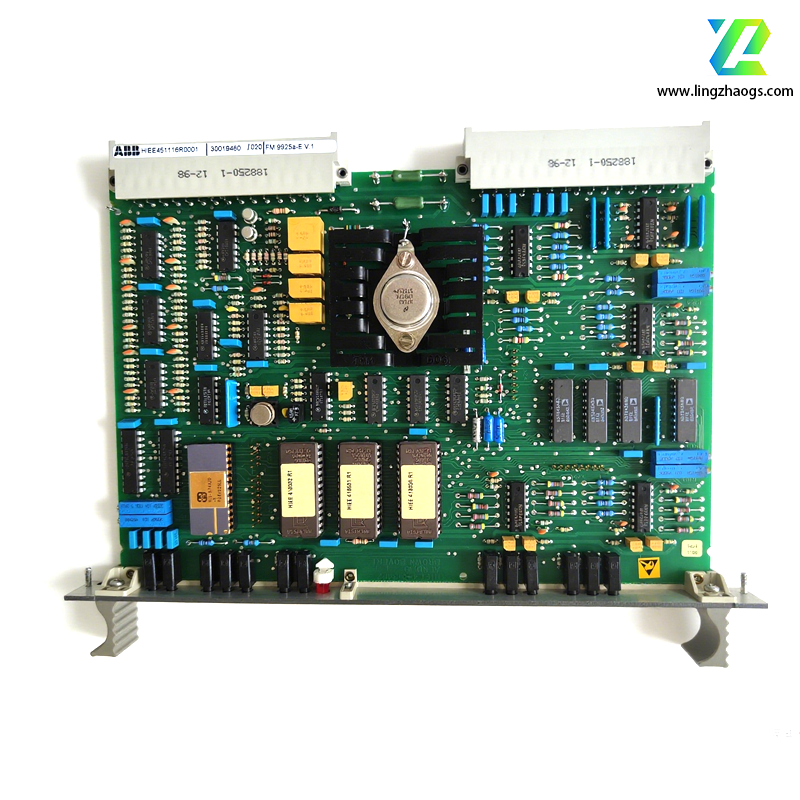

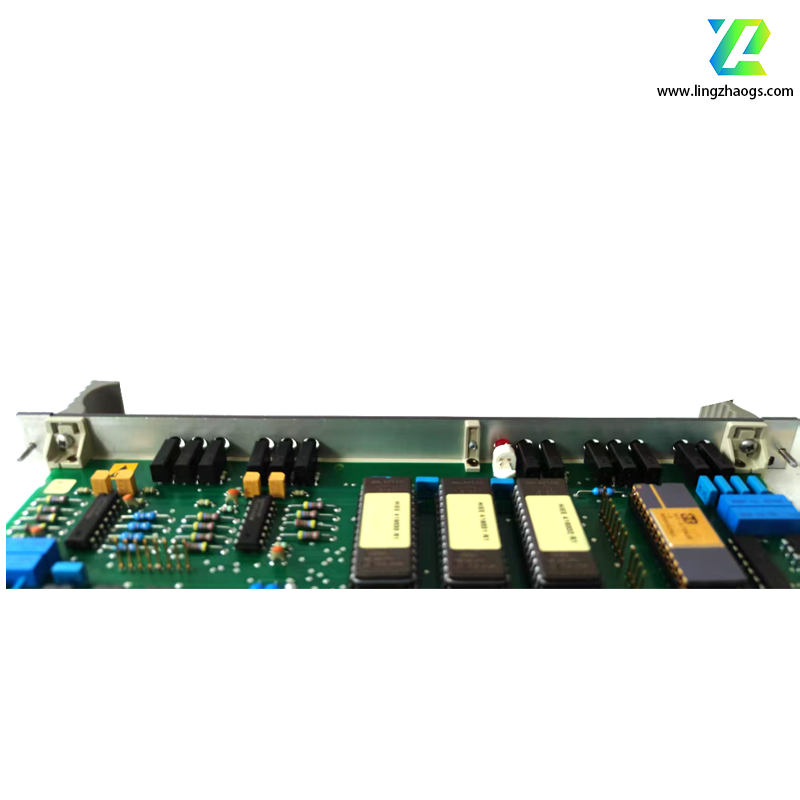

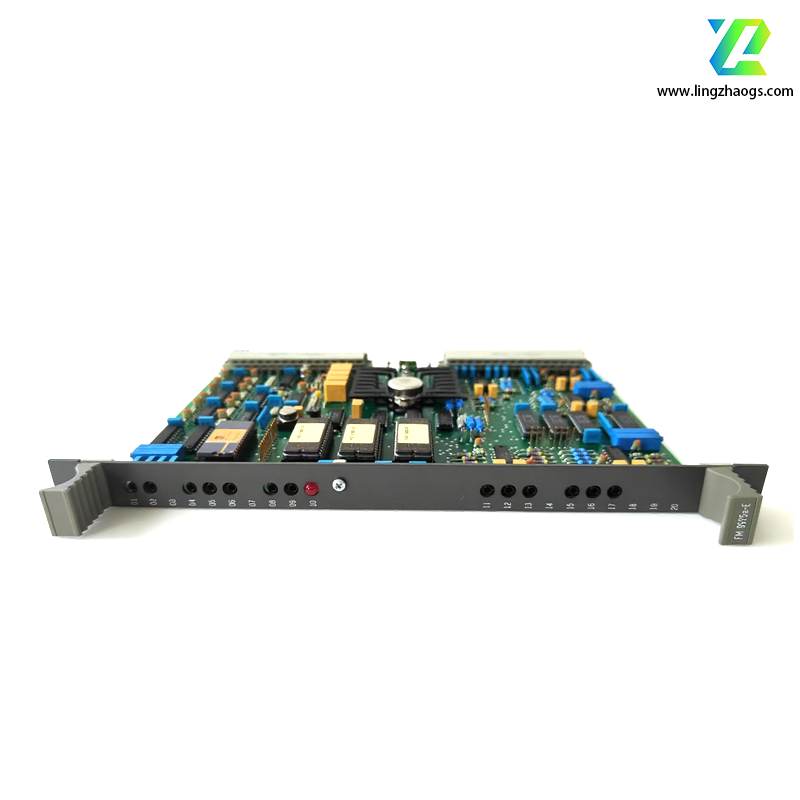

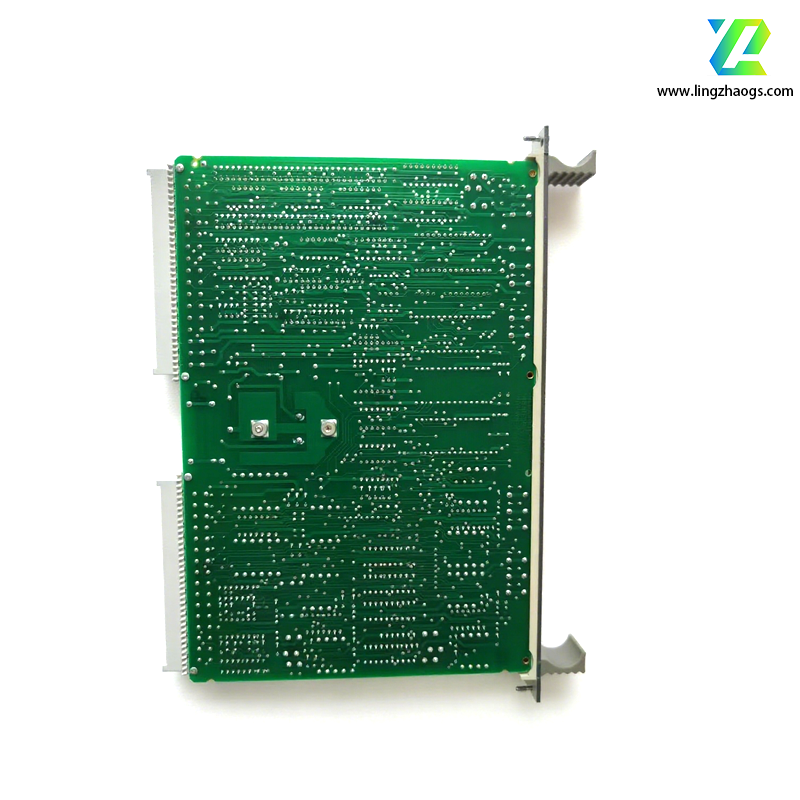

ABB HIEE451116R0001 is a high-performance digital input module designed for ABB’s industrial automation and control systems, specifically engineered to provide reliable, high-speed digital signal acquisition in harsh industrial environments. As a key component of ABB’s Advant OCS (Open Control System) or Symphony Plus DCS (Distributed Control System) portfolios, it enables seamless integration with process control networks to monitor discrete status signals (e.g., switch positions, alarm contacts). Below is a detailed breakdown based on ABB’s industrial control product specifications and verified technical resources.
- Manufacturer: ABB Group (a global leader in power and automation technologies)
- Model: HIEE451116R0001 (Order Code/Revision: R0001, indicating the first revision of this module)
- Product Type: Digital Input Module (DIG IN Module)
- Compatible Systems:
- ABB Advant OCS (Open Control System)
- ABB Symphony Plus DCS (used in power generation, petrochemical, and process industries)
- Compatible with ABB’s AC 800M controllers and CI854 communication interfaces
- Certifications:
- IEC 61131-2 (for industrial control equipment)
- IEC 60068-2 (environmental testing: temperature, humidity, vibration)
- CE marking (compliant with EU safety, health, and environmental standards)
- High-Speed Channel Scanning: Scans all 16 input channels simultaneously to ensure real-time detection of signal changes (critical for time-sensitive applications like emergency shutdowns).
- Debounce Filtering: Built-in software-configurable debounce filters (1ms – 100ms) to eliminate false signals caused by switch contact bounce or electrical noise.
- Status Monitoring: Each channel provides individual status feedback (via LED indicators on the module front panel) for quick visual troubleshooting (e.g., “Input Active,” “Channel Fault”).
- Galvanic Isolation: Channel-level isolation prevents cross-talk between channels and protects the module from voltage surges or ground faults in the field wiring.
- Redundant Power Support: Accepts two independent 24V DC power inputs; if one power source fails, the module automatically switches to the backup to avoid downtime.
- Fault Diagnostics: Built-in self-diagnostics for:
- Power supply anomalies (e.g., under-voltage, over-voltage)
- Channel open/short circuits
- Communication errors with the host controller
- Fault data is transmitted to the ABB DCS/controller for alarm logging and maintenance alerts.
- Communication Protocol: Uses ABB’s proprietary PROFIBUS DP or EtherNet/IP (depending on the host system) to communicate with the AC 800M controller or Symphony Plus I/O bus.
- Configuration Tool: Parameterized via ABB’s Control Builder M software (for AC 800M) or Symphony Plus Engineering tool (for DCS). Enables easy setup of input type, response time, and fault thresholds.
- Hot-Swappable Design (optional): Supported in select ABB chassis, allowing module replacement without powering down the entire system (reduces maintenance downtime).
ABB HIEE451116R0001 is widely used in safety-critical and process-intensive industries, including:
- Power Generation: Monitoring of circuit breaker status, valve positions, and motor start/stop signals in thermal power plants, nuclear power plants, and renewable energy (wind/solar) facilities.
- Petrochemicals & Oil/Gas: Detection of pump running status, pressure switch contacts, and emergency stop (E-Stop) signals in refineries, pipelines, and offshore platforms.
- Water & Wastewater: Monitoring of valve actuation, level switch status, and pump operation in treatment plants.
- Manufacturing: Tracking of conveyor belt sensors, limit switch positions, and machine safety interlocks in automotive, food & beverage, and heavy machinery production lines.
- Official Resources: Detailed datasheets, installation manuals, and compatibility guides are available on the ABB Industrial Automation Website (search by model number under “Control Systems > I/O Modules”).
- Technical Support: ABB’s global service network provides on-site installation assistance, firmware updates, and troubleshooting for industrial control systems.
- Warranty: Standard 24-month warranty; extended warranty options available for mission-critical applications (e.g., power plants, offshore facilities).
Compared to standard digital input modules, HIEE451116R0001 offers:
- High Isolation Levels: Ensures reliable operation in high-noise industrial environments (e.g., near large motors or high-voltage equipment).
- Wide Temperature Tolerance: Suitable for extreme conditions (e.g., -40°C in cold storage or +70°C in power plant turbine halls).
- ABB Ecosystem Compatibility: Seamless integration with ABB’s controllers and DCS, reducing compatibility issues and simplifying system design.
For exact configuration details (e.g., wiring diagrams, software settings) or compatibility checks with specific ABB systems, contact ABB’s industrial automation technical sales team or authorized distributors.
