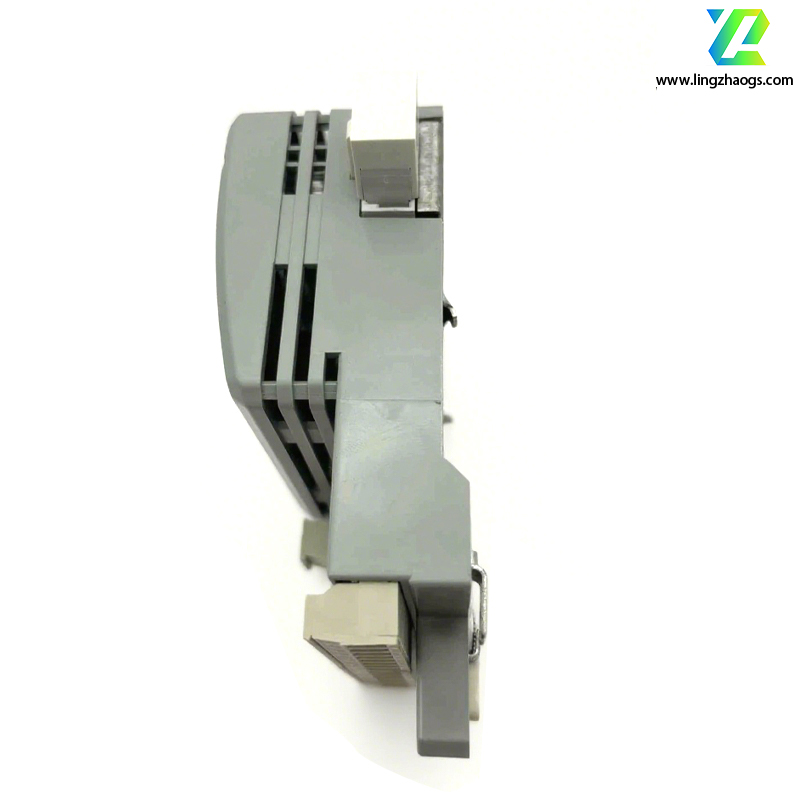

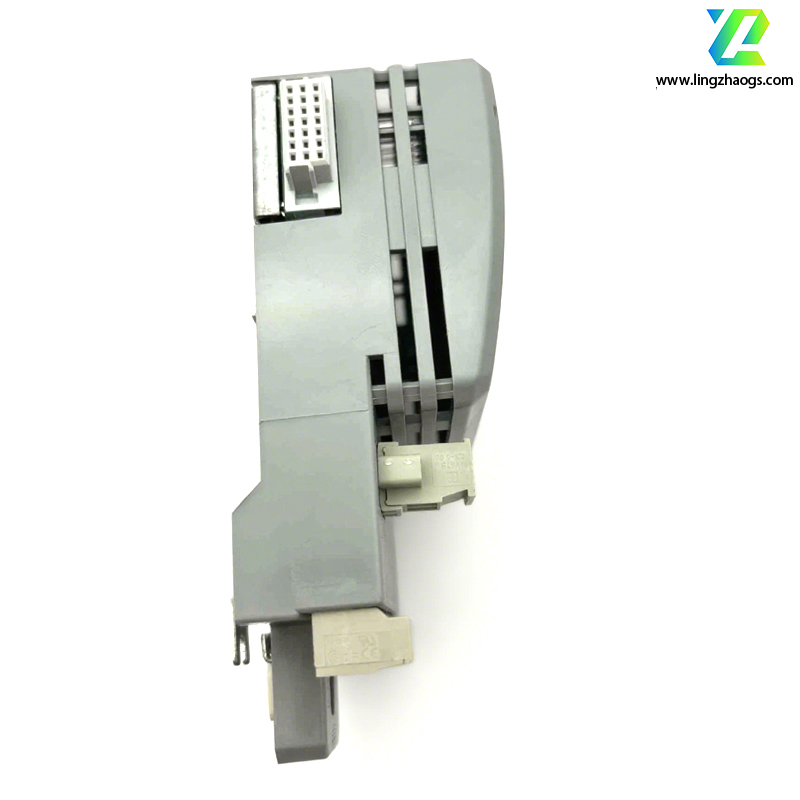

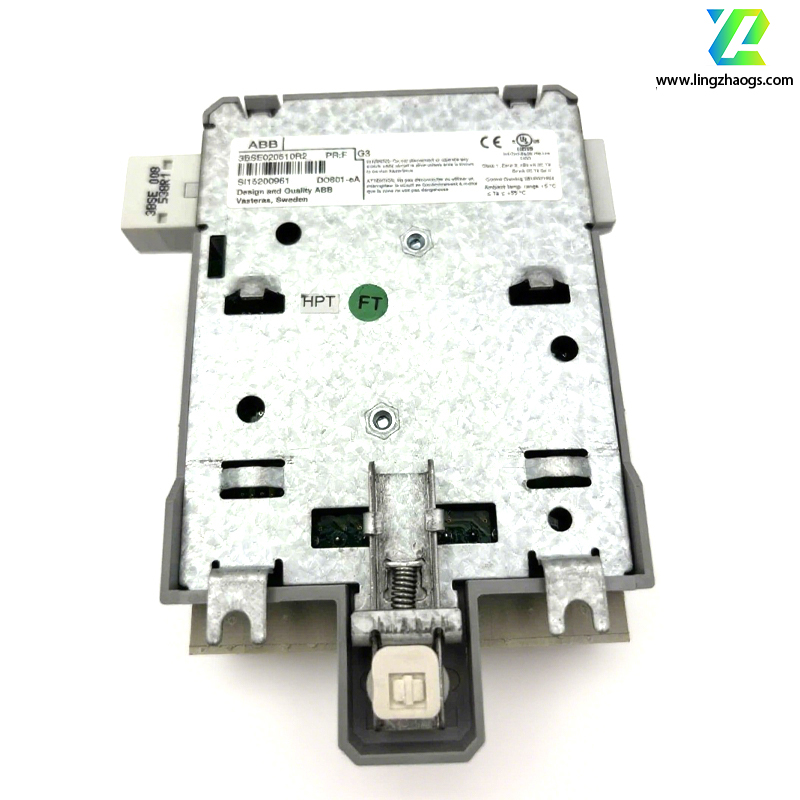

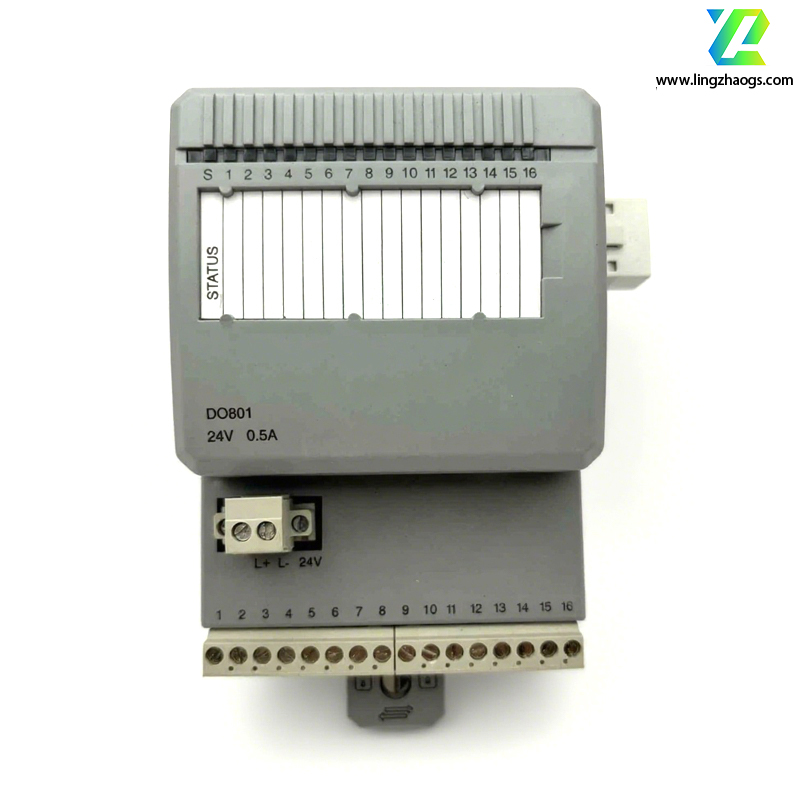

The ABB DO801 is a digital output module for the S800 I/O system. The specific details are as follows:
- Model: 3BSE020510R1
- Module Type: Digital output module
- Number of Channels: 16
- Output Signal Specification: 24V DC (12-32V DC), 0.5A
- Output Voltage Range: 10-30V
- Maximum Continuous Output Current: 0.5A
- Output Channel Type: Current-sourcing, current-limiting
Each output channel is equipped with a high-side driver (with short-circuit and over-temperature protection), EMC protection components, an inductive load suppression circuit, an output status indicator LED, and an optical isolation barrier. These features can effectively prevent damage to the module caused by conditions such as short circuits, overvoltages, and overtemperatures.
- Net Depth/Length: 58.5 mm
- Net Height: 102 mm
- Net Width: 86.1 mm
- Net Weight: Approximately 0.24 kg
Widely used in industrial automation fields that require digital output control, such as manufacturing, energy and utilities, transportation, and buildings and infrastructure.
