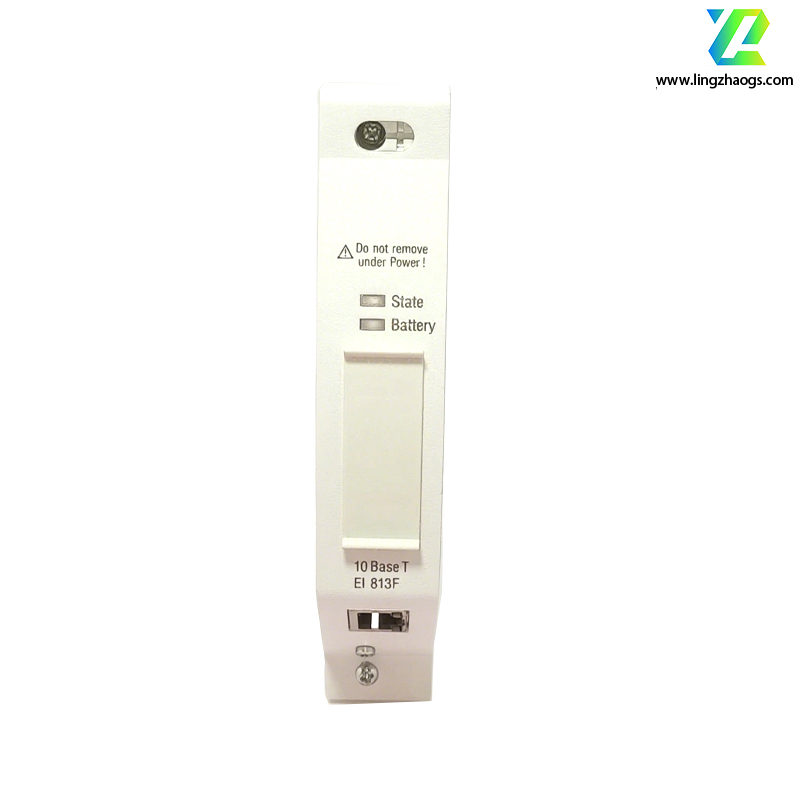

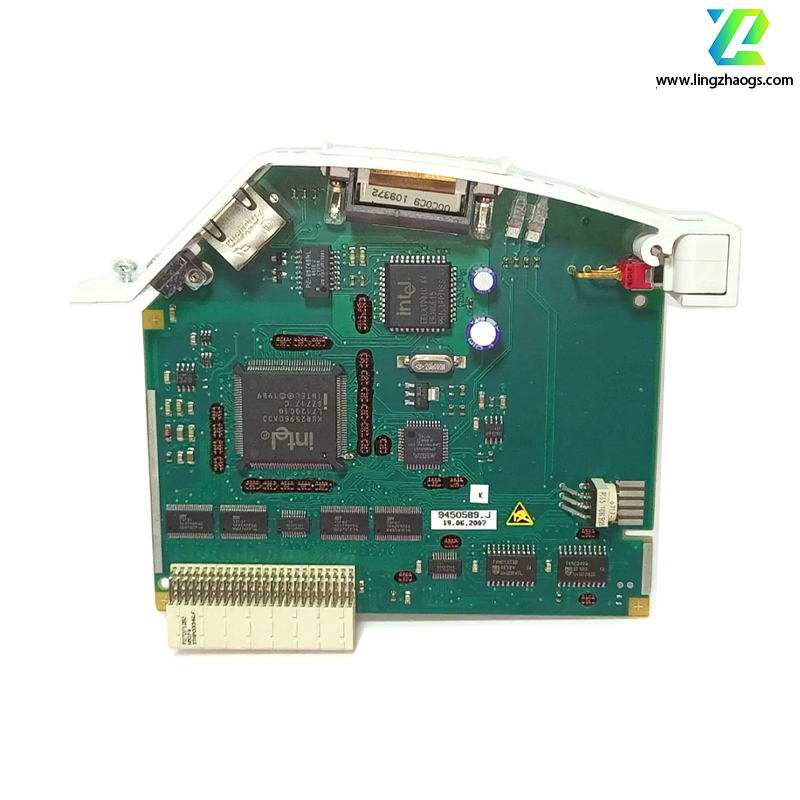

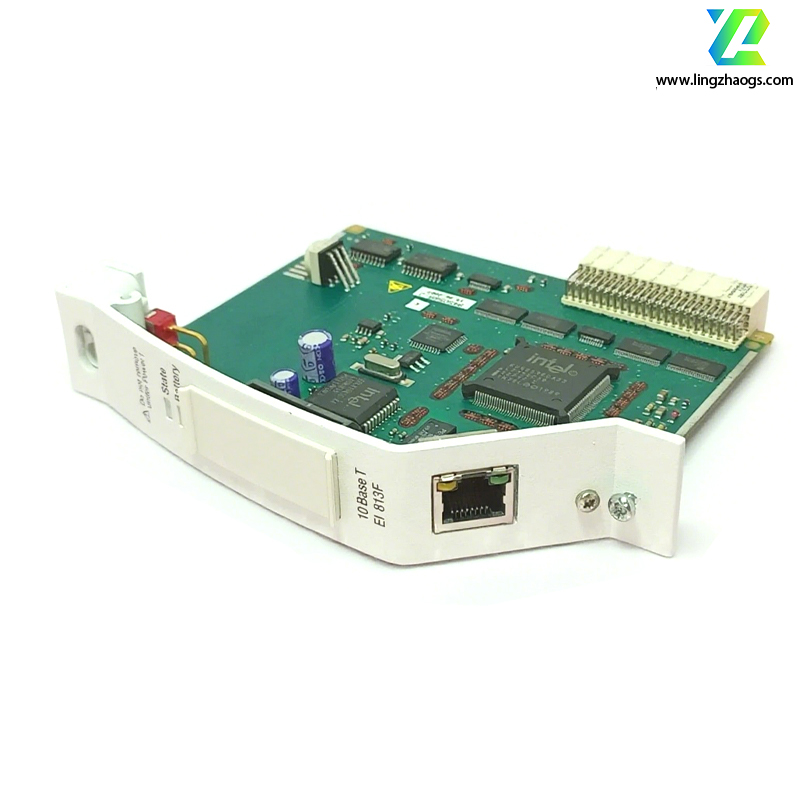

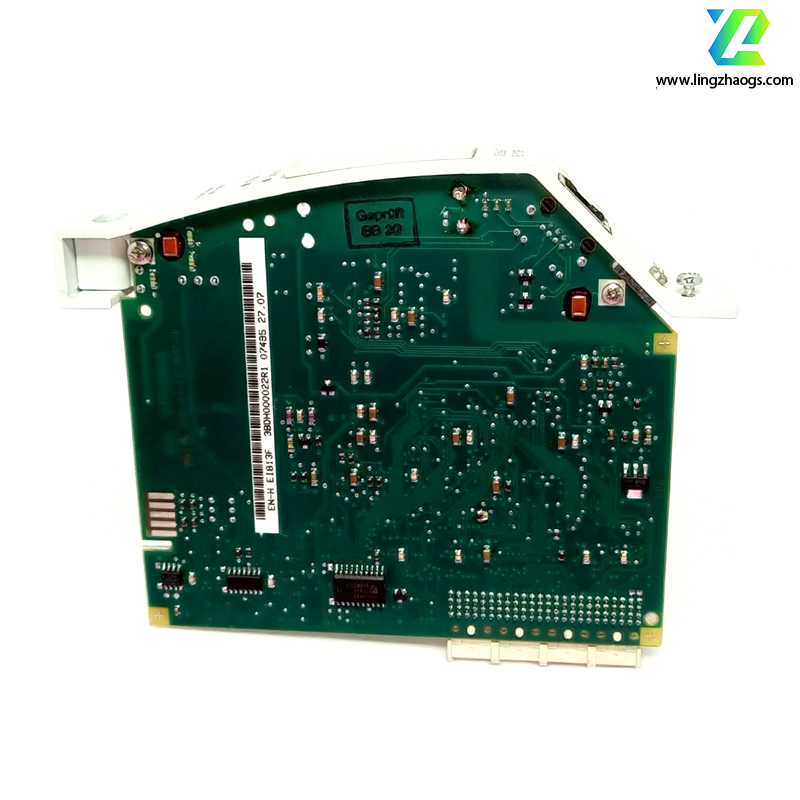

The EI813F is an Ethernet module launched by ABB, mainly used to connect controllers and Ethernet communication networks to realize data collection and transmission. Below is its detailed information:
- Brand: ABB
- Model: EI813F
- Product Number: 3BDH000022R1
- Affiliated Series: AC 800F

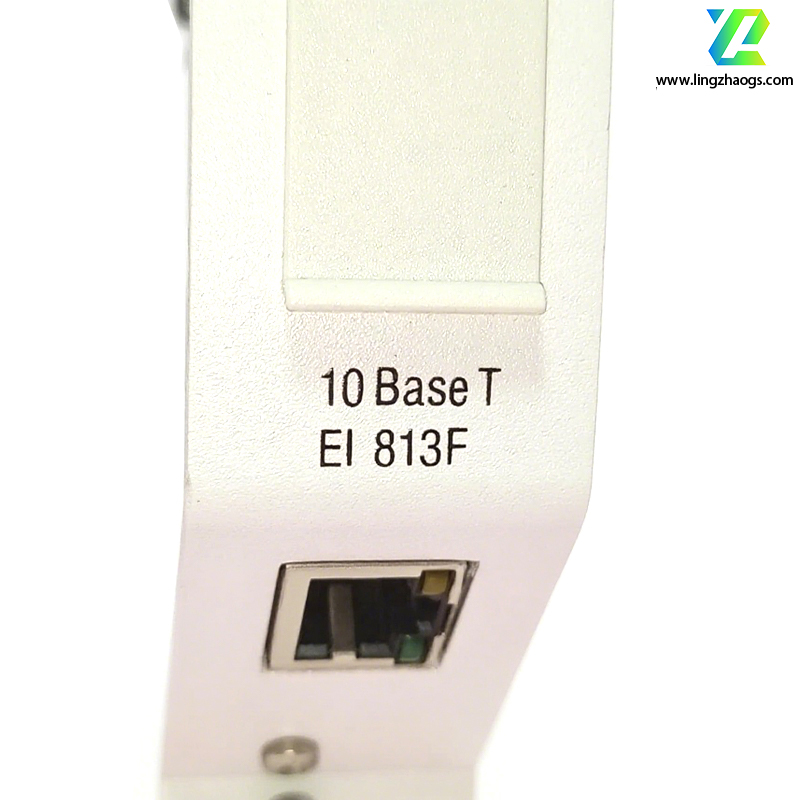

- Interface Type: RJ-45 female connector (shielded)
- Communication Standard: Complies with the IEEE 802.3 standard, providing 10BaseT standard communication (10 MBit)
- Data Bus: 32-bit data bus
- Transmission Rate: 10 Mbit/s
- Operating Temperature Range: -20°C ~ +60°C
- Dimensions: 125 mm × 155 mm × 28 mm
- Weight: Approximately 0.15 kg
- High Performance: Provides high-speed and reliable Ethernet communication, meeting the requirements of industrial automation systems for data transmission rate and stability.
- Flexibility: Supports multiple network protocols such as TCP/IP, UDP, and ICMP, enabling adaptation to different network environments.
- Strong Reliability: Adopts a standard Ethernet interface, featuring high anti-interference capability and stability, which can resist the impact of electromagnetic interference and network failures.
- Easy Maintenance: Can be configured and controlled via software, facilitating remote maintenance and upgrades.
- Status Display: Equipped with two integrated LED indicators to show the current communication status—the upper yellow LED indicates the link status, and the lower green LED indicates ongoing communication.
- Process Control: Realizes communication and data exchange between devices in process control systems.
- Motion Control: Enables remote control of equipment such as servo motors and frequency converters in motion control systems.
- Machine Vision: Implements transmission and processing of image data in machine vision systems.
- Data Acquisition: Achieves on-site data collection and transmission in data acquisition systems.
