Basic Information

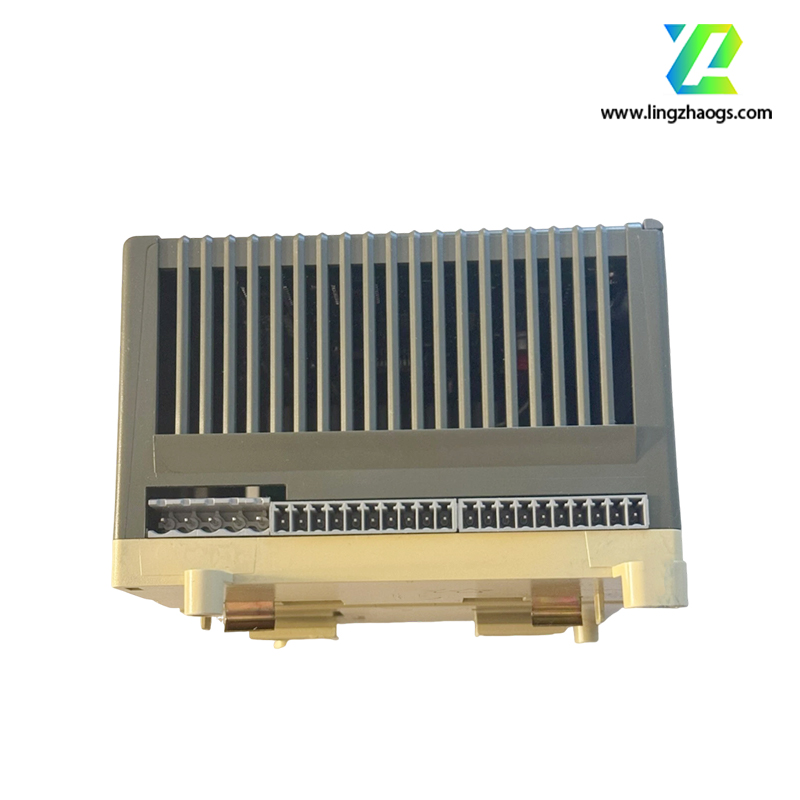

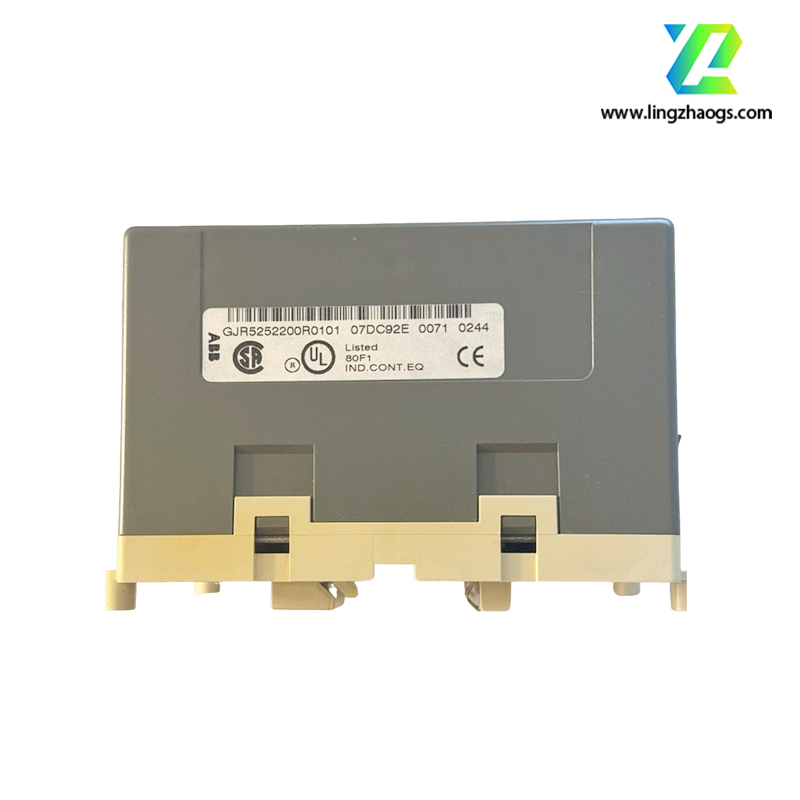

• Product Model: ABB 07DC92
• Ordering Code: GJR5252200R0101
• Product Type: Digital I/O Module (PLC/DCS Peripheral Module)
• Manufacturer: ABB Automation AB
• Application Scope: Process automation, power plant control, manufacturing automation, and other industrial control systems

Technical Specifications

1. Power Supply: 24 VDC ±10%, typical current consumption ≤ 0.3 A
2. I/O Channels: 16 digital input channels; 16 digital output channels (sinking/sourcing configurable)
3. Signal Characteristics: Input response time ≤ 1ms; Output switching capacity up to 2A per channel
4. Communication Interface: Integrated with ABB PROFINET/Modbus TCP, compatible with AC 800M controller
5. Environmental Ratings: Operating temperature -25°C to +70°C; Storage temperature -40°C to +85°C; Humidity 5% - 95% (non-condensing)
6. Mechanical Specifications: DIN rail mounting (35mm); Dimensions 100mm × 150mm × 22.5mm; Weight approx. 200g

Core Functions & Features

• Real-time digital signal acquisition and output, supporting high-precision industrial control
• Built-in overcurrent, short-circuit protection, and fault self-diagnosis (LED status indication for each channel)
• Hot-swappable design, enabling on-line maintenance without system shutdown
• Compliance with IEC 61131-2, CE, UL certifications, ensuring global industrial application compatibility
• Seamless integration with ABB 800xA DCS system, simplifying configuration and debugging
