- Brand: Allen - Bradley/ Rockwell Automation
- Series: 1336 Force Drives

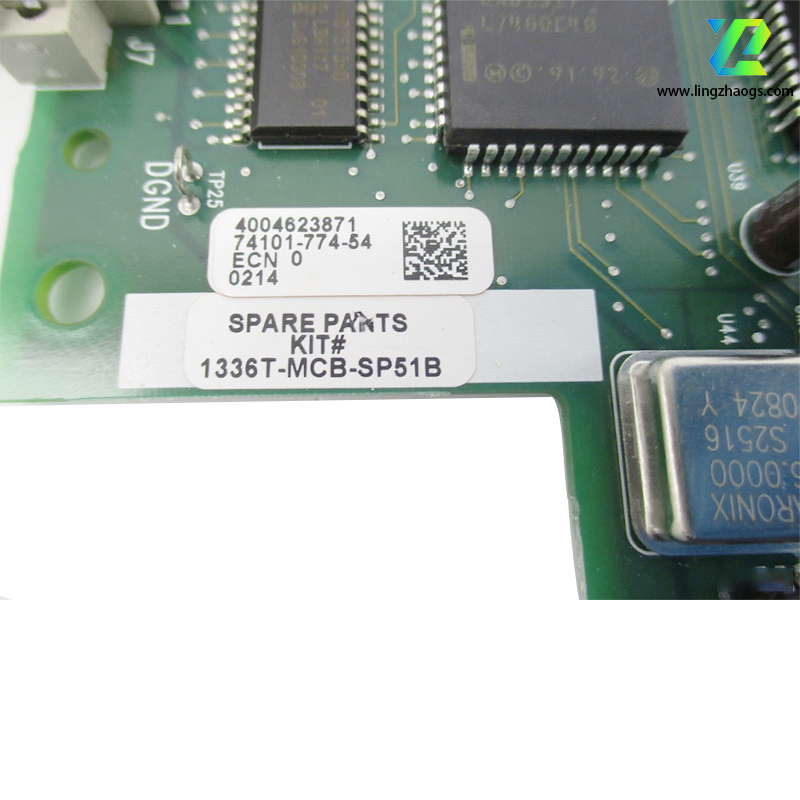

- Part Number: 1336T - MCB - SP51B
- Protection Level: There are three types: IP00 (open - type enclosure), IP20 (NEMA 1 type enclosure) and IP65 (NEMA 4 type enclosure)
- Country of Origin: The United States
- Storage Temperature: -40℃ to 70℃
- Relative Humidity: 5% to 95%
- Altitude: 1000 meters (3300 feet)
- Impact: Peak value 15g, duration 11ms (±1.0ms)
- Vibration: 0.006 inches

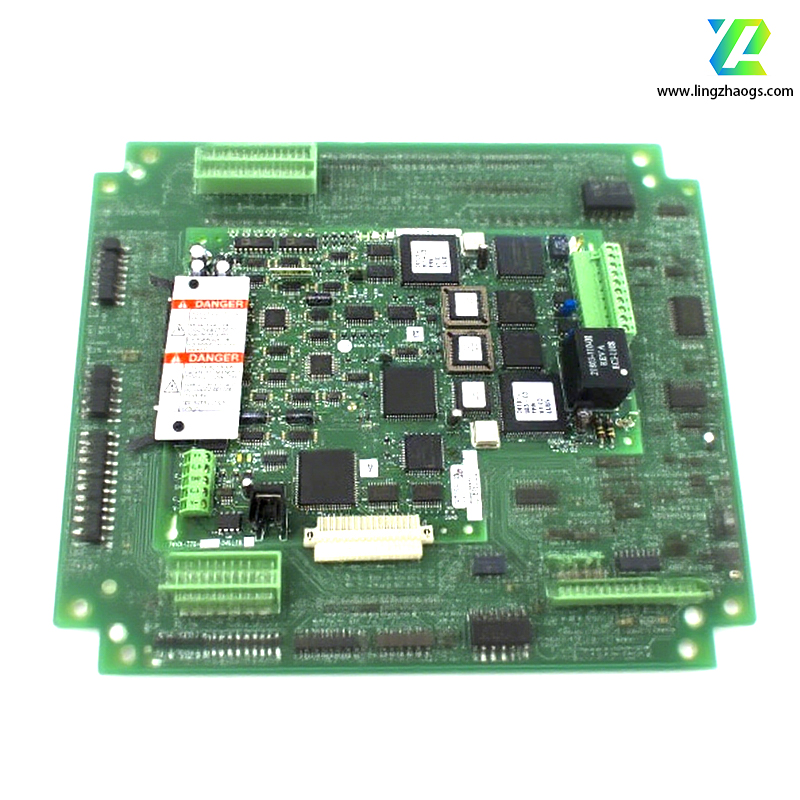

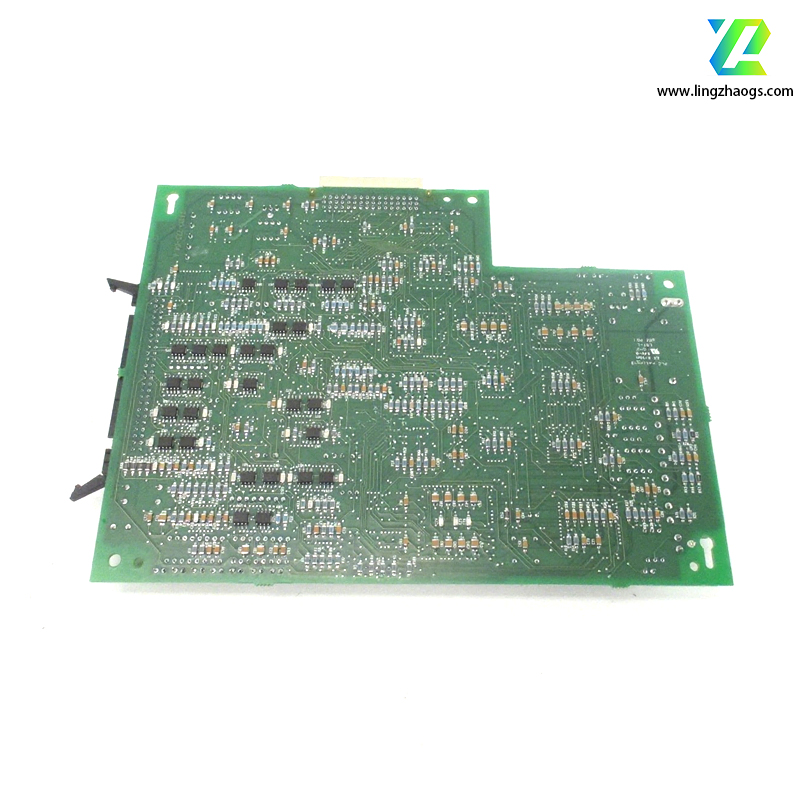

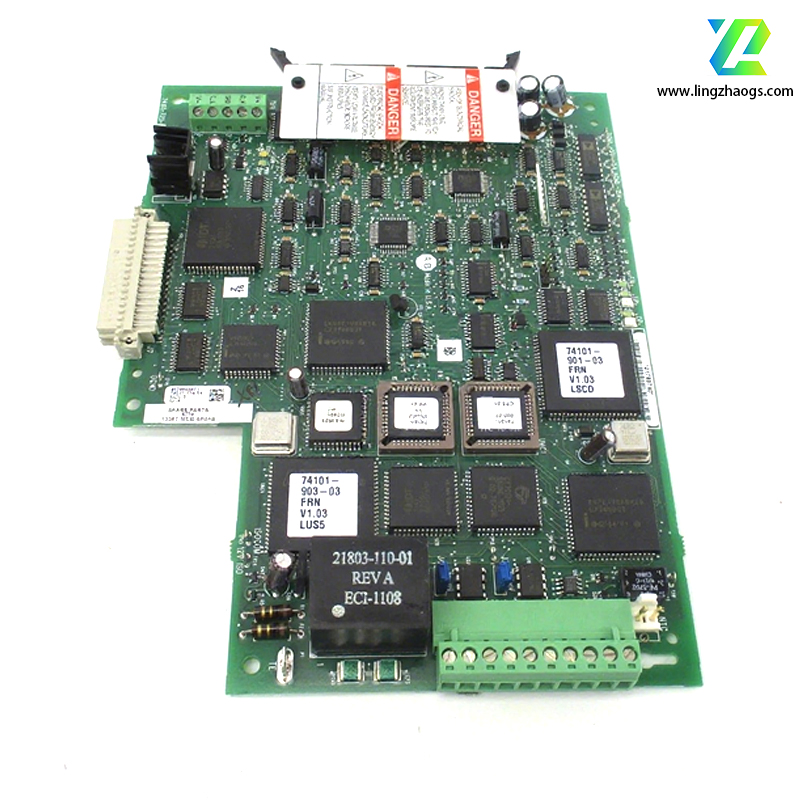

As the main control board, it is the core component of the inverter, responsible for realizing the logical control, parameter setting, and operating status monitoring of the inverter. It supports various operating modes, protection functions, and communication functions of the inverter to ensure the normal operation of the inverter. The Rockwell Automation/Allen - Bradley 74101 - 772 - 54 is the main control board used in Allen - Bradley 1336 Force adjustable frequency drives, which is also referred to as the 1336T - MCB - SP51B board. The 74101 - 772 - 54 operates with a DC power supply. The terminal block (TB) labeled as Terminal Block 11 on the main control board allows the 74101 - 772 - 54 drive to be interfaced with a drive communication interface. In addition, the 74101 - 772 - 54 main control board has a dedicated port to connect the drive to base driver control signals.
- This component is an electrostatic - sensitive element. When installing or removing it, users need to wear a grounding wrist strap and ensure that it is grounded to the chassis of the inverter to prevent electrostatic discharge from damaging the metal - oxide components on the circuit board.
- Since this model has been discontinued by the manufacturer, when purchasing, it may be necessary to obtain it through inventory or professional industrial automation parts suppliers, and it may not be possible to enjoy the original factory warranty. However, some suppliers will provide their own warranty services, such as Radwell providing a 2 - year warranty and PLC Hardware providing a 1 - year warranty.
- Weight: About 0.12kg (0.265lb) or 0.28kgs (0.62lbs)
- Version: Such as V5.01, etc.
