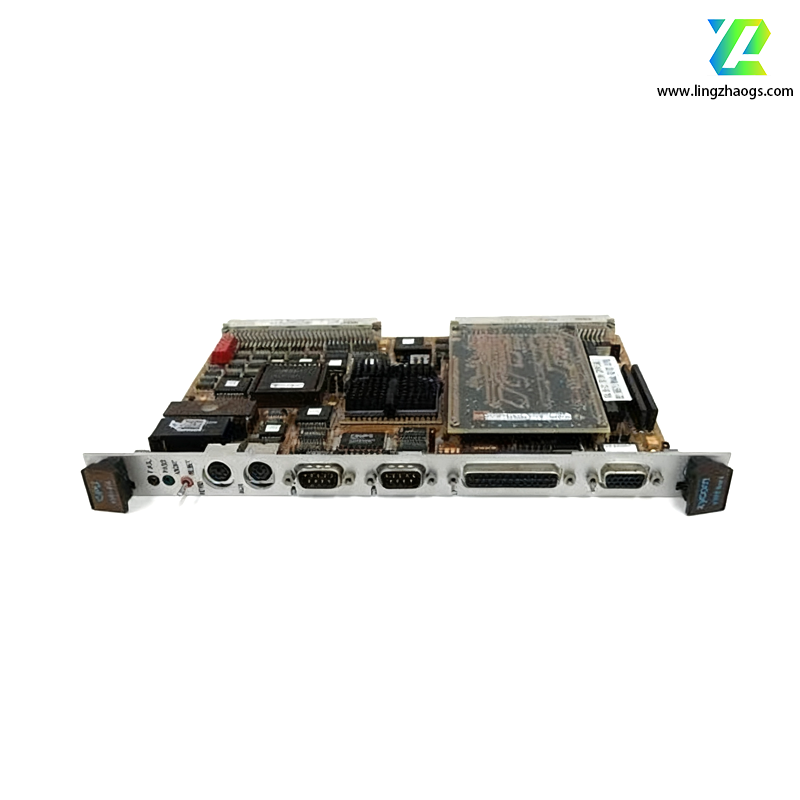

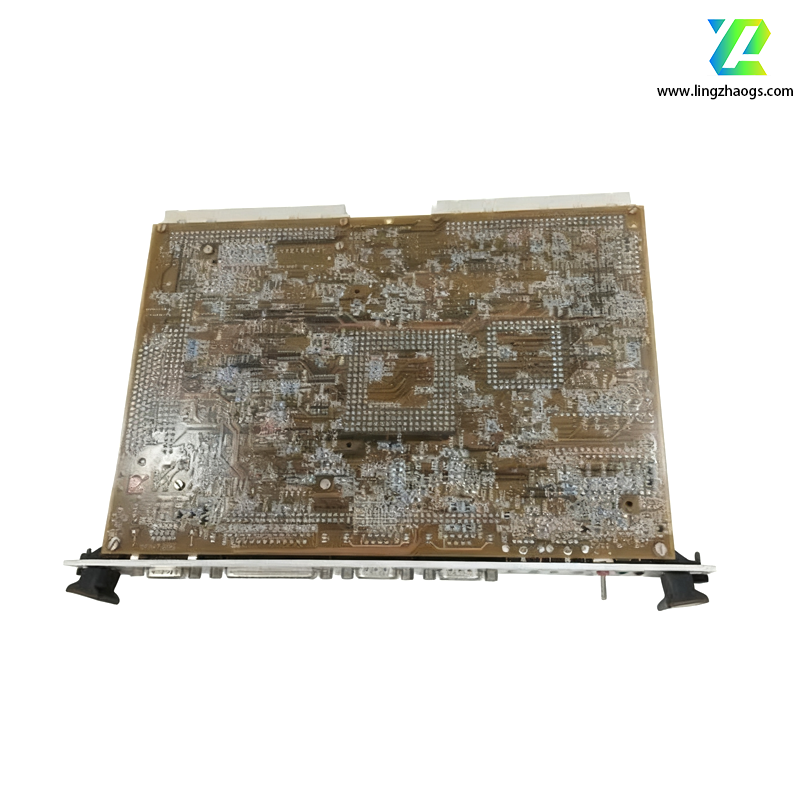

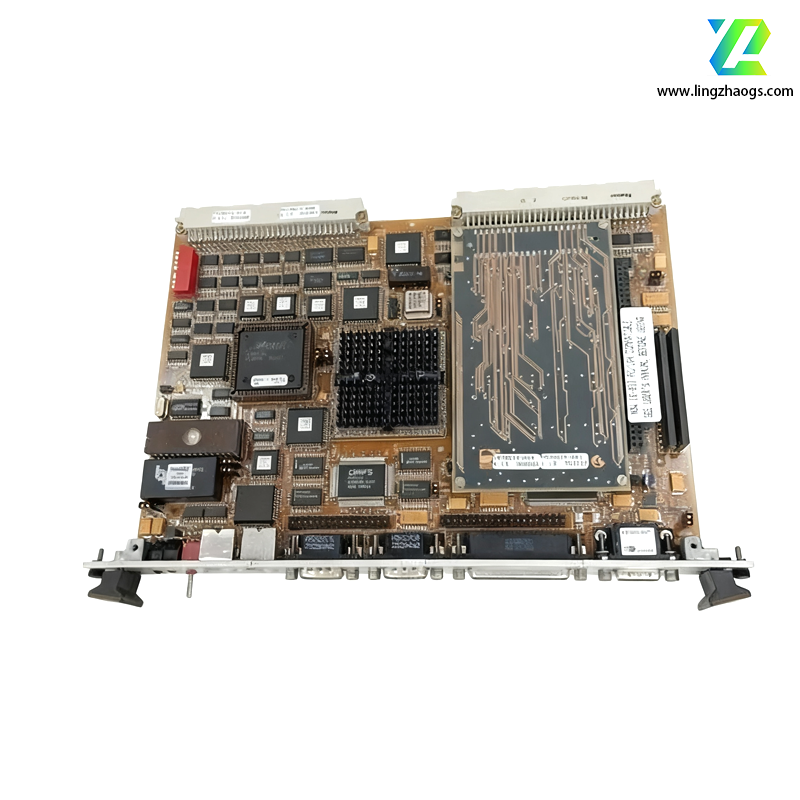

The XYCOM XVME-674 is a VMEbus PC/AT processor module designed for industrial automation and control applications. Here are the detailed specifications:
- Manufacturer: XYCOM
- Type: VMEbus Processor Module
- VMEbus Compliance: Complies with VMEbus standard
- Form Factor: Single - slot VMEbus module
- CPU Options: 33 MHz 80486DX or 66 MHz 80486DX2
- Processor Architecture: Intel 80486 - based
- DRAM: Configurable, with options of 4 MB, 16 MB, or up to 32 MB
- Flash Memory: 256 KB CMOS (in some configurations)
- Serial Ports: 2 x serial ports (16550 - compatible)
- Parallel Port: 1 x parallel port (EPP/ECP - compatible)
- IDE Interface: Enhanced IDE controller supporting up to two IDE devices, for hard disk and floppy disk connectivity
- Video Interface: VGA graphics controller, supporting standard VGA resolutions
- Interrupt Capability: Contains a VMEbus interrupter circuit, allowing the local CPU to generate VMEbus interrupts on any of the seven VMEbus interrupt levels
- Bus Arbitration: Supports all three arbitration modes defined in the VMEbus Specification: Priority (PRI), Round - Robin - Select (RRS), and Single (SGL)
- Power Supply: Requires +5V, +12V, and -12V power supplies (typical for VMEbus modules)
- Operating Temperature: 0 °C - 60 °C (estimated based on similar industrial VMEbus modules)
- Non - operating Temperature: -40 °C - 85 °C (estimated based on similar industrial VMEbus modules)
- Weight: Approximately 5 lbs (2.27 kg) (based on shipping weight information)
- Industrial Automation: Used for control tasks in manufacturing plants, such as PLC - based systems and SCADA systems
- Test and Measurement: Suitable for test equipment where it can control measurement processes and analyze data
- Process Control: Applicable in process control systems for monitoring and controlling analog and digital signals
