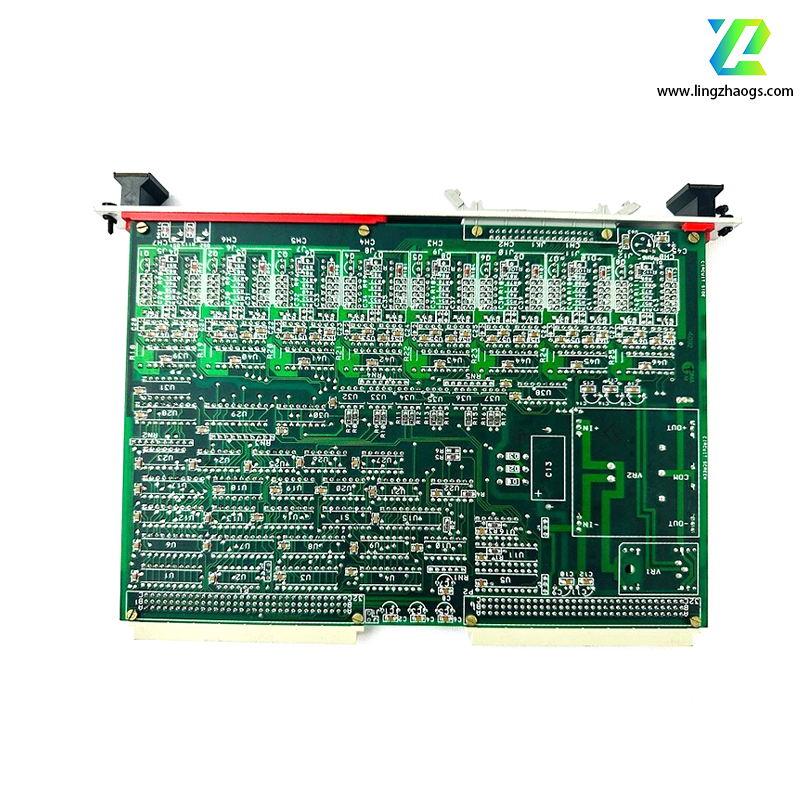

The XYCOM XVME-530 is an 8-channel isolated analog output module based on the VMEbus, designed for industrial automation, process control, and real-time monitoring applications.
- Manufacturer: XYCOM
- Type: VMEbus Isolated Analog Output Module
- VME Bus Standard: Complies with VMEbus (IEEE 1014) standard
- Certifications: CE and RoHS certified (as per similar XYCOM products)
- Number of Channels: 8 independent analog output channels
- Resolution: 12-bit D/A converter for each channel
- Output Ranges:
- Voltage: 0-5 V, 0-10 V, ±2.5 V, ±5 V, ±10 V
- Current: 4-20 mA (can be configured via jumpers)
- Optical Isolation: 300 V optical isolation for each channel, separating the digital logic from the analog loop
- Update Modes: Transparent or multichannel update mode available
- Accuracy: Overall error limited to ±0.5 LSB for output voltage
- Power Supply: 5 V ±5%, with a typical current consumption of 2.6 A
- Operating Temperature: 0 °C - 65 °C
- Non - operating Temperature: -40 °C - 85 °C
- Humidity: 5% - 95% RH (non - condensing)
- Altitude: Operating up to 10,000 ft, non - operating up to 50,000 ft
- Flexible Configuration: Output mode (voltage or current) and range can be selected via jumpers for each channel
- Gain and Offset Adjustment: Each channel can be independently adjusted for gain and offset to achieve zero - error performance
- High Reliability: The 300 V optical isolation helps prevent noise coupling, making it suitable for harsh industrial environments
- Easy Integration: As a standard VMEbus module, it can be easily integrated into VME - based systems and supports hot - swapping
- Process Control: Used for valve actuation, flow regulation, and temperature control loops
- Industrial Automation: Serves as an analog output module for PLC expansion and SCADA systems
- Instrumentation and Recording: Applicable in oscilloscopes, strip - chart recorders, and data acquisition systems
- Motor and Servo Control: Can be used for variable - speed motor control and proportional valve actuation
- Laboratory Equipment: Functions as an analog signal source for precision power supplies and calibration instruments
