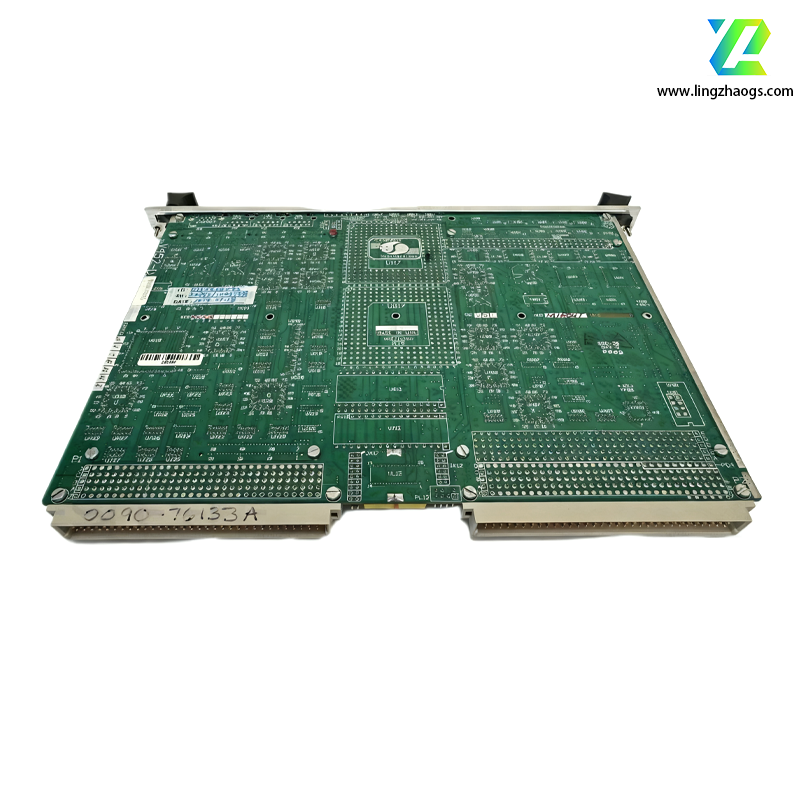

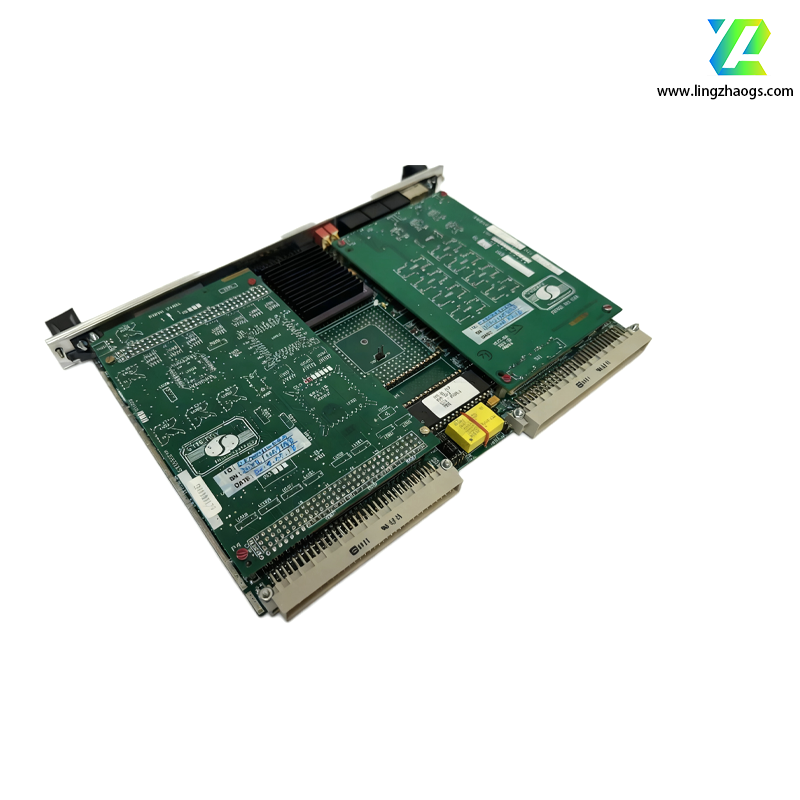

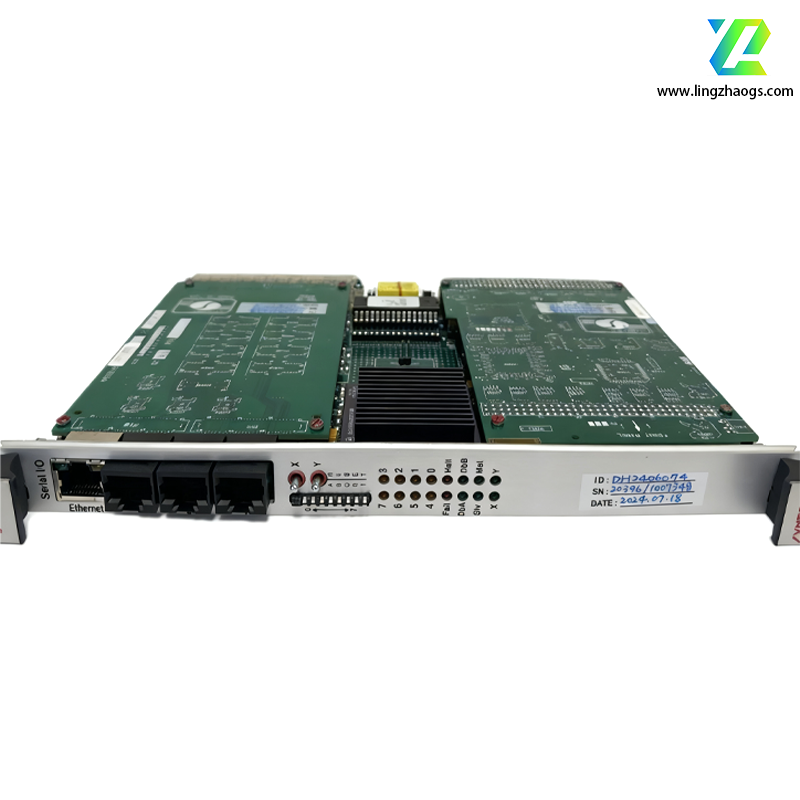

The XYCOM 0090-76133 is actually an Applied Materials (AMAT) part number, which corresponds to the Synergy Microsystems V452-D Single Board Computer (SBC) VME PCB Card. Here are the details:
- Manufacturer: Synergy Microsystems (now part of Curtiss-Wright)
- Part Number: AMAT 0090-76133 (V452-D model)
- Type: VMEbus Single Board Computer
- Country of Origin: USA
- CPU Option: Can be equipped with single or dual Motorola 68040/68060 processors. For example, the V452-D version often features dual 50 MHz XC68060 processors.
- CPU Speed: 25/33 MHz for 68040, 50/66 MHz for 68060.
- DRAM: Up to 128 MB of high-speed DRAM. The V452-D with R452-B Memory Module may have 16MB of memory as a common configuration.
- Flash Memory: Up to 16 MB of flash memory.
- Ethernet: Optional 10Base-T Ethernet interface, which may use Intel 33 MHz 82596CA-33 Processor and PCA EPE6059GM Ethernet chips.
- Mezzanine Interface: Features an exclusive EZ-Bus mezzanine system, providing a high-bandwidth mezzanine card interface for easy integration of additional I/O modules.
- Power Consumption: Approximately 50% less power consumption compared to other similar 68K-based boards.
- Dimensions: Not precisely documented in the available sources, but typical VME single-board computers have standard VME form factors.
- Operating Temperature: Generally designed for industrial environments, with an operating temperature range likely to be around 0 - 60 degrees Celsius (32 - 140 degrees Fahrenheit), though this is an estimate based on similar products.
- Features: Supports VME64 extensions, has options for EMI protection and conformal coating, and is compliant with Bellcore and Nynex standards in some configurations.
- Applications: Widely used in industrial automation, semiconductor manufacturing equipment, and other applications where reliable and high-performance VME-based computing is required, such as in control systems for complex industrial processes or test and measurement equipment.
