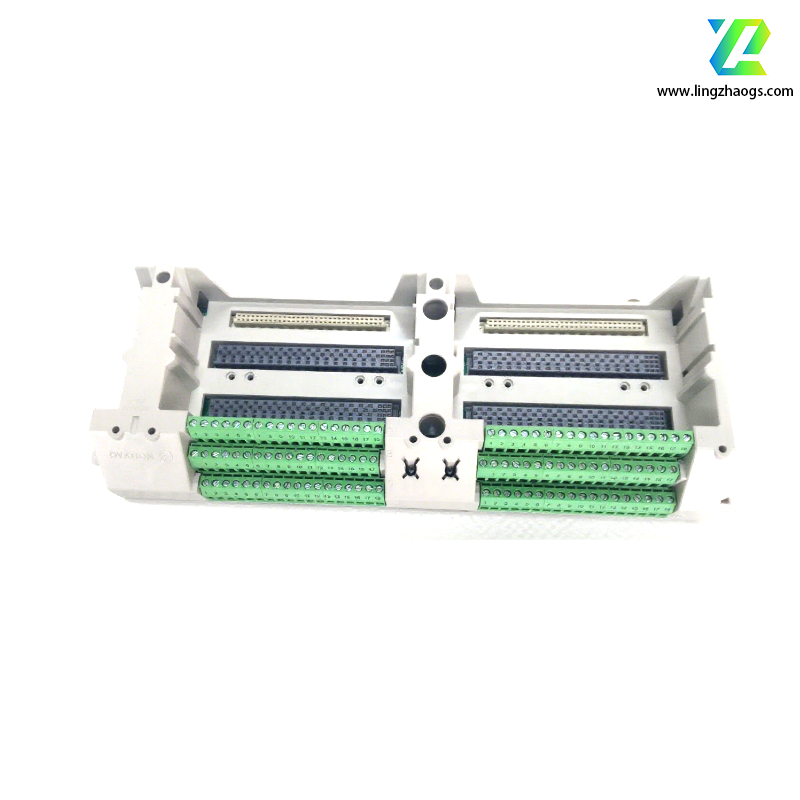

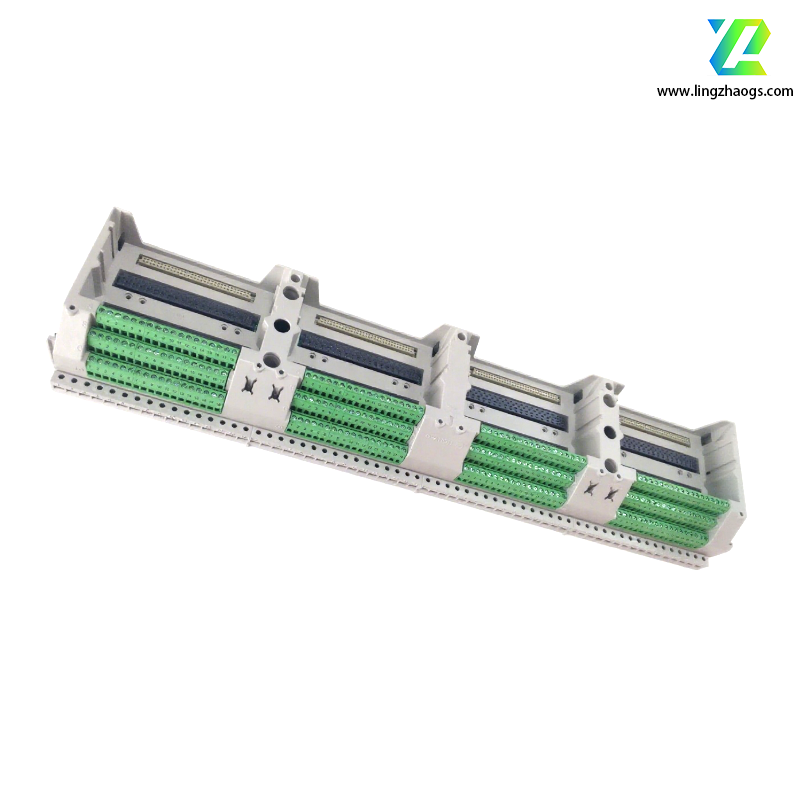

The Westinghouse 5X00497G01 (now part of the Emerson Ovation product line) is a high-reliability 4-slot I/O base module designed for industrial automation systems, particularly in power generation, process control, and discrete manufacturing. Below is a detailed technical overview based on verified specifications and application data:
- Module Type: 4-slot I/O expansion base for Emerson Ovation control systems.
- Power Supply: 24V DC ±10% (redundant power input supported for high availability).
- Slots: 4 slots, each capable of hosting up to 64 I/O points (total 256 points when fully populated) .
- Dimensions:
- Physical: Approximately 12.1 cm (width) × 5.2 cm (height) × 16.5 cm (depth) .
- Weight: 240 grams (0.53 lbs) .
- Operating Environment:
- Temperature: -40°C to +70°C (-40°F to +158°F) .
- Humidity: 0–95% non-condensing.
- Vibration/Shock: Withstands 0.05g RMS (5–500 Hz) and 15g peak (11 ms half-sine shock) .
- Communication Protocols:
- RS-485 for module-to-module data exchange .
- Integrates with Emerson Ovation’s proprietary communication infrastructure for seamless system-wide control.
- Certifications: CE-compliant (conforms to EU safety and environmental standards) .
Scalable I/O Expansion:
- Supports a wide range of Ovation I/O modules (e.g., analog inputs/outputs, digital inputs/outputs, RTD/thermocouple modules).
- Hot-swappable design allows module replacement without system downtime .
Redundancy and Reliability:
- Redundant power supply inputs ensure continuous operation even during power fluctuations.
- Rugged construction with industrial-grade components for harsh environments.
Efficient Data Handling:
- High-speed data processing for real-time control and monitoring.
- Compatibility with Emerson’s Ovation software suite for advanced analytics and diagnostics.
Flexible Installation:
- DIN rail mounting for easy integration into control panels.
- Compact form factor optimizes space in 机柜 (control cabinets).
- Power Generation: Monitoring and controlling turbines, boilers, and auxiliary systems in power plants.
- Process Industries: Managing chemical reactors, distillation columns, and batch processes.
- Manufacturing: Automating assembly lines, robotics, and quality control systems.
- Oil and Gas: Supervising upstream/downstream operations, including pumps, valves, and compressors.
- Works seamlessly with Emerson Ovation controllers, HMIs (Human-Machine Interfaces), and other system components.
- Backward-compatible with legacy Westinghouse I/O modules, enabling smooth migration to modern control systems.
- Technical Resources: Detailed datasheets, installation manuals, and configuration guides are available via Emerson’s official support portal 艾默生.
- Customer Service: 24/7 global support through Emerson’s Guardian™ service platform, offering troubleshooting, firmware updates, and lifecycle management.
- Part Number: 5X00497G01 (Emerson Ovation).
- Availability: Through authorized Emerson distributors or direct sales channels.
While the above information is derived from reliable sources, always refer to the latest official documentation or contact Emerson for specific compliance requirements or customization options.
