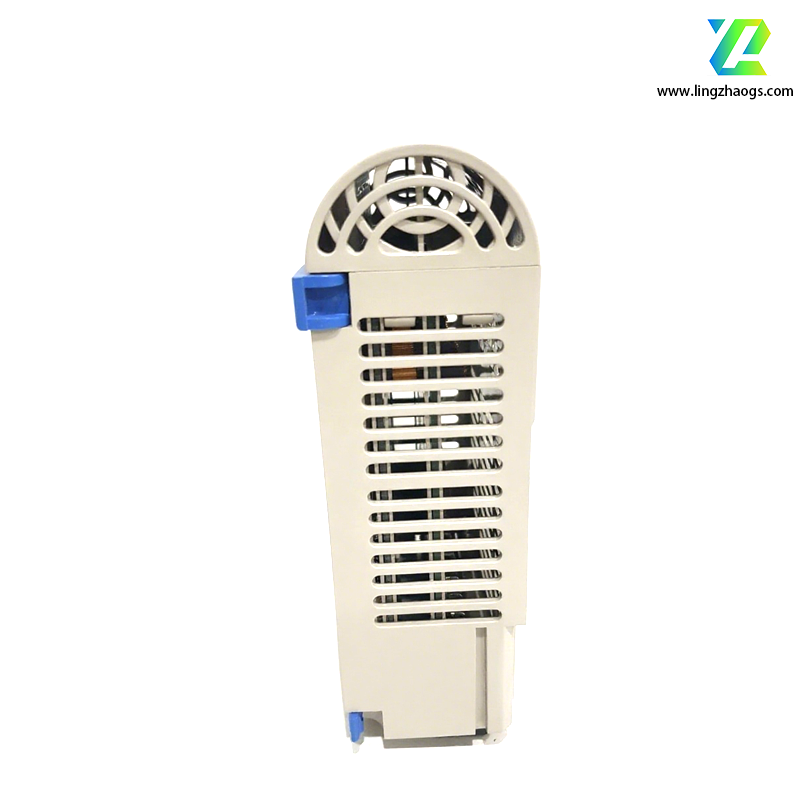

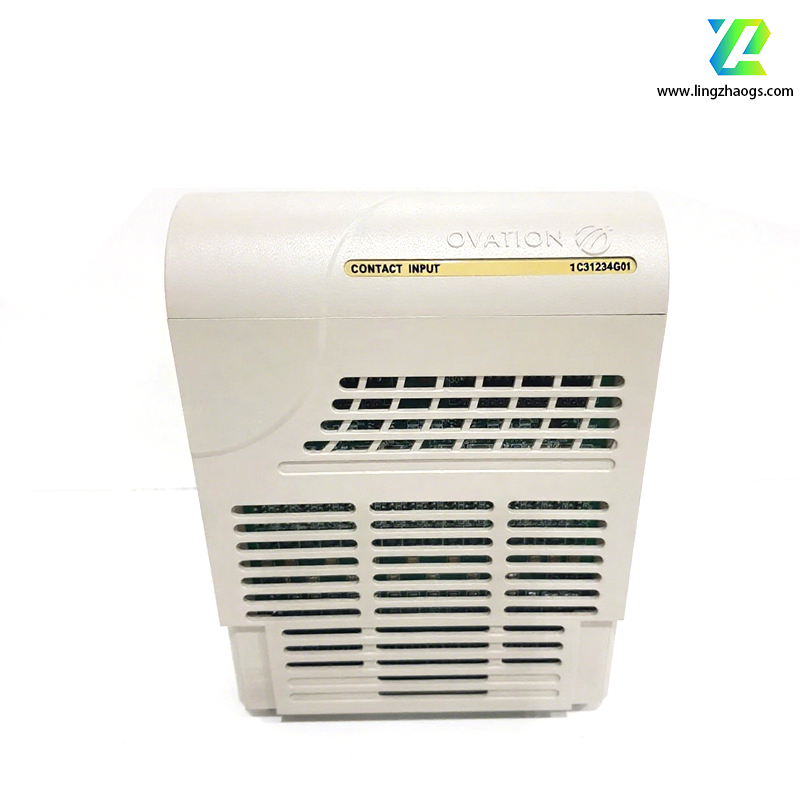

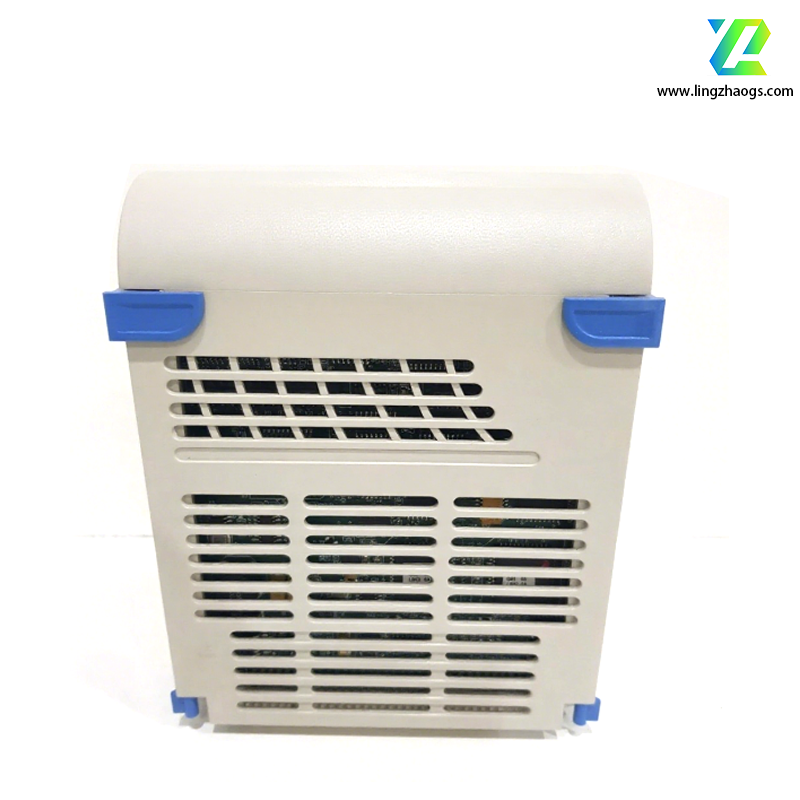

The Westinghouse 1C31234G01 is a compact contact input module designed for industrial control applications, which can offer reliable and efficient input management. The detailed information is as follows:
- Module Type: Compact contact input with onboard 48V aux.
- Number of Channels: 16.
- Dimensions: 11.8 x 2.8 x 9.3 cm.
- Weight: 0.12 kg.
- Input Voltage: 220V.
- Operating Voltage: 220V.
- Auxiliary Power Supply: Onboard 48V auxiliary power supply.
- Compatibility: Compatible with Westinghouse PLC series.
- Features
- It has 16 optically isolated contact inputs and is compatible with form A, B, and C contacts.
- Equipped with a debounce filter for noise rejection, which can improve the stability of signal reception.
- With diagnostic functions, it is convenient for troubleshooting.
- Applications
- It can be used to monitor limit switches, push - buttons, and other contact - based sensors.
- It is applicable to controlling valves, solenoids, and discrete actuators.
- It can provide interlocks and safety signals.
- It is also used to collect data for process monitoring and analysis.
- Technical Specifications
- The nominal input voltage is 48VDC, the maximum input current is 20mA, and the input impedance is greater than 100kΩ.
- The response time is less than 5ms.
- The operating temperature range is - 40 to 70°C (- 40 to 158°F), and the humidity range is 0 to 95% non - condensing.
- It can withstand vibration of 0.05g rms, 5 to 500Hz and shock of 15g, 20ms half - sine.
