General Information

• Brand: Westinghouse (Emerson Electric)
• Model: 1C31219G01
• Product Type: Relay Output Logic Module (supports 16 isolated relay outputs)
• System Compatibility: Exclusive to Emerson Ovation DCS (versions 3.x to 6.x), integrating with Ovation controllers and communication networks.
• Core Function: Provides electrical isolation and switching control for field devices (e.g., valves, motors, alarms) in industrial processes.

Technical Specifications (Consolidated)

1. Hardware Architecture

• Form Factor: 19-inch rack-mounted (1U height), compatible with Ovation standard cabinets.
• Physical Dimensions:
  • Base Unit: ~12.1 cm (H) × 2.5 cm (W) × 10.2 cm (D) [4.8” × 1.0” × 4.0”].
  • Weight: ~0.18 kg (0.4 lbs).
• Slots: Fixed 16-channel relay output configuration (no modular expansion).

2. Power Requirements

• Backplane Power: 24 V DC (supplied by Ovation rack), typical current draw: 0.5A.
• Relay Power: 24 V DC (for switching), surge-protected with reverse polarity guard.

3. Communication

• Protocol: Ovation proprietary protocol (via fiber optic or copper cabling); supports redundancy (dual-ring topology).
• Data Rate: 100 Mbps (full-duplex).
• Distance: Up to 10 km (6.2 miles) using fiber optic media.

4. Environmental Specifications

• Operating Temperature: -40°C to 70°C (-40°F to 158°F).
• Storage Temperature: -40°C to 85°C (-40°F to 185°F).
• Humidity: 5%–95% RH (non-condensing).
• Vibration/Shock: Compliant with IEC 60068-2-6 (5g, 10–500 Hz) and IEC 60068-2-27 (15g, 11ms).
• Protection Class: IP20 (front panel) for indoor use; optional IP65 enclosure available for harsh environments.

5. Certifications

• CE: Compliant with EN 61326-1 (EMC) and EN 61010-1 (safety).
• UL/CSA: Pending confirmation (consult Emerson for regional certifications).
• Hazardous Locations: Not rated for explosive atmospheres; use in non-hazardous areas only.

Key Features

1. Relay Specifications:
   • Contact Rating: 2 A @ 24 V DC (resistive load).
   • Isolation Voltage: 1,500 V AC (between control and relay circuits).
   • Life Expectancy: 10 million mechanical operations; 100,000 electrical operations at rated load.
2. Redundancy:
   • Dual power inputs and communication channels ensure continuous operation during component failures.
   • Automatic failover within 200 ms.
3. Diagnostics:
   • Built-in self-test (BIST) for hardware integrity checks.

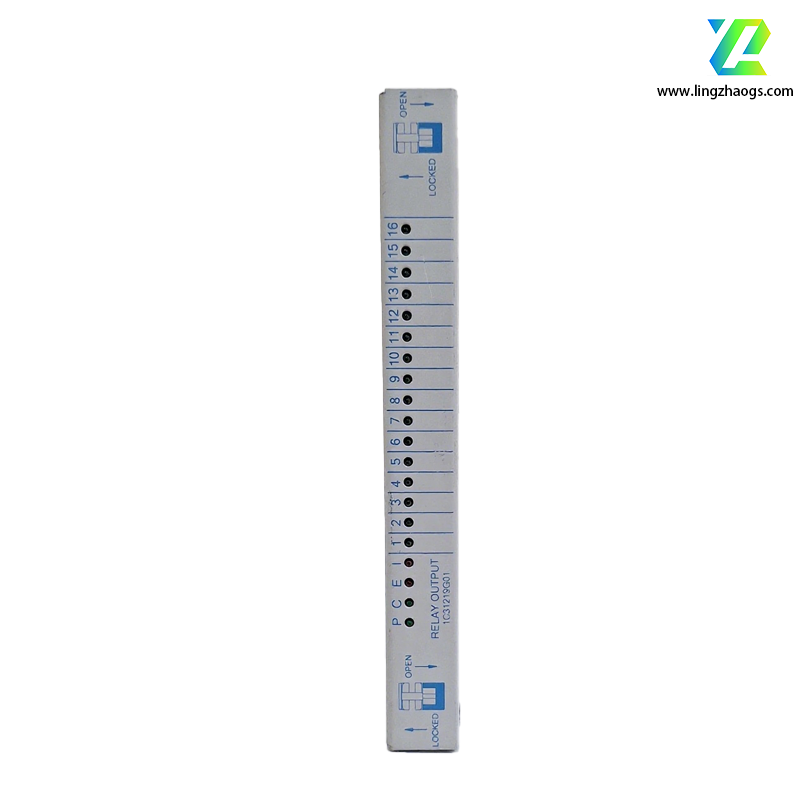

   • LED indicators for power, communication, and channel status.
   • Fault alerts transmitted to Ovation controller via the DCS network.
4. Hot-Swap Capability:
   • Modules can be replaced without powering down the system, minimizing downtime.
5. Fieldbus Integration:
   • Seamless connectivity with HART, Profibus DP, and DeviceNet field devices via optional communication modules.

Applications

• Power Generation: Controlling boiler feedwater valves, turbine bypass systems, and generator breaker panels.
• Oil & Gas: Managing remote valve actuators, emergency shutdown (ESD) systems, and compressor control.
• Water/Wastewater: Automating pump stations, chemical dosing systems, and filtration processes.
• Manufacturing: Coordinating robotic arms, conveyor belts, and quality control sensors.

Documentation & Support

• Technical Manual: Emerson Ovation 1C31219G01 Relay Output Module Guide (Document No. 1C31219G01-01), available via Emerson’s official support portal.
• Software Tools: Configured using Ovation Configuration Studio (v5.0+), enabling relay logic mapping and firmware updates.
• Spare Parts:
  • Base unit: 1C31219G01.
  • Relay replacement kit: 1C31219G01-RK (includes 16 relays).
  • Power supply: 1C31227G01 (24V DC isolated).

Ordering Information

• Base Model: 1C31219G01 (standard IP20 enclosure).
• Optional Accessories:
  • IP65 enclosure kit (1C31219G01-EXT).
  • Fiber optic transceiver module (1C31219G01-FO).
• Lead Time: 4–6 weeks (standard); 2 weeks for urgent orders via Emerson’s authorized distributors.

Important Notes

1. Discrepancies in Specifications:
   • Some sources describe this as an 8-channel module or mention 220 V AC compatibility, likely referencing variant configurations or relay switching capacity. Always verify with Emerson’s official documentation.
   • Voltage ratings (24V DC vs. 48V DC) and communication protocols (Modbus RTU vs. Ovation proprietary) may vary by region or application.
2. Critical Applications:
   • For hazardous environments, request explosion-proof variants (e.g., 1C31219G01-EX) from Emerson.
   • Firmware updates must be performed using Ovation Configuration Studio to ensure compatibility with the DCS.
3. Support Channels:
   • Emerson Process Automation: +1-800-EMERSON (North America) or local regional offices.
   • Distributor Network: Use Emerson’s online portal to locate certified Ovation partners.
