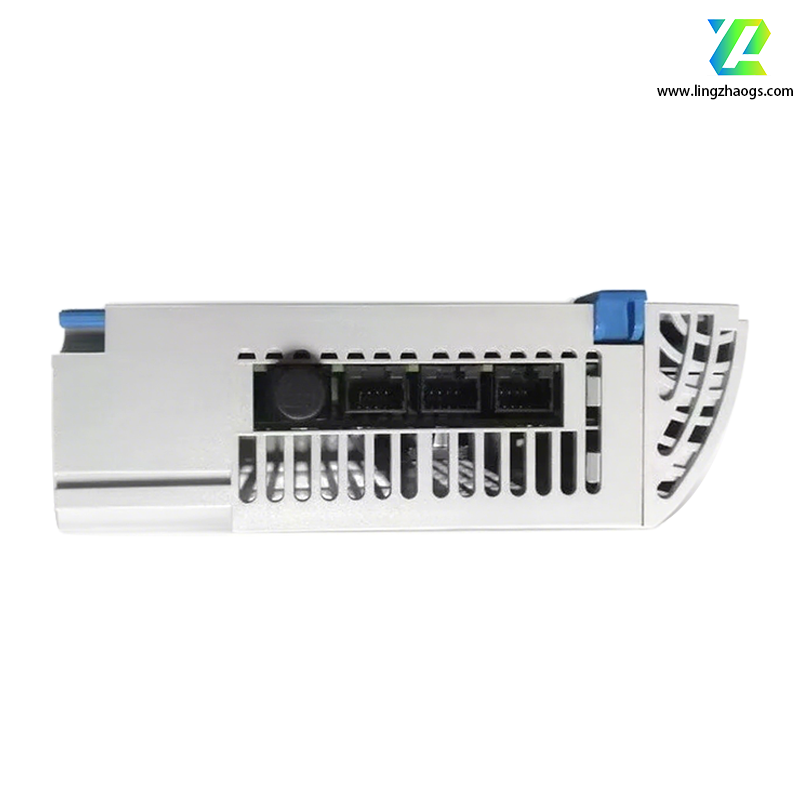

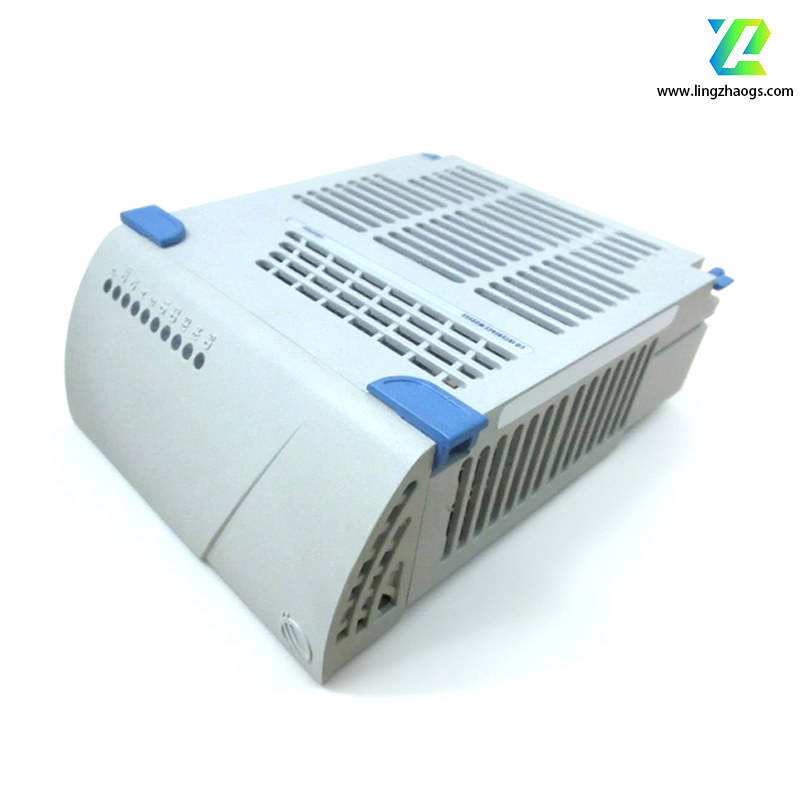

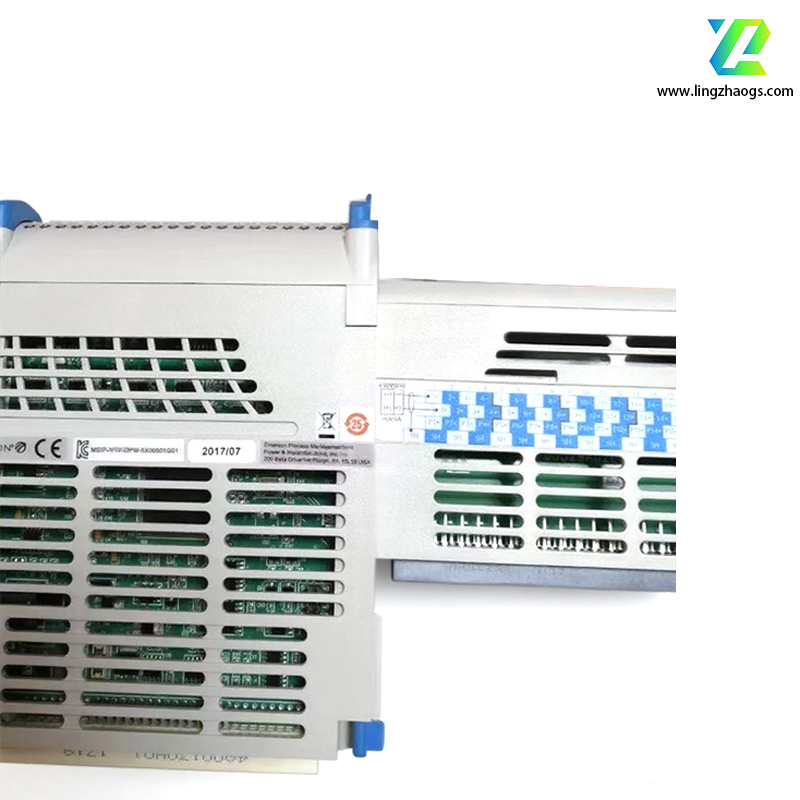

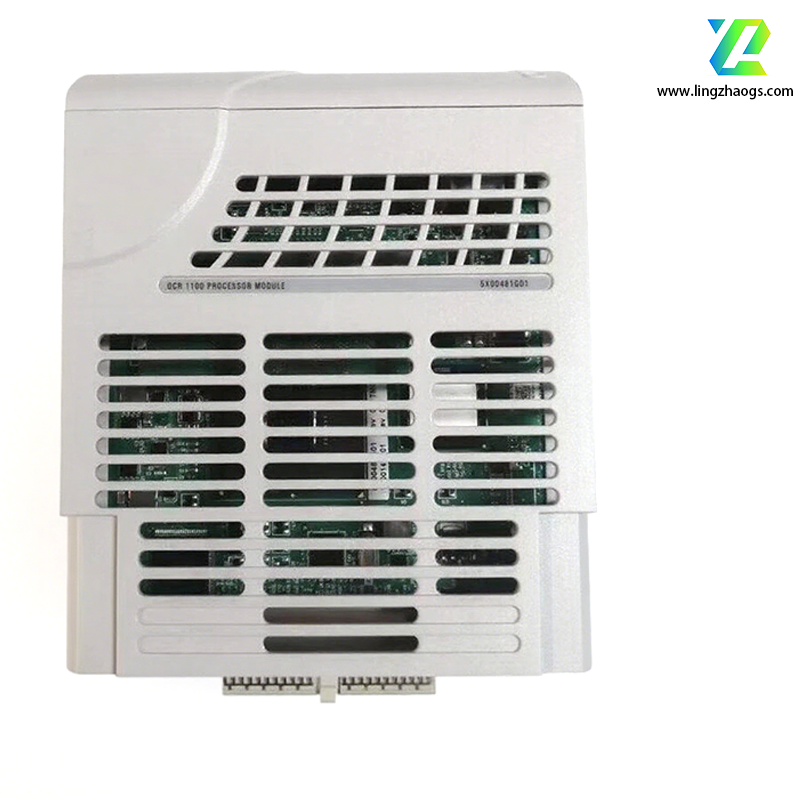

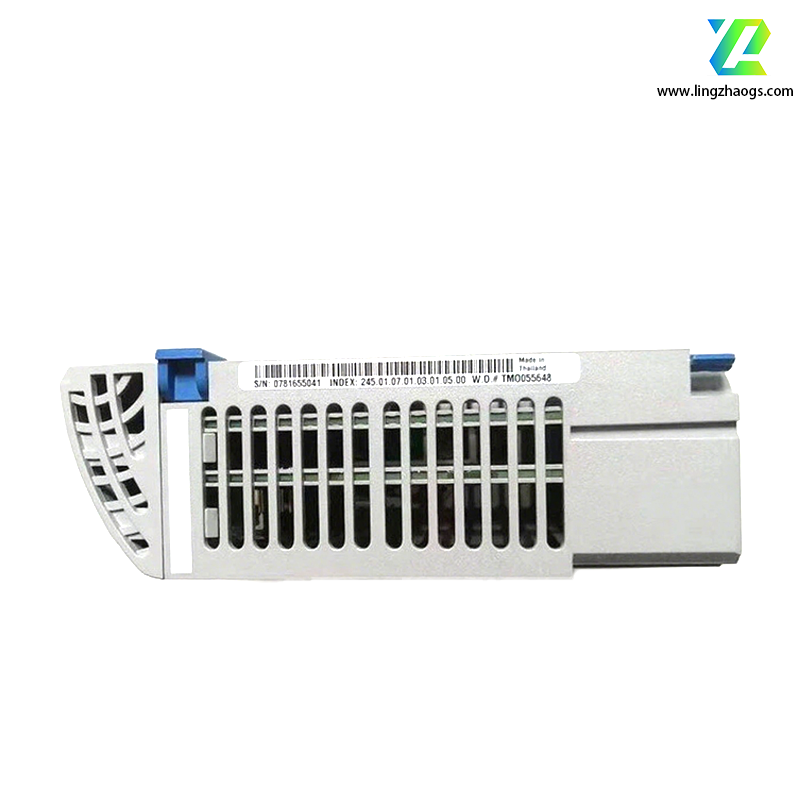

The Westinghouse 5X00481G01 is a high-performance Ovation Controller Module designed exclusively for Emerson’s Ovation Distributed Control System (DCS). As the core computing unit of the Ovation system, it executes control logic, processes real-time data, and coordinates communication between I/O modules and field devices, making it critical for mission-critical industrial automation. Below is a detailed technical overview based on Emerson’s official documentation and authorized distributor data:
- Brand & Model: Westinghouse (Emerson) 5X00481G01
- Type: Ovation DCS Central Controller Module
- System Compatibility: Emerson Ovation DCS (V3.0 and later versions; compatible with all Ovation I/O modules, HMIs, and engineering workstations)
- Certifications: CE, UL 508, CSA C22.2 No. 14, ATEX Zone 2 (for hazardous industrial environments)
- Primary Function: Executes control algorithms (e.g., PID, logic interlocks), processes input data from sensors, and sends output commands to actuators; manages system redundancy and communication.
- CPU: 32-bit RISC processor (clock speed ≥ 500 MHz) for high-speed logic execution
- Control Capacity: Supports up to 10,000 control loops and 100,000 I/O points (scalable with system expansion)
- Program Memory: 16 MB Flash (for control logic and firmware)
- Data Memory: 64 MB SDRAM (for real-time data storage and temporary variables)
- Update Rate: ≤ 10 ms for critical control loops (ensures real-time responsiveness)
- Input Voltage: 5 VDC ±5% (supplied by Ovation system power supply modules, e.g., 5X00070G04)
- Power Consumption: ≤ 15 W (optimized for low energy use in 24/7 industrial operations)
- Internal Bus: Ovation Control Bus (OCB) – 100 Mbps Ethernet for communication with I/O racks (supports redundant bus paths)

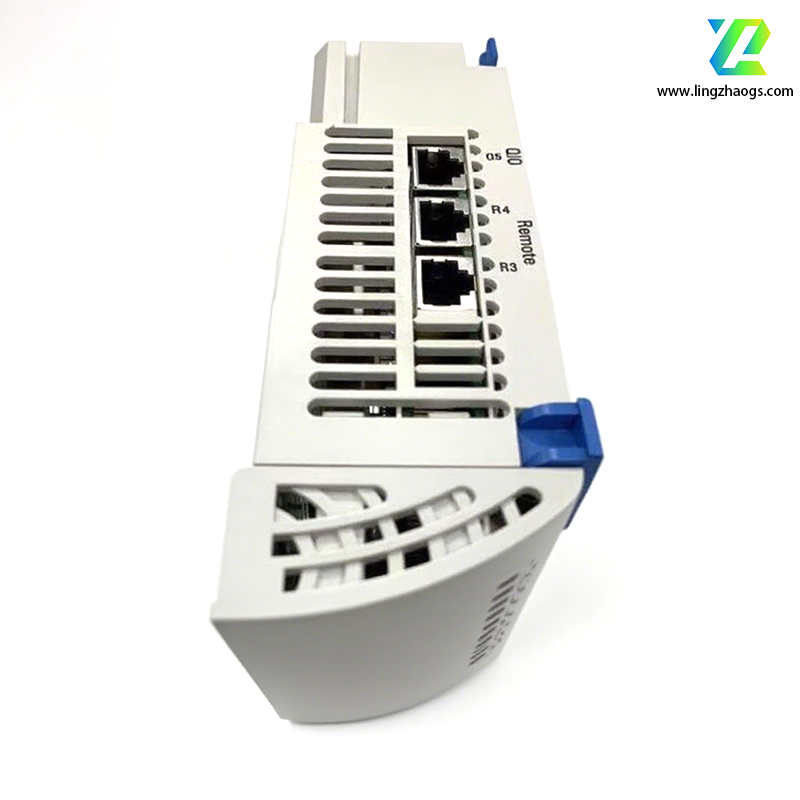

- External Communication: 2x 10/100/1000 Base-T Ethernet ports (for connecting to HMIs, engineering workstations, or third-party systems)
- Protocols Supported: Modbus TCP/IP, DNP3.0, IEC 61850 (for power utility integration), HART (via I/O module pass-through)
- Dimensions: 19.0 cm (W) × 4.4 cm (H) × 25.4 cm (D) (fits standard Ovation 3U rack slots)
- Weight: ~1.2 kg (includes heat sink for thermal management)
- Mounting Type: Rack-mounted (secures to Ovation I/O racks via front-panel latches; hot-swappable design)
- Enclosure Material: Anodized aluminum (for thermal conductivity and resistance to industrial dust/corrosion)
- Indicators: 6 front-panel LEDs (power, status, redundancy, communication 1/2, fault)
- Operating Temperature: -40°C to +70°C (wide range for harsh industrial settings, e.g., power plants, refineries)
- Storage Temperature: -40°C to +85°C
- Humidity: 5%–95% RH (non-condensing; no performance degradation in high-moisture environments)
- Shock Resistance: 30g (half-sine wave, 11 ms duration; compliant with IEC 60068-2-27)
- Vibration Resistance: 5g (10–500 Hz; compliant with IEC 60068-2-6)
- EMI/RFI Compliance: EN 55022 Class A (emissions), EN 55024 Class A (immunity) – protects against electromagnetic interference from nearby machinery
- 1:N Redundancy: Configurable as a primary controller with up to 3 standby controllers (automatic failover < 100 ms to avoid process disruption)
- Data Synchronization: Real-time mirroring of control logic, I/O data, and system parameters between primary and standby units
- Redundancy Health Monitoring: Continuous self-checks of power, communication, and CPU status; alerts via DCS if redundancy is degraded
- Algorithm Support: Built-in PID (proportional-integral-derivative), cascade control, feedforward control, and custom logic (via Ovation Control Language, OCL)
- Sequence Control: Executes sequential logic for batch processes (e.g., pharmaceutical manufacturing, chemical reactions)
- Alarm Management: Processes up to 5,000 alarms (priority-based; supports alarm shelving, acknowledgment, and logging)
- Built-in Self-Test (BIST): Runs at startup and during operation to detect hardware faults (e.g., CPU errors, memory corruption)
- Fault Logging: Stores up to 1,000 fault records (timestamped) for post-incident analysis
- Predictive Maintenance: Monitors internal temperature and voltage; sends early warnings for component degradation
As the "brain" of the Ovation DCS, the 5X00481G01 is deployed in industries requiring high reliability and real-time control:
- Power Generation: Controls fossil fuel, nuclear, and renewable (solar/wind) power plants; manages turbine speed, boiler pressure, and grid synchronization.
- Oil & Gas: Oversees refinery processes (distillation, cracking), pipeline flow control, and offshore platform automation.
- Chemical & Petrochemical: Regulates batch reactors, blending systems, and safety interlocks (e.g., pressure relief valves).
- Water & Wastewater: Manages treatment processes (coagulation, filtration) and pump/valve control for distribution networks.
- Software Support: Configured via Emerson’s Ovation Engineering Workstation (OEWS) – graphical interface for control logic design, I/O mapping, and redundancy setup.
- Firmware Updates: Field-upgradable via OEWS (no hardware replacement needed for feature enhancements).
- I/O Compatibility: Works with all Ovation I/O modules (e.g., 1C31233G04 SOE module, 5X00119G01 RTD module, 5X00167G01 analog output module).
- Distributors: Authorized Emerson industrial partners (e.g., Amikon, 6gcontrols, RunToElectronic) – new and refurbished units available.
- Warranty: 3 years for new units (standard); 1 year for refurbished units (varies by distributor).
- Technical Support: Emerson provides 24/7 support via the MyEmerson portal – includes troubleshooting, firmware downloads, and training materials.
- Redundancy Setup: Requires a redundant power supply (e.g., 5X00070G04) and dual Ovation Control Bus connections to ensure no single point of failure.
- System Compatibility: Verify compatibility with your Ovation DCS version (V3.0+ required); older versions may need firmware updates.
- Documentation: Refer to Emerson’s Ovation 5X00481G01 Controller Module Technical Manual for pinouts, wiring diagrams, and safety guidelines.
This module delivers the processing power, redundancy, and reliability required for critical industrial control, making it a foundational component of the Ovation DCS ecosystem. Always follow Emerson’s installation procedures and local safety codes during deployment.
