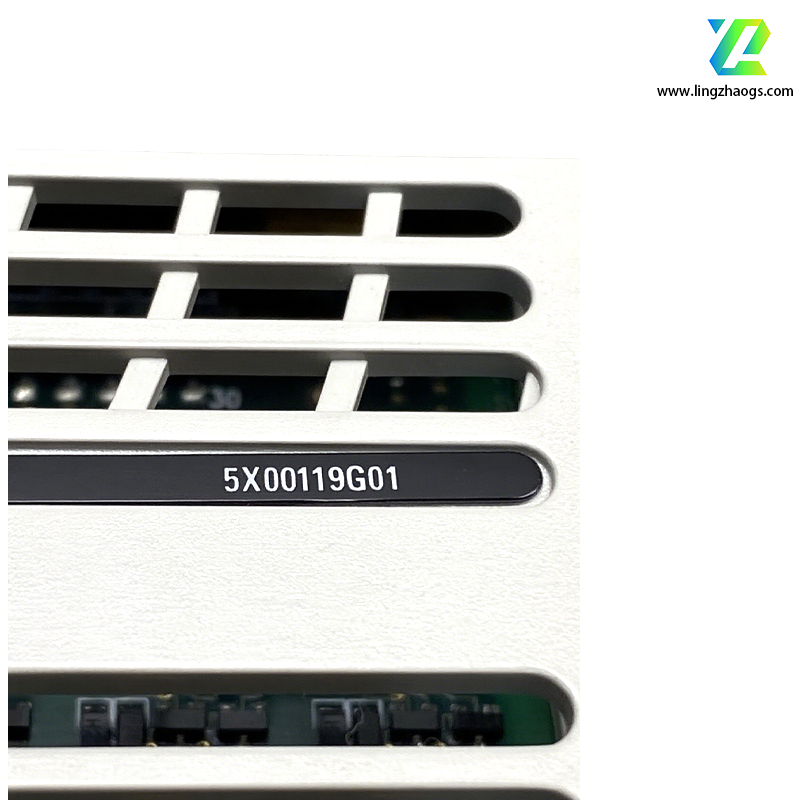

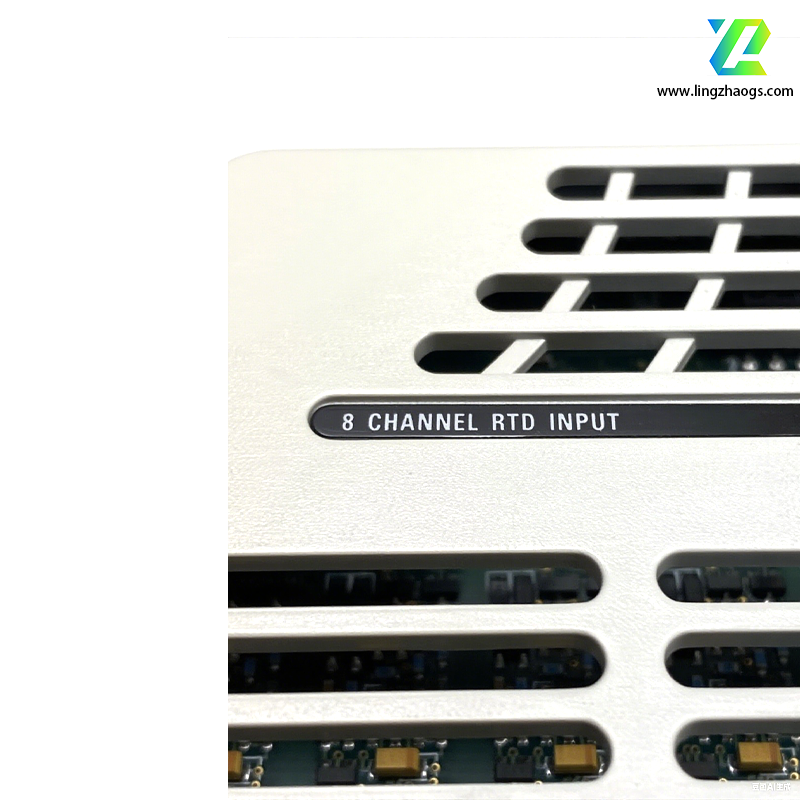

The Westinghouse 5X00119G01 is an 8-channel RTD input module designed for industrial control systems, specifically optimized for Emerson’s Ovation Distributed Control System (DCS). It provides precise temperature measurement and data acquisition in harsh industrial environments. Below is a detailed technical overview based on available specifications and application data:
- Brand & Model: Westinghouse (Emerson) 5X00119G01
- Type: RTD Input Module (8 Channels)
- System Compatibility: Emerson Ovation DCS (works with Ovation I/O racks and controllers)
- Certifications: CE, UL 508, CSA C22.2 No. 14 (compliant with industrial safety and EMC standards)
- Primary Function: Converts resistance signals from RTD sensors into digital temperature data for process control, monitoring, and automation.
- RTD Types Supported: PT100, PT200, PT500, PT1000 (2-wire, 3-wire, and 4-wire configurations)
- Input Range: 0–500 Ω (RTD resistance range)
- Accuracy: ±0.1% of reading ±1 count (industry-standard for precision temperature measurement)
- Resolution: 0.1°C (16-bit Σ-Δ ADC ensures high precision)
- Excitation Current: 1 mA (constant current source for stable RTD measurements)
- Input Voltage: 12 VDC ±10% or 24 VDC ±10% (varies by configuration; consult datasheet for exact specs)
- Power Consumption: ≤1 W (energy-efficient design)
- Protocol: RS-485 Modbus RTU (for direct sensor communication)
- Data Rate: Up to 115.2 kbps (supports fast data transfer in real-time control systems)
- Dimensions: 12.1 cm (L) × 5.2 cm (W) × 16.6 cm (D) (compact size for Ovation rack integration)
- Weight: ~0.35 kg (lightweight for easy installation)
- Mounting Type: Rack-mounted (fits Ovation 19-inch standard equipment racks)
- Enclosure Material: Aluminum alloy (high thermal conductivity and corrosion resistance)
- Connectors: Screw-type terminals for RTD wiring (accepts 22–16 AWG wire)
- Operating Temperature: -40°C to +85°C (extreme-temperature tolerance for industrial environments)
- Storage Temperature: -40°C to +104°C
- Humidity: 5%–95% RH (non-condensing)
- Vibration Resistance: 5g (complies with IEC 60068-2-6 for rugged operation)
- EMI/RFI Compliance: Meets EN 55022 Class A (industrial emission limits)
- Enclosure Rating: IP65 (dust-tight and water-resistant for outdoor or wet environments)
- 8-Channel Simultaneous Sampling: Supports parallel temperature monitoring from up to 8 RTD sensors (e.g., PT100 probes in chemical reactors or power plants)
- Self-Diagnostics: Built-in error detection for open/short circuits, sensor failures, and signal drift
- Cold Junction Compensation: Automatic compensation for ambient temperature variations (enhances measurement accuracy)
- Isolation: Channel-to-channel and system isolation (3000 V AC) to prevent ground loops and EMI 干扰
The 5X00119G01 is widely used in industries requiring high-accuracy temperature control:
- Power Generation: Monitoring turbine inlet temperatures, boiler water temperatures, and generator stator winding temperatures.
- Process Industries: Chemical reactors, petrochemical distillation columns, and pharmaceutical batch processes.
- HVAC Systems: Precision climate control in data centers, cleanrooms, and industrial facilities.
- Oil & Gas: Pipeline temperature monitoring, refinery heat exchangers, and offshore platforms.
- Ovation System Integration:
- Works with Ovation controllers (e.g., 5X00247G01) and I/O racks.
- Requires a personality module (e.g., 5X00121G01) for configuration and communication with the DCS network.
- Wiring:
- RTD inputs: Screw terminals for 2/3/4-wire connections.
- Power: Separate terminal block for 12/24 VDC supply.
- Software Support: Configured via Emerson’s Ovation Engineering Workstation (OEWS) with intuitive graphical tools.
- Distributors: Authorized Emerson partners (e.g., Amikon, 6gcontrols, RunToElectronic).
- Warranty: 2 years (standard) for new units; 1 year for refurbished units.
- Documentation: Emerson’s Ovation 5X00119G01 RTD Input Module Datasheet provides detailed pinouts, wiring diagrams, and calibration procedures.
- Redundancy: For critical applications, pair with redundant Ovation I/O racks and power supplies to eliminate single points of failure.
- Calibration: Factory-calibrated for PT100 sensors; field recalibration can be performed via OEWS if needed.
- Derating: Output current may need derating at altitudes above 2000 meters or temperatures exceeding 60°C.
This module combines high precision, robust design, and seamless Ovation DCS integration, making it ideal for mission-critical temperature monitoring and control. Always follow Emerson’s installation guidelines and local electrical codes during setup.
