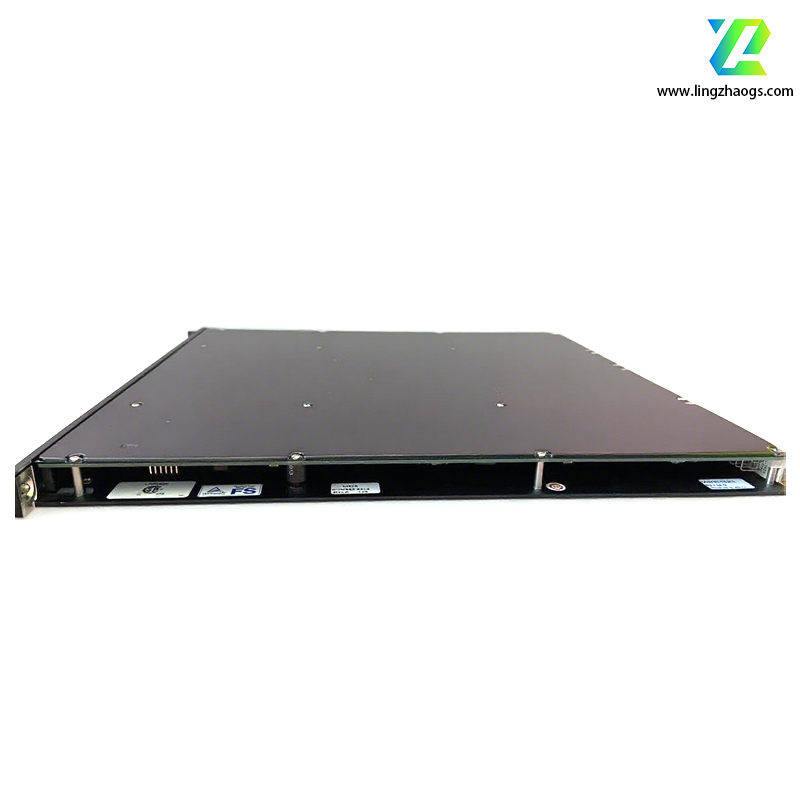

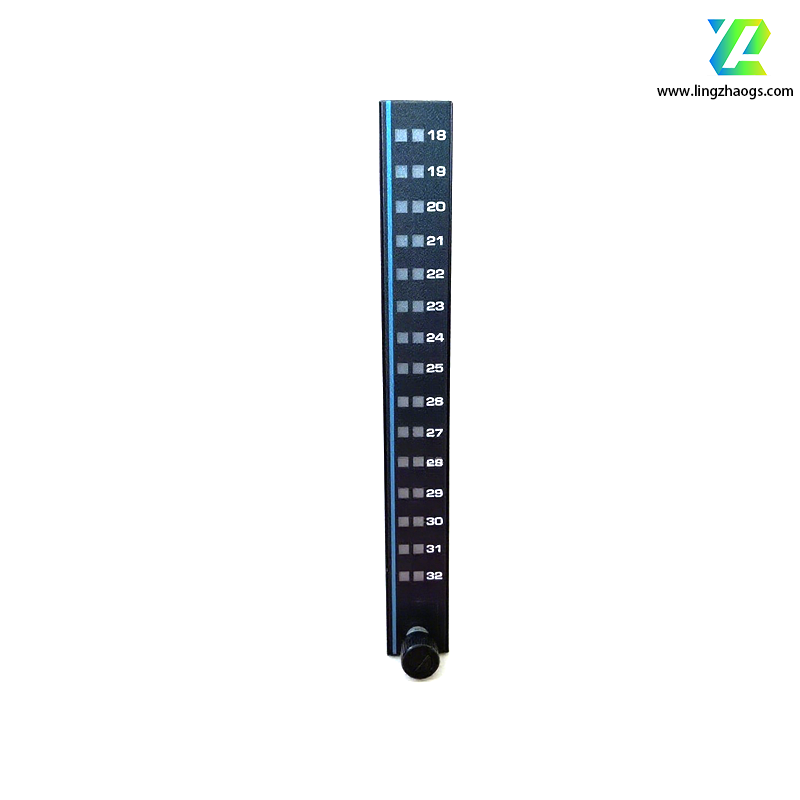

The Triconex 3625C1 is a digital output module applied in industrial control systems, especially suitable for safety - critical applications in the process industries. Here are the details:
- Basic Information
- Manufacturer: Triconex.
- Model: 3625C1.
- Product Type: Digital output module.
- Origin: USA.
- Technical Specifications
- Channels: It usually has 4 channels, and the output type can be supervised or non - supervised digital output.
- Output Voltage: The nominal output voltage is 24 VDC, and the voltage range is 16 - 32 VDC, with a maximum voltage of 36 VDC.
- Output Current: The output current can reach 2 A per channel.
- Communication Protocol: It supports communication protocols such as Triconex Modbus TCP and OPC, and is compatible with Ethernet (802.3) and serial networks.
- Safety Integrity Level: It reaches SIL 3 safety integrity level.
- Power Consumption: The power consumption is less than 13 W.
- Operating Temperature: The operating temperature range is - 40 °C to 70 °C, and the storage temperature range is - 40 °C to 85 °C. The humidity range is 5% - 95% (non - condensing).
- Product Features
- Loopback Testing Function: It is equipped with voltage and current loopback circuitry, which can verify the functionality of the output circuit through loopback testing.
- Online Diagnostics: It can constantly monitor the module for faults and provide diagnostic information to users, which is helpful for proactive maintenance.
- Field Circuit Monitoring: It can monitor the field circuit for faults and offer diagnostic feedback to ensure reliability.
- Load Detection: It has the function of detecting the presence of a load on the output circuit, which can enhance operational awareness.
- Redundant Design: It adopts a redundant design, which can ensure the normal operation of the system even if one channel fails, improving the reliability of the system.
- Application Areas
- It is mainly used in safety - critical applications in industries such as oil and gas, petrochemicals, and power generation, such as emergency shutdown systems (ESD), fire and gas detection systems (FGS), etc. It can convert the digital signals from the control system into actual physical outputs to control field equipment and ensure the safety of industrial processes.
