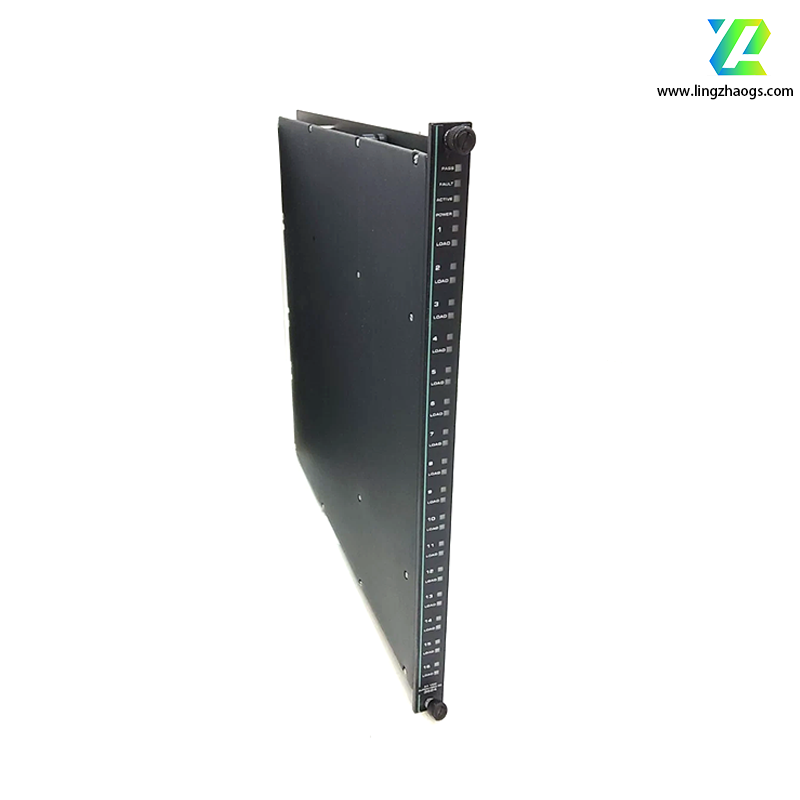

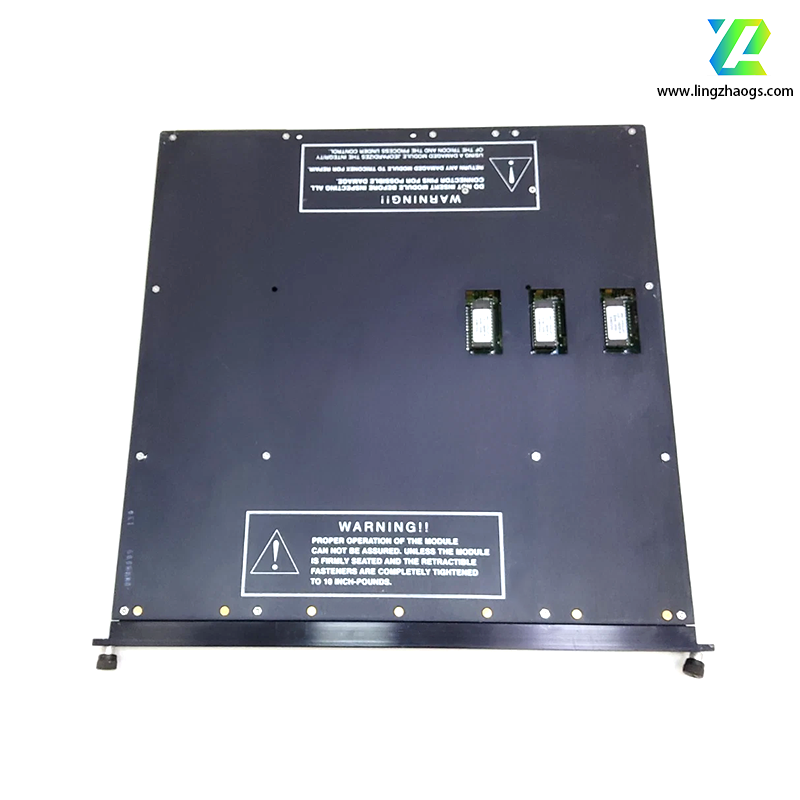

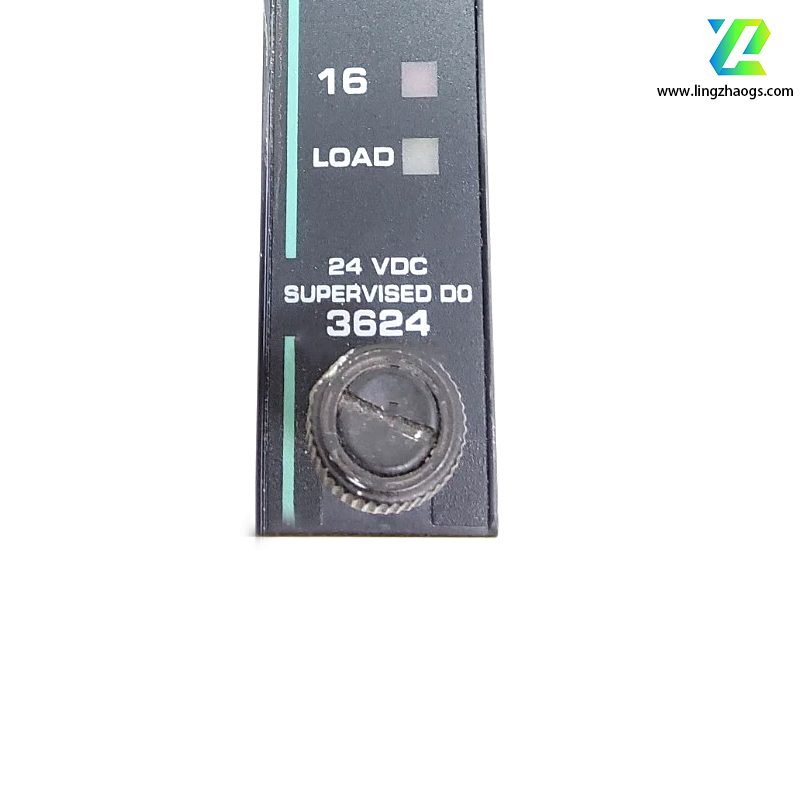

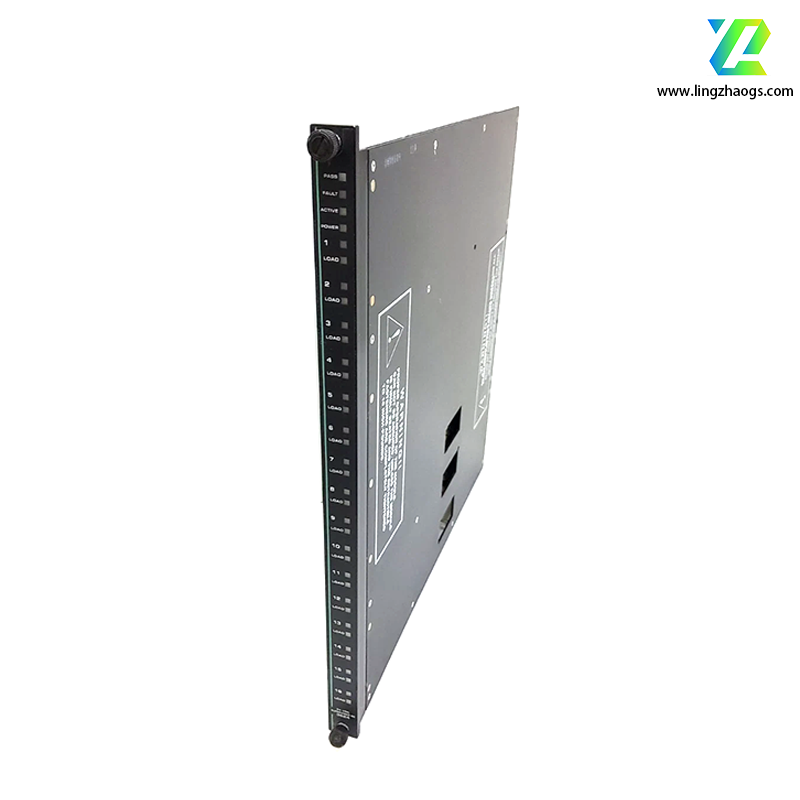

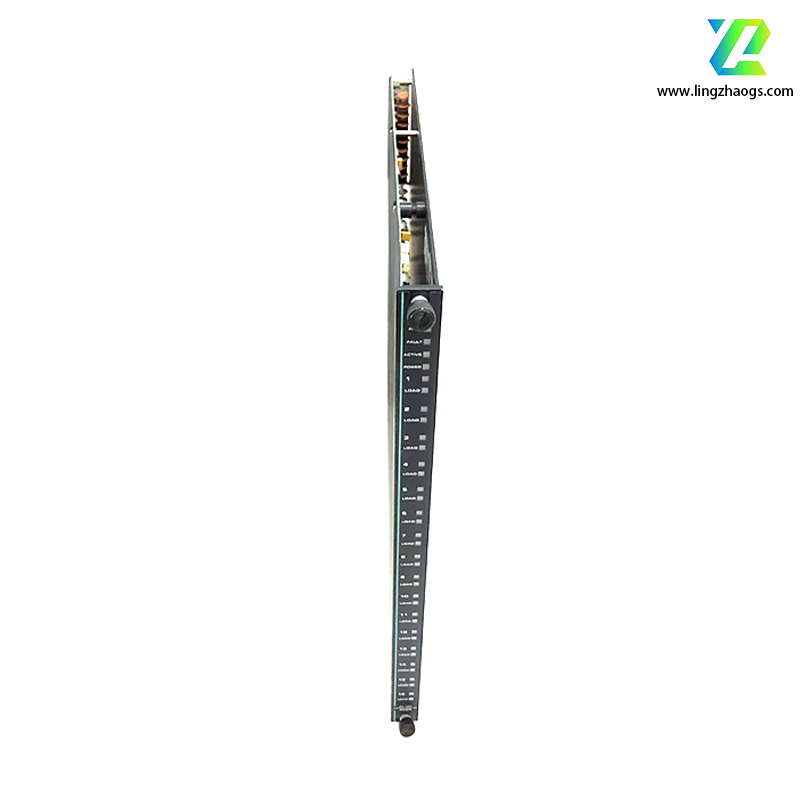

The Triconex 3624 is a digital input/output module applied in industrial control systems, especially suitable for safety - critical applications in the process industries. Here are the details:
- Basic Information
- Manufacturer: Triconex.
- Part Number: 3624.
- Product Type: Digital input/output module.
- Origin: USA.
- Technical Specifications
- Channels: It has 16 channels, which can be used for both digital input and output.
- Input Characteristics: The input voltage is 24 VDC, and the input current is 10 mA per channel. The maximum input frequency can reach 100 kHz.
- Output Characteristics: The output voltage is 24 VDC, and the output current is 200 mA per channel. The maximum output frequency is 100 kHz.
- Isolation: The point isolation can reach 1,500 VDC, which can effectively prevent signal interference.
- Response Time: The response time is relatively fast, which can meet the requirements of real - time control in industrial applications.
- Product Features
- Triple - Redundant Architecture: It adopts a triple - redundant design, with three independent input/output circuits. This design can ensure the highest reliability, making it very suitable for critical operations. Even if a single - point failure occurs, the system can still operate normally.
- Self - testing and Fault Detection/Correction: It has a self - check function, which can continuously monitor its own performance. Equipped with advanced features such as parity checks and checksums, it can quickly identify and correct faults, minimizing downtime.
- Secure Communication: It uses reliable protocols to protect data, ensuring secure and uninterrupted communication, which is crucial for industrial control systems.
- Compatibility: It is fully compatible with the Triconex safety system, which can be easily integrated into the existing Triconex safety control system to enhance the versatility of the system in safety - focused environments.
- Hot - swappable: It supports hot - swapping, which means that the module can be replaced online without interrupting the operation of the system, facilitating maintenance and reducing maintenance time and costs.
- Operating Environment
- Operating Temperature: The operating temperature range is - 40°C to + 70°C.
- Storage Temperature: The storage temperature range is - 40°C to + 85°C.
- Relative Humidity: It can work in an environment with a relative humidity of 5% - 95% (non - condensing).
- Application Areas
- It is mainly used in industries such as oil and gas, petrochemicals, and power generation. It can be applied to safety - critical applications such as emergency shutdown systems (ESD), fire and gas detection systems (FGS), and process safety monitoring, ensuring the safe and stable operation of industrial production.
