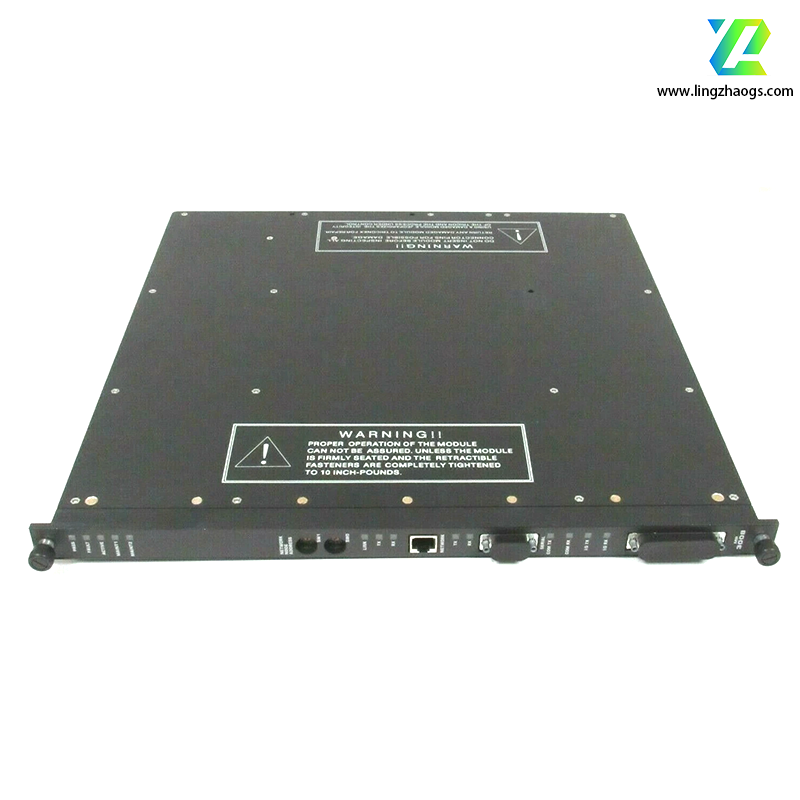

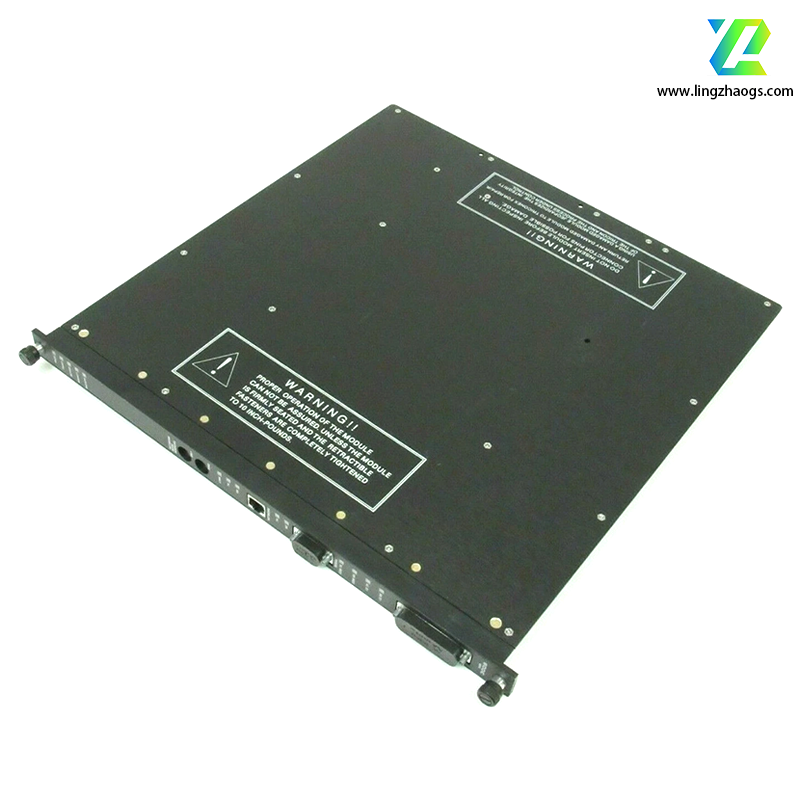

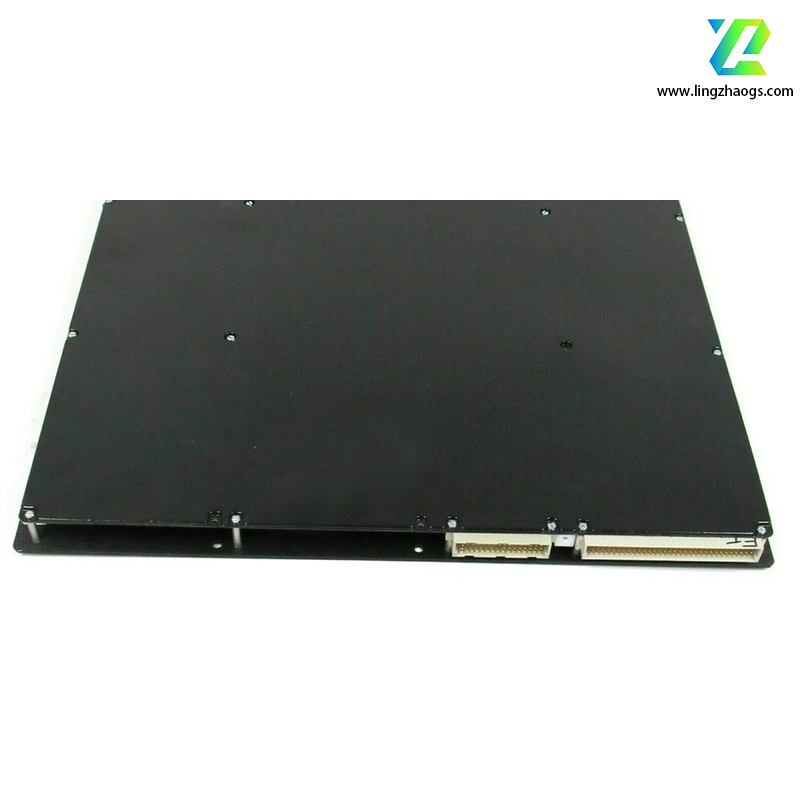

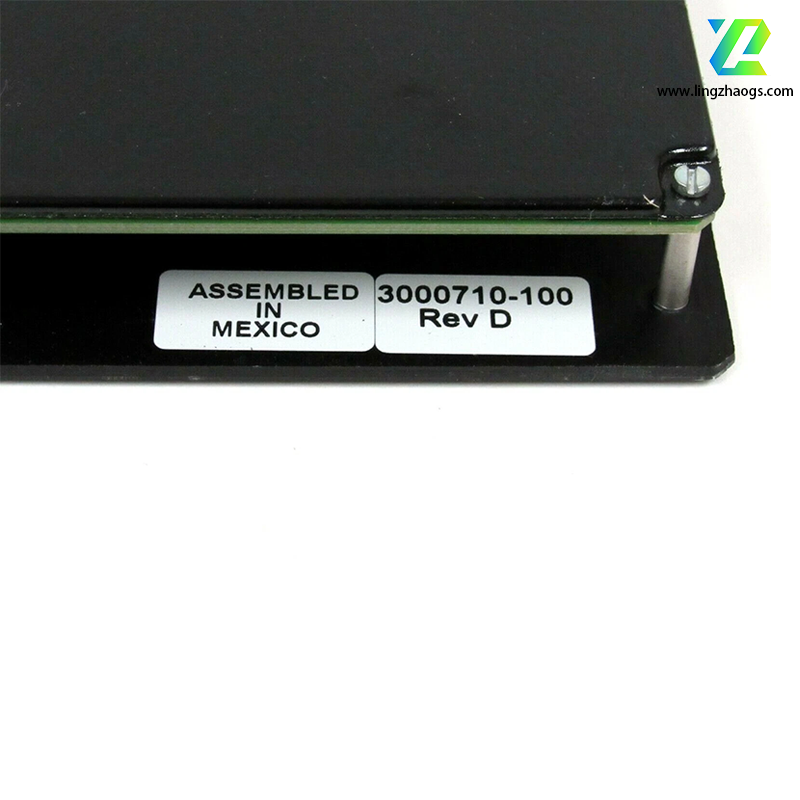

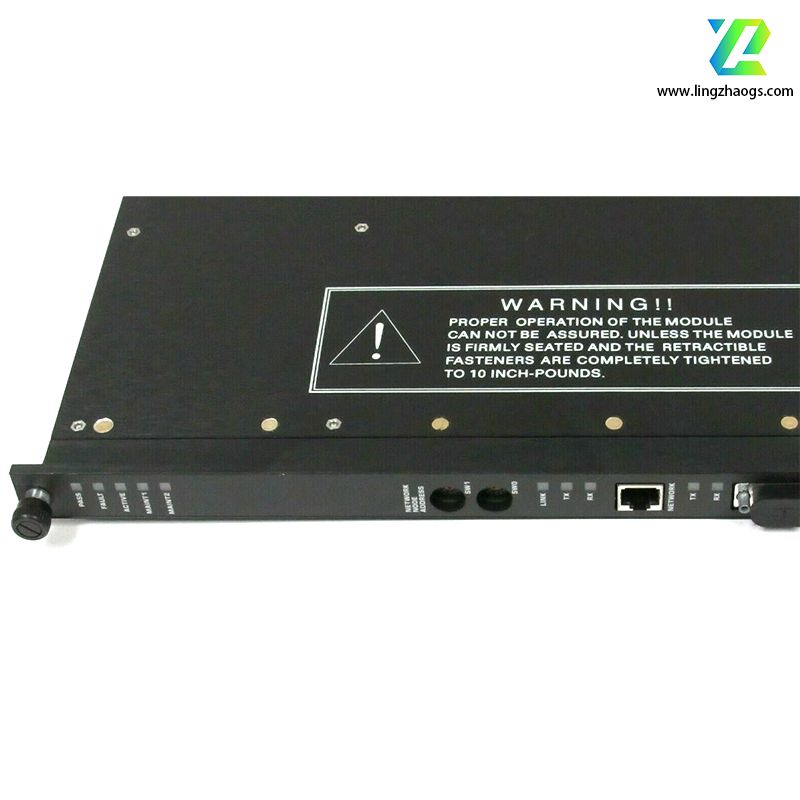

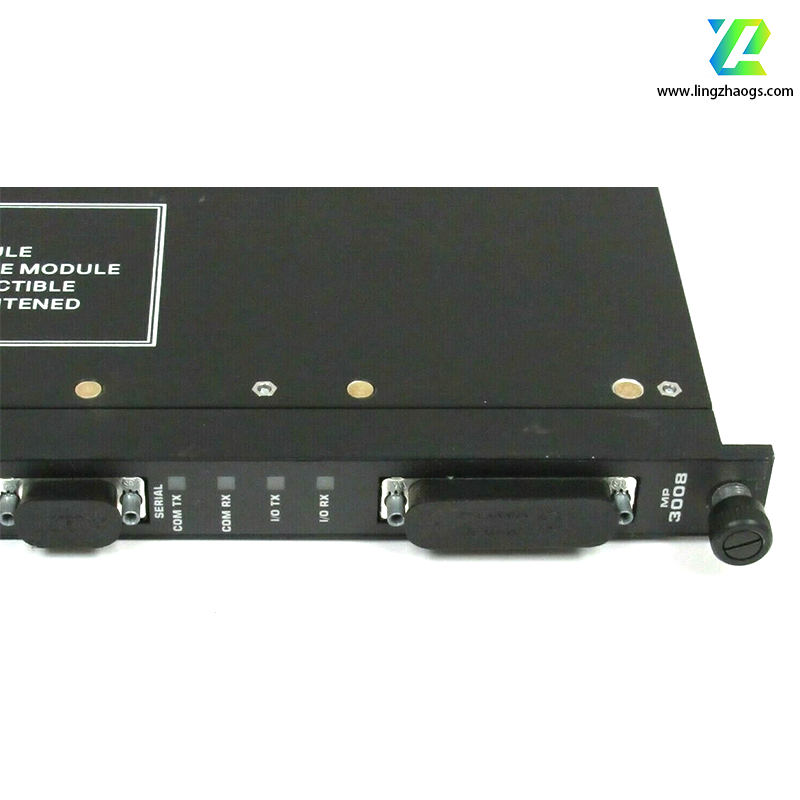

The Triconex MP3008 is a high-density, triple-modular redundant (TMR) analog input module designed for Triconex safety control systems, specialized in accurately acquiring and processing analog signals in safety-critical industrial environments. Below are its detailed specifications and features:
- Manufacturer: Triconex (a brand under Schneider Electric).
- Product Type: High-density TMR analog input module.
- Primary Function: Converts continuous analog signals (e.g., from pressure, temperature, or flow sensors) into digital data for Triconex safety controllers, enabling real-time monitoring and control of process variables.
- Compatibility: Fully integrated with Triconex Tricon and Trident safety systems, supporting TriStation 1131 configuration software.
- Input Channels: 8 differential analog input channels (high density for space-efficient chassis utilization).
- Input Signal Types: Supports industry-standard analog signals, including:
- Voltage: 0–5 VDC, 1–5 VDC, -5 to +5 VDC, -10 to +10 VDC.
- Current: 4–20 mA (two-wire or four-wire sensors, with built-in loop power option for 4–20 mA devices).
- Resolution: 16-bit ADC (high precision for accurate signal conversion, minimizing measurement error).
- Accuracy: ±0.1% of full scale (FS) at 25°C; ±0.25% FS over the operating temperature range (-40°C to +70°C), ensuring reliable data for safety logic.
- Update Rate: 100 ms per channel (configurable, supporting real-time process monitoring for time-sensitive applications).
- Isolation:
- Channel-to-channel isolation: 500 VAC (1 minute), preventing cross-talk between independent sensor signals.
- Field-to-backplane isolation: 1500 VAC (1 minute), protecting the safety system from external electrical interference.
- Common-Mode Rejection (CMR): -90 dB (50/60 Hz), suppressing noise from industrial power grids or nearby equipment.
- Triple-Modular Redundancy (TMR): Each input channel features three independent signal paths (sensing, conversion, and processing). A built-in voting mechanism compares data from the three paths, ensuring correct output even if one path fails—meeting SIL 3 safety integrity requirements.
- Built-In Diagnostics:
- Continuous self-tests for ADC faults, power anomalies, and isolation failures.
- Channel-specific diagnostics (e.g., open-circuit detection for 4–20 mA loops, over-range alerts).
- Status LEDs (per channel and module-level) for quick on-site fault identification, plus diagnostic data accessible via TriStation software.
- Flexible Configuration:
- Software-configurable input ranges (no hardware jumpers), allowing quick adjustment for different sensor types.
- Support for HART communication (optional) for accessing smart sensor data (e.g., sensor health, calibration status) without additional modules.
- Hot-Swappable: Enables online replacement without shutting down the safety system, reducing maintenance downtime and avoiding production disruptions.
- Operating Temperature: -40°C to +70°C (wide range for harsh industrial settings, including refineries, offshore platforms, and mines).
- Storage Temperature: -40°C to +85°C (suitable for long-term warehouse storage).
- Humidity: 5%–95% (non-condensing), resistant to moisture in coastal or high-humidity facilities.
- Vibration/Shock Resistance:
- Vibration: IEC 60068-2-6 (10–500 Hz, 0.5 g rms) for continuous operation.
- Shock: IEC 60068-2-27 (50 g, 11 ms half-sine pulse) for mechanical impact tolerance during installation or operation.
The Triconex MP3008 is widely used in safety-critical industries where precise analog signal monitoring is essential:
- Oil & Gas: Acquires pressure, temperature, and flow signals for pipeline ESD systems and offshore platform process control.
- Petrochemicals: Monitors reactor temperature, catalyst pressure, and steam flow in chemical plants.
- Power Generation: Collects data from turbine vibration sensors, boiler pressure transducers, and generator cooling systems.
- Mining: Measures conveyor belt tension, pump pressure, and ventilation system airflow for underground safety control.
