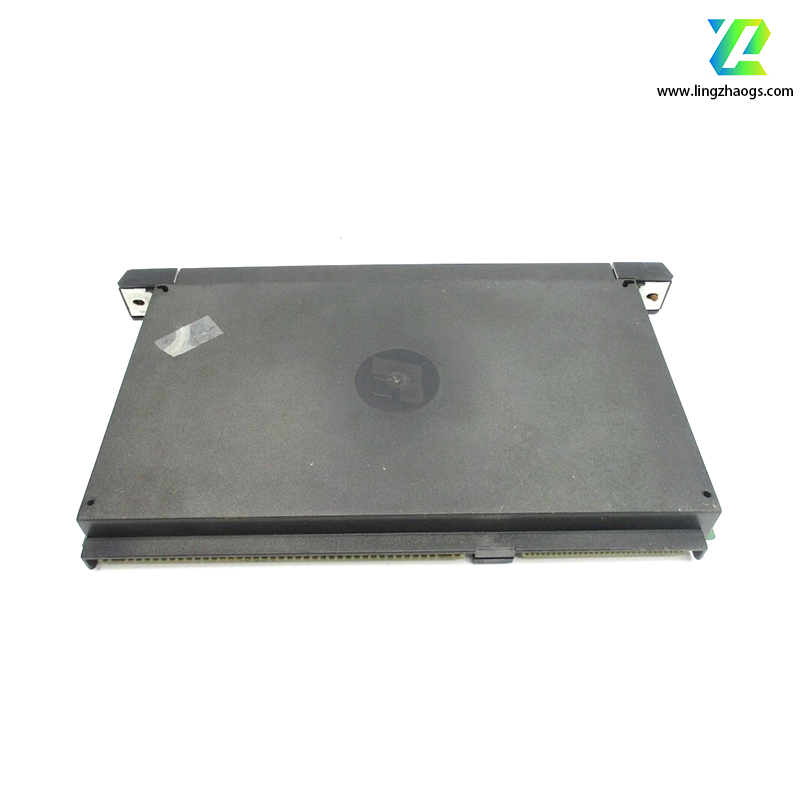

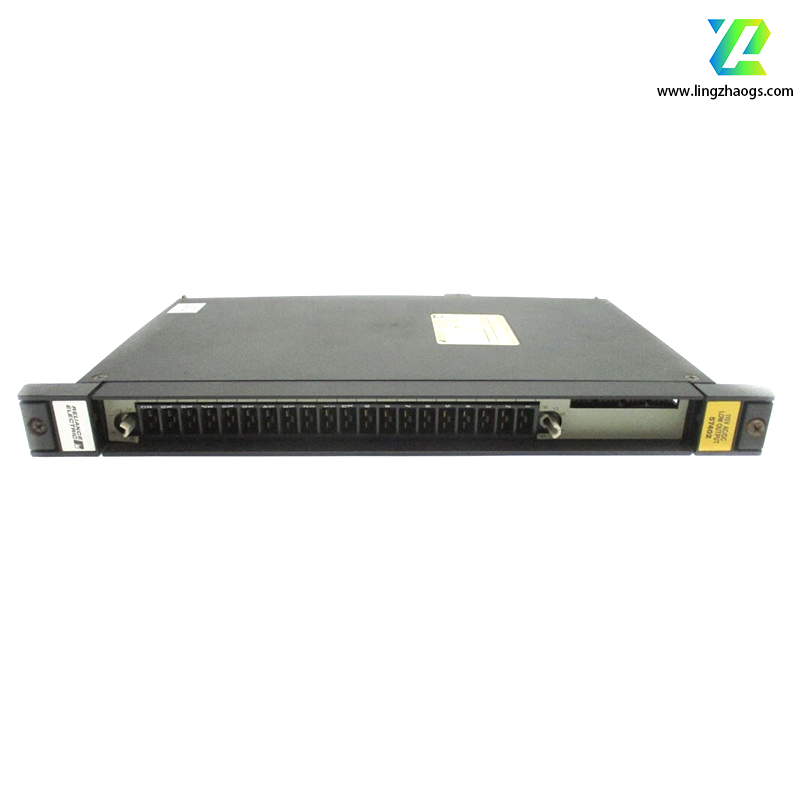

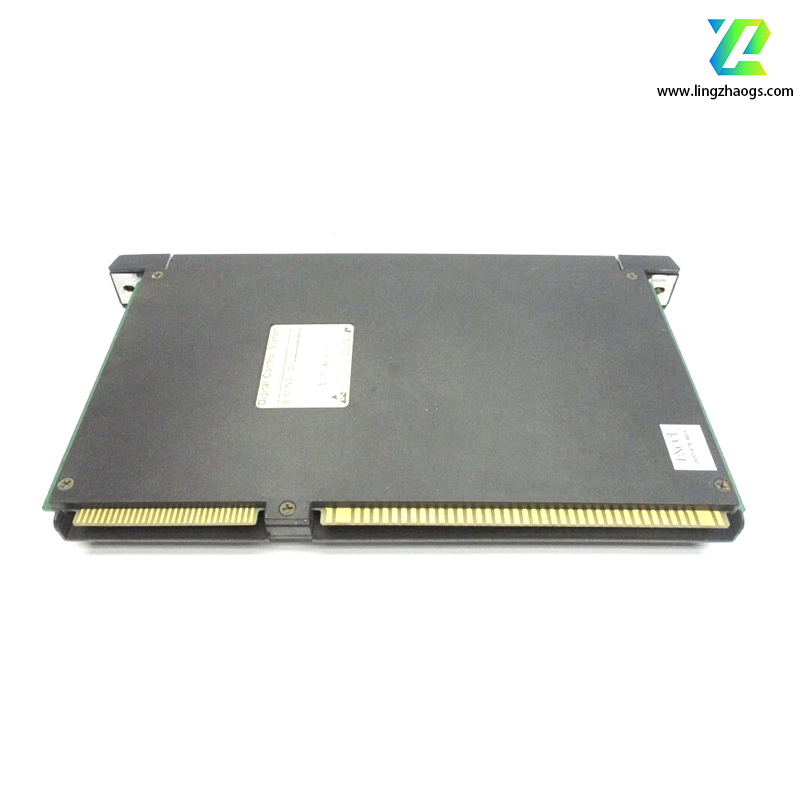

The RELIANCE 57402 (also referred to as 0-57402 or 0-57402-C) is a 16-channel AC/DC low-power digital output module designed for use with AutoMax distributed control systems in industrial automation applications. It converts digital signals from a controller into electrical outputs to drive low-power devices such as relays, solenoids, or indicator lights. Below is a detailed breakdown based on technical specifications and industry documentation:
Output Configuration
- Channels: 16 isolated output circuits with individual LED status indicators (labeled 0–15).
- Output Type: Universal AC/DC (compatible with both AC and DC loads).
- Voltage Range: 24–115 V AC/DC (nominal ratings vary by model; check part suffix for exact specs).
- Current Rating:
- Maximum Continuous Current: 200 mA per channel.
- Maximum Leakage Current (Off State): 1.0 mA.
- Isolation: 2,500 V AC RMS between outputs and logic/common.
Physical & Environmental
- Dimensions: Approximately 233 mm × 160 mm (9.2” × 6.3”).
- Weight: ~1.11 kg (2.45 lbs).
- Operating Temperature: 0°C to 60°C (32°F to 140°F).
- Storage Temperature: -40°C to 85°C (-40°F to 185°F).
- Humidity: 5–90% non-condensing.
Power Supply
- Module Voltage: Derived from the output signal (24–115 V AC/DC).
- Current Consumption: Dependent on load but typically ≤200 mA per channel.
Fault Detection
- LED Indicators: Show channel status (ON/OFF) and fault conditions.
- Error Codes:
- 31: Bus error (module missing, malfunctioning, or in incorrect slot).
- 51–58: Specific communication or configuration errors.
Installation
- Mounting: DIN-rail or panel-mountable via metal brackets on the faceplate.
- Terminals: 16 small male ports (0–15) for outputs and 20 larger ports (0–15) for commons, labeled C1–C4 (4 isolated commons).
- Universal Compatibility: Supports both AC and DC loads, reducing the need for separate modules.
- Isolated Design: Protects against voltage spikes and electromagnetic interference (EMI).
- Compact Form Factor: Space-efficient for rack-mounted control systems.
- Low Power Consumption: Ideal for applications requiring ≤200 mA per channel (e.g., pilot lights, small relay coils).
- LED Diagnostics: Simplifies troubleshooting and status monitoring.
- Industrial Automation: Controlling relays, solenoids, or motor starters in manufacturing lines.
- HVAC Systems: Actuating dampers or valves with low-power signals.
- Building Automation: Powering indicator lights, buzzers, or small sensors.
- Process Control: Interfacing with low-power field devices in chemical or oil/gas plants.
- Manuals:
- AutoMax System Operation Manual (J-2-3104) for integration guidelines.
- Module Installation Guide for wiring and mounting instructions (available through third-party suppliers).
- Certifications: CE, UL, and RoHS compliance (varies by model revision).
- Part Numbers:
- Base: 57402
- Common Variants: 0-57402-C, 0-57402-E (check suffix for voltage/current specifics).
- Discontinuation Status: No longer manufactured by Reliance Electric; available through authorized resellers like AX Control or SAUL DCS.
- Load Limitations: Avoid exceeding 200 mA per channel to prevent damage.
- Wiring: Use shielded cables in high-noise environments to maintain signal integrity.
- Compatibility: Ensure compatibility with your AutoMax controller’s firmware version and power supply 规格.
For detailed diagrams or replacement options, contact an authorized Reliance Electric distributor or refer to the official AutoMax documentation.
