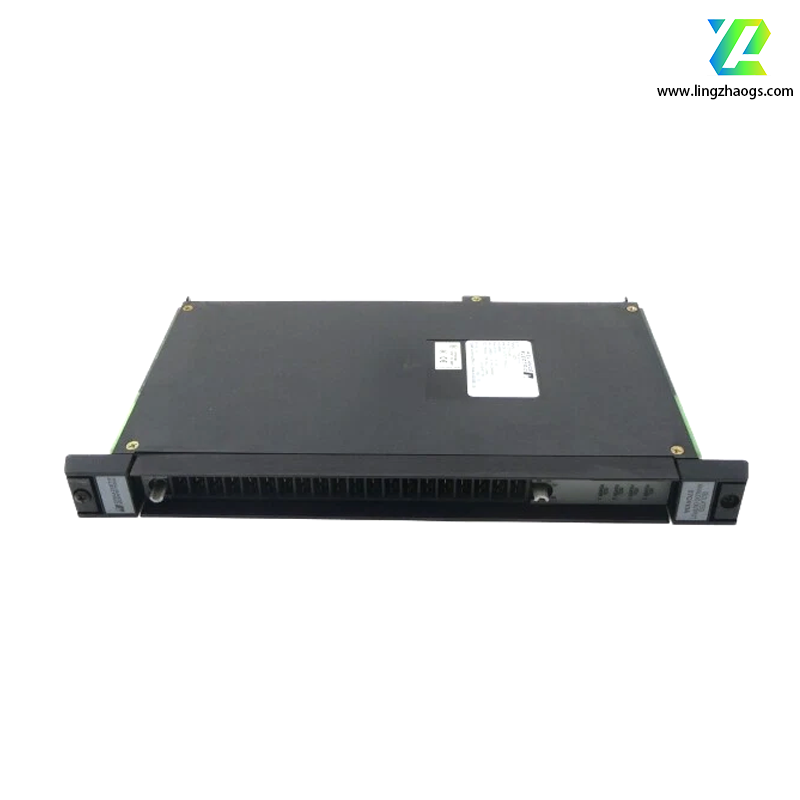

The RELIANCE 57C410A is a high-precision isolated analog output module designed for industrial automation systems, particularly the AutoMax distributed control platform. It converts digital signals from a PLC or controller into analog voltage/current outputs to regulate actuators, valves, or other analog devices. Below is a detailed breakdown based on technical specifications and industry documentation:
- Output Channels: 4 isolated analog output channels
- Resolution: 12-bit D/A conversion for precise signal control
- Output Ranges (configurable per channel):
- Voltage: 0–10 V DC, ±5 V DC, ±10 V DC
- Current: 4–20 mA, 0–20 mA
- Isolation: 2,500 V AC RMS between logic/common and output channels
- Output Filter: First-order low-pass filter (100 Hz cutoff) to reduce noise
- Power Supply:
- Module Voltage: 24 V DC (±10%)
- Current Consumption: ~100 mA @ 5 V DC or 120 mA @ 24 V DC
- Communication: Integrates with AutoMax systems via Multibus; supports protocols like ControlNet, DeviceNet, and EtherCAT (optional)
- Operating Temperature: -20°C to +60°C (storage: -40°C to +85°C)
- Physical Dimensions: ~100 mm × 60 mm × 20 mm (compact form factor)
- Weight: ~100 g (module only)
- Isolated Design: Minimizes electromagnetic interference (EMI) and ensures signal integrity in harsh environments .
- Flexible Configuration: Supports mixed voltage/current outputs on the same module for versatile applications .
- High Reliability: Industrial-grade components with rugged construction for 24/7 operation .
- Diagnostics: Built-in LED indicators for power, channel status, and fault detection .
- Ease of Integration: Plug-and-play compatibility with AutoMax racks and programming software .
The 57C410A is widely used in:
- Process Control: Regulating temperature, pressure, and flow in chemical, oil/gas, and power plants .
- Manufacturing: Controlling servo motors, robotic arms, and CNC machinery .
- HVAC Systems: Adjusting valves and dampers for climate control .
- Renewable Energy: Managing inverters and grid-tied systems .
- Manuals:
- AutoMax Programming Executive Manual (J-3001-3) for configuration and setup .
- Module Installation Guide (J-3631-1) for physical mounting and wiring .
- Certifications: CE, UL, and RoHS compliance (depending on model revision) .
- Part Number: 57C410A
- Circuit Revision: 07 (check label for exact version) .
- Alternate Part Numbers: 0-57410-1C, S-6711B0-57410 .
- Voltage vs. Current: Ensure the output type matches the connected device’s requirements (e.g., 4–20 mA for transmitters).
- Wiring: Use shielded cables to prevent signal degradation, especially in high-noise environments .
- Compatibility: Verify compatibility with your AutoMax controller firmware version before installation .
For detailed diagrams and troubleshooting, refer to the official RELIANCE Electric datasheet or contact an authorized distributor.
