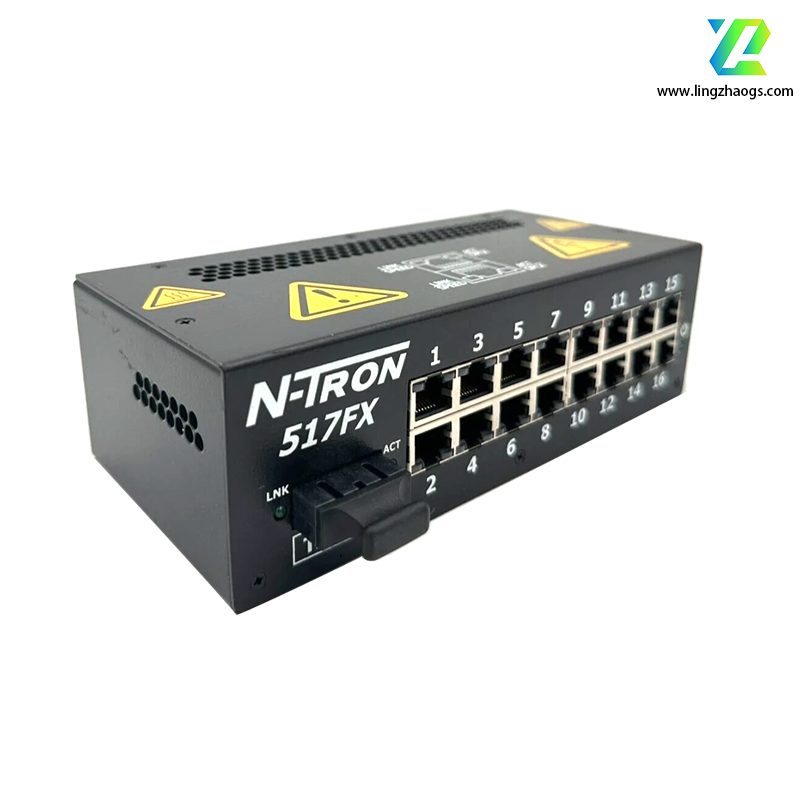

The Red Lion 517FX - SC is an unmanaged industrial Ethernet switch belonging to the N - Tron 500 series, designed for industrial environments. Here are the detailed specifications:
- Part Number: 517FX - SC
- Manufacturer: Red Lion
- Series: N - Tron 500 series
- Type: Unmanaged switch (plug - and - play operation)
- Mounting Type: DIN - rail (35mm)
- Enclosure Material: Metal
- Weight: 1.9 lbs (0.9 kg)
- Total Ports: 17
- RJ - 45 Ports: Sixteen 10/100BaseTX ports, which support autosensing of 10/100BaseTX, duplex, and MDIX
- Fiber Optic Port: One 100BaseFX multimode fiber port with an SC - style connector, rated for a fiber distance of 2 km

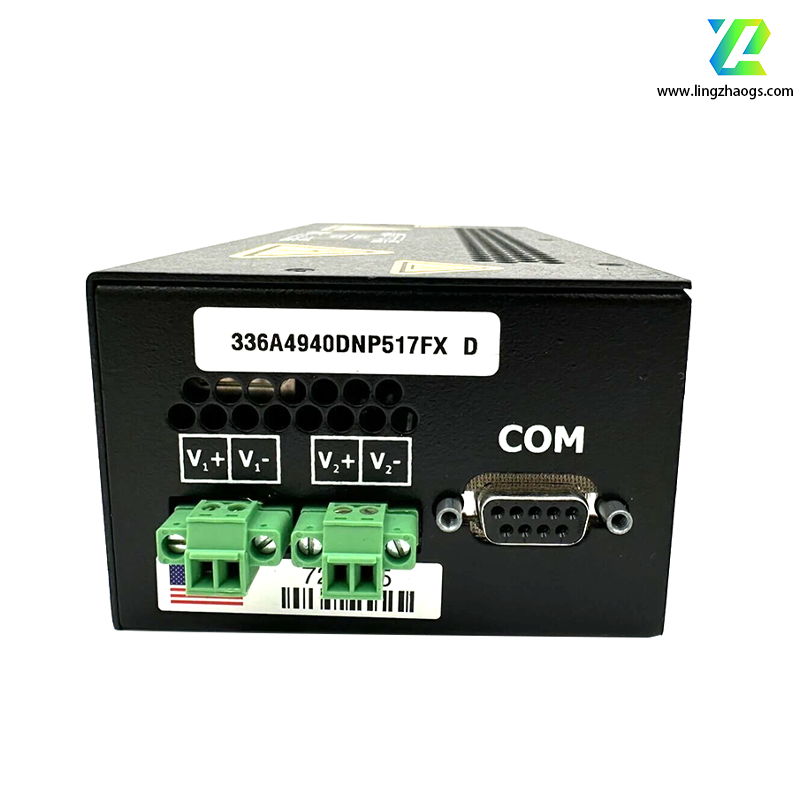

- Power Supply: Redundant power inputs of 10 - 30VDC (commonly used with 12VDC or 24VDC)
- Input Current: 440 mA@24V
- Inrush Current: 8.5Amp/0.8ms@24V
- Throughput: Up to 2.6 Gb/s
- Switching Method: Store - and - forward
- MAC Addresses Supported: 4,000
- Latency: Typically 2.1 µs
- Operating Temperature: -40°C to 85°C
- Storage Temperature: -40°C to 85°C
- Operating Humidity: 10% to 95% (non - condensing)
- Operating Altitude: 0 to 10,000 ft
- Shock Resistance: 200g @ 10ms (bulkhead mounting)
- Vibration Resistance: 50g, 5 - 200Hz, triaxial (bulkhead mounting)
- MTBF (Mean Time Between Failures): >2 million hours
- IEEE Standards: Complies with IEEE 802.3 and IEEE 1613 (for industrial environments)
- NEMA Standards: Complies with NEMA TS1/TS2
- Bi - color LED indicators for link status, link speed, activity, duplex status of each port, as well as power on/off status
- Height: 2.27" (5.76 cm)
- Width: 7.38" (18.74 cm)
- Depth: 3.44" (8.74 cm)
