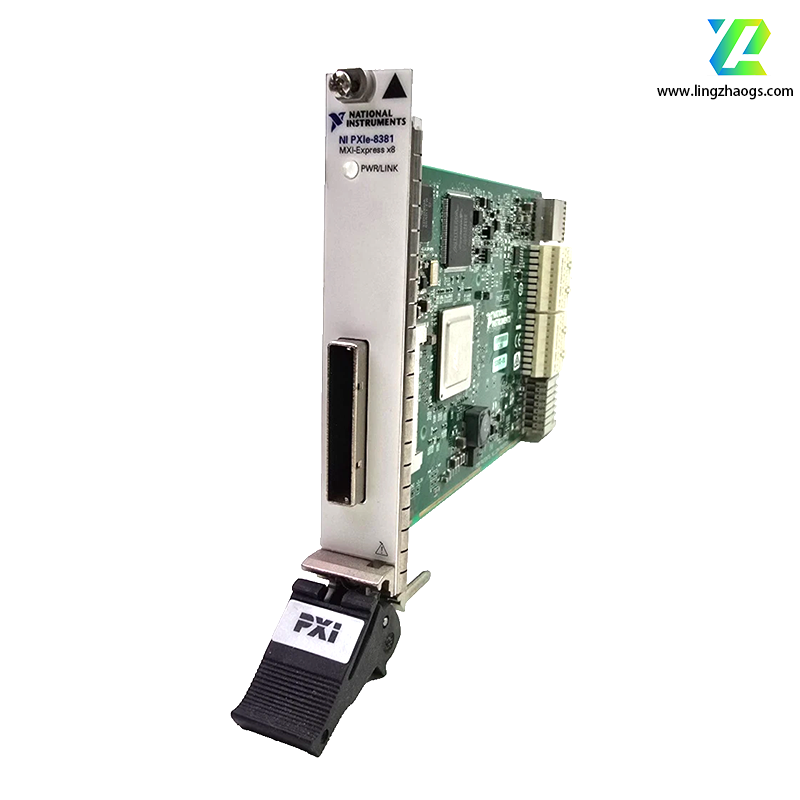

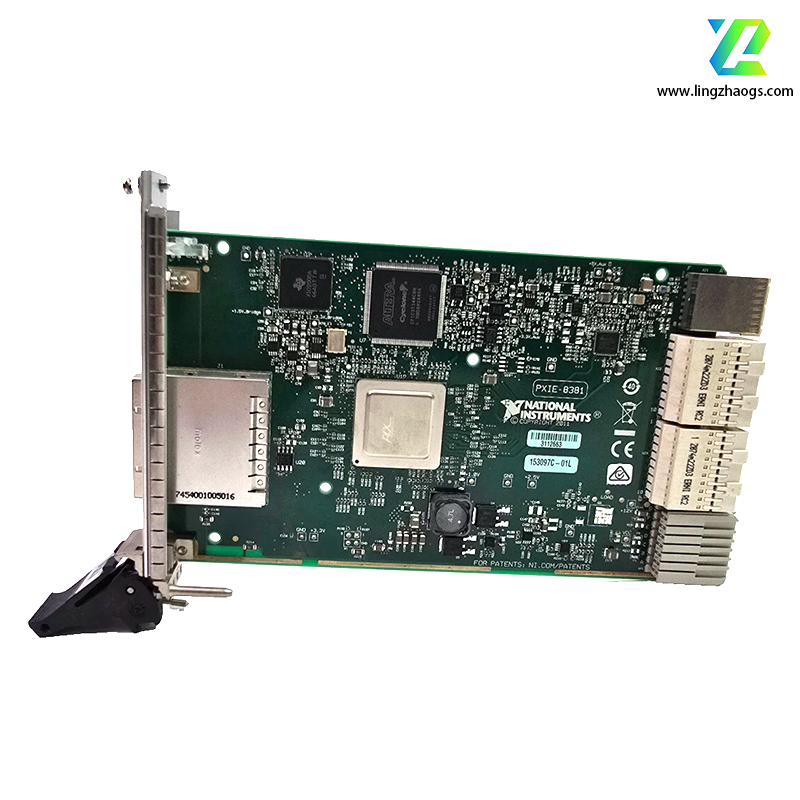

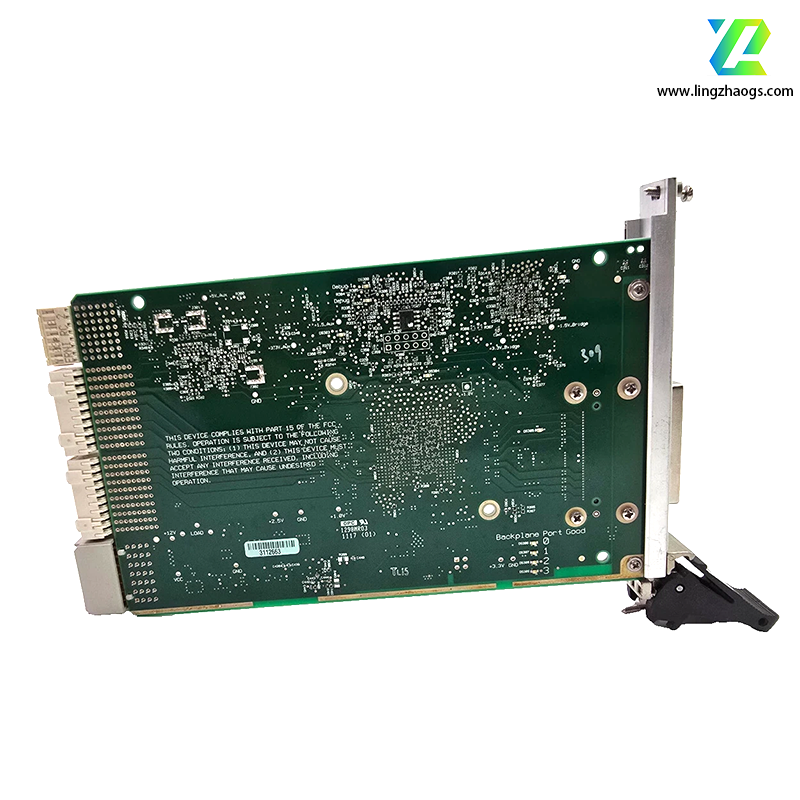

The NI PXIe-8381 is a PXI remote control module that enables users to control PXI and CompactPCI systems from a PC through a fully transparent MXI-Express link. The following is a detailed introduction:
- Basic Information
- Part Number: 782362-01
- MXI Bandwidth: 4 GB/s
- Bus Connector: PXIe Controller
- MXI Communication Level: MXI-Express Gen2 X8
- Supported Cable Types: Fiber optic and copper
- Whether Daisy Chain Connection is Supported: No
- Number of MXI Ports: 1
- Functional Characteristics
- High-Speed Data Transfer: It adopts an X8 Gen 2 MXI-Express link, with a sustained throughput of 3.2 GB/s in each direction, ensuring fast and stable data transmission between the PC and the PXI system.
- Remote Control Function: It allows remote control of PXI and CompactPCI instruments, modules, and chassis, enabling users to operate and configure the PXI system through a PC, which is convenient for remote testing and monitoring.
- Software Transparency: The link is software-transparent, without the need for additional complex software programming, which simplifies the setup and operation process of the system.
- Wide Compatibility: It supports various software environments, including NI LabVIEW, NI Measurement Studio, and C/C++, and can be well integrated with other NI products and third-party software.
- Physical Characteristics
- Dimensions: 210 mm x 100 mm x 25 mm (8.27″ x 3.94″ x 0.98″)
- Weight: 0.5 kg (1.1 lb)
