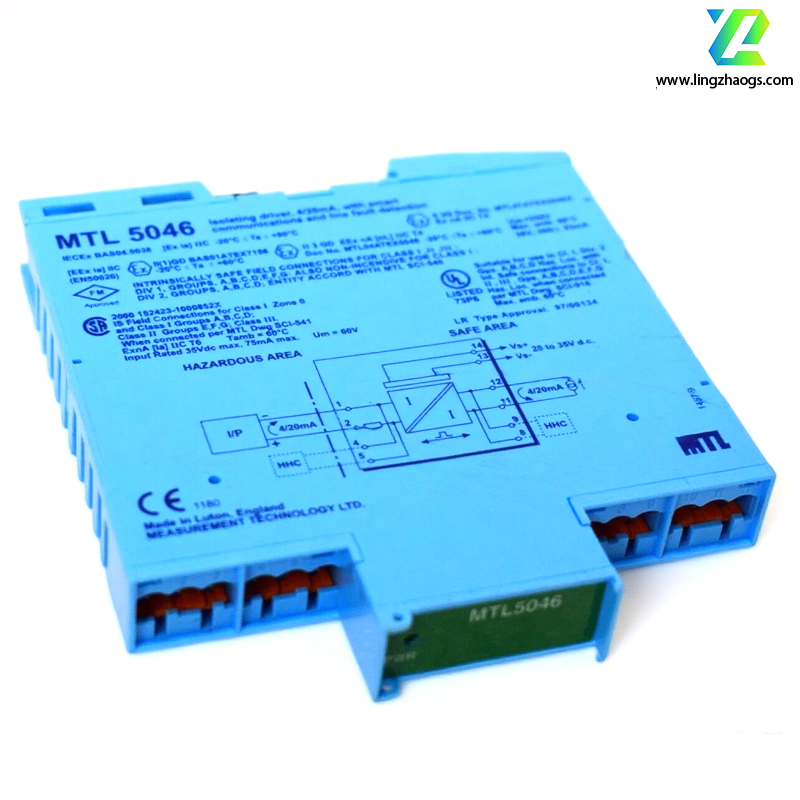

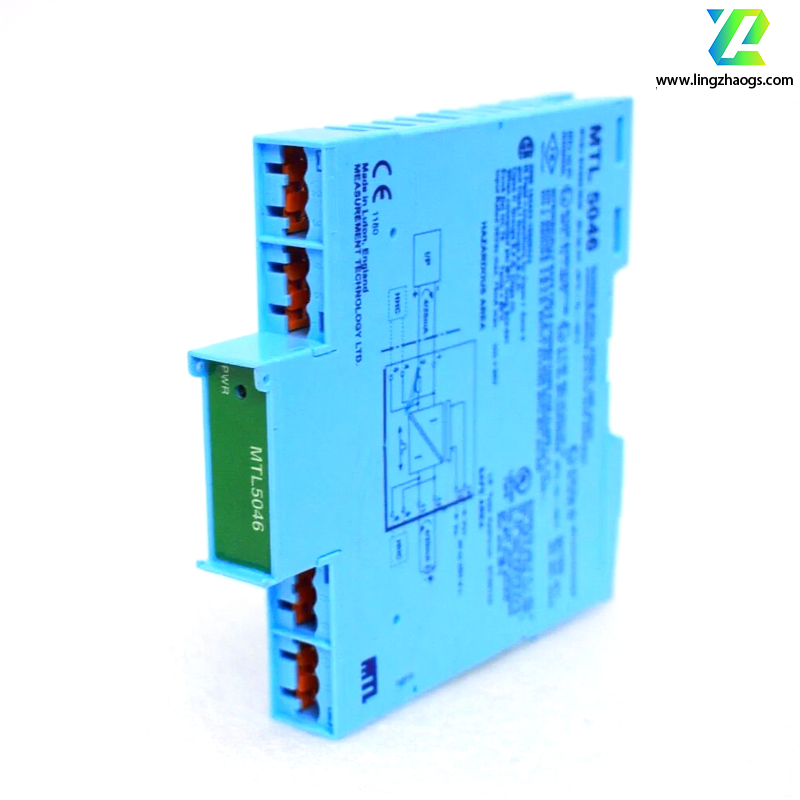

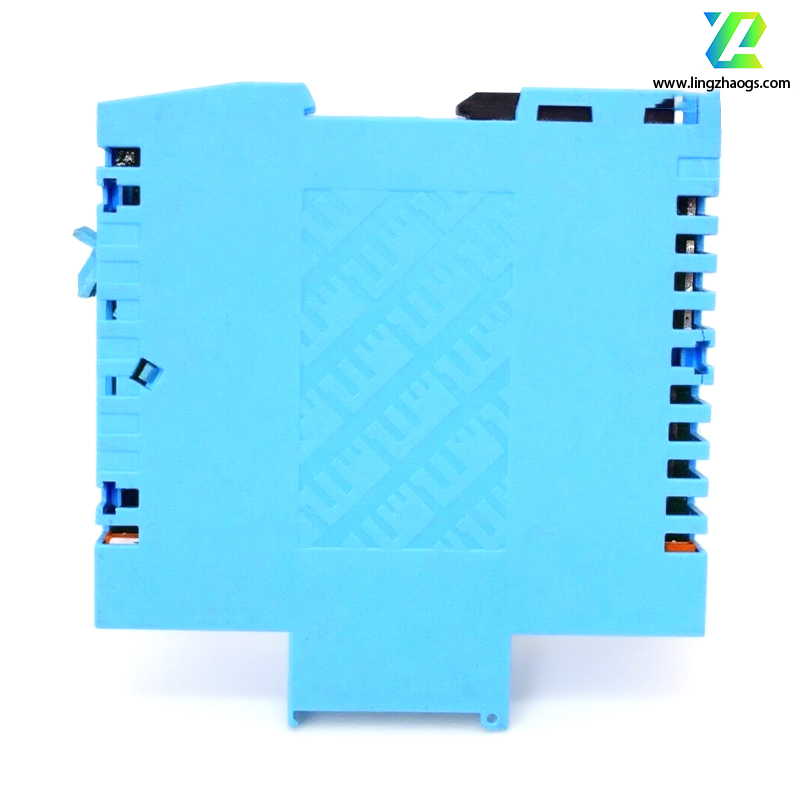

The MTL5046 is an isolated driver, typically used in industrial automation control systems to achieve isolated signal transmission and applicable in hazardous areas. Below are its detailed specifications:
- Product Type: Isolated Driver
- Number of Channels: 1 channel
- Brand: MTL Instruments
- Input Signal:
- Safe-area input signal range: 4 to 20mA
- Under-range/over-range: 1 to 24mA
- Digital signal bandwidth: 500Hz to 10kHz
- Power Supply Requirements: Supply voltage: 20 to 35V DC
- Intrinsically Safe Parameters:
- Maximum voltage of intrinsically safe circuit: 28V
- Maximum current: 93mA
- Maximum power: 650mW
- Allowable voltage for non-intrinsically safe circuits: 250V AC (50/60Hz) or 250V DC
- Output Load: Maximum load resistance: typically 800Ω
- Isolation Characteristics: Features excellent electrical isolation performance, effectively isolating circuits between hazardous and safe areas; isolation voltage is generally around 250V.
- Dimensions: Approximately 10.4cm × 1.6cm × 11cm (Height × Width × Depth)
- Weight: Approximately 2kg
- Installation Method: Adopts DIN rail mounting, facilitating installation and wiring in control cabinets
- Indicator Light: Equipped with a green LED indicator for power status, allowing users to intuitively check the device's power-on state
Suitable for Zone 0, Class IIC, T4-T6 hazardous areas, and Division 1, Group A hazardous locations. It can be used in industrial fields with explosive hazardous gases such as petroleum, chemical engineering, and metallurgy.
