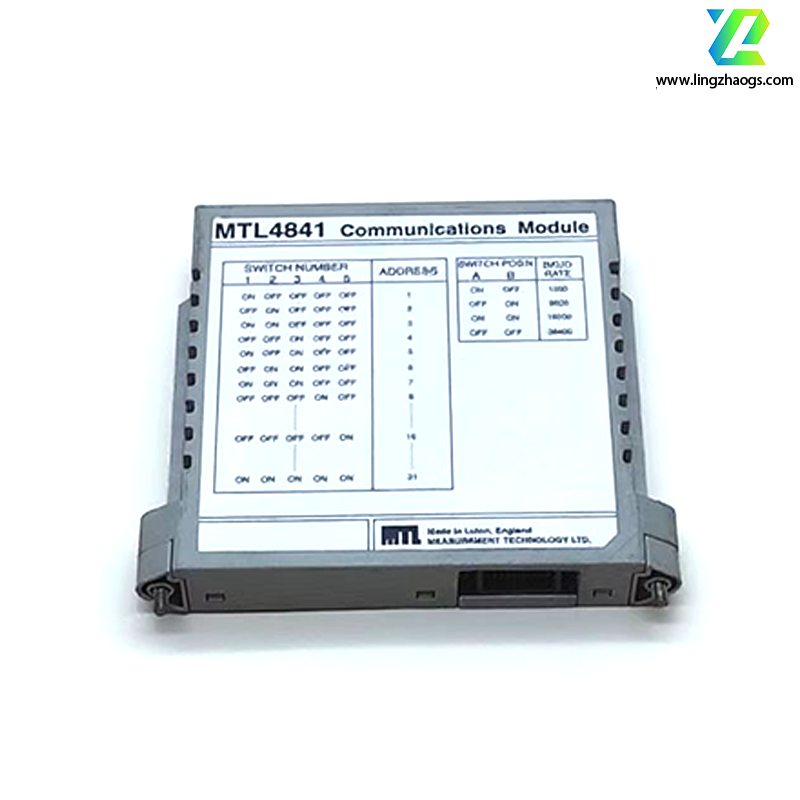

Below are the supplementary details of functional features, technical parameters, and application scenarios for the MTL4841 communication module, complementing its core capabilities in HART signal transmission and system integration:
Protocol Support:
Supports HART 7 protocol, enabling bidirectional communication with field devices compliant with this protocol. It can realize functions such as device parameter reading, setting, and status monitoring.
Supplementary System Connection:
Can connect up to 16 MTL4842 HART interface modules via the backplane interface bus. When used with MTL4842, it collects on-site HART instrument signals and transmits them to the control system or upper computer software, achieving centralized management of a large number of HART instruments.
- Power Supply (Supplementary): Typically powered by a 24V DC power supply via the backplane.
- Relay Output: Some documents indicate it is equipped with 2 SPDT relays (24V DC @ 1A), which can be used in scenarios such as control signal output or alarm signal triggering.
Chemical Industry:
In chemical production processes, it can connect various chemical-specific HART-protocol instruments (e.g., material flow transmitters, temperature and pressure transmitters for chemical reactors). It transmits signals from these instruments to the control system in the central control room, realizing precise monitoring and automated control of chemical production processes to ensure safety and stability.
Pharmaceutical Industry:
In pharmaceutical factory production workshops and laboratories, it can connect HART-protocol high-precision temperature/humidity sensors and smart instruments on drug packaging equipment. This enables real-time monitoring and management of the pharmaceutical production environment and equipment status, helping to ensure the stability and consistency of drug quality.
Other Industrial Fields:
The MTL4841 is also widely used in other industrial sectors such as food and beverage processing, papermaking, and printing and dyeing. It can be used to build efficient and reliable communication networks as long as the application involves signal collection, transmission, and management of HART-protocol smart instruments.
