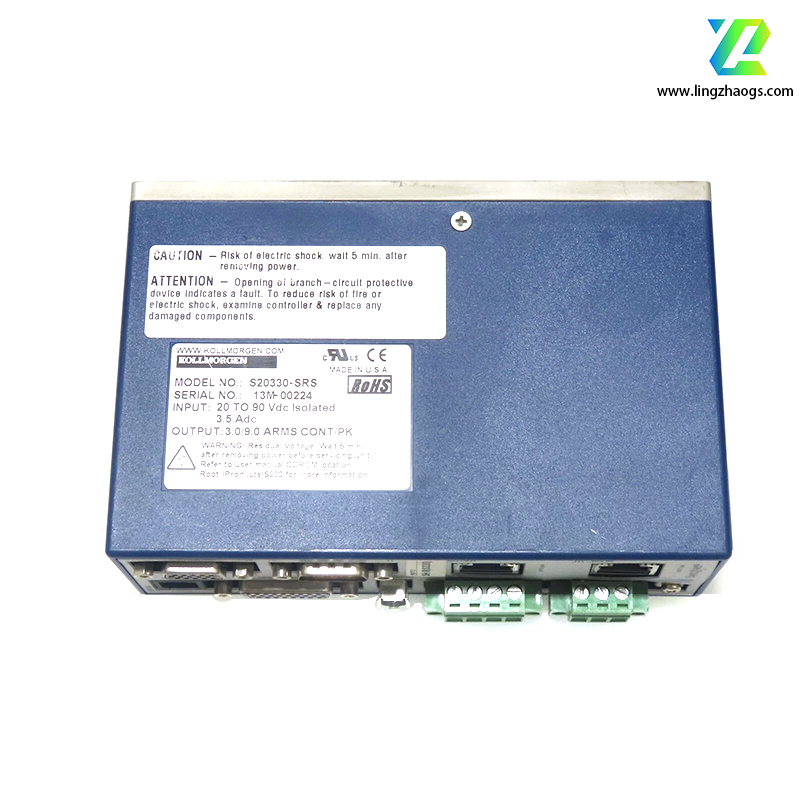

The Kollmorgen S20330-SRS is a servo drive belonging to the S200 series, designed for precise industrial motion control applications. The following is a summary of its details:
- Manufacturer: Kollmorgen
- Model Number: S20330-SRS
- Product Type: Servo Drive
- Input Voltage: 20 - 90V DC
- Power Output: 300W - 50,000W (continuous duty)
- Peak Output Current: 9.0 ARMS (at 0 - 50°C)
- Minimum Peak Current Time: 3.0 seconds
- Current Loop Bandwidth: Up to 5 kHz
- Velocity Loop Bandwidth: Up to 800 Hz
- Control Modes: Torque, velocity, and position control
- Communication Interfaces: RS - 232, RS - 485, and may support EtherCAT, CANopen, SynqNet, etc.
- Feedback Support: SFD/Halls, incremental or absolute encoders, resolver (optional), BiSS, EnDat, SSI
- Protection Class: IP20 (indoor use)
- Operating Temperature Range: 0 - 50°C (some sources mention - 10°C - 50°C)
- Storage Temperature Range: Not clearly specified in most sources, but may be similar to other Kollmorgen products, such as - 40°C - 85°C
- Dimensions: Compact design, specific dimensions may vary by model (some sources mention approximately 200mm x 150mm x 50mm)
- Weight: Some sources indicate approximately 2kg
- Diagnostic Function: Offers three - fold diagnostic control at the rated continuous current every five seconds
- Intelligent Feedback: Some models may have an intelligent feedback device with an electronic motor nameplate, eliminating the need for drive parameter set - up and servo loop tuning in most applications
- Standard Features: Include torque and velocity control base, electronic gearing, up to an 18 - bit analog reference input, and an encoder - equivalent output
- Protection Functions: Over - current protection, over - voltage protection, under - voltage protection, overload protection, short - circuit protection, and over - temperature protection, etc.
- Industrial Robots: For precise control of robot joints.
- CNC Machine Tools: To meet the requirements for high - precision cutting movements.
- Packaging and Printing Machinery: To ensure accurate positioning and stable operation of motors in packaging and printing equipment.
- Semiconductor Manufacturing: Suitable for high - precision motion control in semiconductor production processes.
It should be noted that the above information is compiled from various non - official sources. For the most accurate and detailed information, it is recommended to consult Kollmorgen's official documentation or customer service.
