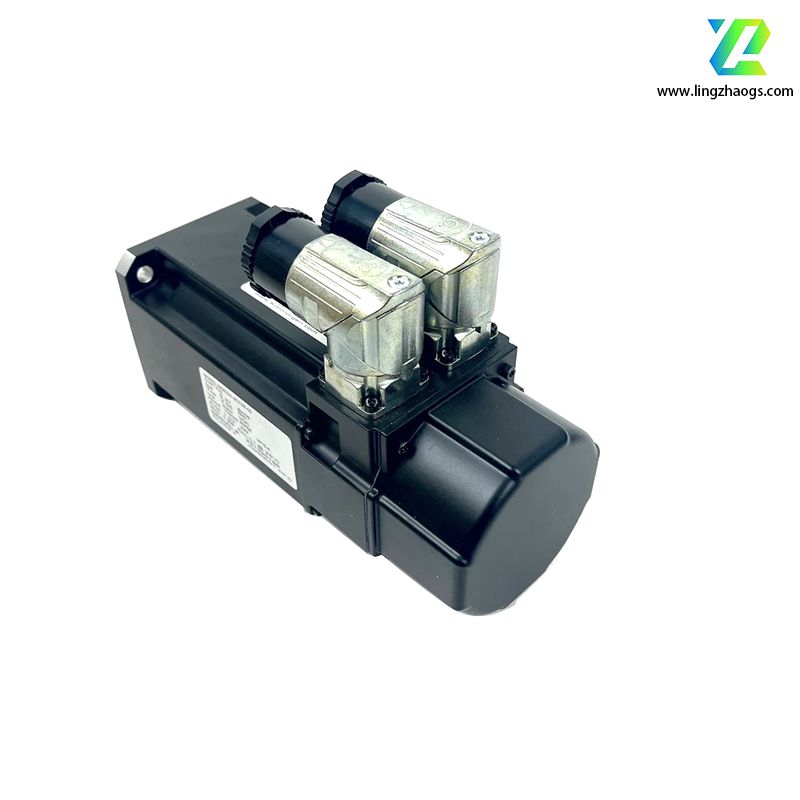

The Kollmorgen AKM32H-ACC2R-00 is a permanent magnet synchronous servo motor. The following is the detailed information about it:
- Manufacturer: Kollmorgen
- Model Number: AKM32H-ACC2R-00
- Product Type: Servo Motor
- Series: AKM series
- Weight: Approximately 4.0 kg
- Dimensions: Not fully specified in the available information, but typically for AKM series motors, they have a compact design suitable for various industrial applications
- Max Bus Voltage: 320VDC
- Rated Current: Approximately 5.37A
- Winding Type: H (as inferred from similar models in the AKM series)
- Standstill Torque: 2.10 Nm
- Rated Speed: 7000 rpm
- Max Peak Torque: 10.22 Nm
- Shaft Feature: Has a keyway, which helps prevent the shaft from rotating in the bore and improves torque transmission
- Flange Size: 70x70mm IEC flange (tolerance N) (as inferred from similar models in the AKM series)
- Feedback Device: Pre-fitted with a resolver, which provides accurate position and speed feedback to the servo controller
- Customizable Feedback: Yes, it is possible to customize the feedback system according to specific application requirements (consult the manufacturer)
- Operating Temperature Range: -40°C to 40°C (ambient temperature up to 40°C is recommended for normal operation, and for higher temperatures, it is necessary to consult the manufacturer)
- Humidity Range: 5% to 95% non-condensing
- IP Rating: IP54, which means it is protected against dust ingress and splashing water from all directions
- Certifications: Meets relevant industrial standards such as cURus, CE compliant, and has UL recognition (as per the general characteristics of the AKM series)kollmorgen.com
- Robotics and Automation Systems: Used for precise positioning and motion control in robotic arms and automated production lines
- Material Handling Equipment: Suitable for applications in conveyor systems, pick-and-place machines, etc., where accurate movement control is required
- Precision Machinery: Applied in machine tools, measurement equipment, and other precision - oriented machinery to ensure high - accuracy operation
