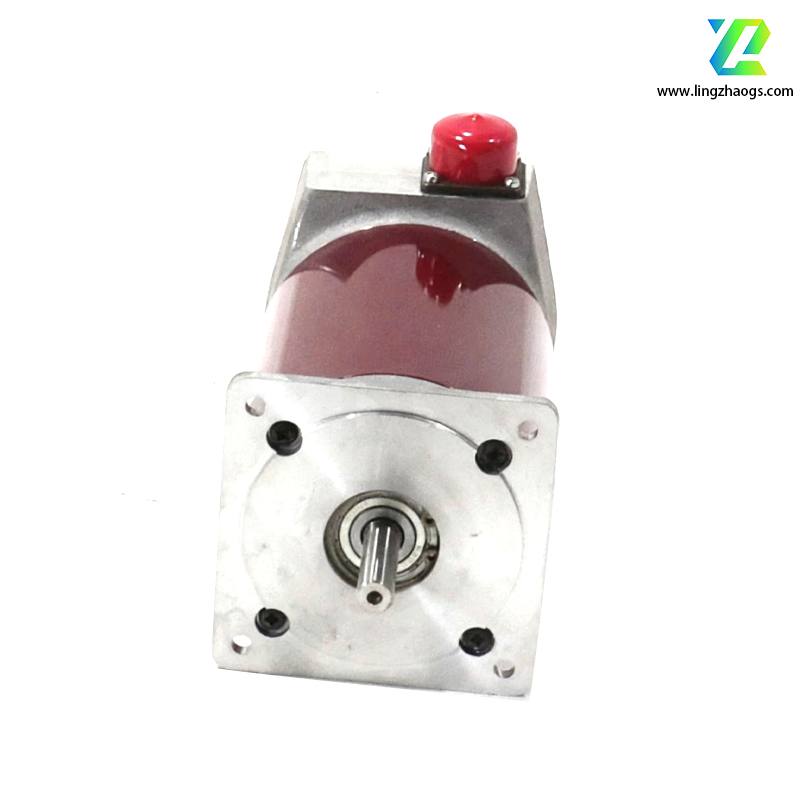

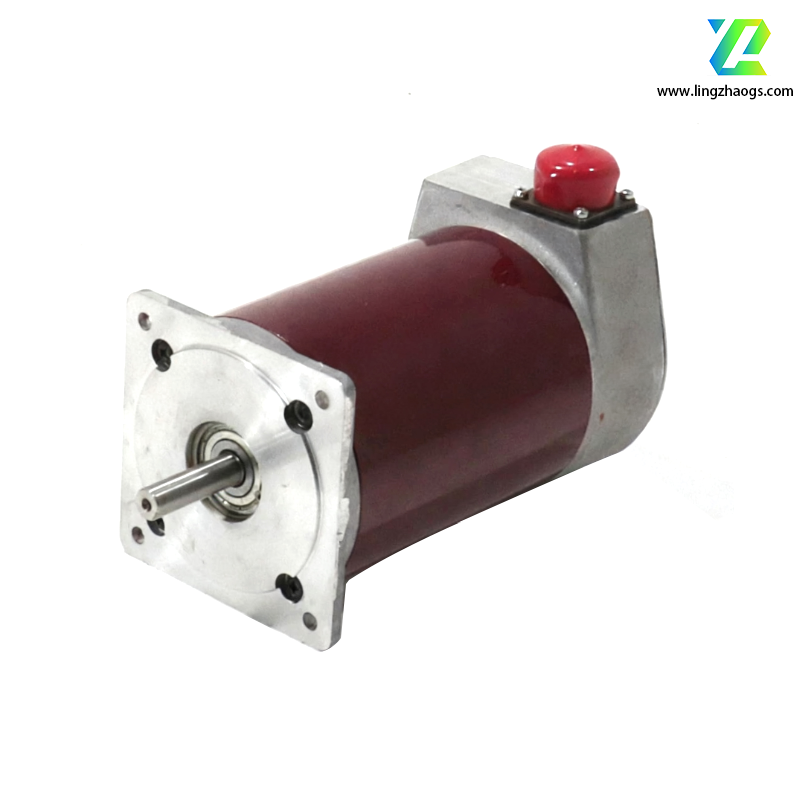

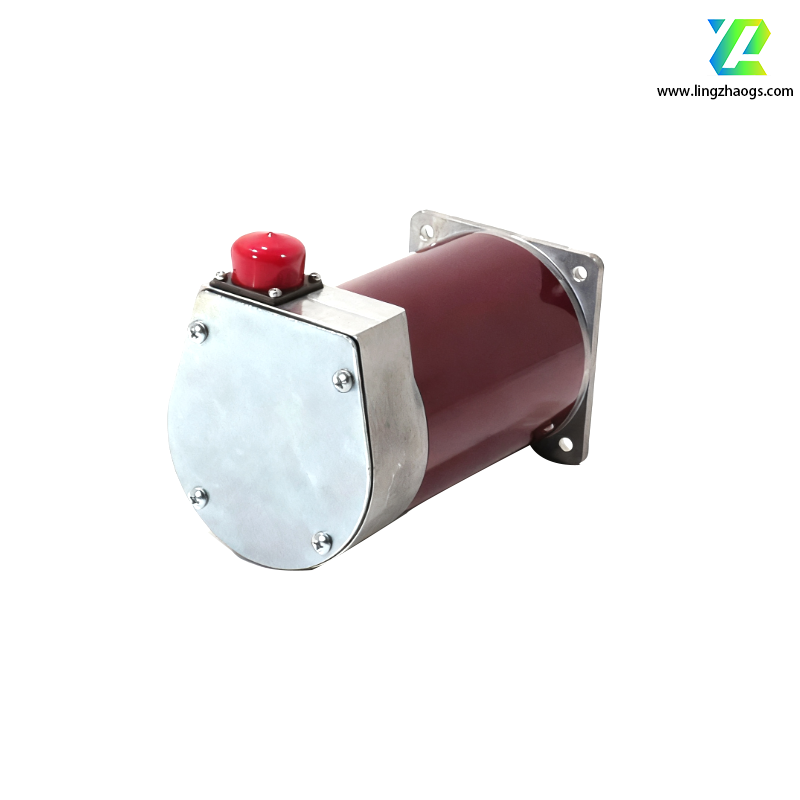

The KOLLMORGEN E33NCHA-LNN-NS-00 is a high-performance servo motor module. The following is its detailed information:
- Basic Information
- Model: E33NCHA-LNN-NS-00
- Series: AKD® second-generation series
- Rated Power: 1.0 kW (1.3 hp)
- Rated Torque: 3.3 Nm (2.4 lb-ft)
- Rated Speed: 3000 rpm
- Peak Torque: 6.6 Nm (4.8 lb-ft)
- Peak Speed: 6000 rpm
- Continuous Current: 3.3 A
- Peak Current: 6.6 A
- Encoder Type: Absolute encoder
- Dimensions: 90 x 90 x 120 mm
- Weight: 2.7 kg (6.0 lbs)
- Operating Temperature: 0 to +40°C
- Storage Temperature: -40 to +85°C
- Protection Class: IP65
- Features
- High Torque Density：It can provide a relatively large torque output within its size, which is particularly important for applications with limited space. High torque density means that a greater driving force can be generated in a smaller volume, thereby improving the overall performance of the system.
- Smooth Operation：The motor can achieve low-vibration and low-noise operation, which is suitable for places that require a quiet environment. This smooth operation characteristic helps to reduce mechanical wear and noise pollution and extend the service life of the motor.
- Compact Design：The compact design allows the motor to be easily installed in various devices without taking up too much space, improving the integration degree of the equipment and making the system more flexible in layout and installation.
- High Dynamic Response：Its fast-response characteristic makes it very suitable for applications that require quick start and stop, such as robotic arms or precision positioning systems. High dynamic response means that the motor can quickly respond to changes in control signals, so as to achieve precise position control.
- Application Fields
- It is widely used in various automation and motion control fields, including but not limited to CNC machine tools, printing machines, medical equipment, 3D printers, packaging machines, automated production lines, automotive manufacturing, robotics, etc.
