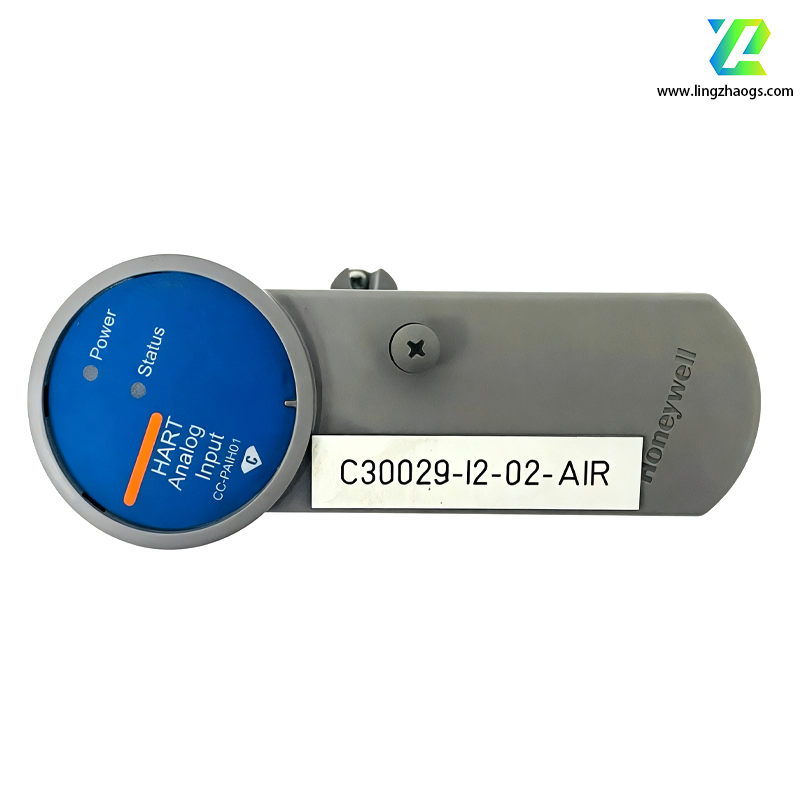

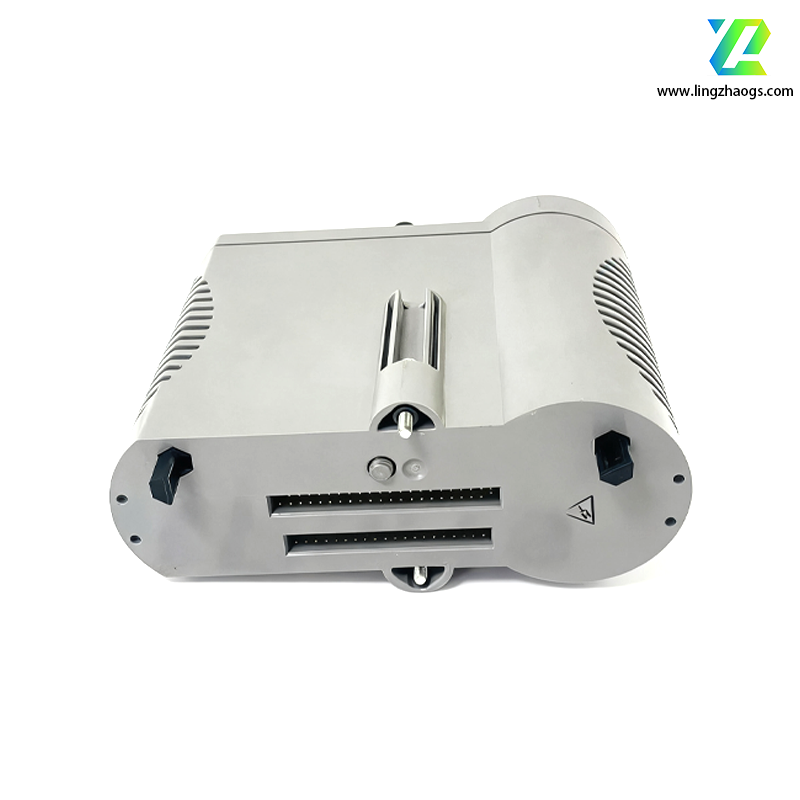

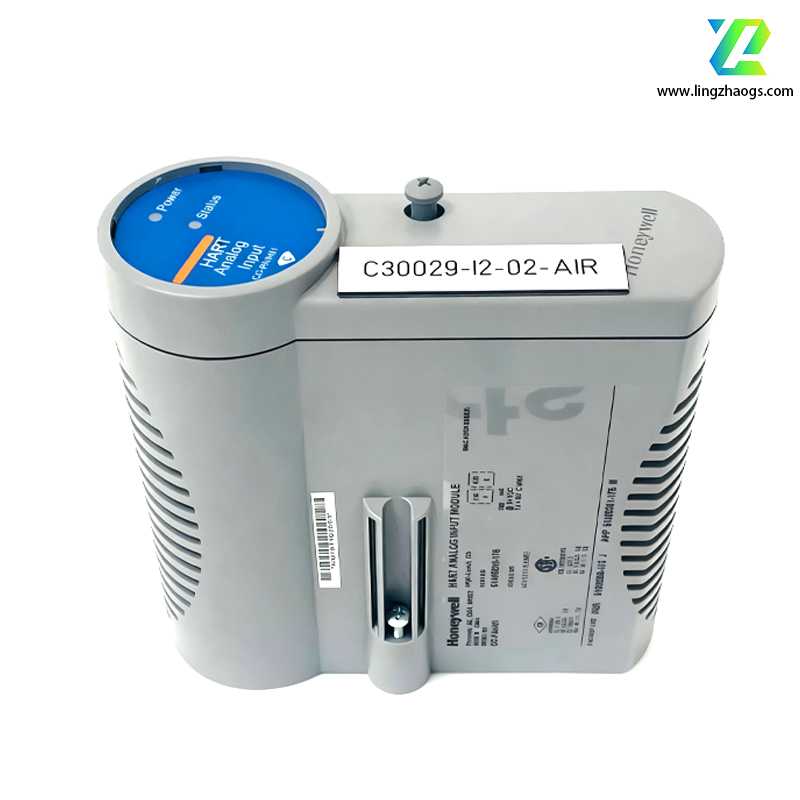

The Honeywell CC-PAIH01 is a high-performance analog input module. Here is the detailed information in English:
- Brand: Honeywell
- Model: CC-PAIH01
- Product Type: Analog Input Module
- Compatibility: Compatible with Honeywell Experion PKS, C300 controller
- Power Supply: 24 VDC
- Input Type: 4 - 20 mA, 0 - 20 mA, ± 10 V (configurable)
- Hart Support: Hart 7 protocol (point - to - point & multidrop)
- Number of Channels: 16 (12 single - ended and 4 differential)
- Resolution: 16 - bit
- Accuracy: ± 0.1% of full scale
- Isolation: 1500 VAC (channel - to - channel)
- Update Rate: Configurable (typical 100 ms per channel)
- Operating Temperature: - 40 °C to + 85 °C
- Environmental Rating: IP20
- Dimensions: 125 mm x 100 mm x 35 mm
- Weight: 0.4 kg
- HART Communication Support: It enables simultaneous analog signal (4 - 20 mA) and HART digital communication. It supports the HART 7 protocol for device configuration and diagnostics, and has a multidrop mode capability (up to 15 devices per channel).
- High - Accuracy Analog Input: With a 16 - bit resolution, it can precisely measure 4 - 20 mA, 0 - 20 mA, and voltage inputs (configurable), featuring ± 0.1% accuracy for reliable process control.
- Channel Isolation & Noise Immunity: The channel - to - channel isolation of 1500 VAC prevents signal interference, and it has advanced filtering for noise reduction in harsh environments.
- Hot - swappable & Redundant Configuration: It supports online replacement (hot - swap) for minimal downtime and is compatible with redundant systems for high availability.
- LED Diagnostics & Status Indication: It has per - channel LED indicators for signal status and faults, as well as module health monitoring for predictive maintenance.
- Oil & Gas Industry: Used for collecting various process parameters such as the liquid level of crude oil storage tanks, pipeline flow, reaction temperature and pressure, etc.
- Power Energy Field: In power plants and substations, it is responsible for collecting the operating parameters of equipment such as generators, transformers, and switchgear, such as current, voltage, temperature, power, etc.
- Manufacturing Production Lines: In automated production lines such as automotive manufacturing and electronic equipment manufacturing, it is used to monitor equipment operating status and product quality inspection.
- Intelligent Building Field: In intelligent buildings such as large - scale commercial complexes and office buildings, it is used to collect environmental parameters such as indoor temperature, humidity, and light intensity, as well as equipment operating status data such as the chilled water temperature and flow of the air - conditioning system, and the current and voltage of the lighting system.
