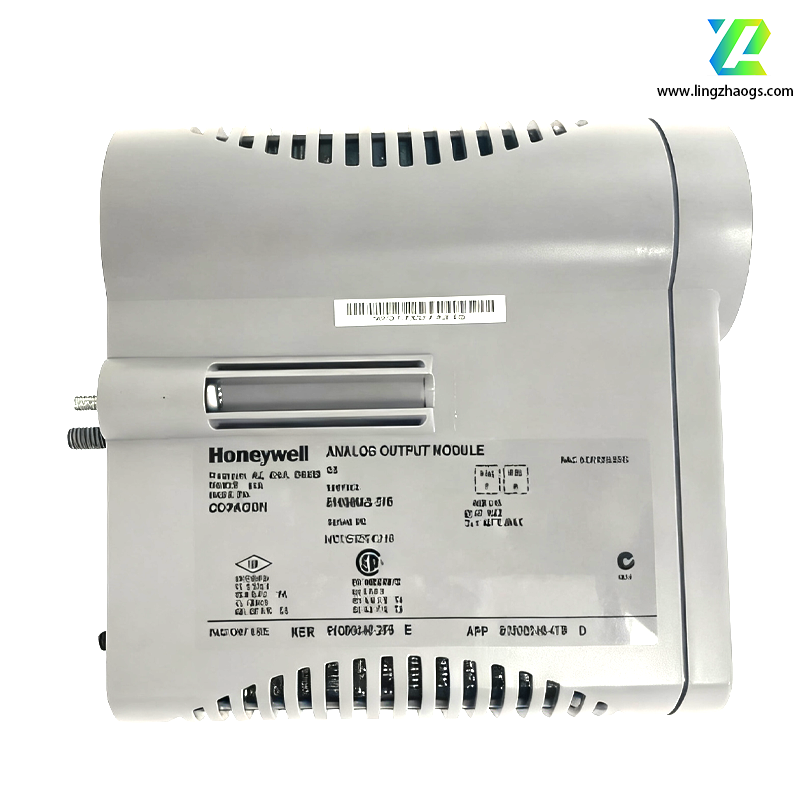

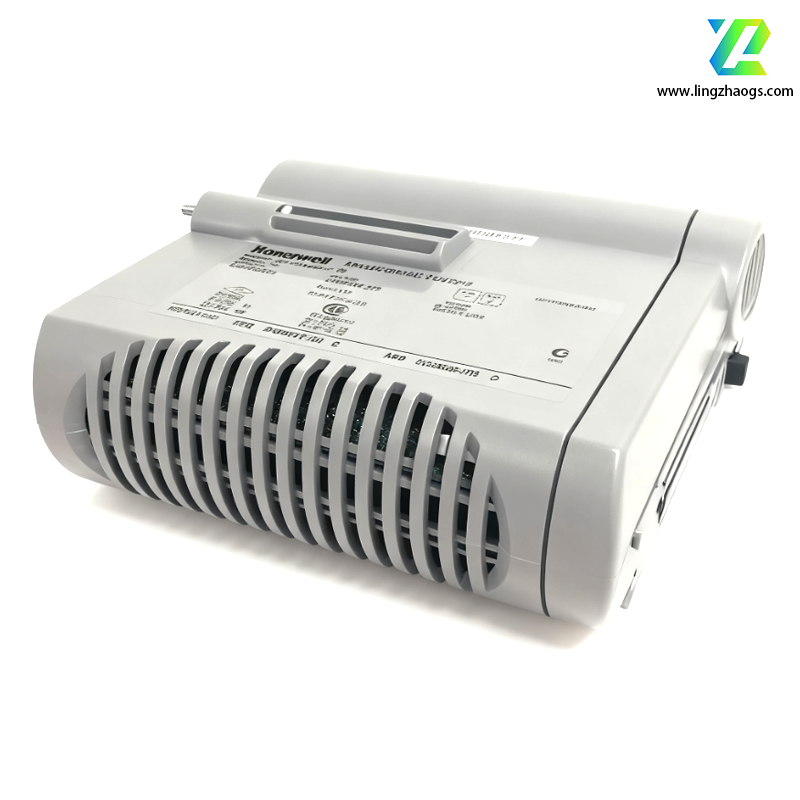

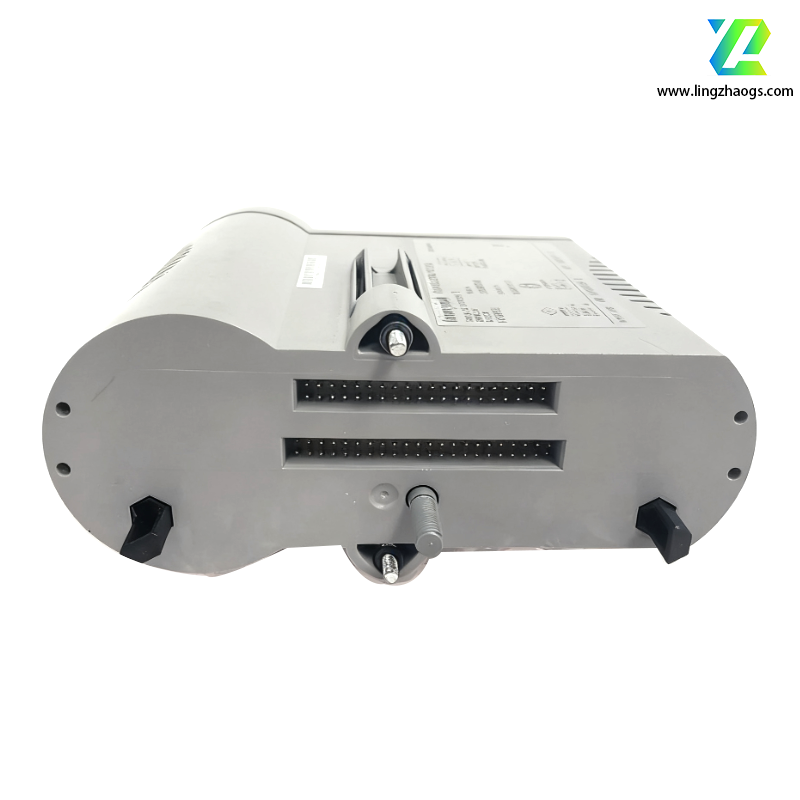

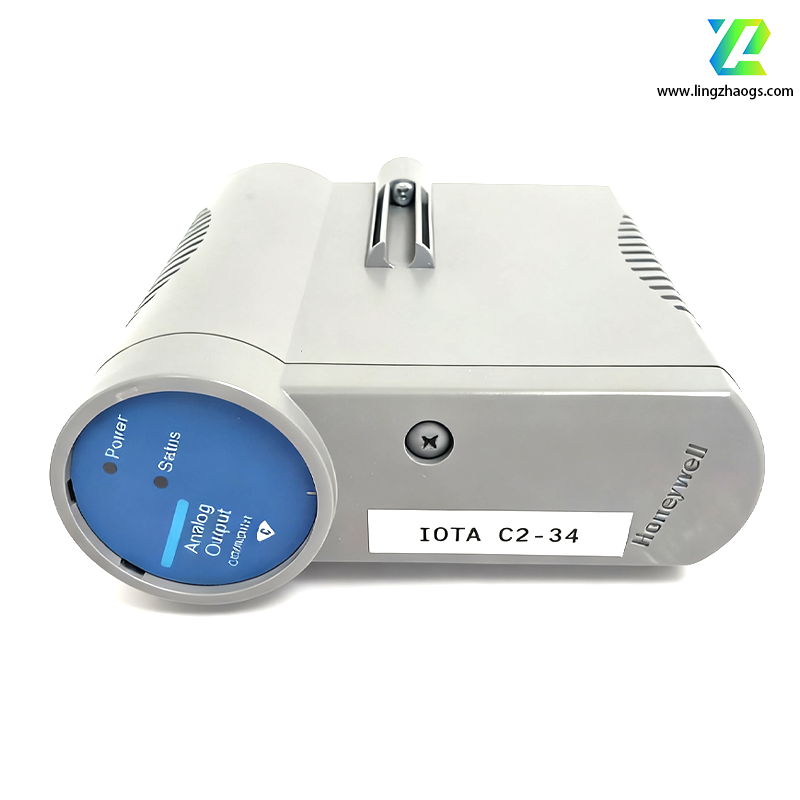

Honeywell 51405039-275 16-channel Analog Output Module

Honeywell

Product Name： Honeywell 51405039-275 16-channel Analog Output Module
Product Categories： Honeywell
Contact： 13394046250
Company Name： Xiamen Lingzhao
Company Address： Phase III of Software Park, Jimei District, Xiamen City, Fujian Province
Add Time： 2025-10-21

Details

The Honeywell 51405039-275 is a 16-channel analog output module designed for industrial process control systems, part of Honeywell’s Experion PKS C300 platform. It converts digital signals from controllers into precise analog current outputs (4–20 mA) to drive field devices like valves, actuators, and motor drives. Below is a detailed breakdown based on verified technical documentation and specifications from authorized distributors:

General Information

Brand: Honeywell
Model: 51405039-275
Product Type: Analog Output Module (Series C I/O, CC-PAOX01 variant)
Application: Oil and gas, chemical processing, power generation, water treatment, and manufacturing.
Function: Provides high-precision analog control signals for closed-loop systems, ensuring reliable operation in harsh environments.

Technical Specifications

Parameter	Specification
Output Configuration	- Channels: 16 (isolated, individually configurable). - Output Type: 4–20 mA (current).
Resolution	- 12-bit (±0.05% full-scale accuracy).
Calibrated Accuracy	- ±0.35% of full scale (at 25°C), including linearity.
Linearity	- ±0.05% of full-scale nominal.
Temperature Drift	- 0.005% of full scale per °C.
Output Ripple	- ≤100 mV peak-to-peak at 250 Ω load.
Settling Time	- ≤80 ms (to within 1% of final value).
Power Supply	- Input Voltage: 24 V DC (±20%, 15–30 V DC range). - Current Consumption: ≤2.5 W (module) + channel-dependent load.
Communication	- Protocol: HART (via embedded HART IP). - Optional: Modbus RTU (via RS-485) for basic configuration (check variant details).
Environmental Ratings	- Operating Temperature: -40°C to +85°C (derived from related models; confirm with Honeywell). - Humidity: 5–95% RH (non-condensing).
Physical Dimensions	- Approximate: 5.5 cm (W) × 16 cm (H) × 14.5 cm (D).
Weight	- Net: ~0.4 kg (0.88 lb).
Certifications	- CE compliant (pending UL/cUL confirmation; consult official documentation).
Safety Features	- Overcurrent protection per channel. - Short-circuit and reverse-polarity protection. - Diagnostic LEDs for channel status.

Key Features

High Precision:
- 12-bit resolution ensures accurate control of analog devices, minimizing process variability.
Flexible Configuration:
- Each channel supports a directly settable output range (0 mA, 2.9–21.1 mA), allowing compatibility with diverse field devices.
HART Communication:
- Embedded HART IP enables direct access to smart field device diagnostics, calibration data, and remote configuration without additional hardware.
Robust Design:
- Industrial-grade construction with conformal coating protects against dust, moisture, and electromagnetic interference (EMI).
Redundancy Support:
- Optional one-on-one redundancy configuration for critical applications, ensuring uninterrupted operation in case of module failure.
Self-Diagnostics:
- Proactive fault detection (e.g., open-wire detection, output discrepancies) with alarms to minimize downtime.

Applications

Process Control: Regulating flow, pressure, and temperature in oil refineries, chemical plants, and water treatment facilities.
Manufacturing: Controlling robotic arms, conveyor systems, and motor drives in automotive or food processing industries.
Power Generation: Managing turbine speed, boiler feedwater, and generator excitation systems.
HVAC Systems: Adjusting dampers, pumps, and chillers in large-scale building automation.

Installation & Integration

Wiring: Connects to field devices via screw terminals or removable terminal blocks. Each channel supports 24 AWG to 14 AWG wires.
Mounting: Rack-mountable (DIN rail or panel) in standard 19-inch enclosures.
Configuration:
- Use Honeywell’s Control Builder software or third-party HART tools (e.g., AMS Device Manager) to set output ranges, enable diagnostics, and configure HART parameters.
Redundancy Setup: Pair with a redundant controller for failover protection, ensuring continuous operation during maintenance or component failure.

Documentation

User Manuals: Available on Honeywell’s official support portal, detailing wiring diagrams, configuration steps, and troubleshooting (e.g., Honeywell Series C I/O Installation Guide).
Datasheets: Provide technical specifications, pinouts, and compliance certifications (e.g., Honeywell CC-PAOX01 Datasheet).
Software Tools: Honeywell’s Field Device Manager (FDM) or third-party HART utilities for parameter tuning and diagnostics.

Notes

Model Variants:
- The 51405039-275 is part of the CC-PAOX01 series, which includes variants with different communication protocols (e.g., Modbus RTU) and channel counts.
Power Calculation:
- Ensure the total load current (sum of all channels) does not exceed the module’s power supply capacity (24 V DC at rated current).
Third-Party Compatibility:
- While HART is standard, verify compatibility with non-Honeywell systems (e.g., Emerson DeltaV, Siemens SIMATIC) during integration.

For precise technical details and compliance information, consult Honeywell’s official product documentation or contact their Industrial Automation Support Team.
