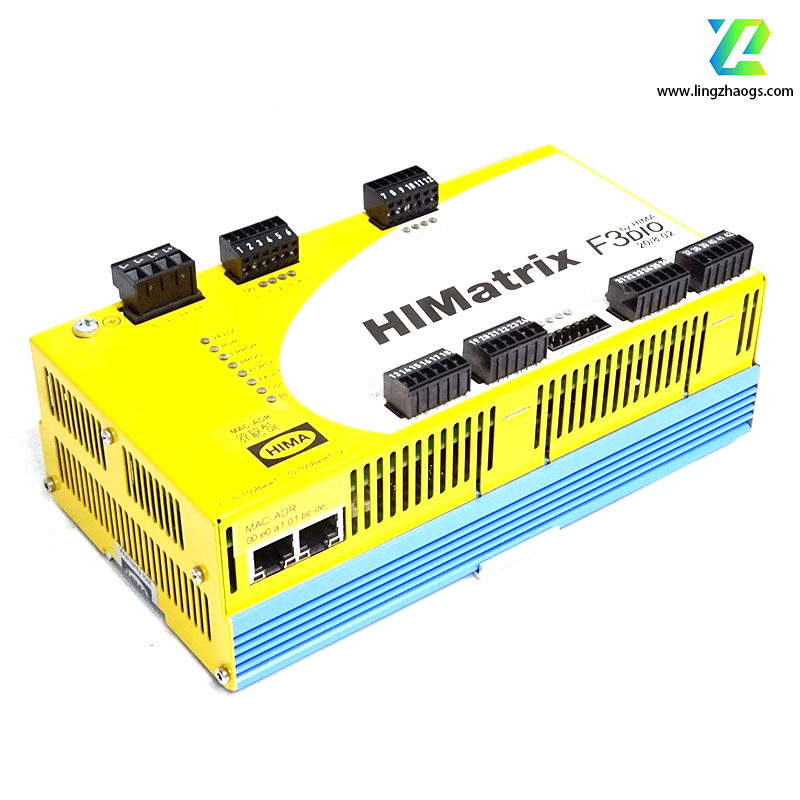

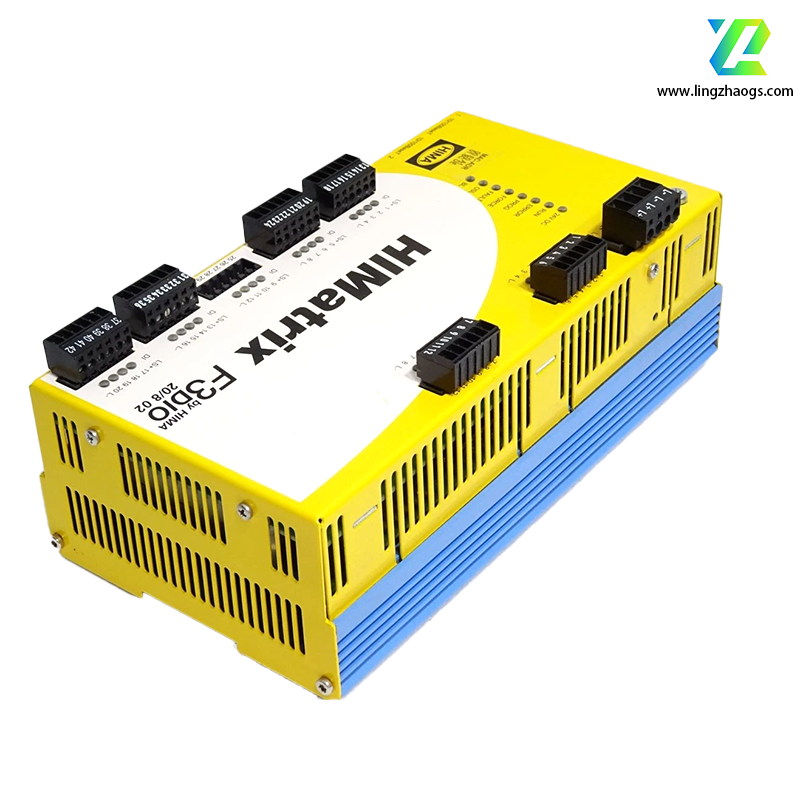

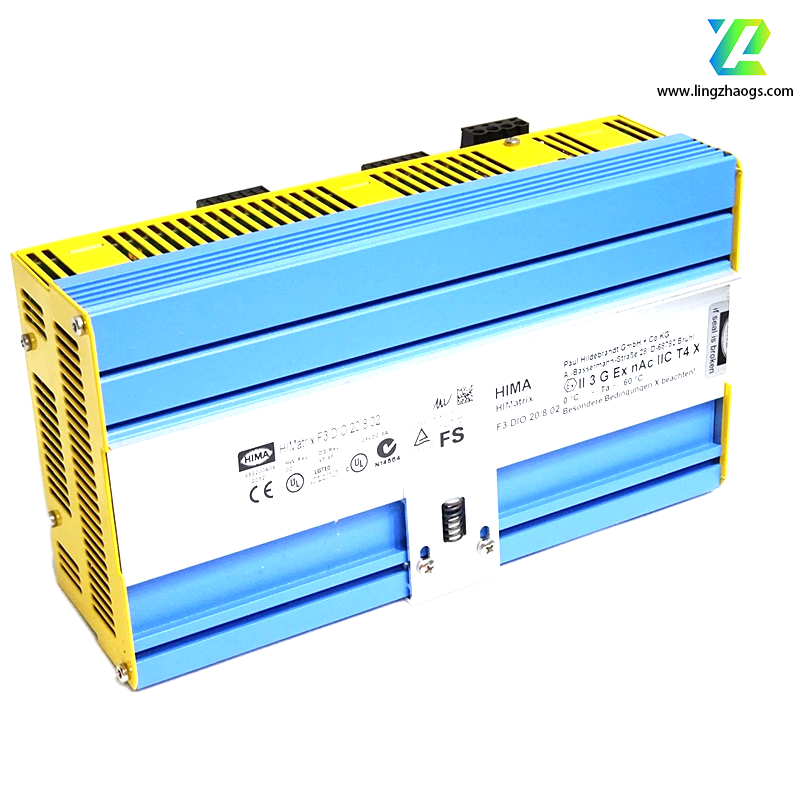

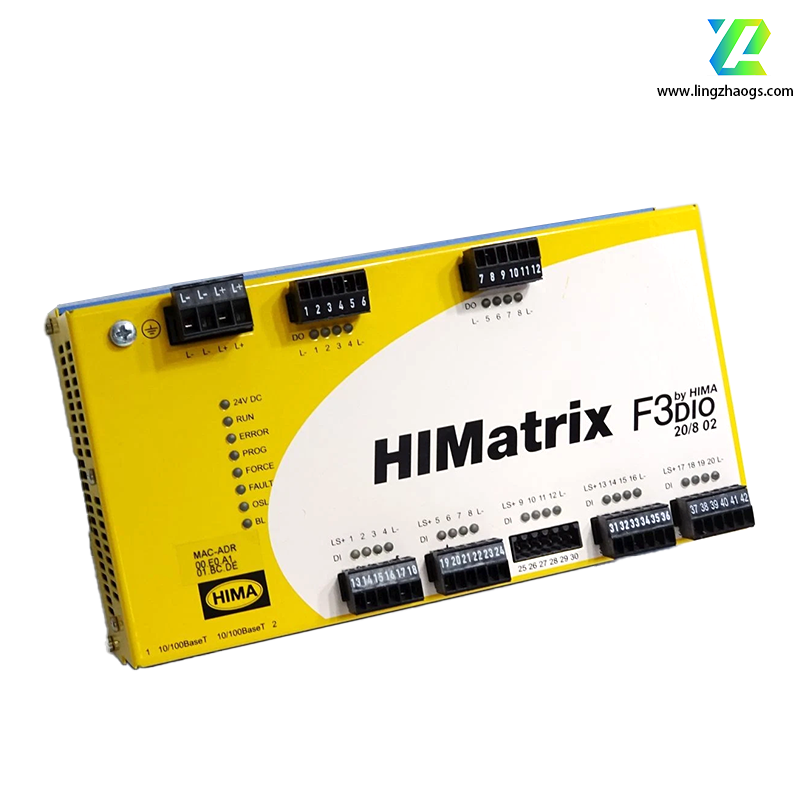

The HIMA F3 DIO 20/8/02 is a digital I/O module launched by HIMA for the industrial automation field. Below is its detailed content:
- Brand: HIMA, a global leader in automation and control technology.
- Model: F3 DIO 20/8/02.
- Type: Digital I/O module.
- Origin: Germany.
- Dimensions: 207mm (width) x 114mm (height) x 66mm (depth).
- Weight: Approximately 1kg.
- Multi-channel I/O: Provides 20 digital input channels and 8 digital output channels. It can flexibly receive signals from various safety sensors and control the actions of safety actuators, enabling precise control and protection of industrial automation systems.
- High Safety Performance: Complies with IEC 61508 SIL 3 certification. Through technical means such as hardware redundancy, fault detection and diagnosis, and automatic switching, it ensures that even if faults or errors occur in equipment, systems, or processes, related hazardous events can be avoided or controlled.
- Compact Design: Adopts a compact metal housing design, which saves valuable space in the control cabinet and is suitable for application scenarios with limited space.
- User-Friendly Configuration: Settings can be simplified through dedicated software, facilitating users to perform parameter configuration and system integration.
- Electrical Isolation: Equipped with current isolation function, ensuring strong noise immunity in harsh electrical environments and guaranteeing reliable operation.
- Wide Voltage Range: The digital input voltage range is 15-30 VDC, and the output voltage range is ≥ L+ minus 2 V, which can adapt to different power supply environments.
- Communication Interface: Equipped with 2 RJ-45 Ethernet interfaces, supporting 10 Base-T/100 Base-TX, with an integrated switch. It enables data communication and integration with other devices, PLCs, SCADA systems, or networks.
- Supply Voltage: 24 VDC, with an allowable deviation of -15% to +20% and a ripple of ≤15%.
- Response Time: ≥10 ms.
- Operating Temperature: 0°C to +60°C.
- Storage Temperature: -40°C to +85°C.
- Protection Class: IP20.
Widely used in process control, factory automation, building automation systems, and any industrial application scenarios that require safe and reliable digital I/O connections, such as power, petrochemical, metallurgy, and other industries.
