HIMA F2DO1601 is a safety-related remote I/O module. The following is its detailed information:
Basic Information: Manufactured by HIMA (Germany), it is classified as a safety-related controller with the part number F2DO1601.

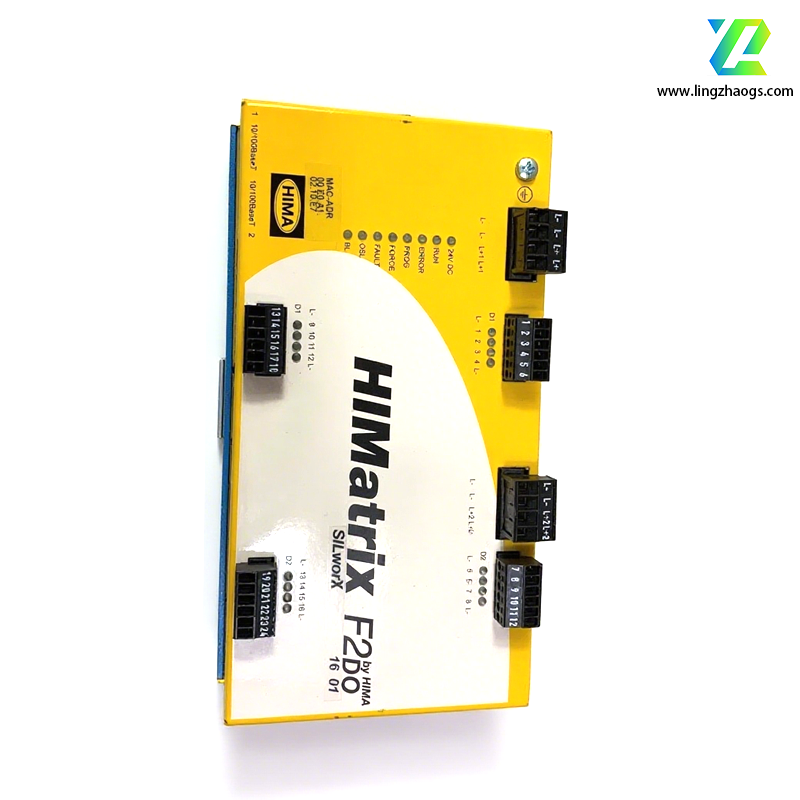

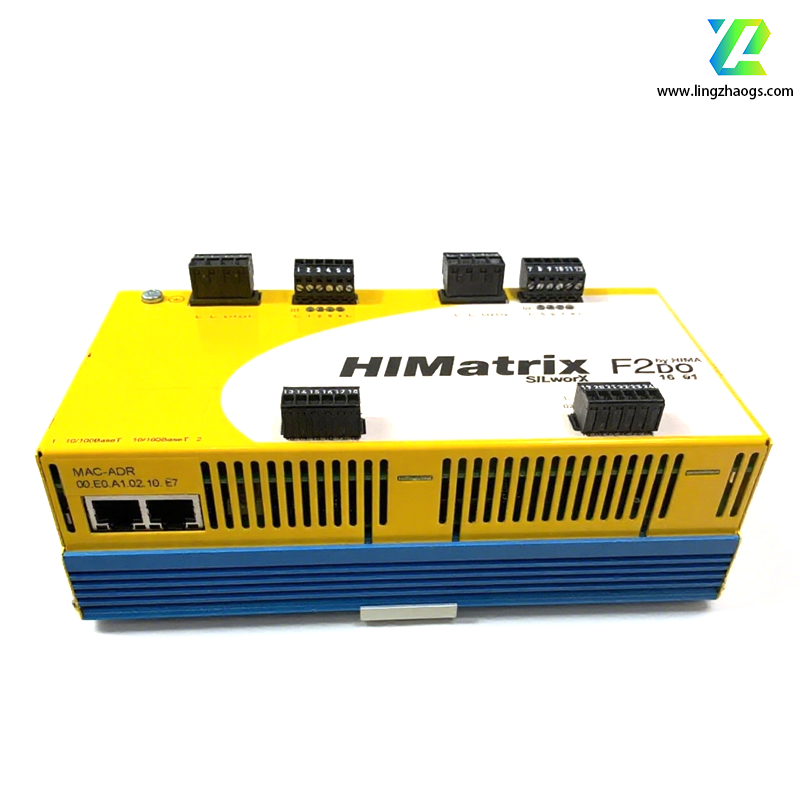

Appearance and Dimensions: It features a metal housing, with dimensions approximately 20.5cm × 8cm × 11cm and a weight of around 0.86kg.
Functional Features: Equipped with 16 digital output channels, each output status can be indicated by an LED, supporting status monitoring and fault diagnosis. This module connects to HIMax or HIMatrix controllers via a safety Ethernet to expand the I/O level and does not process user programs.
Technical Specifications:
- Output voltage: 24VDC
- Operating temperature range: -40°C to +70°C
- Supported communication protocols: PROFIBUS DP, Modbus TCP
- Output current per channel varies with temperature: maximum 2A below 40°C, and maximum 1A between 40°C and 60°C.
Safety Certifications: Complies with the SIL3 (Safety Integrity Level) specified in the IEC 61508 standard and the PL e (Performance Level) specified in the ISO 13849-1 standard.
Application Fields: Suitable for industrial automation, process control, medical equipment, chemical industry, petroleum, and other fields with high safety requirements.

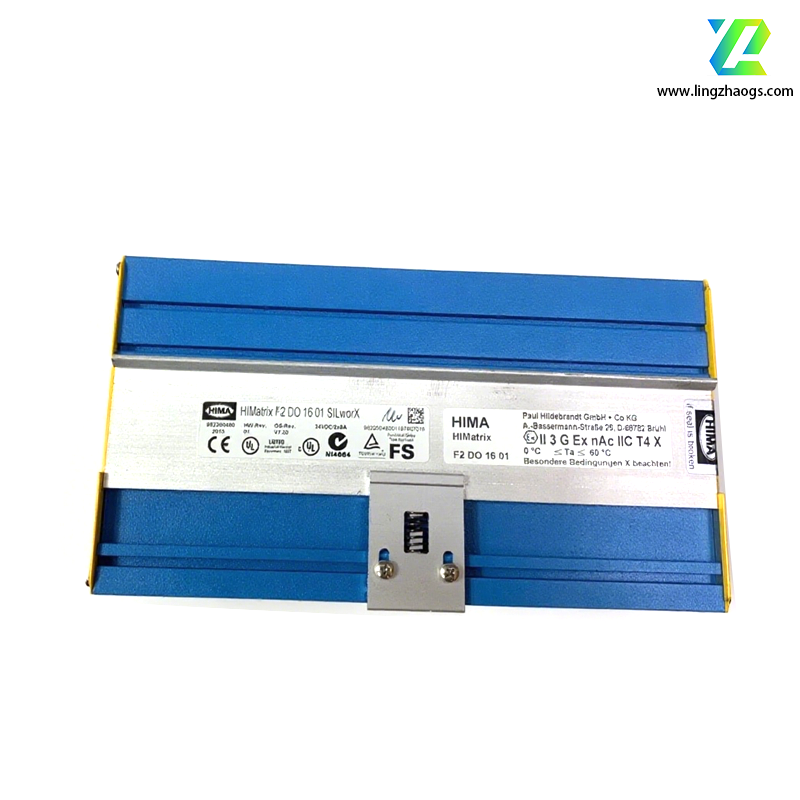

Installation and Maintenance: It needs to be mounted on a 35mm DIN rail and can be configured via SILworX or ELOP II Factory. It supports fault diagnosis and maintenance—no maintenance is required during normal operation, and replacement or repair is needed in case of a fault.
